100W LED Dimmer Module – 8-Step Fade Control, 5–24V

$10.04 $13.59

100W LED Dimmer Module – 8-Step Precision Fade Control for Low-Voltage Strip Lights

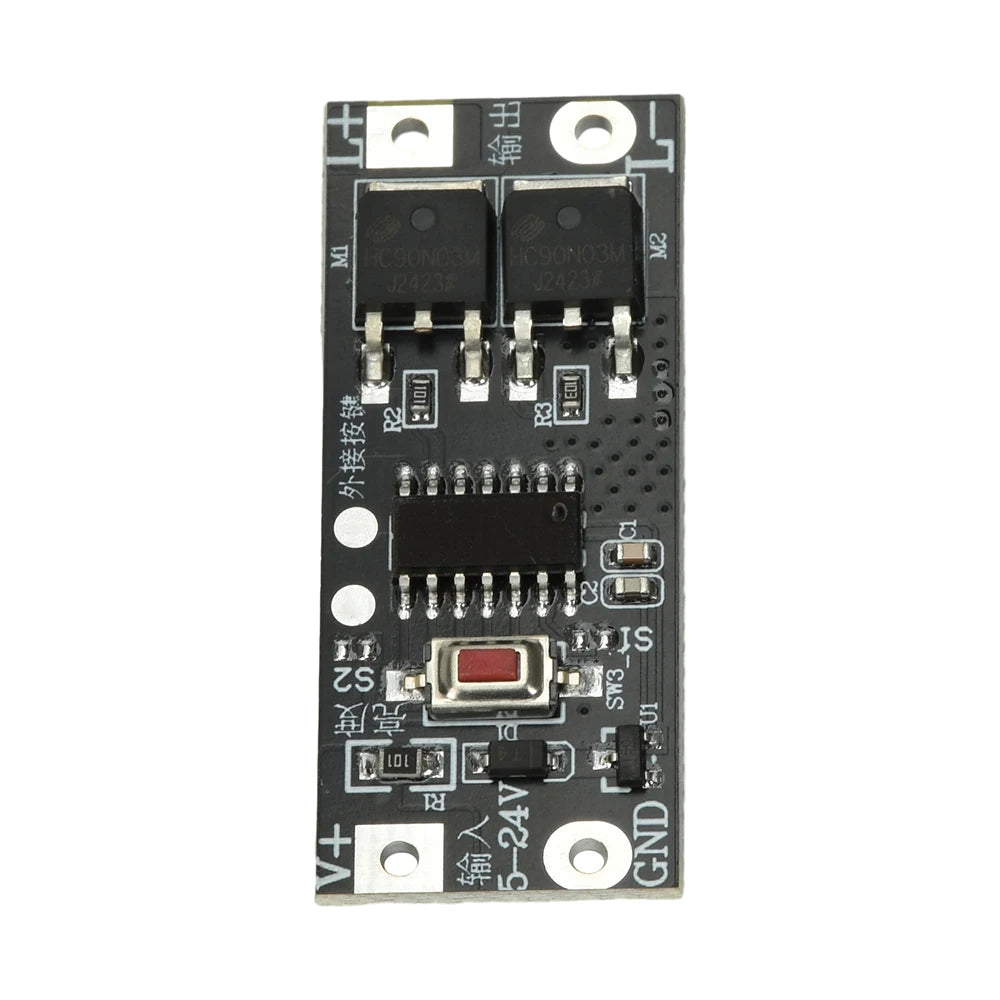

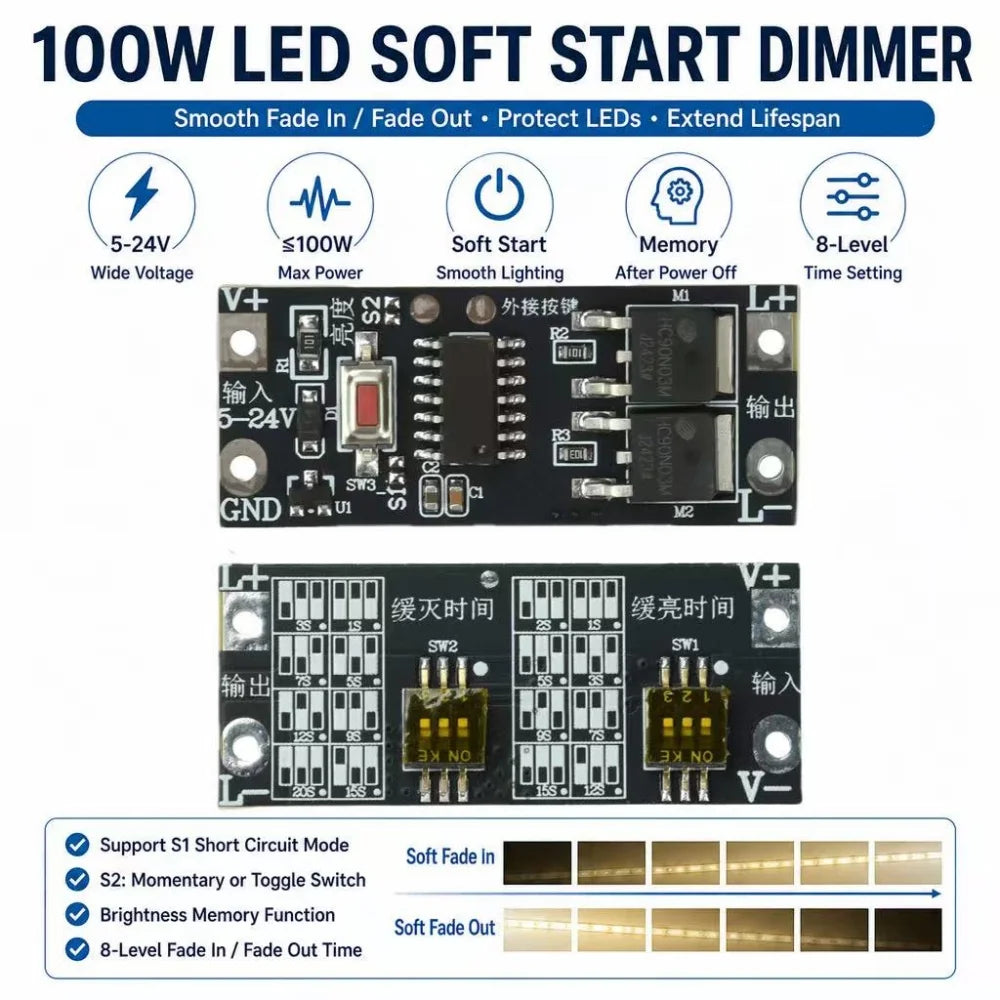

Take full control of your LED strip lighting with this compact yet powerful 100W LED Dimmer Driver Module by Gaqqee. Designed for low-voltage environments (5–24V), this module delivers smooth, customizable fade-in and fade-out transitions through 8-step DIP switch precision — perfect for home automation, display lighting, mood lighting, and DIY electronics projects.

Key Features

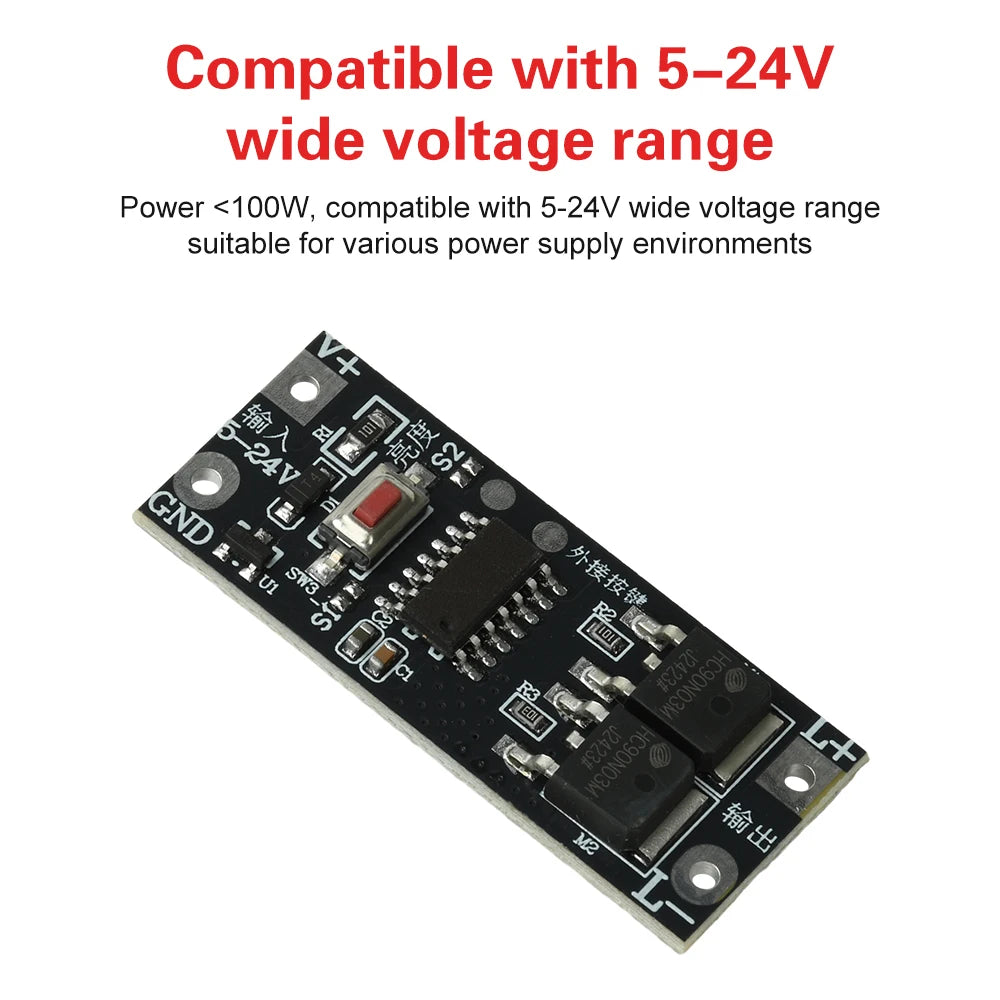

Wide Voltage Compatibility: Supports 5–24V DC input, making it suitable for a broad range of power supplies and LED strip setups.

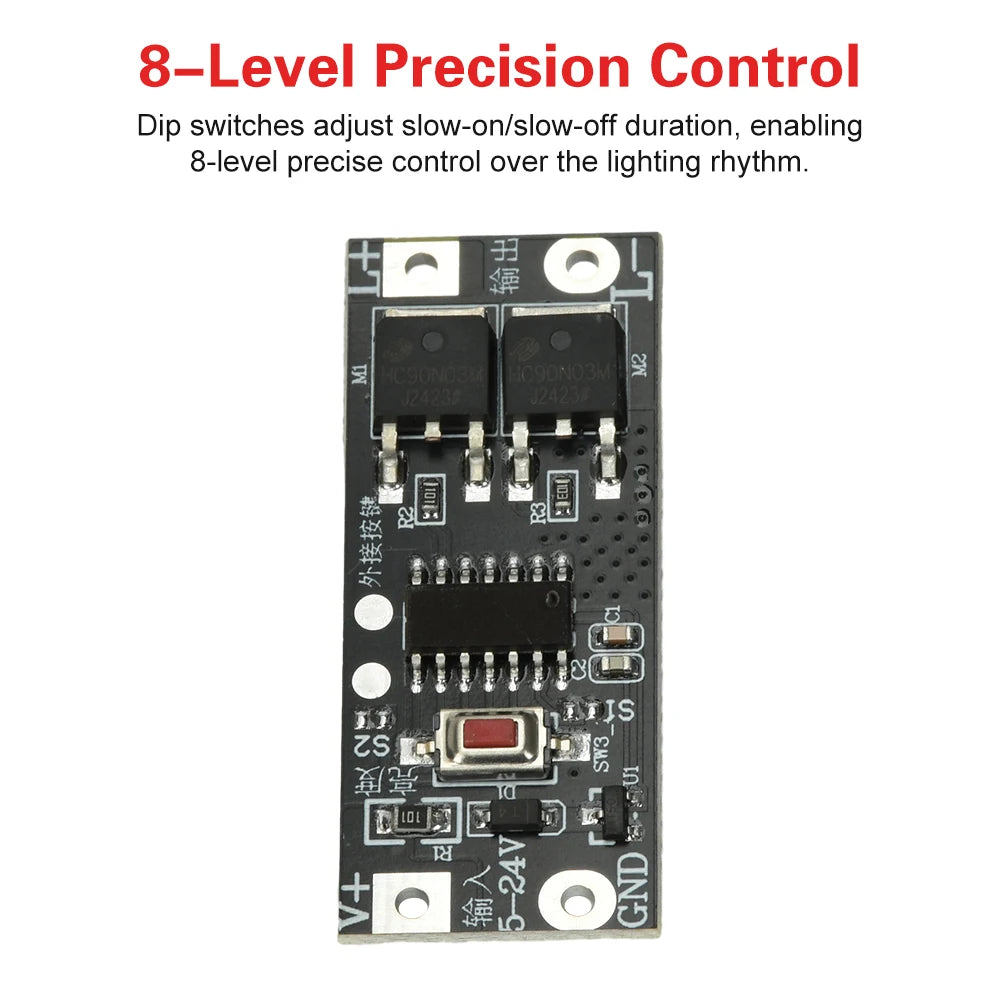

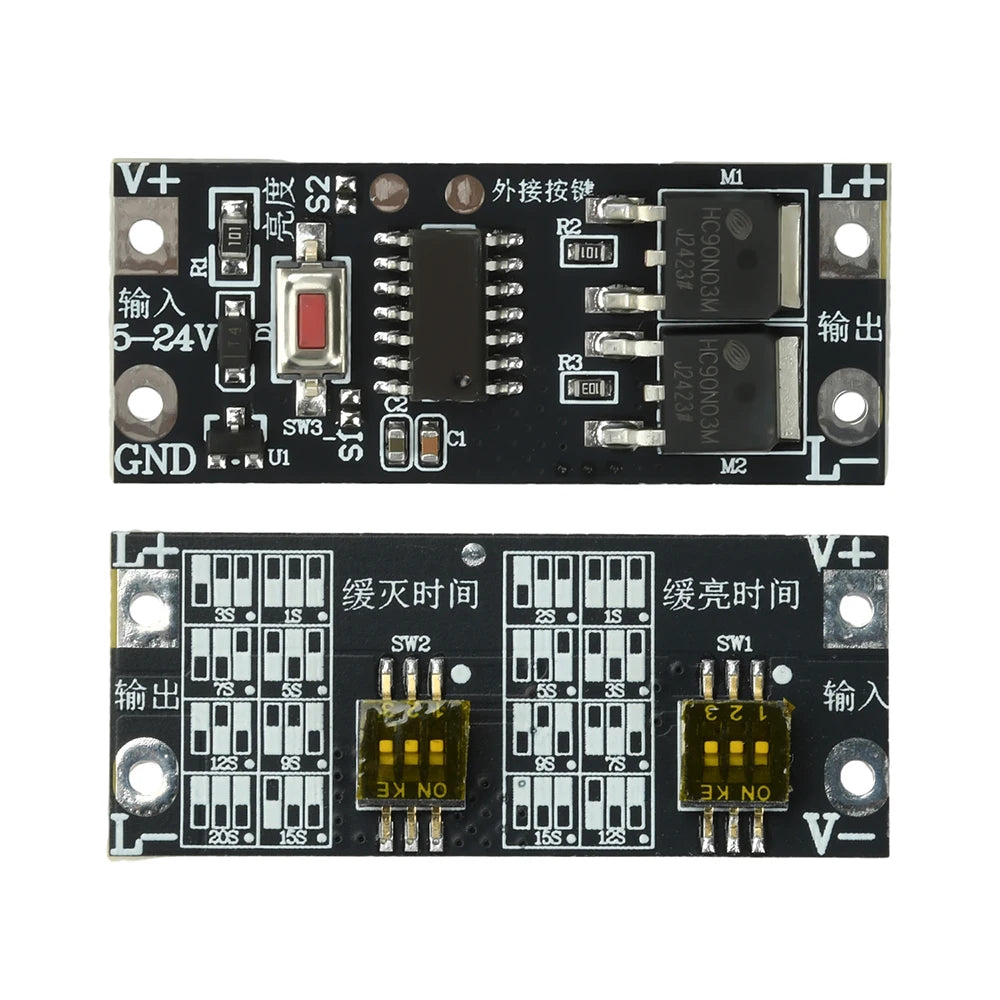

8-Step Fade Control: DIP switches let you independently configure fade-in (1s, 2s, 3s, 5s, 7s, 9s, 12s, 15s) and fade-out (1s, 3s, 5s, 7s, 9s, 12s, 15s, 20s) durations for silky-smooth soft start and soft stop transitions.

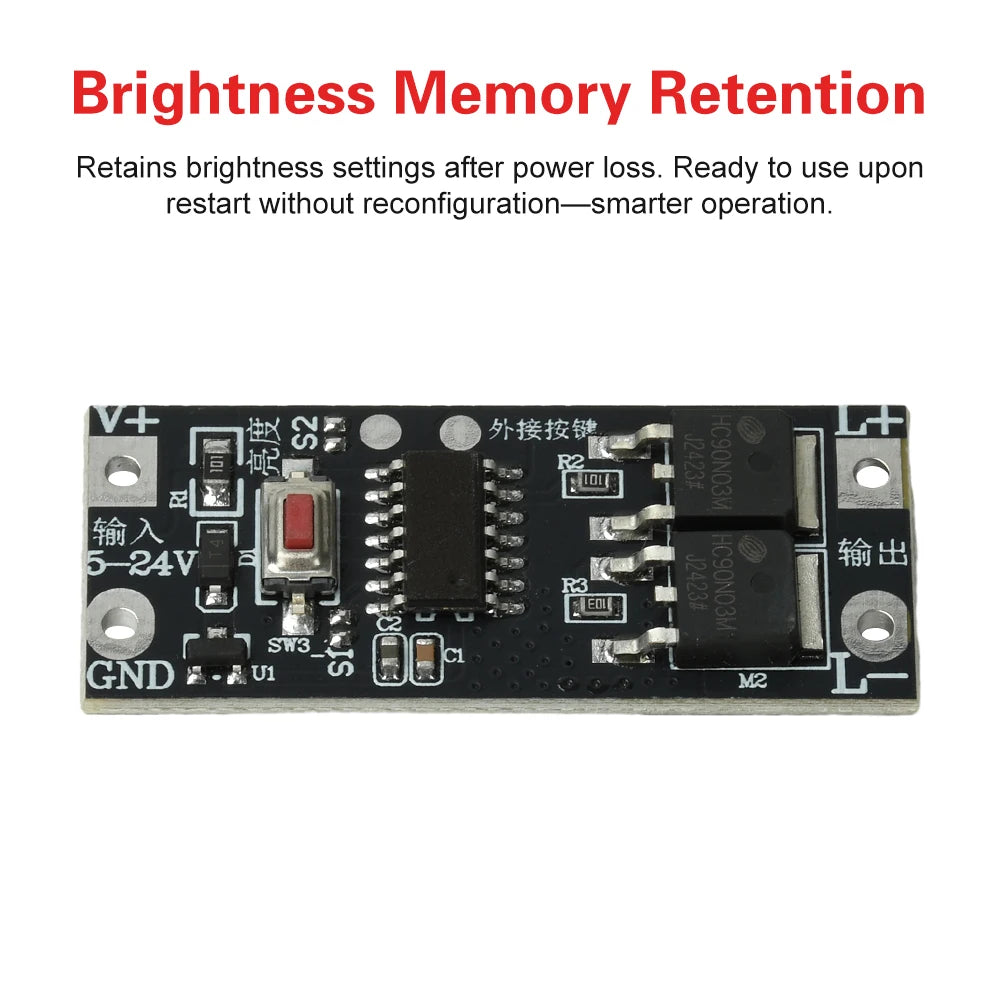

Brightness Memory Function: Automatically remembers the last brightness level after a power cycle — no need to readjust every time.

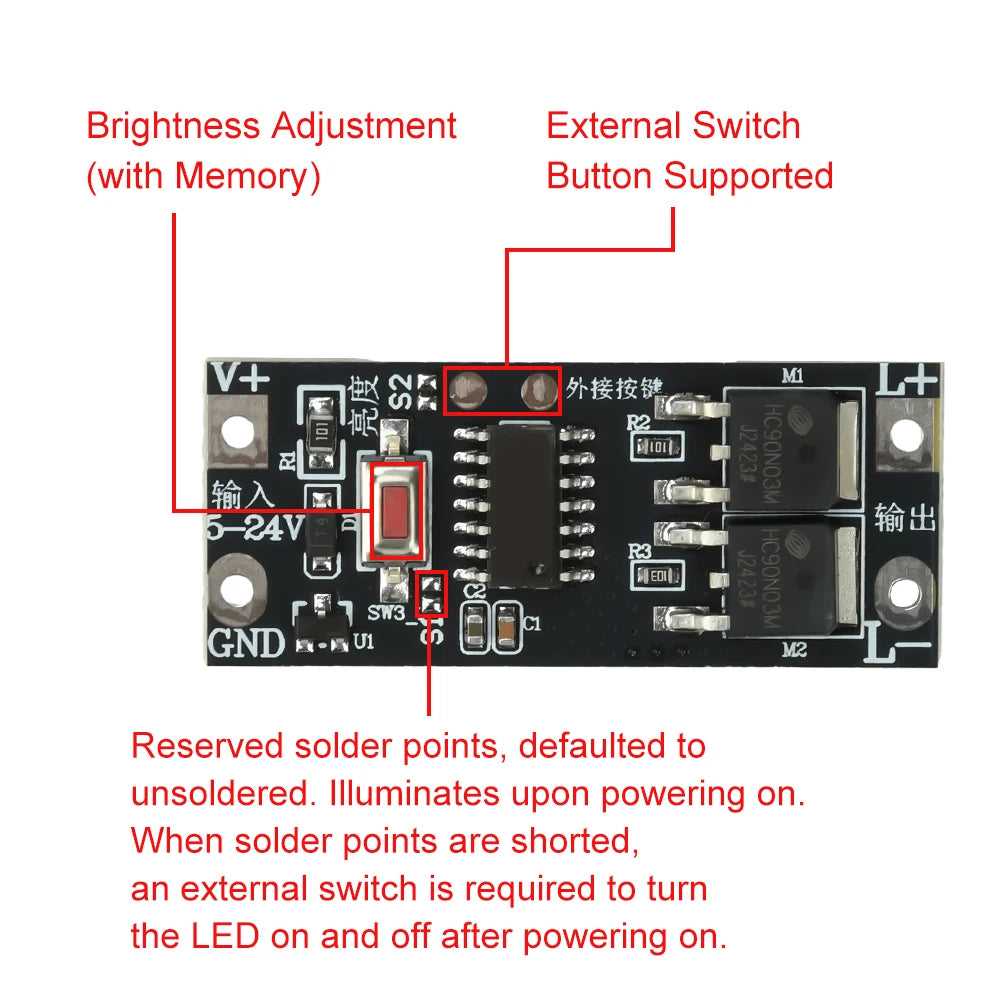

Dual Switch Configurations (S1 & S2):
- S1 Unshort-circuited: LEDs gradually brighten upon power-on.
- S1 Short-circuited: LEDs remain off at power-on; an external button activates gradual brightening for added energy efficiency.
- S2 Unsoldered: Works with a momentary/touch-activated button.
- S2 Short-circuited: Works with a physical toggle or knife switch.
Low Power Consumption: Efficient design keeps energy usage minimal during standby and operation.
On-Board Brightness Adjustment: Red on-board switch allows manual brightness regulation.
Max Load: ≤100W — handles most standard LED strip lighting configurations with ease.

Specifications

Power Range	≤ 100W
Input Voltage	5V – 24V DC
Package Type	TQFP Module
Fade-In Steps	1s, 2s, 3s, 5s, 7s, 9s, 12s, 15s
Fade-Out Steps	1s, 3s, 5s, 7s, 9s, 12s, 15s, 20s
Switch Options	Momentary / Toggle / Knife Switch
Brightness Memory	Yes
Quantity	1 × Dimmer Module
Country of Origin	Made in China

What's in the Box

1 × LED Dimmer Module

Perfect For

LED strip light control in home, office, or workshop environments
DIY electronics and smart lighting projects
Display case and under-cabinet lighting
Computer and gaming desk ambient lighting setups
Automated lighting systems with soft start/stop functionality

Frequently Asked Questions

Q: What voltage range does this LED dimmer module support?

A: This LED dimmer module supports a wide input voltage range of 5V to 24V DC, making it compatible with most standard low-voltage LED strip lights and power supplies commonly used in home and DIY lighting projects.

Q: Can I use a regular toggle switch with this dimmer module?

A: Yes! By short-circuiting the S2 solder pad, the module is configured to work with a physical toggle switch or knife switch. If S2 is left unsoldered, it operates with a momentary/touch-activated button instead.

Q: Will this module remember my brightness setting after a power outage?

A: Absolutely. The built-in brightness memory function retains your last brightness level even after power is disconnected. When power is restored, the LED strip resumes at the same brightness without any manual readjustment.

Q: How do I adjust the fade-in and fade-out speed?

A: The fade-in and fade-out durations are independently configured using the onboard DIP switches. Fade-in can be set to 8 different durations (1s–15s) and fade-out to 8 durations (1s–20s), giving you precise control over the lighting transition rhythm.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
