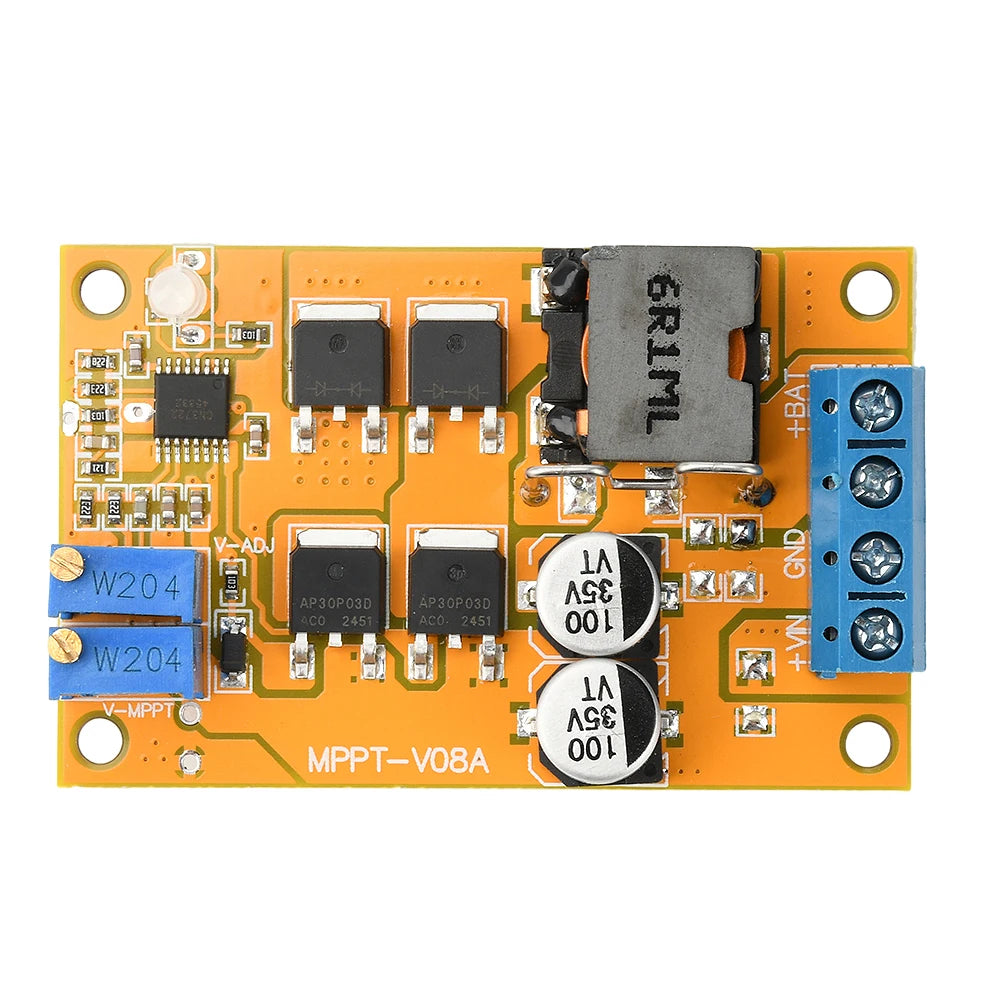

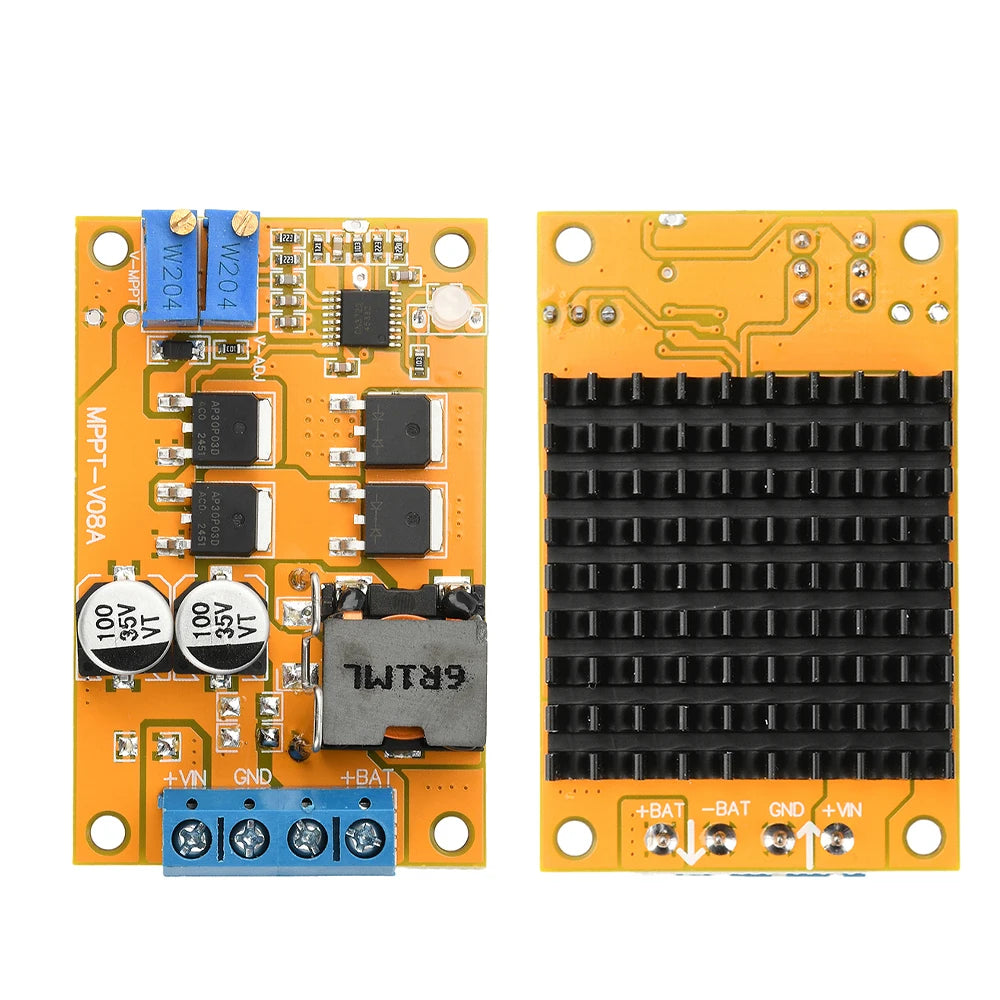

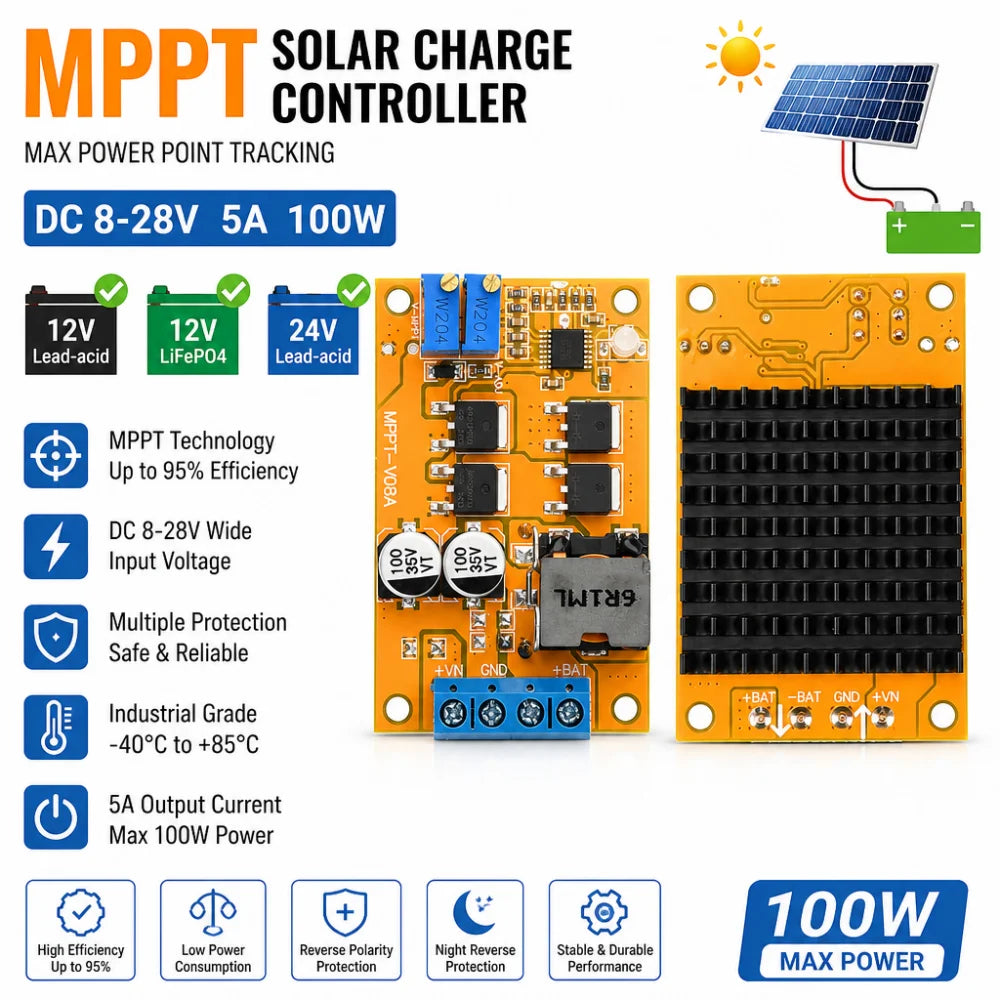

100W MPPT Solar Charge Controller Module – 5A, DC 8-28V
Maximize every ray of sunlight with this intelligent 100W MPPT Solar Charge Controller from Gaqqee. Using genuine Maximum Power Point Tracking (MPPT) technology, this compact module automatically optimizes charging current in real time, delivering up to 95% peak conversion efficiency. Whether you're powering solar street lights, battery banks, or off-grid systems, this controller keeps your batteries charged smartly and safely — day or night. Made in Mainland China.
Key Features
- True MPPT Technology: Continuously tracks and locks onto the solar panel's maximum power point, preventing slow charging caused by battery voltage dragging down panel output.
- Wide Input Voltage Range: Accepts DC 8–28V input, compatible with 1W–100W solar panels operating at 9V–28V — including lead-acid, lithium, lithium iron phosphate, and nickel-based battery types.
- Fully Adjustable Output: Output voltage is infinitely adjustable from DC 5–26V with up to 5A output current, supporting single and multi-cell battery configurations.
- Ultra-Low Power Consumption: Advanced low-dropout design minimizes voltage loss and boosts conversion efficiency (Max: 93% | Peak: 95%).
- Intelligent 3-Stage Charging: Fully automatic trickle → constant-current → constant-voltage charging cycle with auto-stop on full charge and sleep mode at night.
- Dual LED Charging Indicators: Red LED = rapid charging; alternating red/blue = fully charged; auto-stops to prevent overcharging.

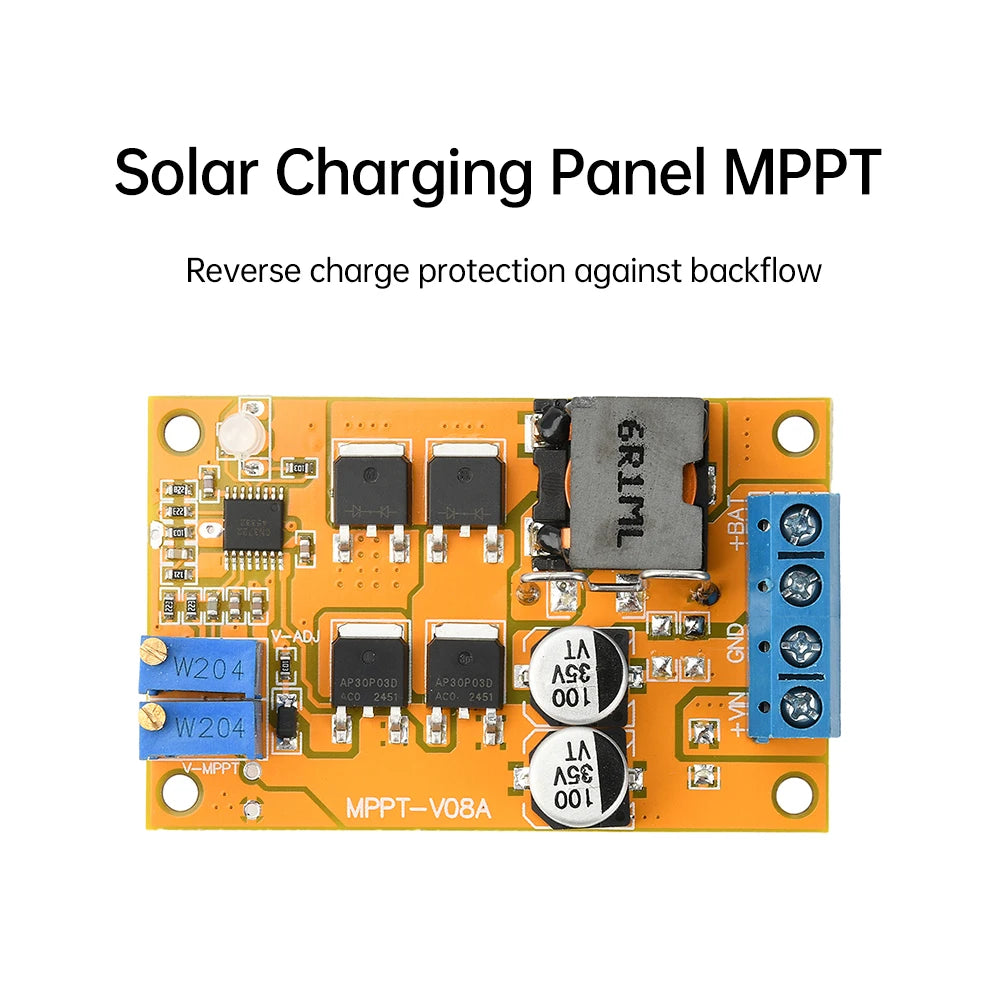

- Comprehensive Protection: Input/output reverse polarity protection, night-time backflow prevention, and soft-start function safeguard both the module and your batteries.
- Industrial-Grade Durability: Rated for –40°C to +85°C operating temperatures for reliable performance in extreme environments.

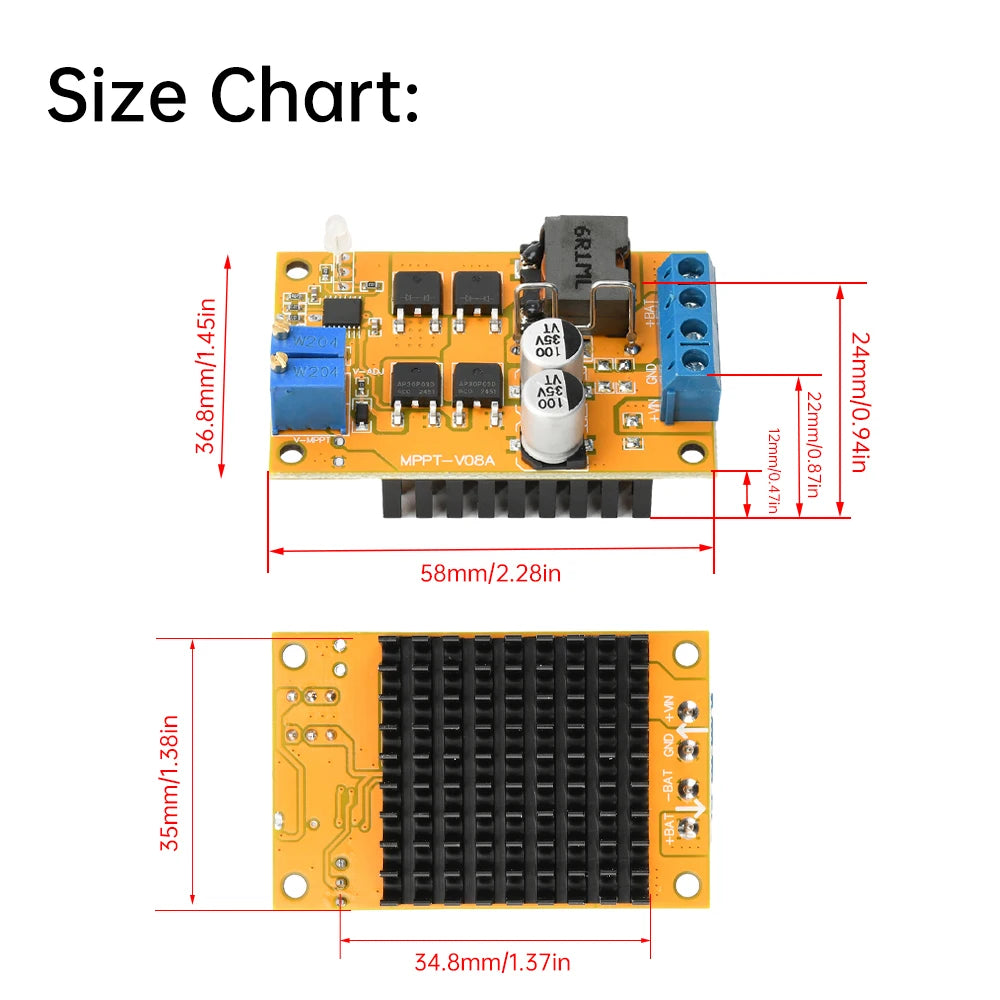

- Compact Form Factor: Measures just 5.8 × 3.7 × 2.2 cm — easy to integrate into any solar project.
Technical Specifications
| Input Voltage | DC 8–28V |
| Output Voltage | DC 5–26V (infinitely adjustable) |
| Output Current | 5A (max) |
| Maximum Power | 100W |
| Conversion Efficiency | Max 93% | Peak 95% |
| PWM Switching Frequency | 300kHz |
| No-Load Current | 3mA |
| Minimum Voltage Drop | 1V |
| Load Regulation | ±1% |
| Voltage Regulation | ±0.5% |
| Operating Temperature | –40°C to +85°C (industrial grade) |
| Dimensions | 5.8 × 3.7 × 2.2 cm |
| Wiring | Terminal blocks provided |
| Quantity | 1 Module |
Compatible Battery Types
- 6V / 12V Lead-Acid batteries
- 8.4V, 12.6V, 16.8V Lithium batteries
- 7.2V, 10.8V, 14.4V Lithium Iron Phosphate (LiFePO4) batteries
- 2–4 series lithium battery packs
- Nickel-Cadmium (NiCd) & Nickel-Metal Hydride (NiMH) batteries
Typical Applications
- Solar street lighting systems
- Off-grid solar power setups
- Wind turbine charging systems
- Portable battery bank charging
- DIY solar energy projects (9V, 12V, 18V, 24V systems)
Quick Setup Guide

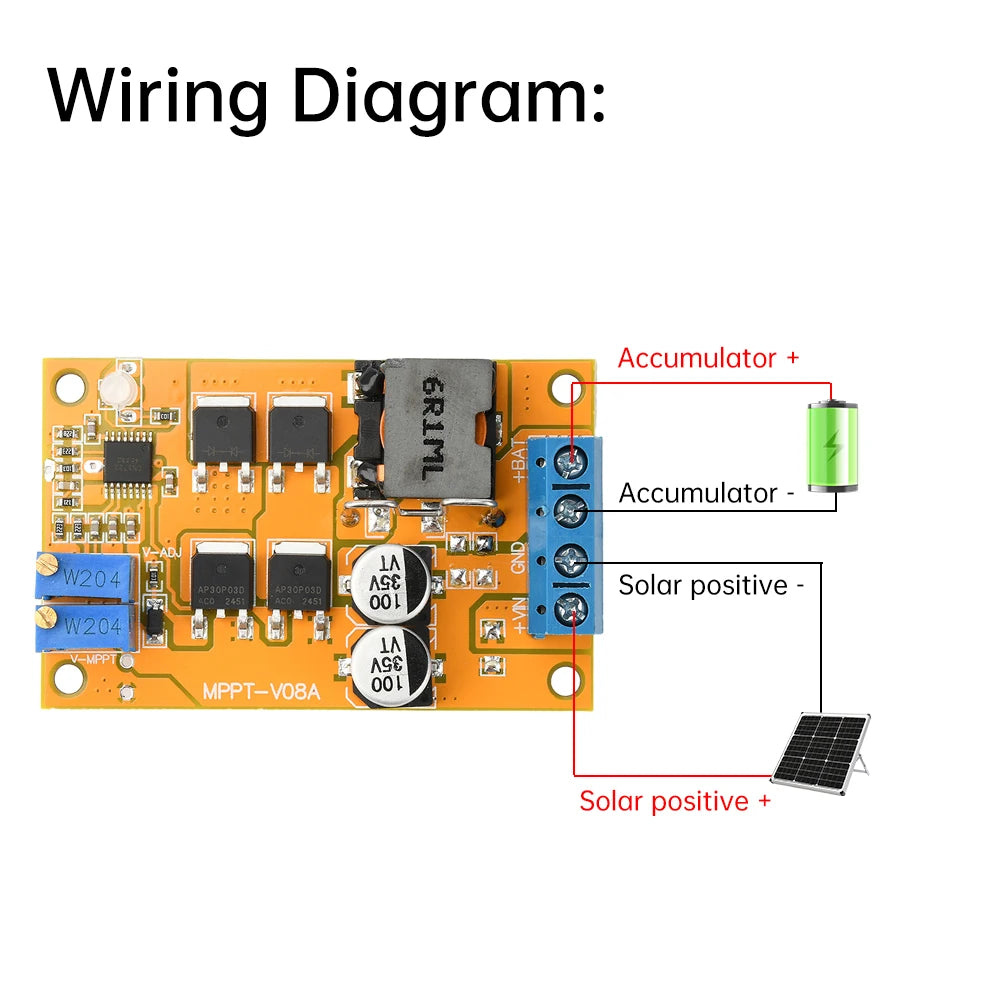

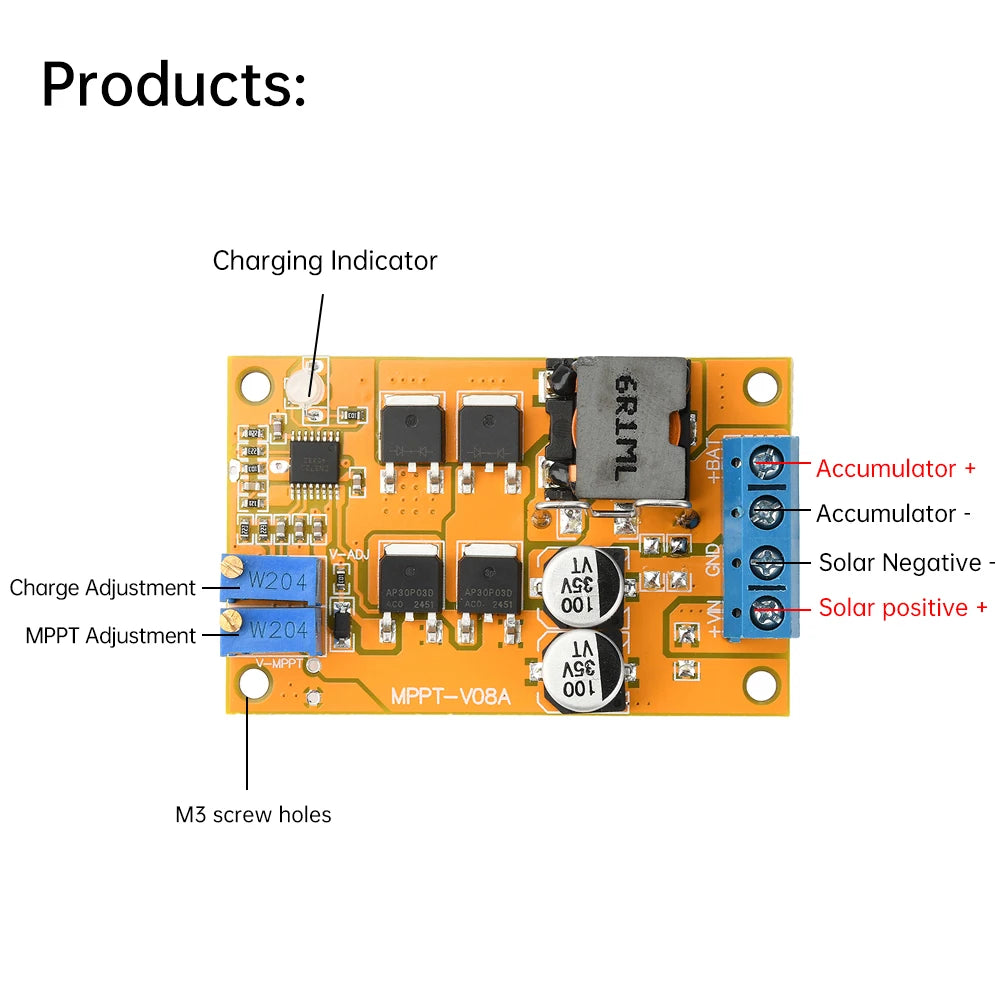

- Step 1: Connect the solar panel (no battery yet). If output voltage is present, proceed. If not, turn the MPPT knob anticlockwise until output voltage appears.
- Step 2: Turn the output voltage knob anticlockwise until both indicator lights flash. Coarsely adjust output voltage to the intended full-charge cut-off voltage.
- Step 3: Connect the discharged battery and use an inline ammeter to monitor charging current. Fine-tune the MPPT potentiometer until current peaks.
- Step 4: Test with a fully charged battery. If blue light is on, increase output voltage clockwise until red activates, then slowly reduce until blue just illuminates. Confirm cut-off voltage with a multimeter.
⚠️ Important: Pre-adjust output voltage before the first charge and monitor battery voltage closely to prevent overcharging. Do not charge unprotected lithium batteries.
