2.4G Ceramic Patch Antenna – WiFi ZigBee Bluetooth IoT

$21.94 $29.69

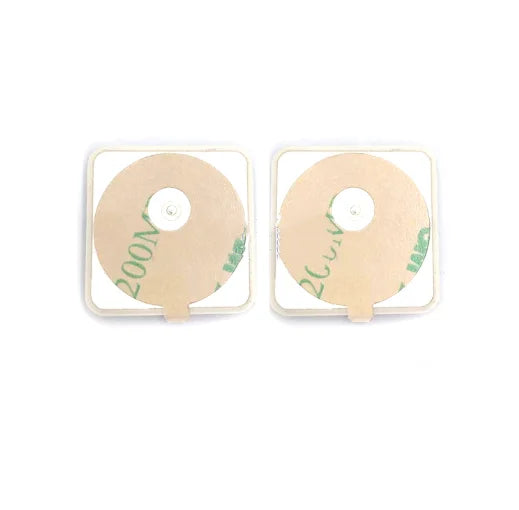

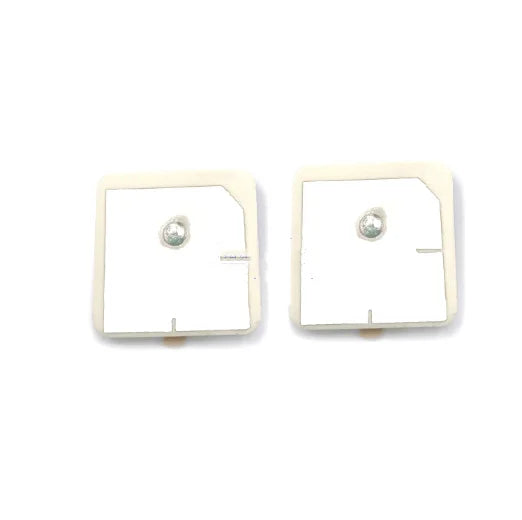

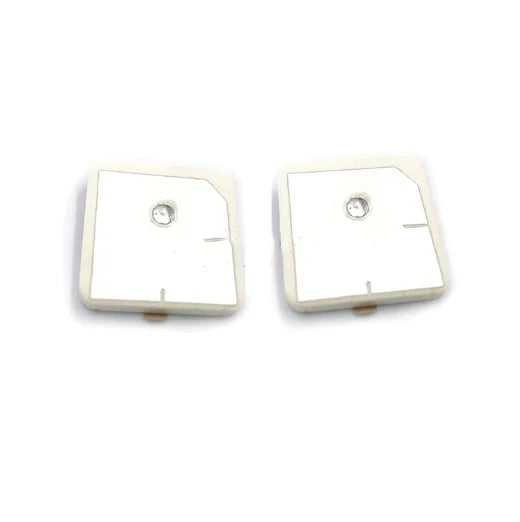

2.4G Ceramic Patch Antenna for WiFi, ZigBee, Bluetooth & IoT Modules

Upgrade your wireless project with this high-performance 2.4G Ceramic Patch Antenna. Engineered for the 2400–2500 MHz frequency band, it delivers strong, stable signal transmission for WiFi, ZigBee, Bluetooth, and a wide range of IoT and smart-home applications. Its compact, surface-mount patch design makes it ideal for integration into PCBs, enclosures, and wireless data transmission modules where space and signal quality both matter.

Made in Mainland China.

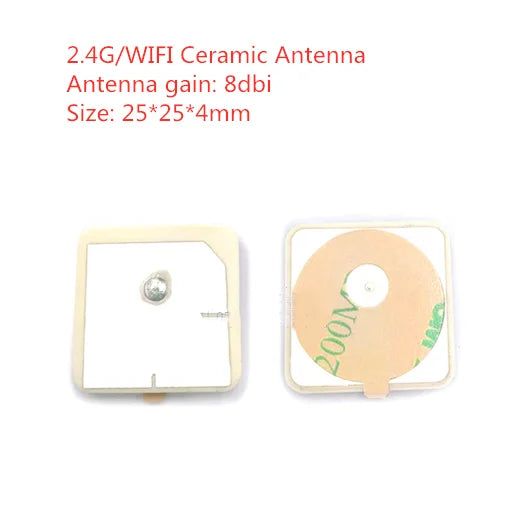

Key Specifications

Frequency Range: 2400–2500 MHz (2.4G)
Antenna Gain: 8 dBi
Antenna Dimensions: 25 × 25 × 4 mm
Standing Wave Ratio (SWR): ≤ 1.8
Impedance: 50 Ohms
Assembly Required: No – ready to install straight out of the box

Why Choose This Ceramic Patch Antenna?

✅ Broad Compatibility – Works seamlessly with WiFi, ZigBee, Bluetooth, and IoT wireless modules
✅ Compact Patch Design – Ultra-slim 4mm profile fits neatly into tight PCB layouts and enclosures
✅ High Gain – 8 dBi gain ensures reliable long-range wireless data transmission
✅ Low SWR – ≤1.8 standing wave ratio means minimal signal reflection and maximum efficiency
✅ Standard 50 Ohm Impedance – Matches the majority of RF modules and evaluation boards
✅ Custom Options Available – Different cable lengths and connector types can be arranged; contact us for bulk or custom orders

Ideal Applications

Smart home automation (ZigBee hubs, Bluetooth gateways)
WiFi routers, access points, and repeaters
Industrial IoT sensors and wireless data loggers
Hobbyist and maker electronics (Arduino, Raspberry Pi, ESP32 modules)
Wireless remote control systems

Also Available From Our Antenna Range

The manufacturer produces a full line of antennas covering 2.4G, 5G, 5.8G, GSM, GPRS, NB-IoT, GPS, 433M, 470M, and more — including built-in PCB, FPC, spring, copper tube, external rod, suction-cup, and patch styles. Contact us for bulk pricing and custom configurations.

Looking for storage solutions for your small electronic components? Check out our Airtight Transparent PET Storage Bottle — perfect for keeping tiny connectors, beads, and hardware organised. For a handy portable container on the workbench, the Ceramic Mini Sealed Storage Jar is a great compact option.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What wireless protocols is this 2.4G ceramic patch antenna compatible with?

A: This ceramic patch antenna operates in the 2400–2500 MHz frequency range, making it fully compatible with WiFi (802.11 b/g/n), ZigBee, Bluetooth (Classic and BLE), and virtually any 2.4 GHz IoT wireless module or microcontroller platform such as ESP32, ESP8266, nRF24L01, and similar devices.

Q: Can I get a custom cable length or connector type for this antenna?

A: Yes! Custom cable lengths and connector types (such as SMA, IPEX/U.FL, RP-SMA, etc.) are available. Please contact us directly with your specifications, and we will accommodate bulk or custom orders with fast turnaround.

Q: What is the impedance of this ceramic patch antenna and why does it matter?

A: The antenna has a standard 50 Ohm impedance, which matches the vast majority of RF modules, transceivers, and evaluation boards. Matching impedance ensures minimal signal loss and optimal power transfer between the antenna and your wireless module.

Q: How do I mount this patch antenna to my PCB or enclosure?

A: The patch antenna is a surface-mount design (25 × 25 × 4 mm) that can be adhered directly to a PCB, plastic enclosure, or any flat surface. No assembly is required — simply connect the cable to your module's RF port and it is ready to use.
