2.4G Copper Spring Helix PCB Antenna 2400-2500MHz 4dBi Omni
2.4G Copper Spring Helix PCB Antenna 2400-2500MHz 4dBi Omni
2.4G Copper Omni-Directional Spring Helix Antenna for PCB Board
Boost your wireless project's signal performance with this precision-crafted 2.4G copper omni-directional spring antenna. Designed for direct PCB board soldering, this compact helix antenna covers the full 2400–2500 MHz frequency band — making it an ideal choice for Wi-Fi modules, Bluetooth devices, Zigbee, and other 2.4 GHz wireless applications.
Built from high-quality copper with a 1.5 mm wire diameter and a sturdy spring coil construction, this antenna delivers consistent 360° signal radiation in a small footprint. With a 4 dBi gain, a low standing wave ratio (≤1.8), and a standard 50-ohm impedance, it integrates seamlessly into your RF circuit designs without compromise.
Made in Mainland China.
Key Specifications

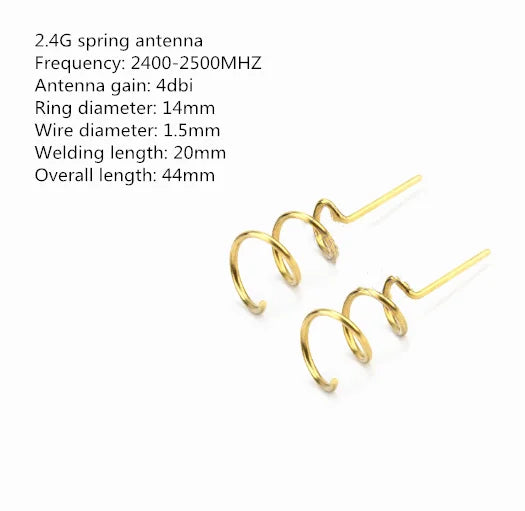

- Frequency Range: 2400–2500 MHz (2.4G)
- Antenna Gain: 4 dBi
- Wire Diameter: 1.5 mm
- Ring Diameter: 14 mm
- Welding Length: 20 mm
- Overall Length: 44 mm
- Standing Wave Ratio (VSWR): ≤ 1.8
- Impedance: 50 Ohms
- Mounting: Direct PCB solder (no assembly required)
- Material: Copper helix / spring construction
Why Choose This Spring Antenna?
- ✅ Omni-directional radiation — 360° horizontal coverage for reliable wireless links
- ✅ Compact helix design — fits easily onto space-constrained PCB layouts
- ✅ Low VSWR ≤ 1.8 — efficient power transfer with minimal signal reflection
- ✅ Standard 50Ω impedance — compatible with most RF transceivers and modules
- ✅ No assembly required — simply solder onto your PCB and you're ready to go
- ✅ Customizable — contact us for custom cable lengths or connector types
Ideal Applications
This 2.4G spring antenna is well-suited for a wide range of wireless electronics projects, including:
- Wi-Fi 802.11 b/g/n modules
- Bluetooth and BLE devices
- Zigbee and Z-Wave home automation nodes
- RC remote control systems
- IoT sensor boards and microcontroller projects
- 2.4 GHz drone and robotics controllers
Also Available From Our Store
Looking for more project essentials? Check out our Airtight Transparent PET Storage Bottle for keeping small electronic components organized, or our Ceramic Mini Sealed Storage Jar for handy parts storage on your workbench.
