Take full control of your water management with this compact 2-in-1 Liquid Level Sensor Relay Module. Operating on 12V DC, this intelligent relay module automatically monitors and controls liquid levels — switching pumps, solenoid valves, and motors ON or OFF based on your preset high and low thresholds. Whether you're managing a home water tower, fish tank, livestock watering system, or an irrigation setup, this module delivers reliable, hands-free automation at an affordable price.
Made in Mainland China.
Key Features
- 2-in-1 Operation: Supports both automatic filling (pump water in) and automatic drainage (pump water out) modes — simply choose COM/NC or COM/NO wiring to match your setup.
- 12V DC Input: Wide operating range of DC 10–15V for flexible power supply compatibility.
- Low Power Consumption: Standby current of just 9 mA; operating current of 40 mA — energy-efficient for 24/7 use.
- High Load Capacity: Relay rated at 10A/250VAC, 10A/30VDC — handles most standard pumps and motors with ease.

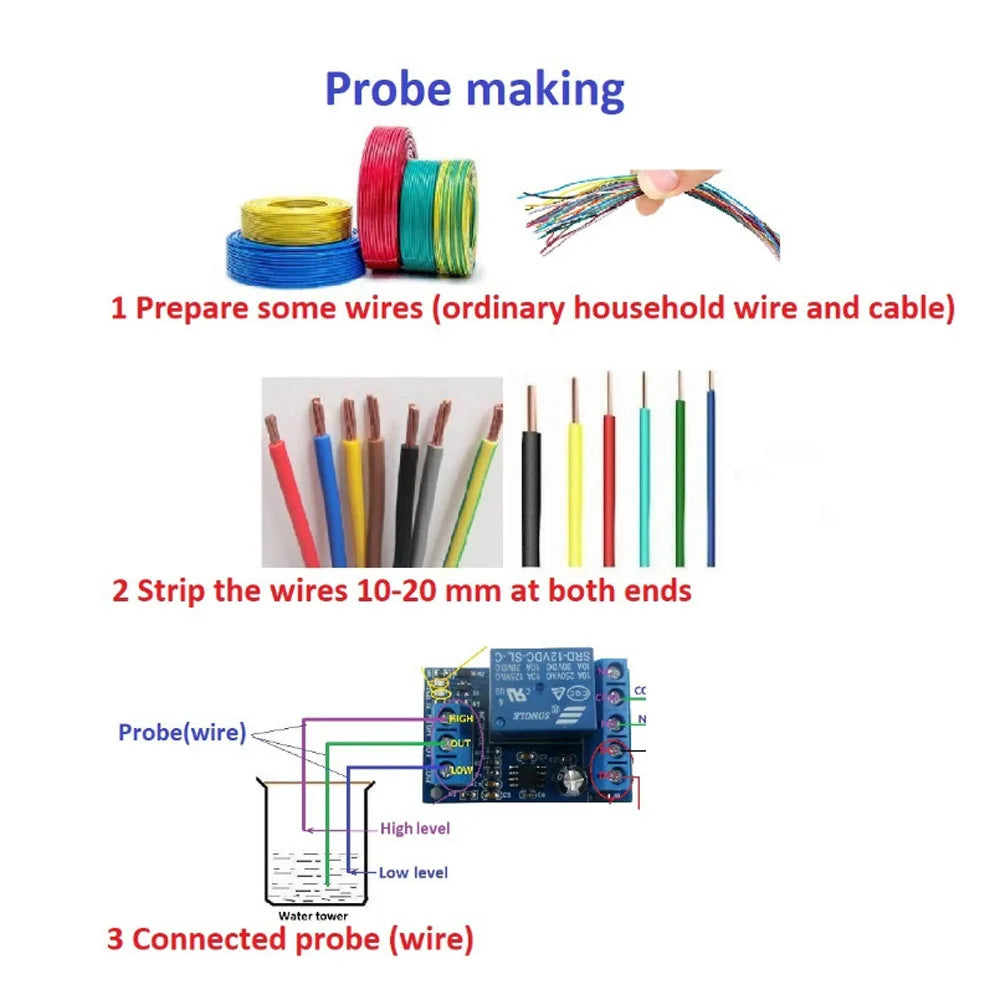

- No Specialised Probe Needed: Use standard household wire to create your own probes — simple and cost-effective.
- Compact Design: Small footprint (44 × 29 × 19 mm) fits easily into enclosures and DIY control panels.
- Wide Application Range: Ideal for water towers, aquariums, farms, poultry systems, solenoid valve control, and more.
Technical Specifications

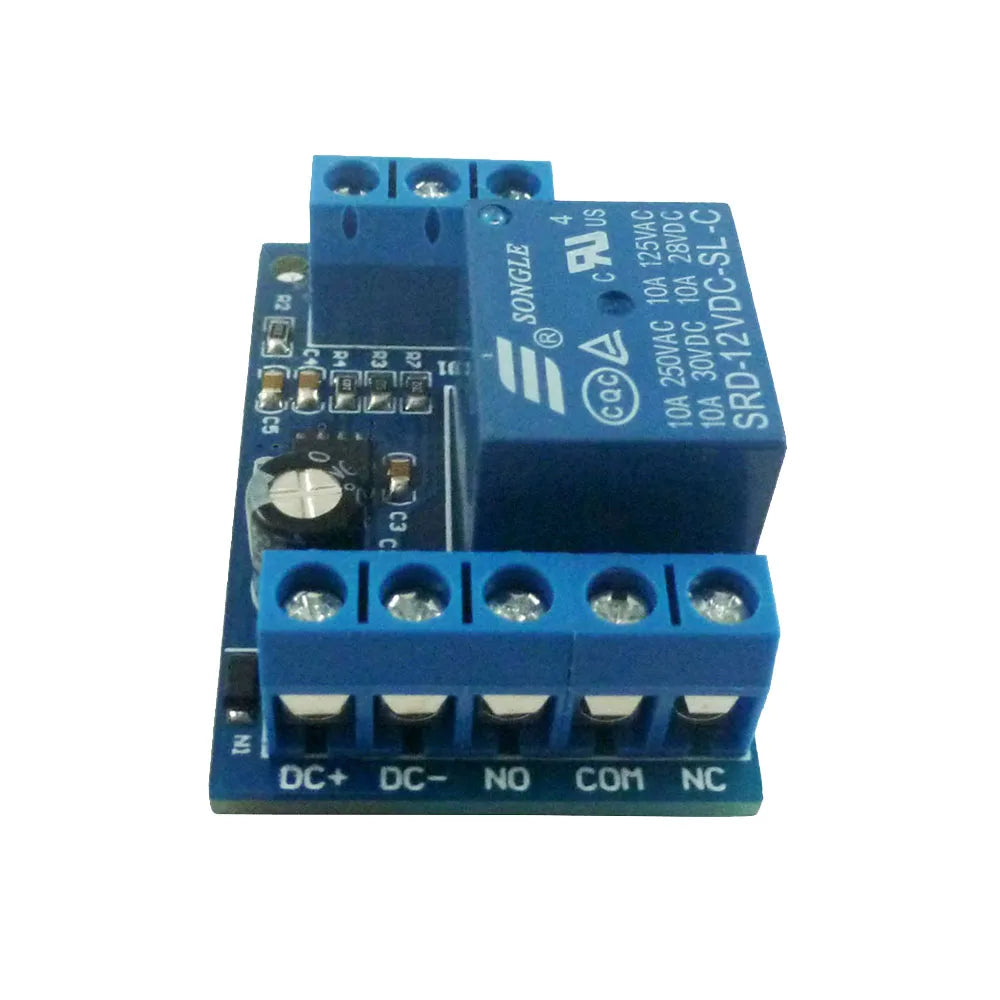

| Operating Voltage | DC 12V (DC 10–15V) |
| Standby Current | 9 mA |
| Operating Current | 40 mA |
| Dimensions | 44 mm × 29 mm × 19 mm |
| Maximum Load | 10A/250VAC · 10A/125VAC · 10A/30VDC · 10A/28VDC · 10A/12VDC |
Pin Reference

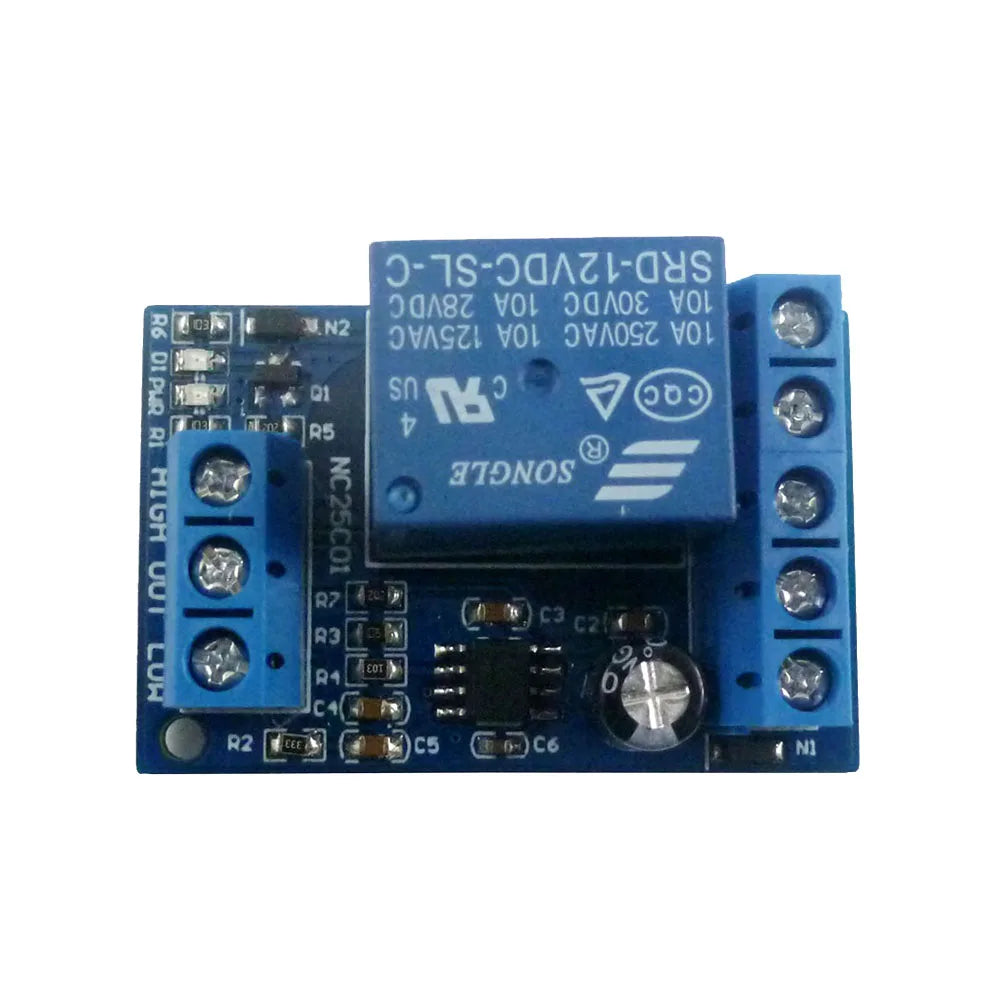

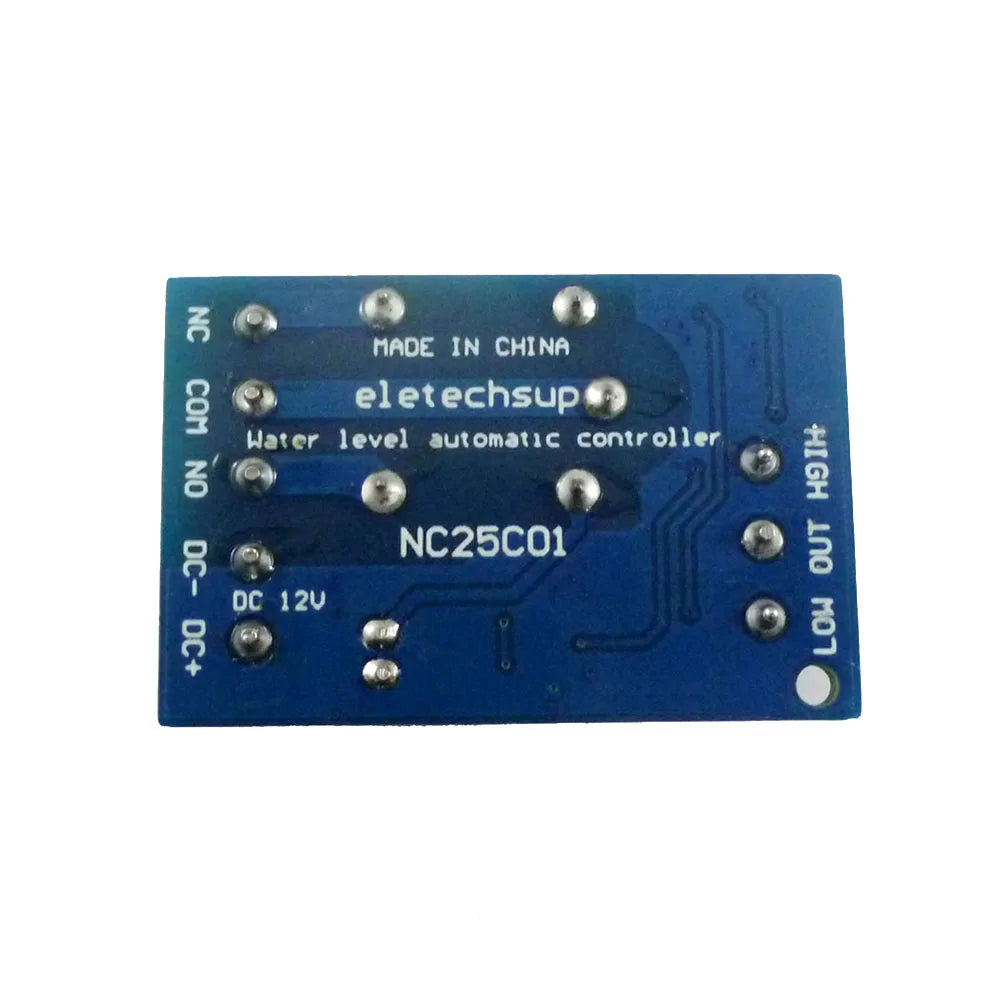

- HIGH – Upper limit sensor input
- OUT – Output sensor
- LOW – Lower limit sensor input
- DC+ – Positive power supply
- DC− – Negative power supply
- NC – Relay normally closed contact
- COM – Relay common contact
- NO – Relay normally open contact
How It Works

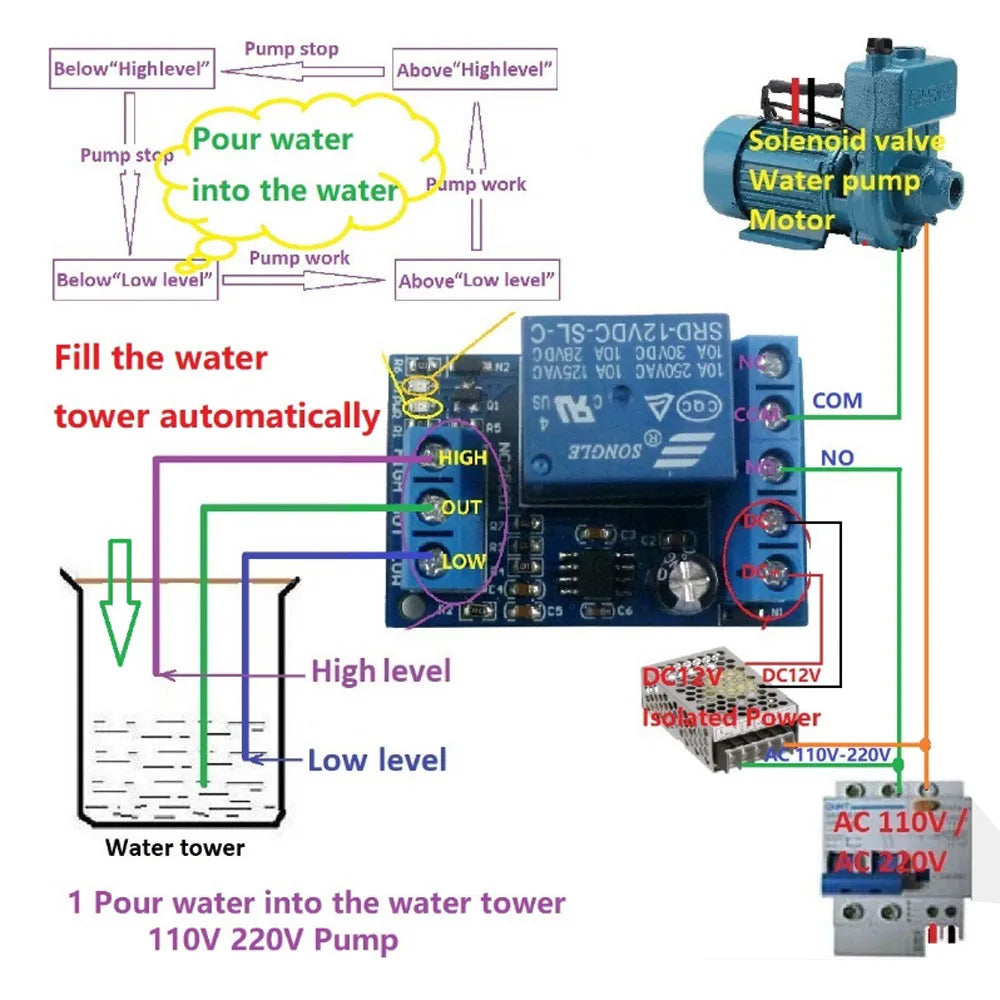

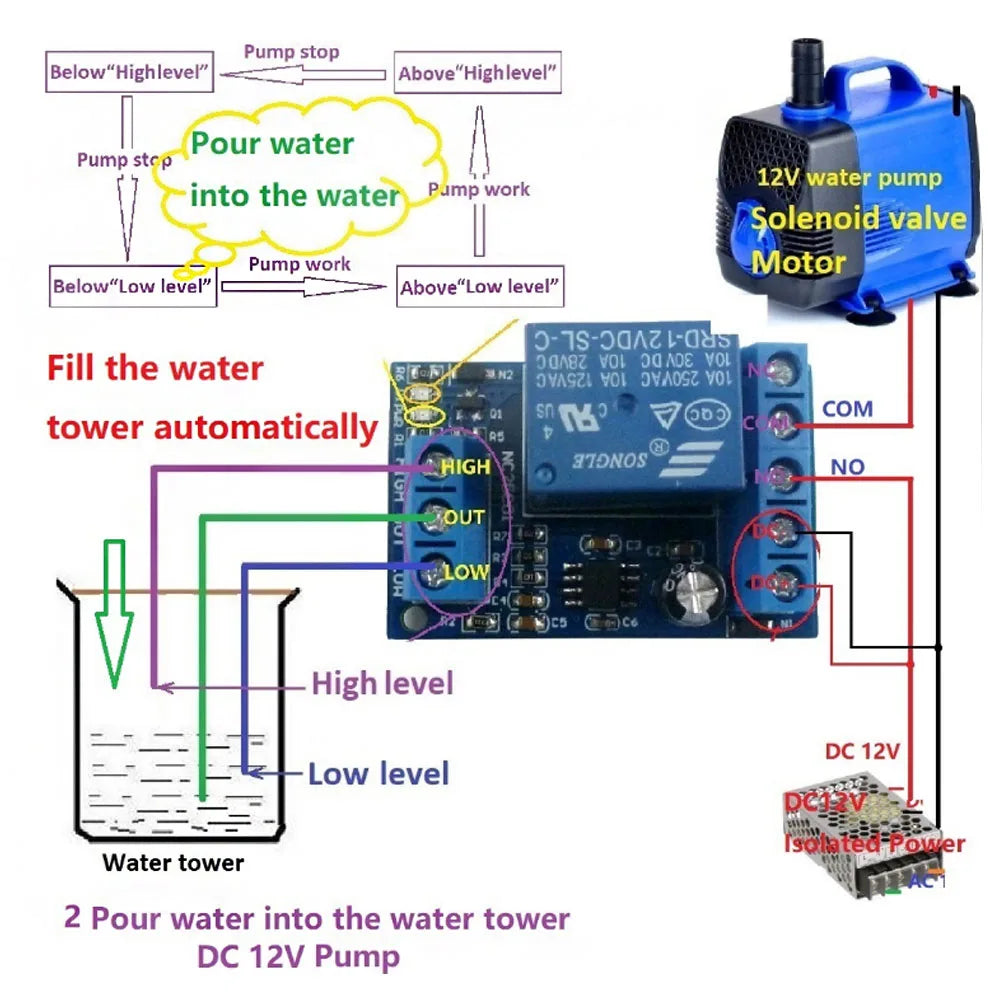

Auto-Fill Mode (COM/NC): When the water level drops below the LOW threshold, the pump activates and fills the tank. When the level rises above the HIGH threshold, the pump stops automatically.
Auto-Drain Mode (COM/NO): The reverse logic — the pump activates when the level rises above the HIGH threshold and stops when it drops below the LOW threshold.
Common Applications
- Home and residential water tower automation
- Aquarium and fish tank water change systems
- Farm and agricultural irrigation control
- Poultry and livestock automatic watering feeders
- Solenoid valve and motor control
- Any system requiring automatic liquid level management
What's in the Box
- Relay Module × 1
Note: Probe wiring is NOT included. Standard household wire can be used to create probes. For safety, always use a well-insulated DC power supply.
