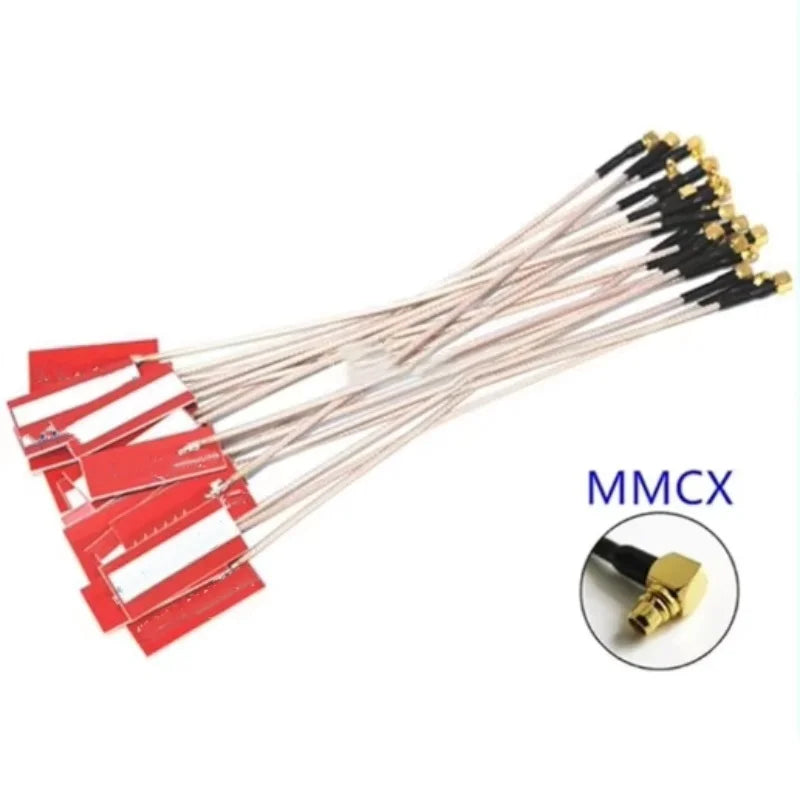

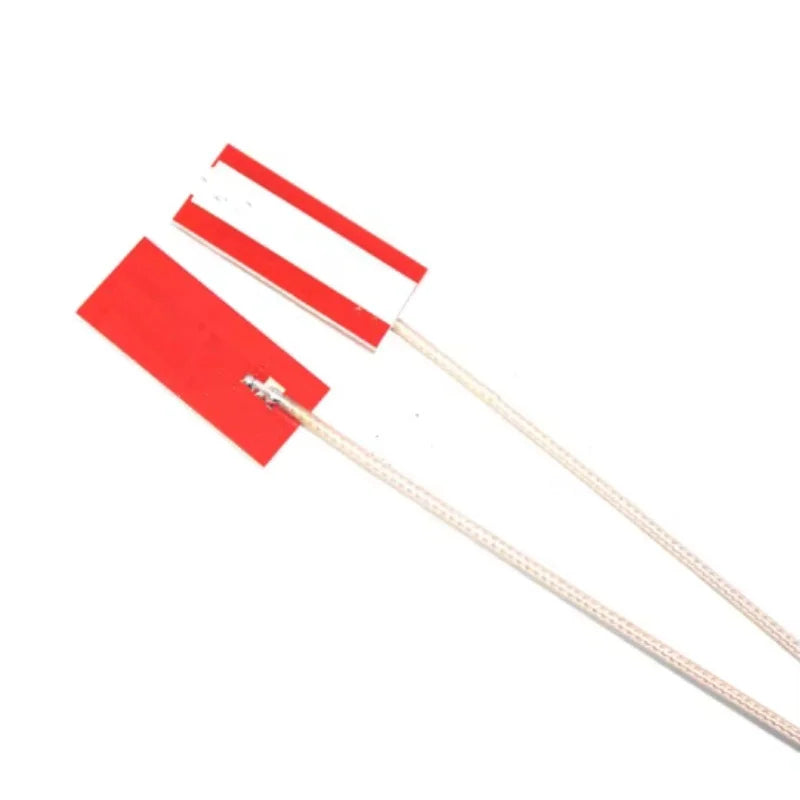

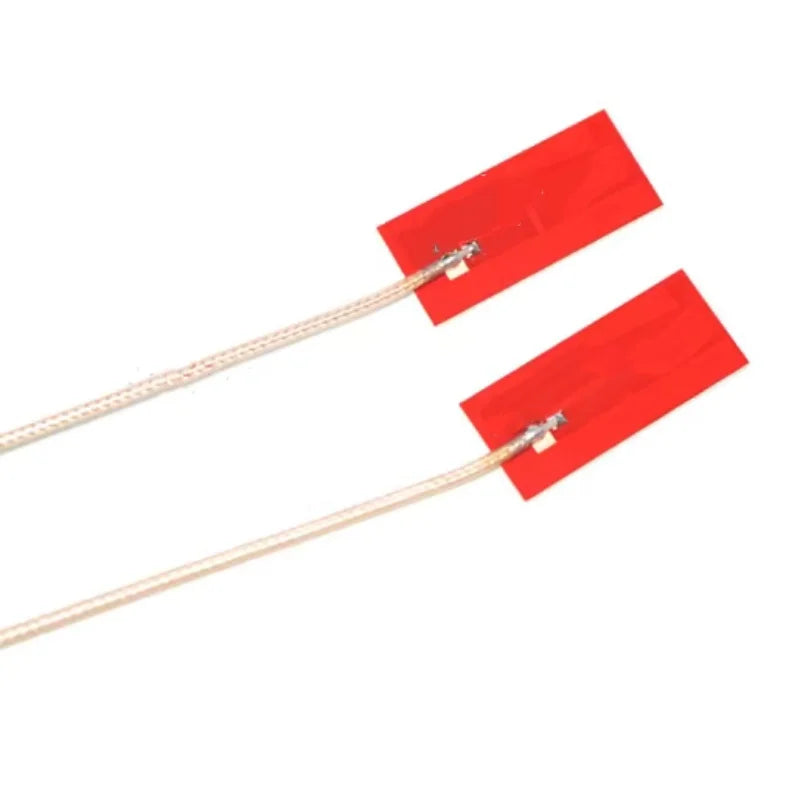

2-Pack Dual-Band PCB Antenna with MMCX Connector & RG178 Cable
Upgrade your wireless devices with this 2-piece set of 2.4G/5.8G dual-band omnidirectional PCB antennas. Featuring a silver-plated RG178 coaxial cable and a compact MMCX connector, these built-in PCB board antennas deliver excellent signal coverage for routers, drones, IoT devices, and other 2.4 GHz or 5 GHz WiFi-enabled applications.
Made in Mainland China.
Key Features
- Dual-Band Coverage: Supports both 2400–2500 MHz and 4900–5900 MHz frequency ranges in a single compact antenna
- High Gain: 5 dBi gain for strong, reliable omnidirectional signal radiation
- Silver-Plated RG178 Wire: Low-loss coaxial cable ensures minimal signal degradation over the 15 cm cable length
- MMCX Connector: Compact and secure snap-on connector compatible with most modern wireless modules and PCBs
- Low VSWR: Standing wave ratio ≤ 2.0 for efficient power transfer and minimal signal reflection
- Compact PCB Size: 32 mm × 14 mm × 0.6 mm — ideal for space-constrained embedded designs
- Standard 50-Ohm Impedance: Universally compatible with standard RF equipment and wireless modules
- No Assembly Required: Ready to connect straight out of the box
- Customizable: Cable length and connector type can be customized — contact us for bulk or custom orders
Technical Specifications
| Model | 2.4G / 5G / 5.8G |
| Frequency Range | 2400–2500 MHz & 4900–5900 MHz |
| Gain | 5 dBi |
| VSWR | ≤ 2.0 |
| Impedance | 50 Ohms |
| Connector | MMCX |
| Cable | RG178 Silver-Plated Wire |

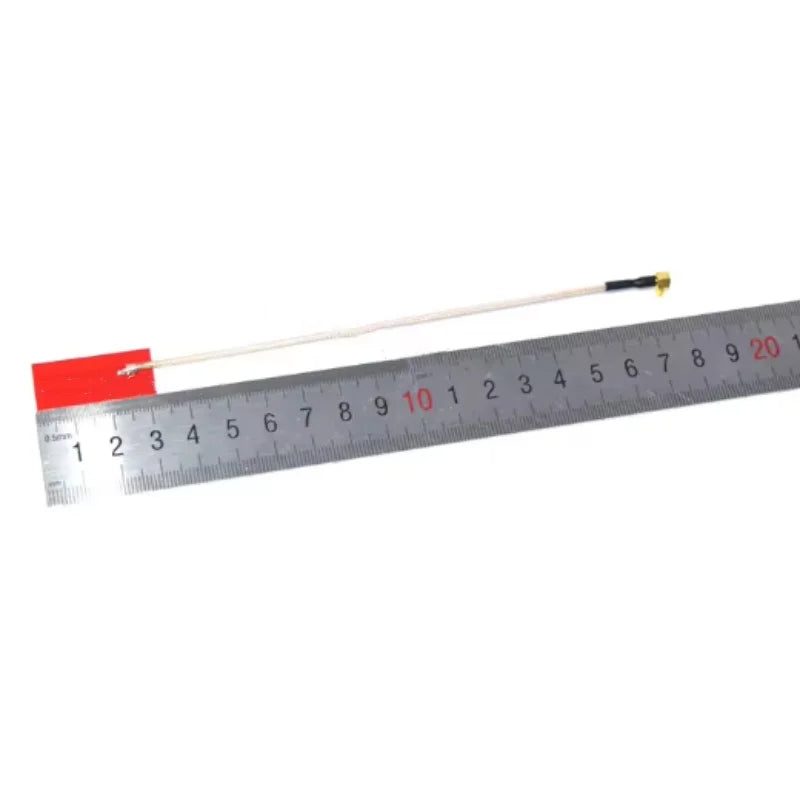

| Cable Length | 15 cm (customizable) |

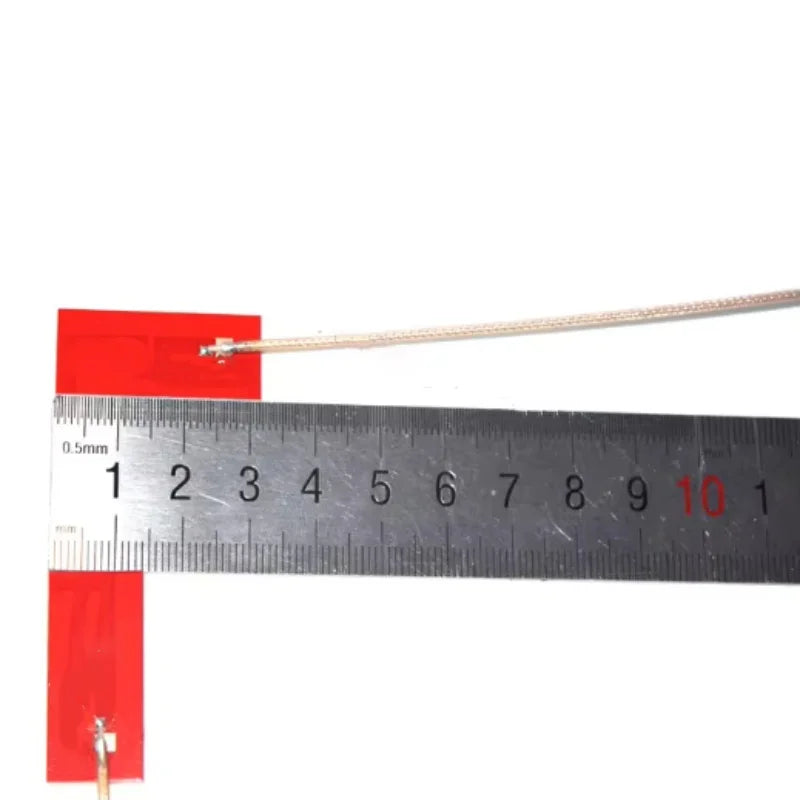

| PCB Size | 32 mm × 14 mm × 0.6 mm |
| Quantity | 2 pieces per pack |
| Assembly Required | No |
Ideal Applications
- WiFi routers and access points
- Drones and RC vehicles with 5.8 GHz video transmission
- IoT devices, embedded systems, and development boards
- Wireless modules (ESP32, Raspberry Pi, Arduino-based projects)
- Industrial wireless control systems
Related Products You May Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer
- Ceramic Mini Sealed Storage Jar – Portable Travel Container
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What devices are compatible with these 2.4G/5.8G dual-band PCB antennas?
A: These dual-band antennas are compatible with any device that uses a standard MMCX connector and operates in the 2.4 GHz (2400–2500 MHz) or 5 GHz/5.8 GHz (4900–5900 MHz) frequency bands — including WiFi routers, drones, IoT modules, embedded development boards, and wireless communication systems with a 50-ohm RF input.
Q: Can the cable length or connector type be customized?
A: Yes! The standard cable length is 15 cm, but custom lengths and alternative connector types are available. Please reach out to us directly before placing a bulk or custom order and we'll be happy to accommodate your requirements.
Q: What is the difference between 2.4G and 5.8G, and which should I use?
A: The 2.4 GHz band offers wider range with slightly lower data throughput, while the 5.8 GHz band provides faster speeds over shorter distances with less interference. These dual-band PCB antennas support both simultaneously, making them versatile for routers and devices that switch between bands automatically or require dedicated coverage on each frequency.
Q: Are these antennas ready to use right out of the box?
A: Yes — no assembly is required. Simply connect the MMCX plug to your compatible device and the antenna is ready for use immediately.
