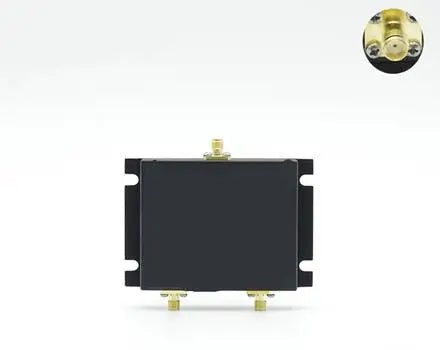

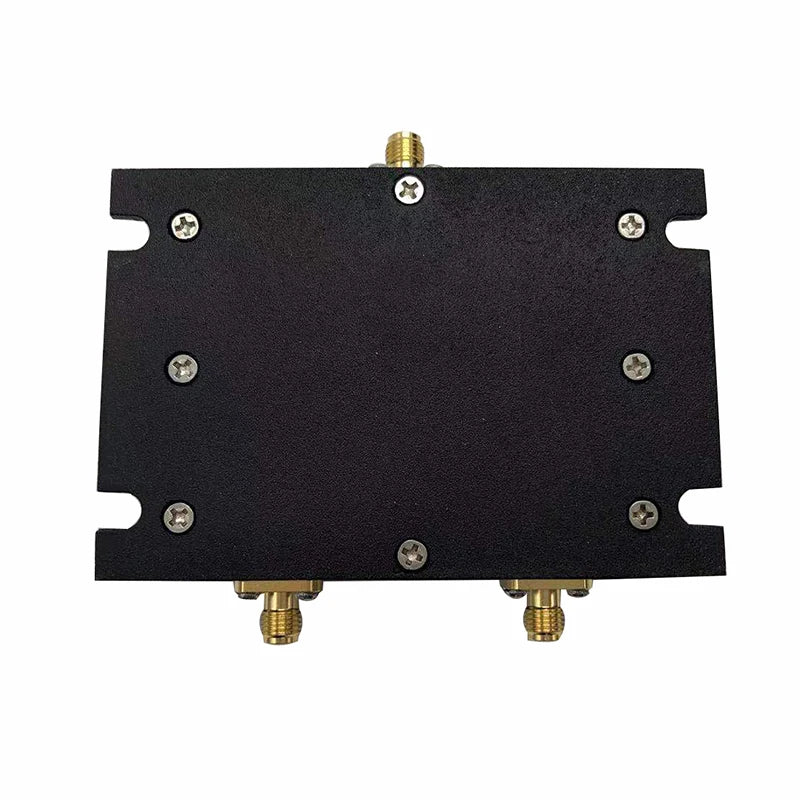

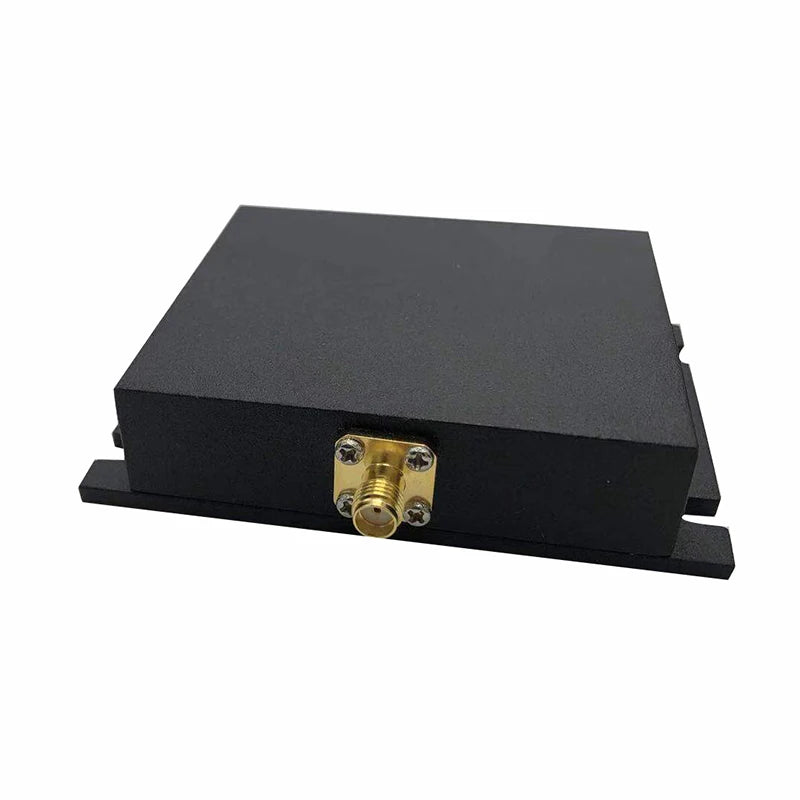

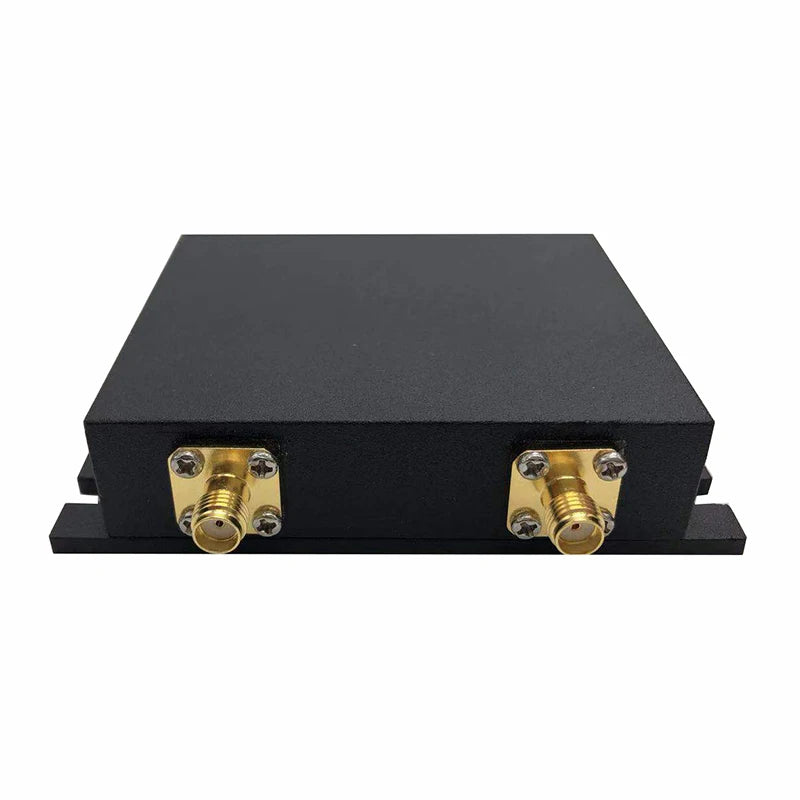

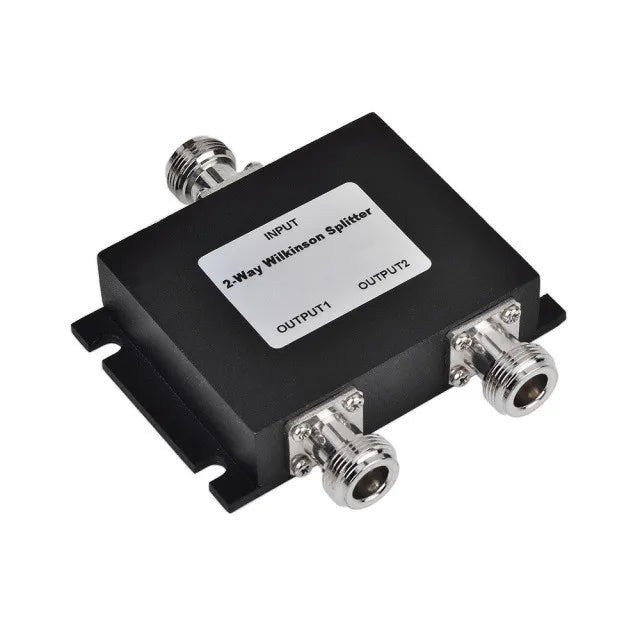

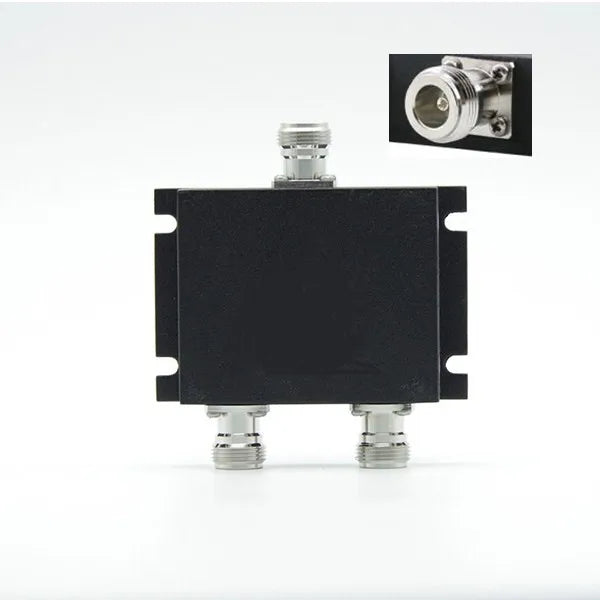

2-Way RF Power Splitter / Signal Divider – 868MHz & 915MHz | SMA & N Female | 800–1000MHz

Distribute or combine RF signals with confidence using this precision-engineered 2-Way Power Splitter. Designed for the 800–1000MHz frequency range, it is a go-to component for Helium mining setups, repeater systems, base stations, and indoor distributed antenna systems (DAS). The low insertion loss and high port-to-port isolation ensure reliable signal splitting without compromising performance.

Built from durable aluminum alloy, this compact divider handles up to 50W average power and features both SMA Female and N Female connector options for maximum versatility. Made in Mainland China.

Key Features

  • Wide Frequency Coverage: Operates across 800–1000MHz, covering 868MHz (LoRa/EU) and 915MHz (LoRa/US) bands
  • Low Insertion Loss: Only 3.5dB — minimal signal degradation when splitting
  • High Isolation: ≥20dB between output ports for clean signal distribution
  • Excellent VSWR: ≤1.30 for superior impedance matching and reduced reflections
  • Dual Connector Options: SMA Female and N Female connectors at all ports
  • 50Ω Impedance: Standard RF impedance for seamless system integration
  • High Power Handling: Up to 50W average power capacity
  • Wide Operating Temperature: -35°C to +70°C for stable indoor performance
  • Lightweight & Compact: Aluminum alloy body; net weight just 0.25 kg
  • Versatile Use: Ideal for Helium miners, repeaters, base stations, and indoor DAS

Technical Specifications

Frequency Range 800–1000MHz
Insertion Loss 3.5dB
Isolation ≥20dB
VSWR ≤1.30
Impedance 50Ω
Connector Type SMA Female / N Female
Average Power 50W
Application Indoor
Material Aluminum Alloy
Net Weight 0.25 kg
Operating Temperature -35°C to +70°C
Origin Made in Mainland China

What Is a Power Splitter / Divider?

An RF power splitter (also called a power divider) takes a single RF input signal and distributes it equally across two or more output ports. It can also work in reverse as a combiner. These devices are essential components in wireless infrastructure projects — including Helium IoT network nodes, cellular repeaters, and building-wide distribution systems — wherever a single antenna feed must serve multiple devices simultaneously.

Ideal For

  • Helium HNT miner antenna setups (868MHz EU / 915MHz US)
  • LoRaWAN gateway installations
  • Indoor distributed antenna systems (DAS)
  • Cellular repeater and base station installations
  • RF lab testing and signal distribution

You May Also Like

Explore more tools and accessories from our store:

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What frequency bands does this 2-way power splitter support?

A: This RF power splitter is designed for the 800–1000MHz frequency range, making it fully compatible with 868MHz (EU LoRa/Helium) and 915MHz (US LoRa/Helium) bands commonly used in IoT and wireless networking applications.

Q: Can this power splitter be used with Helium miners?

A: Yes. This 2-way power divider is specifically well-suited for Helium HNT mining antenna setups. It allows you to connect a single antenna to two miner units simultaneously, or split the signal to cover multiple coverage zones from one antenna feed.

Q: What connector types are included on this power splitter?

A: The splitter is available with either SMA Female or N Female connectors at all ports, offering compatibility with a wide range of RF cables, antennas, and radio equipment.

Q: What is the maximum power this splitter can handle?

A: This power divider supports up to 50W average power, making it suitable for both low-power IoT installations and higher-power repeater or base station applications within the 800–1000MHz band.
