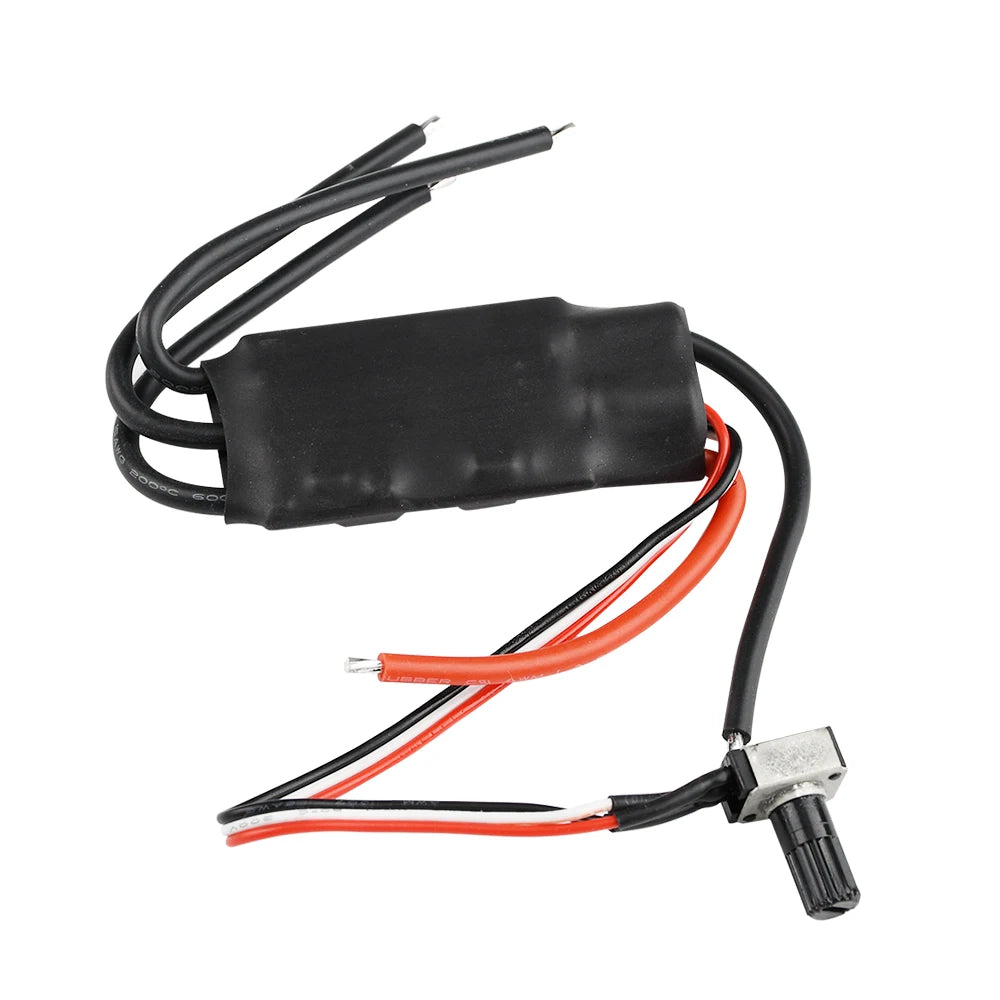

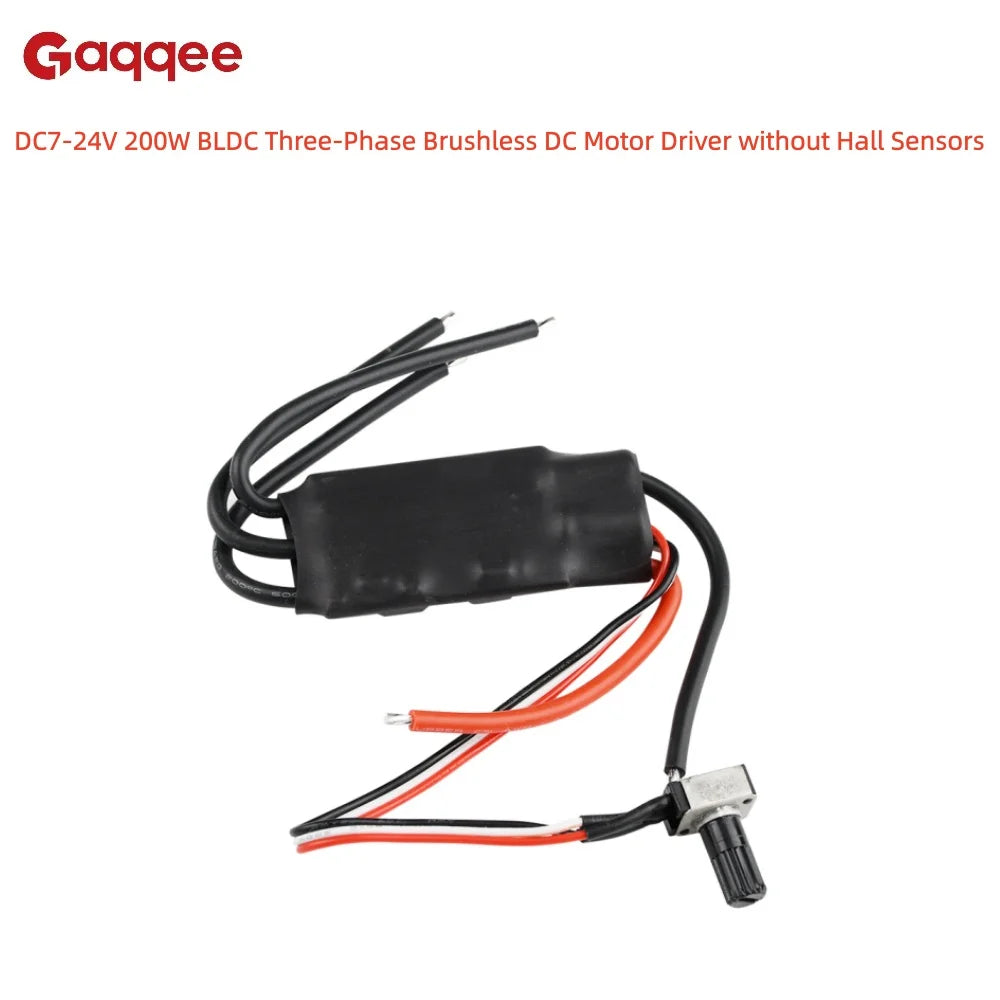

Gaqqee 200W BLDC Three-Phase Brushless DC Motor Driver Board
Take full control of your brushless DC motor applications with the Gaqqee X30A Potentiometer-Controlled Three-Phase BLDC Driver Board. Engineered for industrial-grade performance in a compact form factor, this sensorless driver module delivers wide-voltage compatibility (7–24V), high-current capability, and intuitive potentiometer speed control — all in a board measuring just 45mm × 26mm × 12mm.
Whether you're powering air compressors, water pumps, oil pumps, fans, or other DC three-phase brushless motor-driven tools, this driver board is purpose-built for sustained, reliable high-current operation. Made in Mainland China.
Key Features
- Wide Operating Voltage: DC 7–24V input for versatile power supply compatibility
- High Power Output: 200W rated power; 15A continuous drive current, up to 20A with fan cooling
- Hall-Sensor-Free (Sensorless) Control: No Hall-effect sensors required — simplifies motor wiring
- Potentiometer Speed Control: Clockwise rotation increases speed; anti-clockwise reduces — intuitive and direct

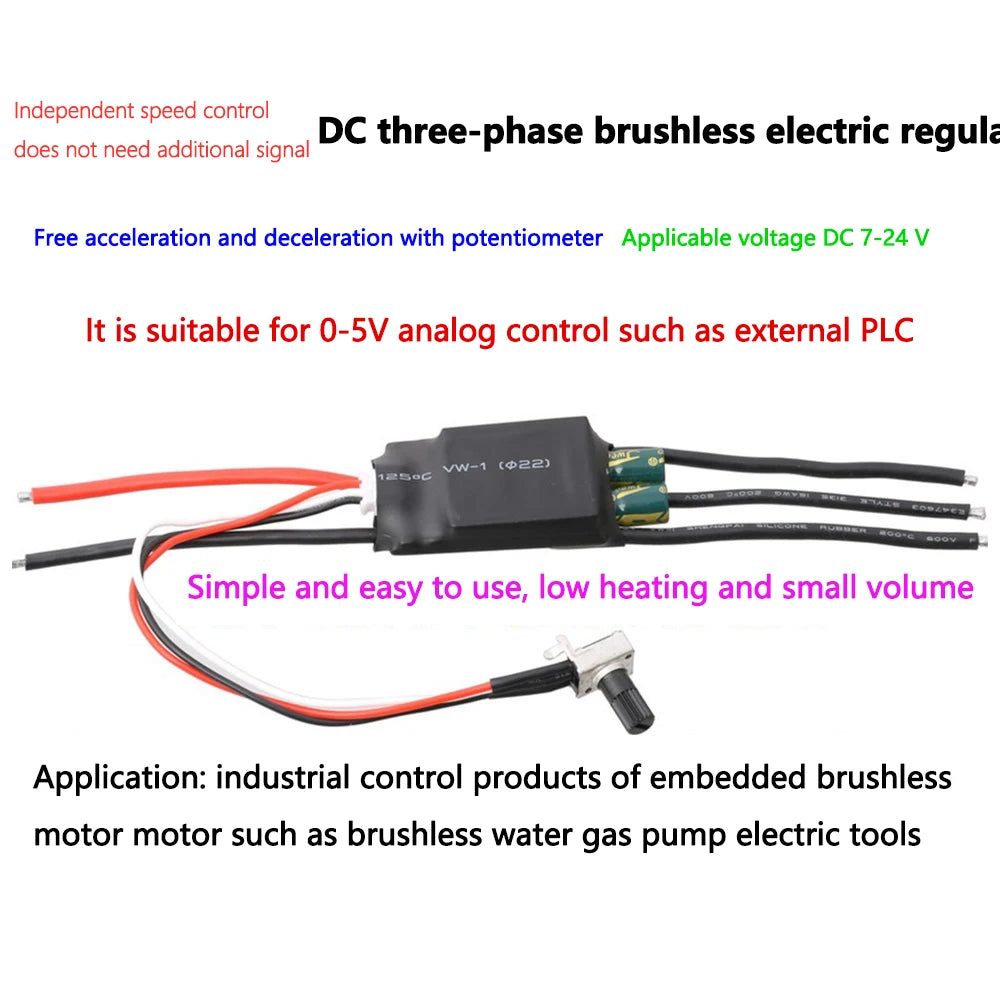

- PLC Analogue Signal Compatible: Supports external 0–5V analogue signal control (disconnect potentiometer ribbon cable, connect 0–5V signal + GND — only two wires needed)
- Acceleration / Deceleration with Power-Off Memory: Retains speed settings after power cycling
- One-Touch Direction Switching: Single-button model supports on-the-fly forward/reverse switching
- Overheat Protection: Automatically reduces power output above 100°C; resumes full operation once temperature drops below 100°C
- Default Forward Timing Angle: Optimised for industrial tool motors out of the box
- Compact Design: 45mm × 26mm × 12mm (excluding leads and protruding capacitor)
Technical Specifications
| Model | X30A (Potentiometer) |
| Operating Voltage | DC 7–24V |
| Rated Drive Current | 15A (20A with active fan cooling) |
| Power | 200W |
| Max Speed (2-pole motor) | 224,000 RPM |
| Max Speed (6-pole motor) | 74,000 RPM |
| Max Speed (12-pole motor) | 40,000 RPM |
| Max Speed (14-pole motor) | 35,000 RPM |
| Dimensions | 45mm × 26mm × 12mm |
| Sensor Type | Sensorless (Hall-sensor-free) |
| Speed Control | Potentiometer / 0–5V PLC Analogue |

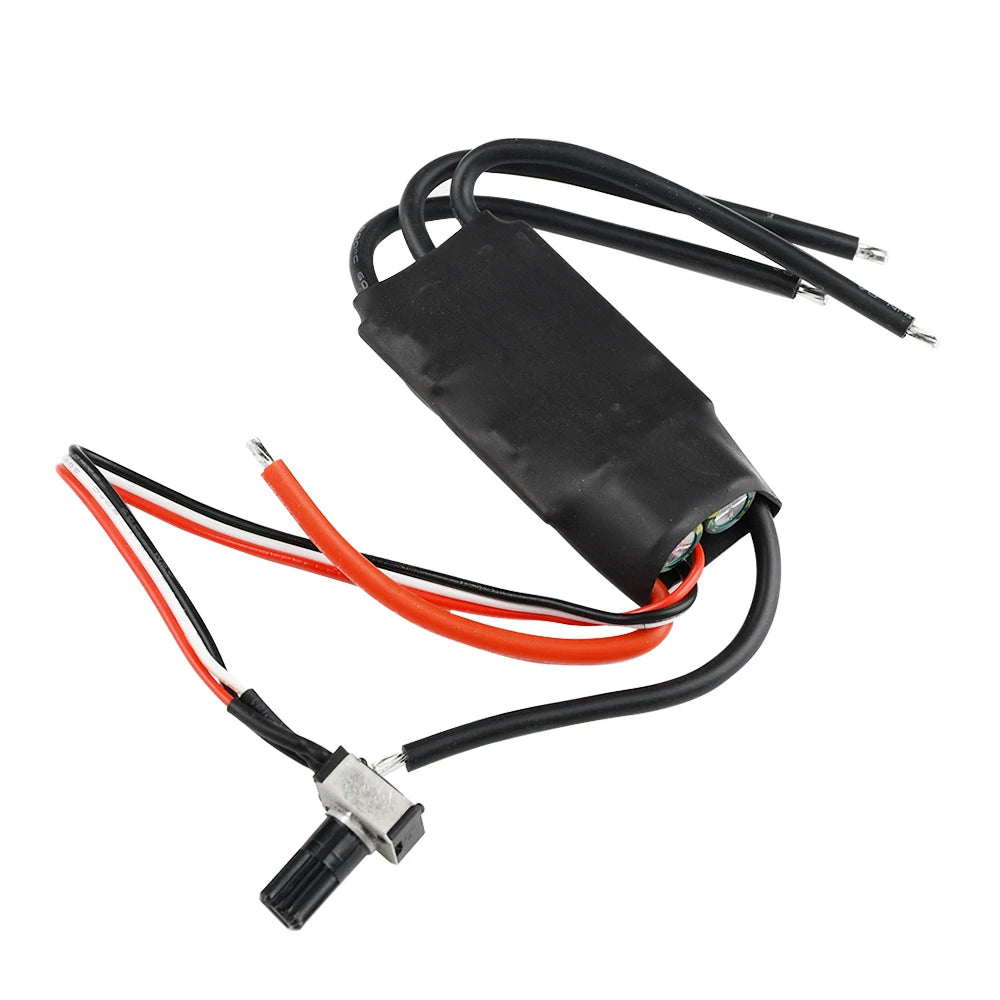

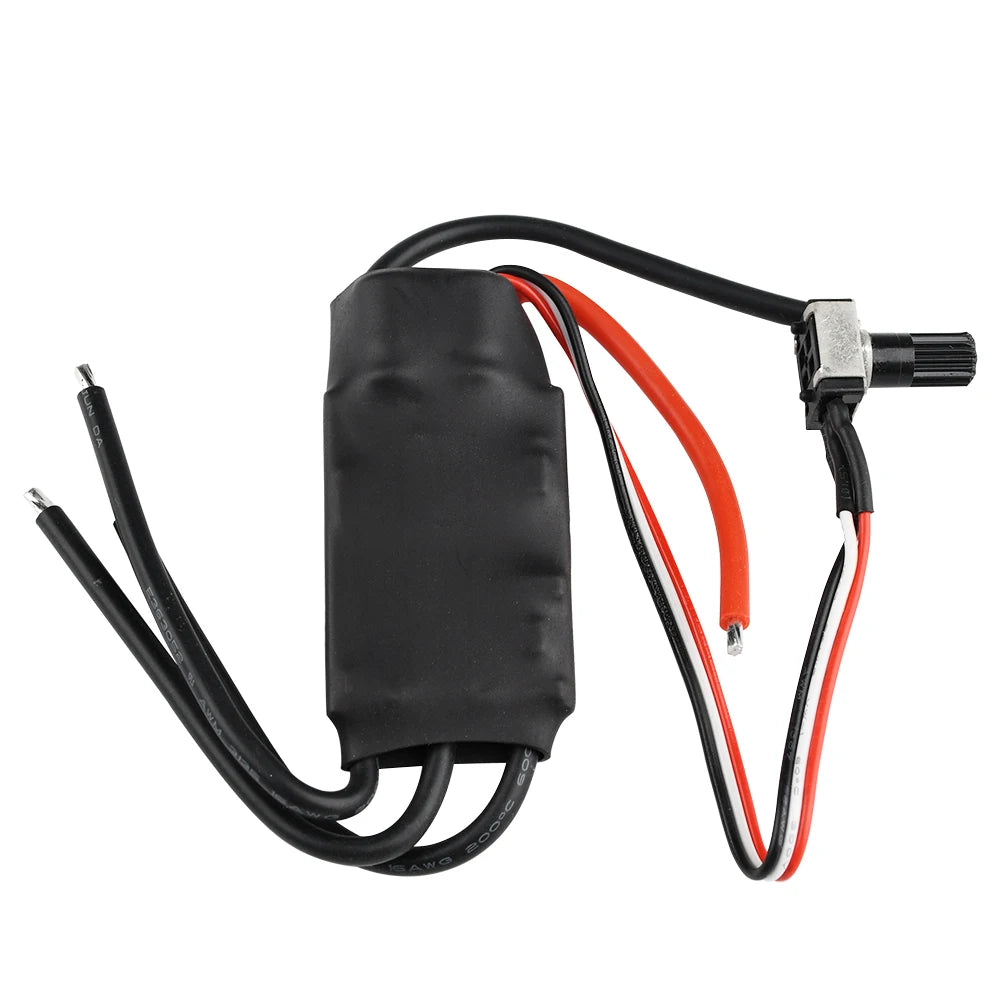

Interface Guide

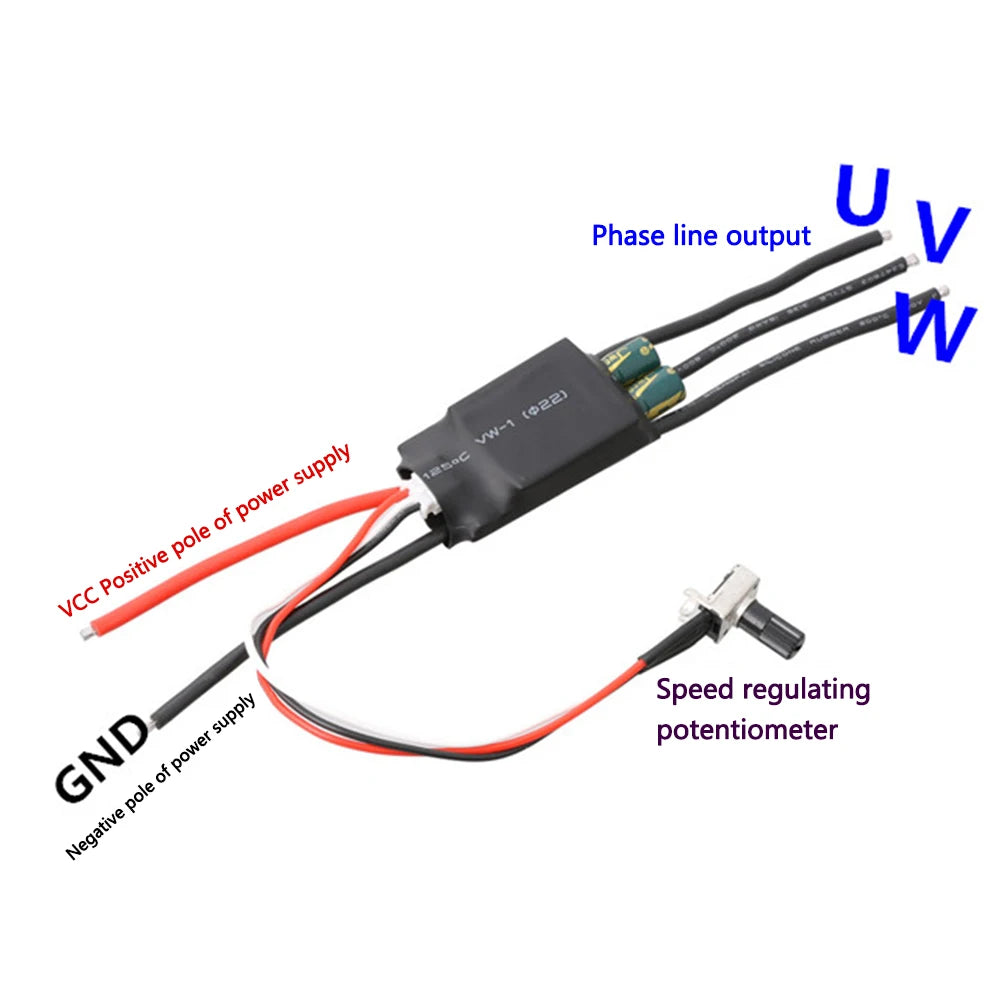

- U, V, W: Three-phase outputs — connect directly to your brushless motor
- VCC, GND: Main power supply terminals (external DC power source)
- Potentiometer Ribbon Cable: Disconnect to use external 0–5V analogue signal input
Important Safety Precautions
- Add an External Fuse: The mainboard does not include a built-in fuse. Always add an external fuse for protection. Reversing power supply polarity — even momentarily — can permanently damage board components.
- Never Short-Circuit the Module: Due to high power and current ratings, manually short-circuiting the module during abnormal operation can cause circuit burnout or component failure. Always start testing at low current and low voltage, then scale up once correct operation is confirmed.
- Match Motor Ratings: Always use a motor whose voltage, current, and power ratings are reasonably matched to this driver board to avoid unexpected damage.
- Cooling Recommended: For sustained high-current operation, adding an active cooling fan is strongly advised.
- Proprietary Design: Circuit schematics are not provided. Key ICs have been treated to protect the proprietary design.
What's in the Box
- 1× BLDC Three-Phase Brushless DC Motor Driver Board (Potentiometer Model)
Explore More from Our Store
Looking for tools and storage solutions for your electronics projects? Check out our Airtight Transparent PET Storage Bottle for organising components, or our Vintage Baroque Embossed Metal Tray for a stylish workbench organiser.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of motors is this BLDC driver board compatible with?
A: This driver board is designed for DC three-phase brushless motors used in industrial applications such as air compressors, water pumps, oil pumps, and fans. It operates with a default forward timing angle. Always ensure your motor's voltage, current, and power ratings are reasonably matched to the board's specifications (DC 7–24V, up to 200W, 15A rated / 20A with fan cooling).
Q: Can I control the speed using a PLC or external analogue signal instead of the potentiometer?
A: Yes. The X30A Potentiometer model supports external 0–5V analogue signal speed control. Simply disconnect the potentiometer ribbon cable and connect your external 0–5V analogue control signal and ground wire to the respective input terminals on the driver board. Only two wires are required for this configuration.
Q: Does the board have protection features?
A: Yes. The board features built-in overheat protection — it automatically reduces power output when temperatures exceed 100°C and resumes normal operation once it cools below that threshold. It also includes motor stall protection during normal operation. However, there is no built-in fuse, so adding an external fuse is strongly recommended. Never reverse the power supply polarity.
Q: What is the maximum RPM this driver board supports?
A: Maximum RPM depends on your motor's pole count: up to 224,000 RPM for a 2-pole motor, 74,000 RPM for a 6-pole motor, 40,000 RPM for a 12-pole motor, and 35,000 RPM for a 14-pole motor.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
