Build Your Own 22.5W Fast-Charging Power Bank
Take your DIY electronics skills to the next level with the Gaqqee 22.5W Fast-Charging Power Bank Module Kit. Featuring a vivid 0.96-inch TFT colour screen for real-time battery and charging status, this kit gives you everything you need to assemble a high-performance power bank compatible with 2 × 21700 batteries (sold separately). Made in Mainland China.
Key Features
- 22.5W Super-Fast Charging: Compatible with multiple fast-charging protocols including PD, QC, and VOOC Flash Charge for broad device compatibility.

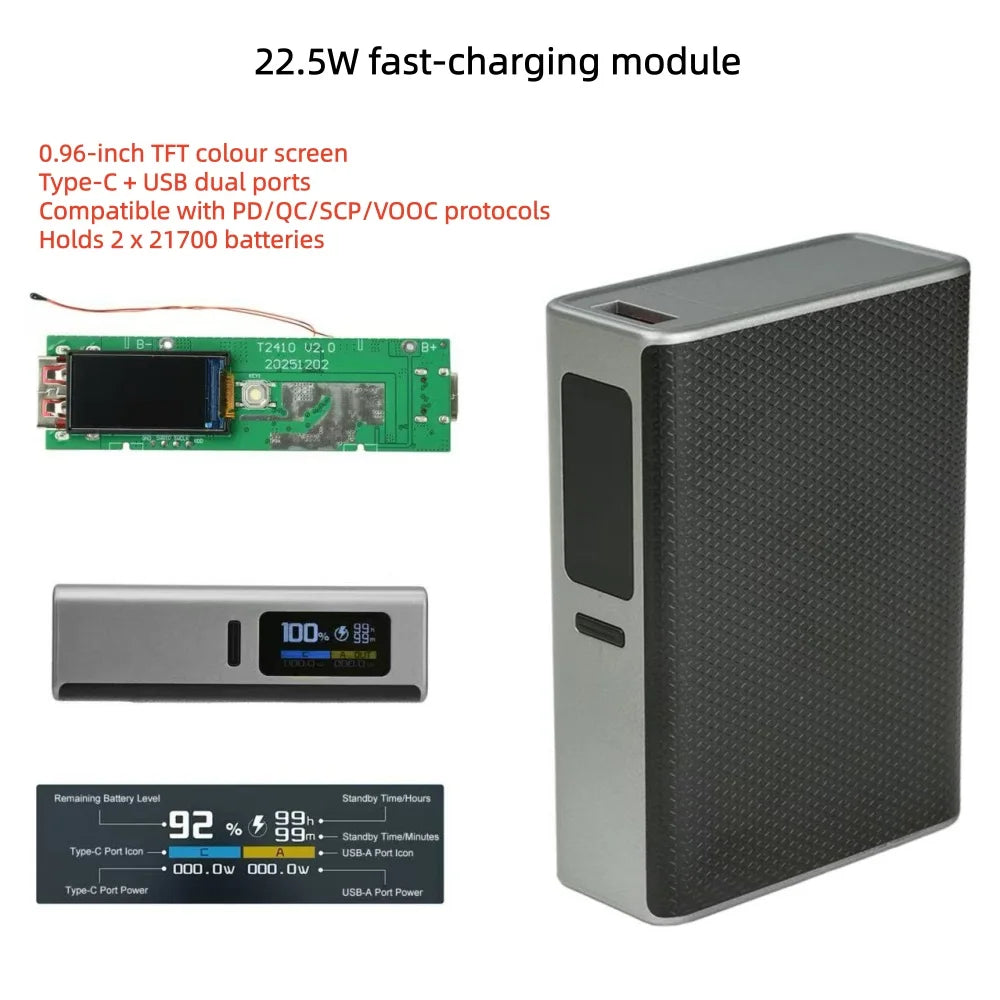

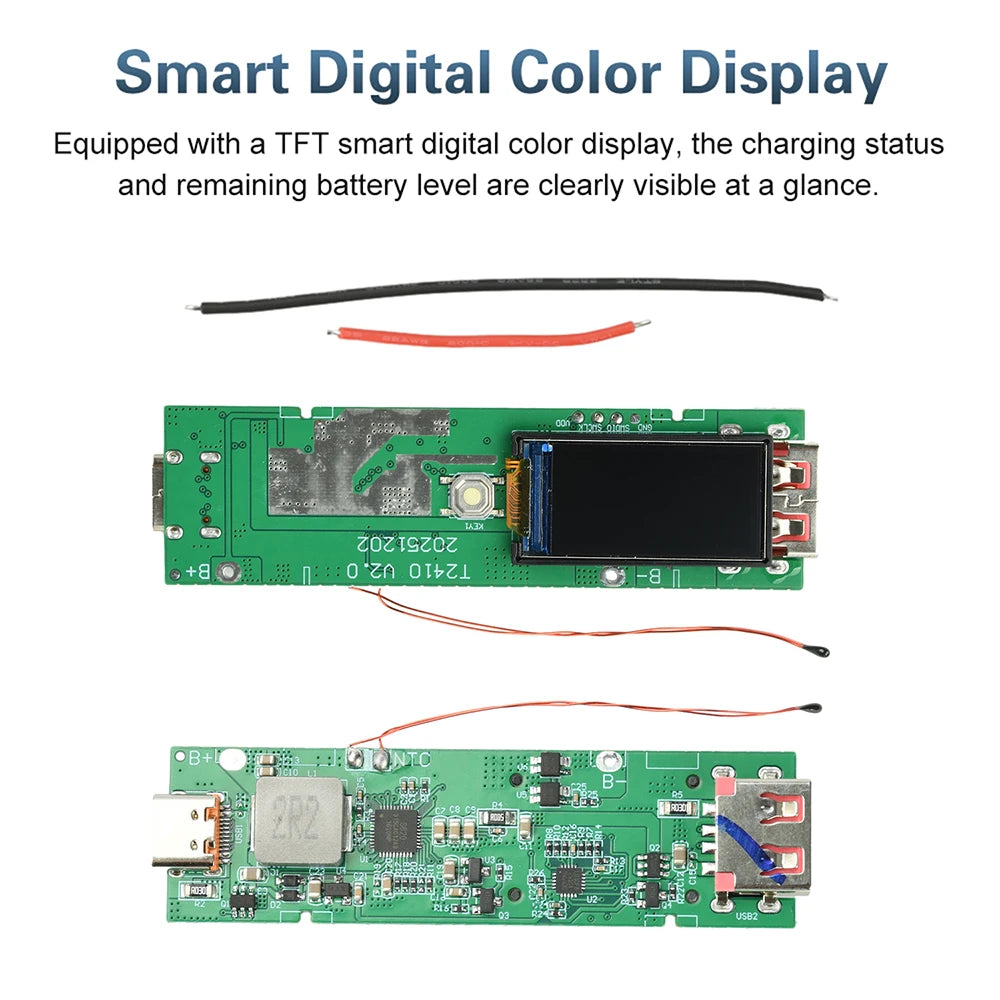

- 0.96" TFT Colour Display: Instantly view charging status, battery level, and input/output data at a glance.
- Dual-Port Output (Type-C + USB): Charge two devices simultaneously — the Type-C port handles both input and output fast charging.

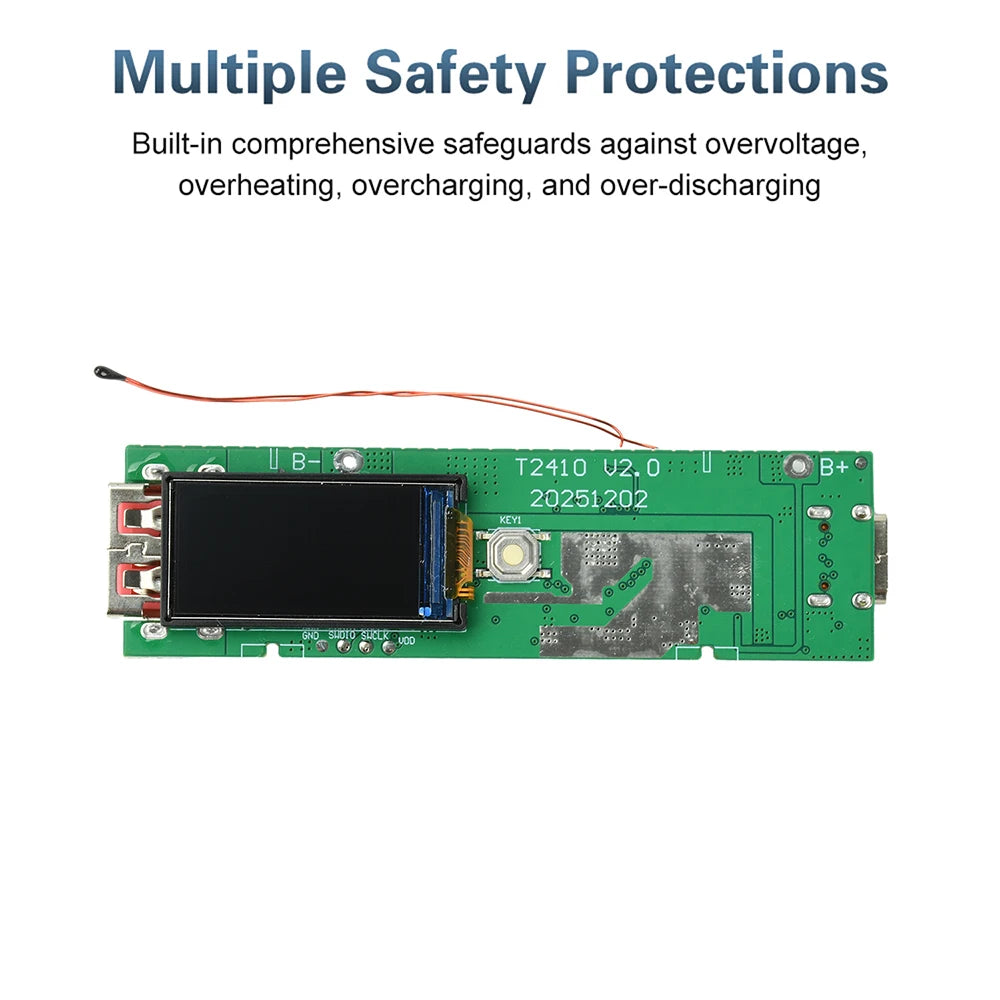

- Multi-Layer Safety Protection: Built-in safeguards against overvoltage, overheating, overcharging, and over-discharging keep your devices and batteries secure.
- High-Efficiency Circuit Design: Low-loss conversion ensures stable current and voltage throughout every charge cycle.
- DIY-Friendly Design: Snap-fit housing (Package 2) and clear solder points (B+ / B−) make assembly straightforward for hobbyists and makers.

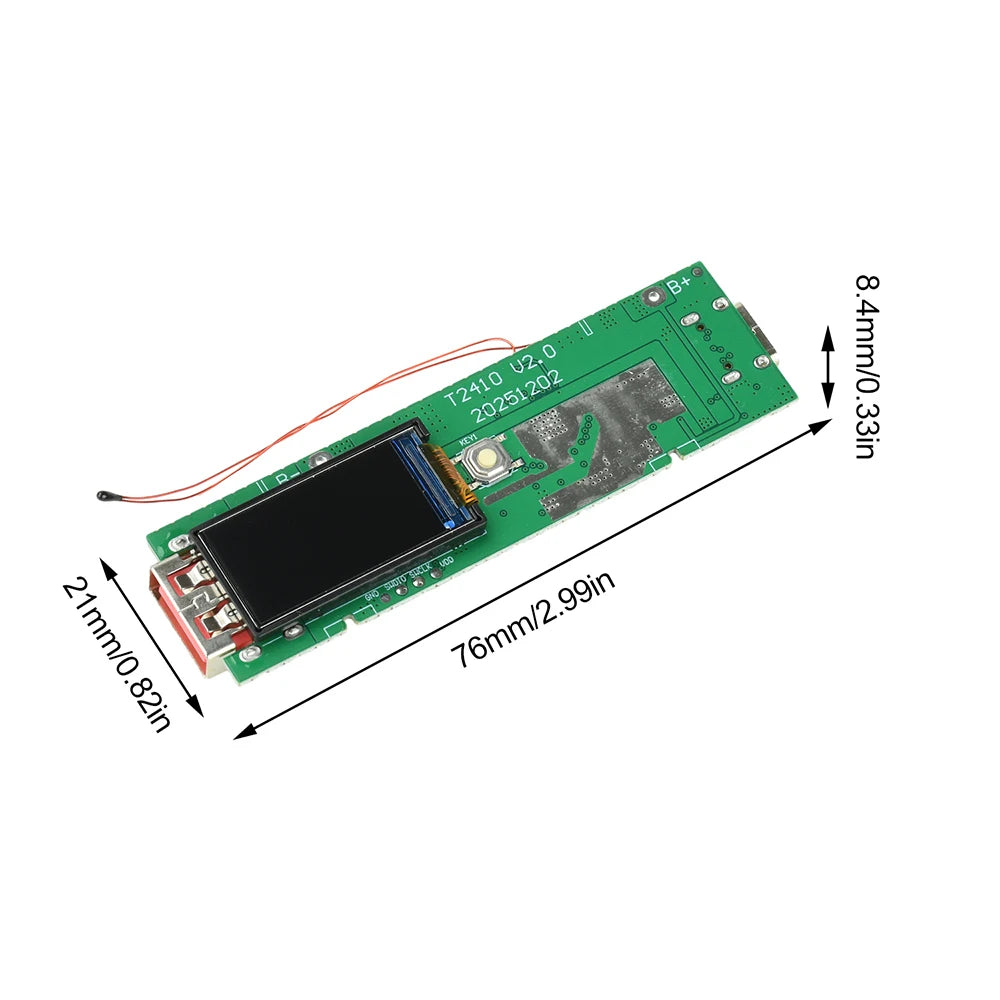

Technical Specifications

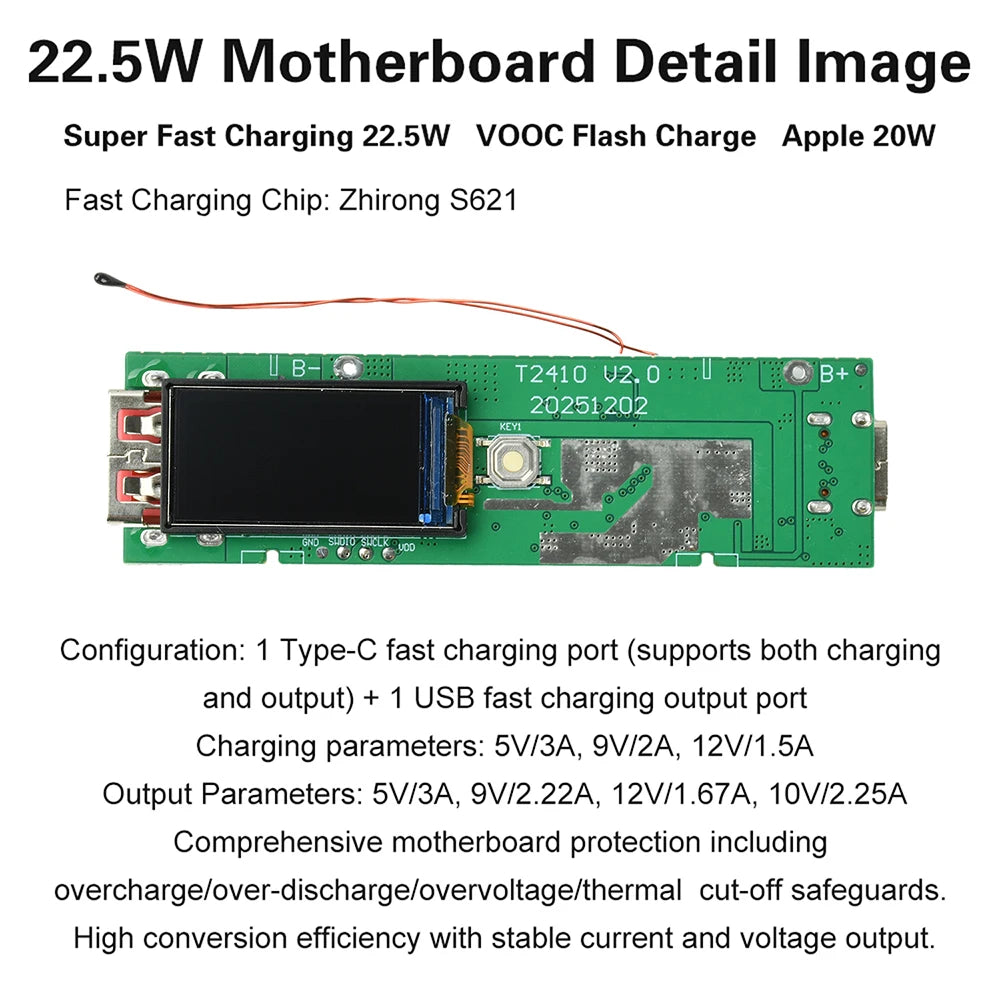

| Input | 5V 3A / 9V 2A / 12V 1.5A |
| Output | 5V 3A / 9V 2A / 12V 1.5A / 10V 2.25A |
| Display | 0.96-inch TFT colour screen |
| Ports | 1 × Type-C (input + output) + 1 × USB-A (output) |
| Compatible Batteries | 2 × 21700 Li-ion (3.7V, parallel connection — batteries NOT included) |
| Fast-Charge Protocols | PD 20W, QC, VOOC Flash Charge (22.5W) |
| Power Dissipation | Low power consumption |
| Package Options | Module + Wiring × 2 (Package 1) / Module + Housing + Wiring (Package 2) |
Assembly Notes
- Before soldering, connect a charging cable to test the display — only proceed once the screen lights up.
- Solder battery leads directly to the B+ and B− pads. Do not use twisted wires, crocodile clips, or spring connectors — these cause insufficient power supply.
- Connect batteries in parallel only. Series connection will damage the mainboard. Use 3.7V lithium-ion cells only — lithium iron phosphate (LiFePO4) is NOT compatible.
- No additional battery protection circuit is needed; the board has built-in protection.
- Thoroughly test all functions (output, fast-charge input, buttons, display) before closing the snap-fit casing. Run several charge–discharge cycles to confirm correct operation.
- Secure batteries with adhesive tape and verify thickness compatibility with the housing before final assembly.
Usage Tips
- Fast-Charging Compatibility: This module supports mainstream public fast-charging protocols. Confirm your phone supports a public protocol (PD/QC) before ordering if proprietary fast charging is a priority.
- Heat During Charging: Some warmth during fast charging is normal — it is a natural result of energy conversion at high power levels.
- Battery Gauge Accuracy: The battery level indicator uses a self-learning algorithm and will display accurate readings after a few complete charge–discharge cycles.
- Simultaneous Multi-Port Use: When both ports are in use simultaneously, fast-charging mode is not active; standard charging speeds apply.
Package Contents

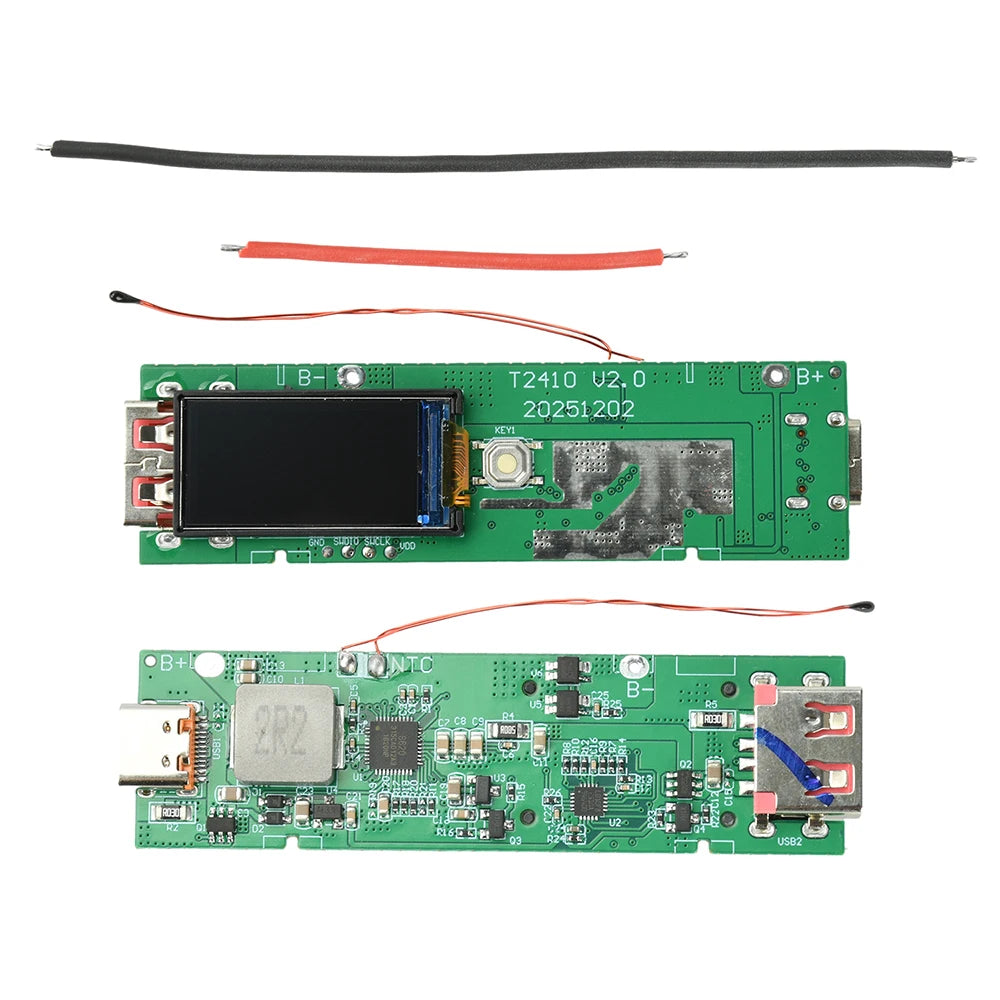

- Package 1: 1 × Module + 2 × Wiring leads

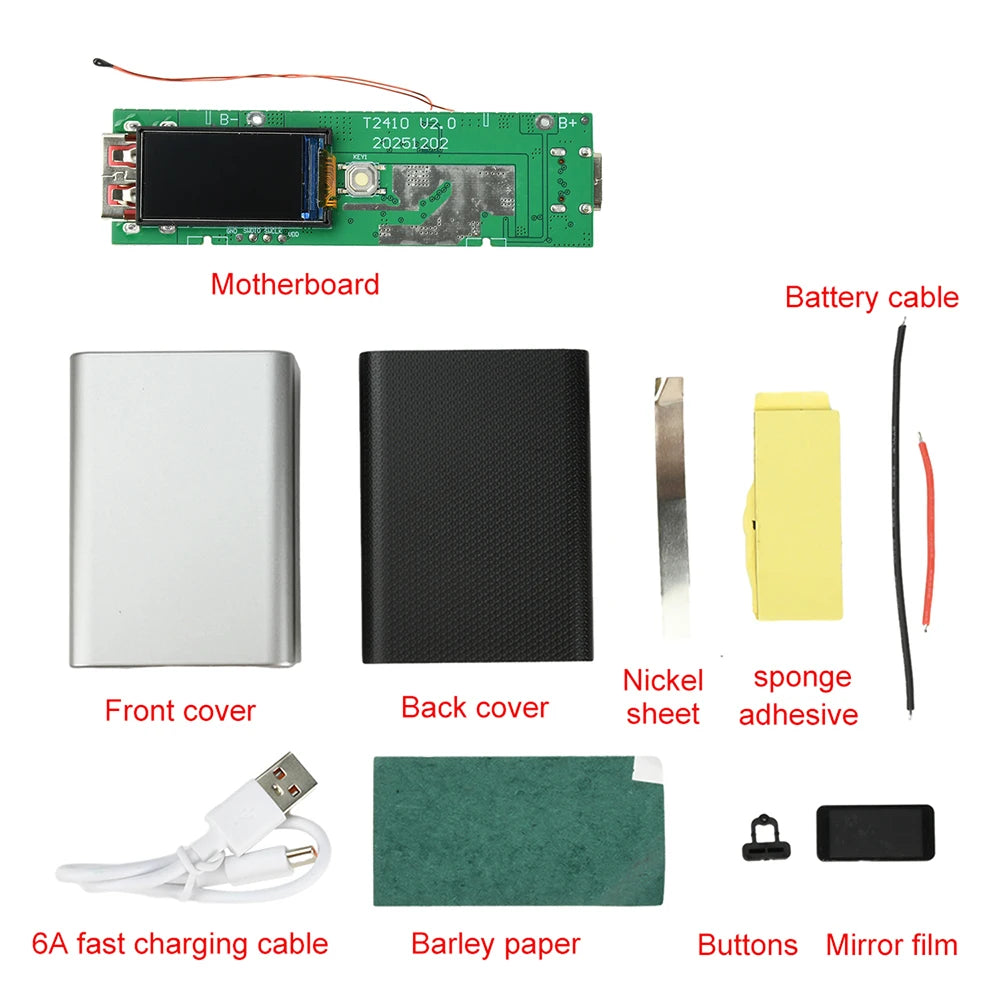

- Package 2: 1 × Module + 1 × Housing/Case + 1 × Wiring lead
You May Also Like
Looking for more DIY and storage accessories? Check out our Airtight Transparent PET Storage Bottle for keeping components organised, or our Ceramic Mini Sealed Storage Jar for compact parts storage.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Do the 21700 batteries come included with this power bank kit?
A: No, the 21700 lithium-ion batteries are not included. You will need to source 2 × 21700 3.7V Li-ion cells separately and solder them to the B+ and B− pads on the mainboard. Do not use lithium iron phosphate (LiFePO4) batteries.
Q: Which fast-charging protocols does this 22.5W module support?
A: The module supports multiple fast-charging protocols, including USB Power Delivery (PD 20W), Qualcomm Quick Charge (QC), and VOOC Flash Charge (22.5W). It is compatible with a wide range of smartphones that support public fast-charging standards. Note that simultaneous dual-port output does not support fast charging.
Q: Do I need soldering experience to assemble this kit?
A: Basic soldering skills are required. The battery leads must be soldered directly to the B+ and B− pads on the mainboard. The kit includes clear labelling to guide correct polarity. Always test the board's display and functions before closing the snap-fit casing, as the housing cannot be opened repeatedly without risk of damage.
Q: What is the difference between Package 1 and Package 2?
A: Package 1 includes the charging module and two wiring leads — ideal if you already have your own enclosure. Package 2 includes the module, a snap-fit housing/case, and one wiring lead, giving you everything needed to build a complete standalone power bank.
