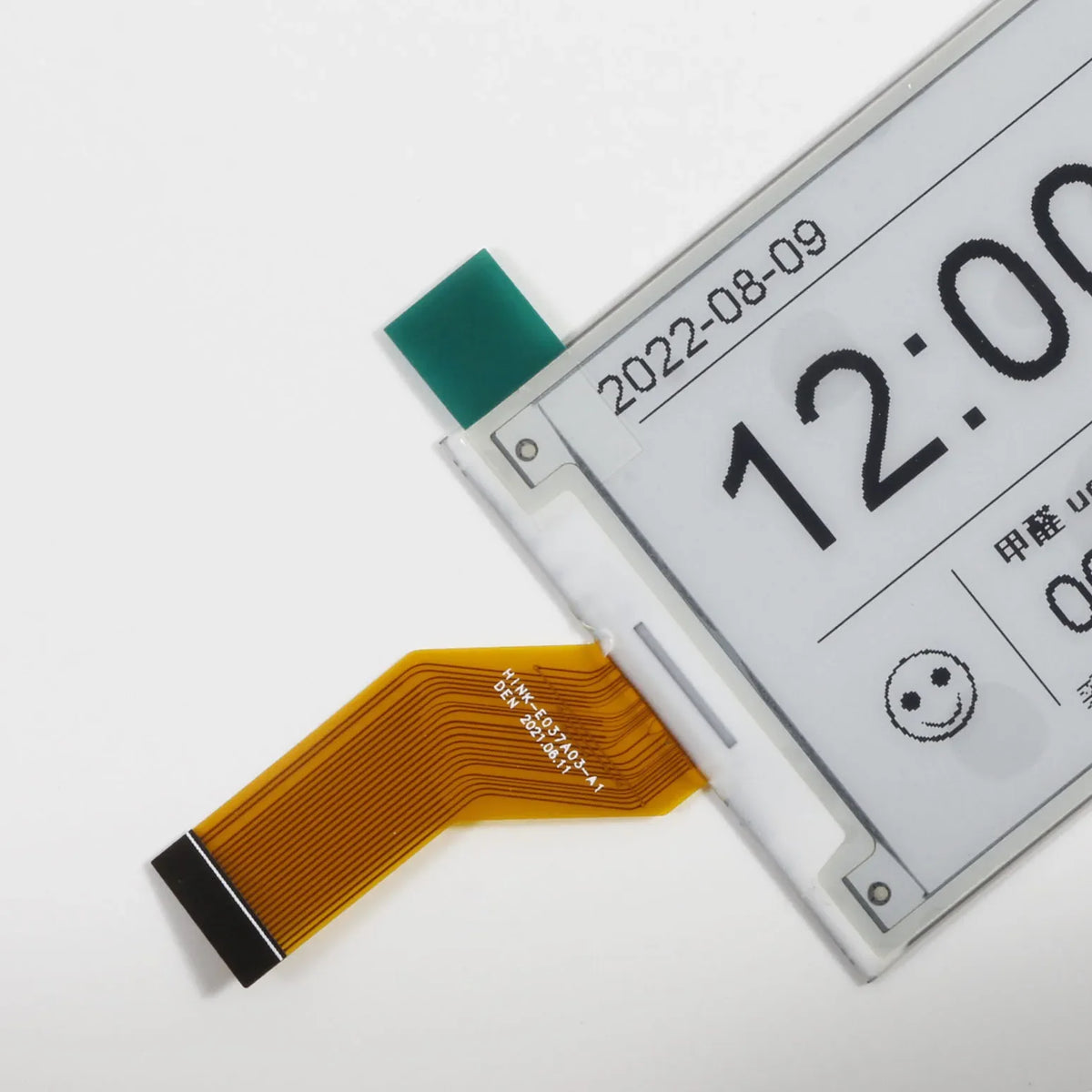

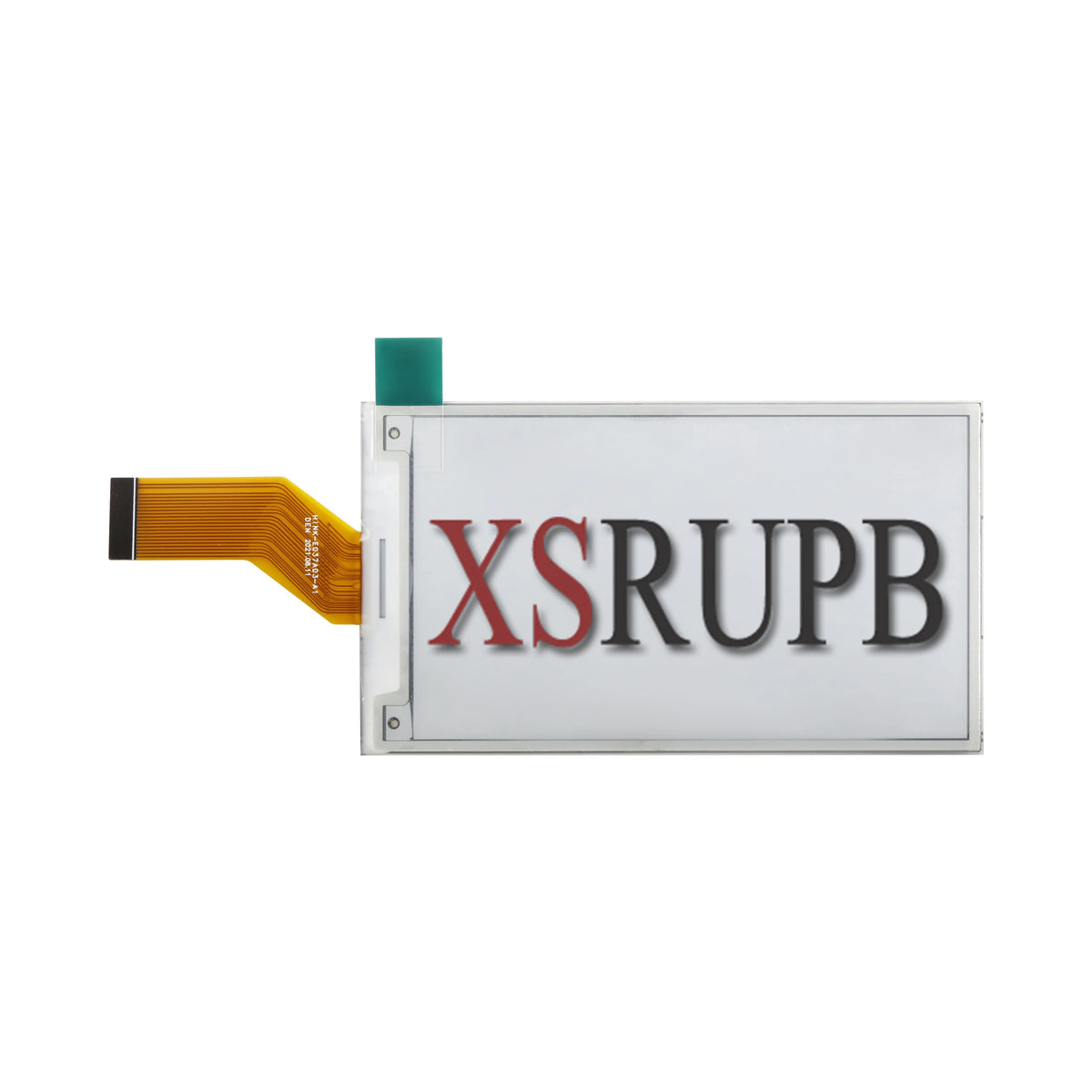

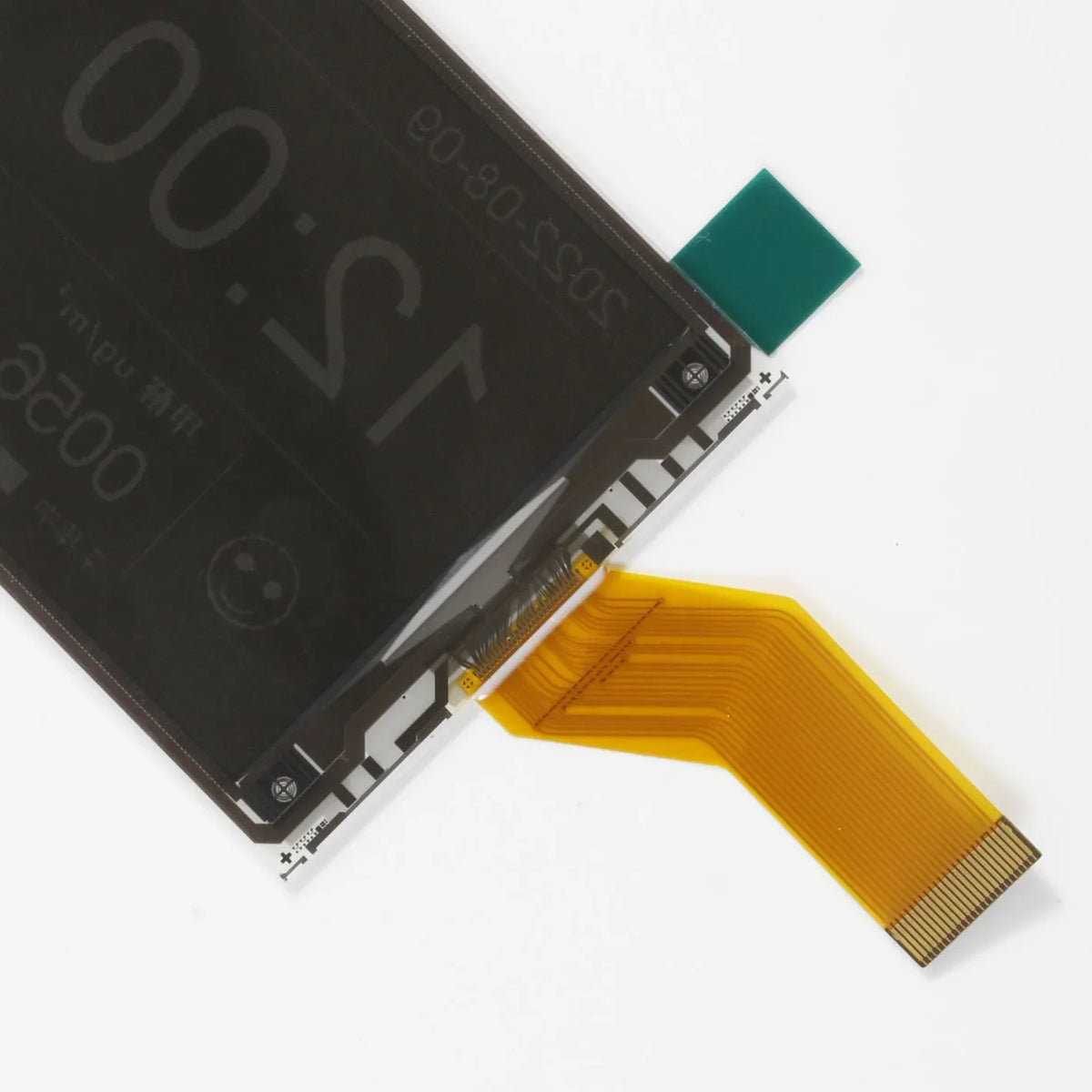

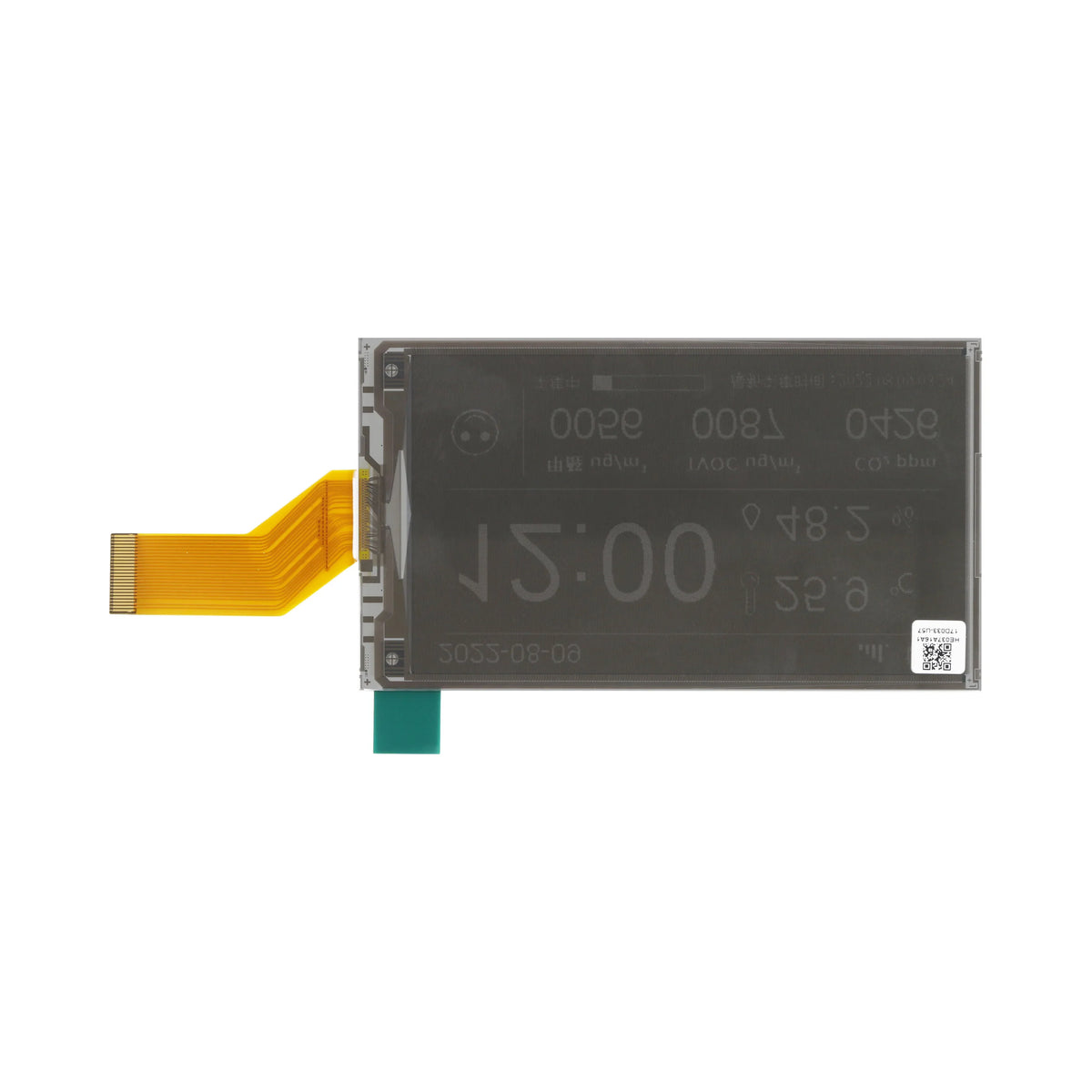

3.7" HINK-E037A03-A1 E-Paper Display 4 Grayscale 24-Pin SPI

3.7-Inch E-Paper Display Module – HINK-E037A03-A1

Upgrade your DIY electronics project with the RaderBook HINK-E037A03-A1 3.7-inch e-paper display. This ultra-low-power electronic ink screen delivers crisp black-and-white visuals with up to 4 levels of grayscale, making it ideal for smart badges, IoT devices, digital price tags, weather stations, and custom embedded displays. With a near-zero standby power draw of just 0.09 mW, it's perfect for battery-powered applications where energy efficiency is critical.

The display connects via a 24-pin FPC connector and communicates over a standard SPI interface, ensuring straightforward integration with popular microcontrollers like Arduino, Raspberry Pi, and ESP32. Driven by the reliable UC8171 IC, this screen supports a full refresh in just 4 seconds and retains its image without any power — a hallmark of e-ink technology.

Made in Mainland China.

Key Features

• 📐 3.7-inch dot matrix e-paper panel
• 🖤 Black & white with up to 4-level grayscale
• 📊 Resolution: 416 × 240 pixels
• 🔌 Interface: SPI | Connector: 24-Pin FPC
• ⚡ Driver IC: UC8171
• 🔋 Standby power: 0.09 mW — exceptional battery life
• 🔄 Full refresh time: 4 seconds
• 🌡️ Operating temp: 0°C – 50°C | Storage: -25°C – 70°C
• 📏 Outline size: 92.99 × 53 × 1.18 mm
• 📏 Active area: 81.536 × 47.04 mm
• 🔘 Pixel pitch: 0.196 × 0.196 mm
• ⚡ Refresh power consumption: 26.4 mW

Full Specifications

Great Pairings for Your Project

Looking for storage solutions to keep your components organized? Check out our Airtight Transparent PET Storage Bottle — perfect for keeping small electronic parts and accessories tidy. Need a compact container for loose components on the go? Our Ceramic Mini Sealed Storage Jar is a handy portable option.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What microcontrollers are compatible with the HINK-E037A03-A1 e-paper display?

A: The HINK-E037A03-A1 uses a standard SPI interface, making it compatible with a wide range of microcontrollers and single-board computers, including Arduino, Raspberry Pi, ESP32, and STM32. You will need to implement or adapt a driver using the UC8171 IC specifications, which are available in the datasheet.

Q: Does the e-paper display retain its image when power is turned off?

A: Yes — one of the core advantages of e-paper (electronic ink) technology is that it retains a static image without any power draw. Only screen refreshes consume energy, which is why the standby power consumption is just 0.09 mW. This makes it ideal for battery-powered devices that display infrequently changing information.

Q: Is a PCB or driver board included with the HINK-E037A03-A1 display?

A: No, a PCB is not included with this listing. You will receive the bare 3.7-inch e-paper display module with a 24-pin FPC connector. A compatible breakout board or FPC adapter will be required to interface the display with your development platform.

Q: What does "4 grayscale" mean for this e-paper screen?

A: The HINK-E037A03-A1 supports up to 4 levels of grayscale, meaning each pixel can be rendered in one of four shades — from pure white to pure black, with two intermediate gray tones. This allows for more detailed and visually nuanced content compared to a standard 1-bit (pure black and white only) e-ink display.
