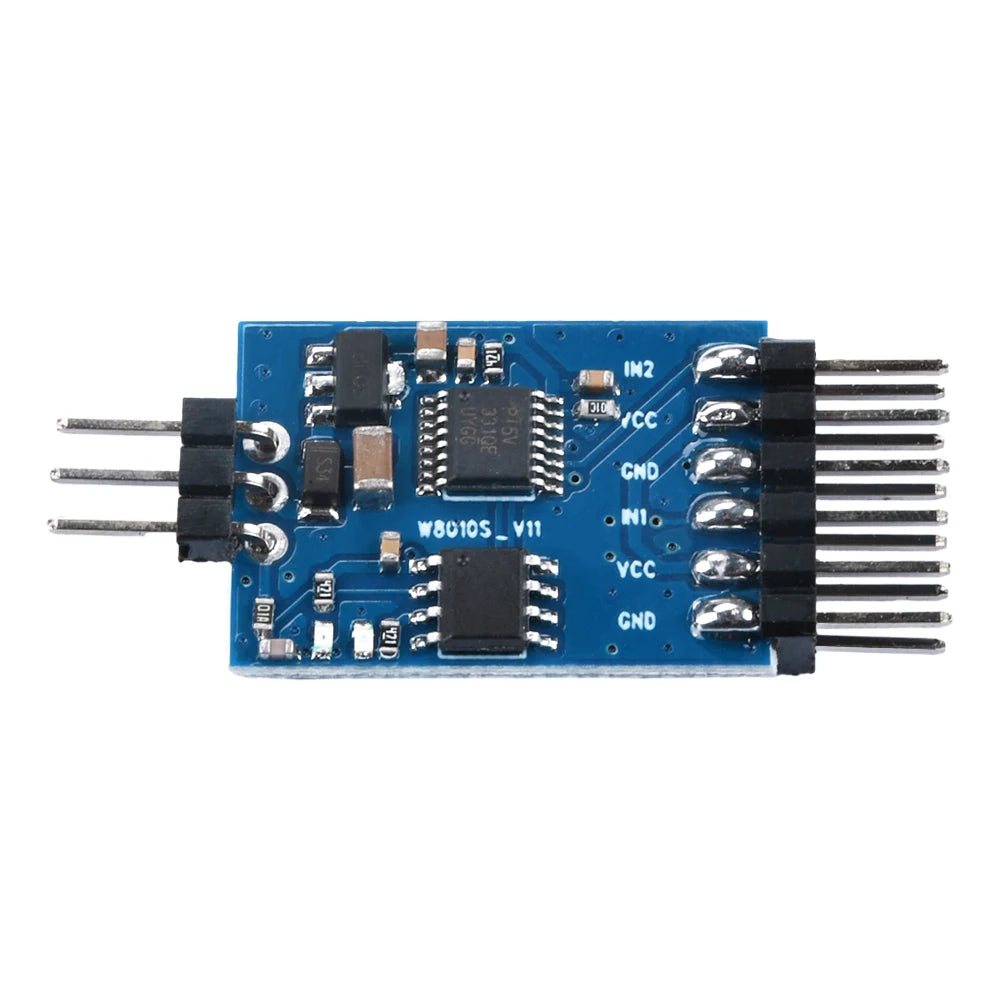

3-Channel Video Switcher Module for FPV Drones & Multi-Camera UAV Systems
Take full control of your aerial footage with this compact 3-Channel Video Switcher Module. Designed for multirotor UAVs, FPV racing drones, and any multi-camera setup, this module lets you seamlessly switch between three video sources in real time — all from a single PWM control channel. Whether you're monitoring multiple angles or switching between a forward-facing and downward-facing camera, this lightweight module delivers stable, jitter-free video every time.
Made in Mainland China.
Key Features
- 3-Input Video Switching: Connect up to three video sources (cameras, FPV transmitters, etc.) and switch between them via any 3-position or proportional RC channel.
- High-Speed Switching Chip: Minimises image jitter during transitions for a clean, stable video feed.
- Wide Voltage Range: Operates on DC 5–12V, making it compatible with most UAV power systems.
- 75Ω Video Signal Impedance: Ensures signal integrity and compatibility with standard FPV camera and transmitter setups.
- PWM Control: Supports standard PWM control signals — IN1: 1000μs ±200, IN2: 1500μs ±200, IN3: 2000μs ±200.
- Premium PCB Construction: Built from quality PCB materials for reliable, long-term performance.
- Ready to Use: Ships in anti-static packaging with pre-soldered header pins — compact, lightweight, and easy to install.

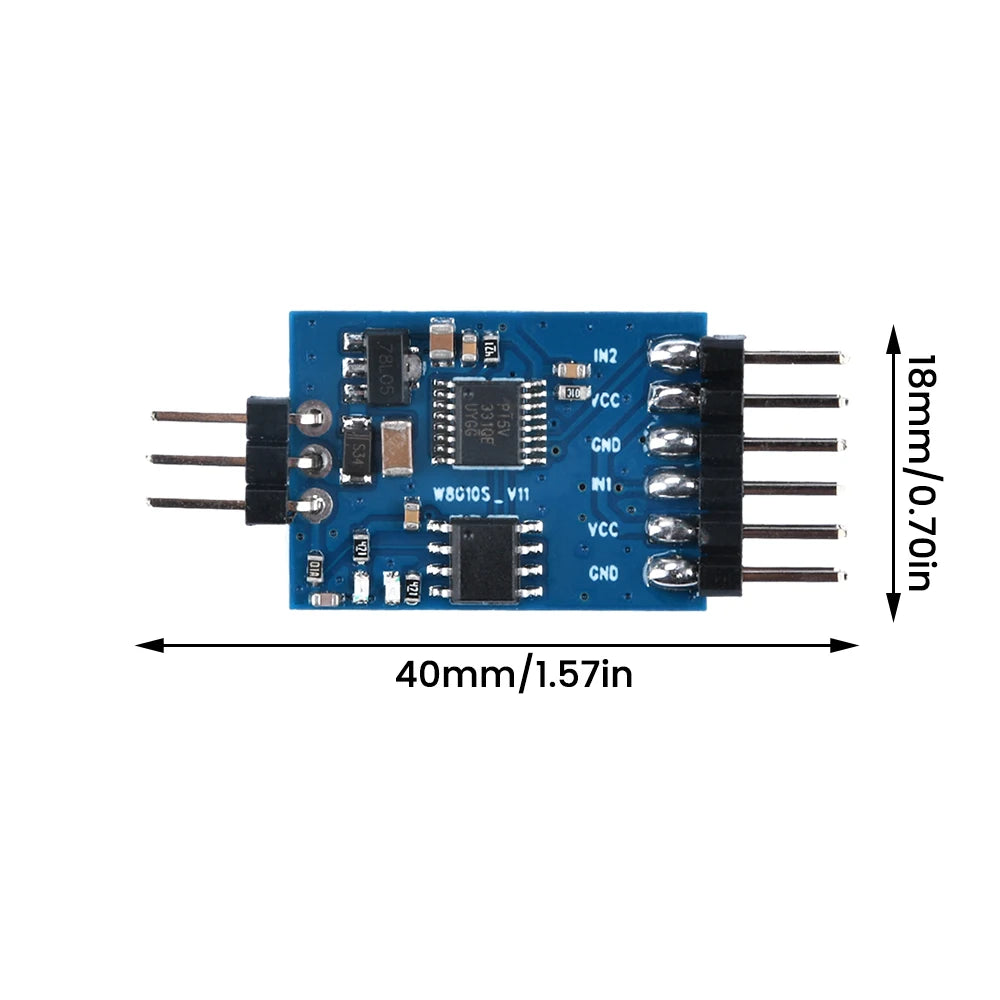

Technical Specifications
| Input Channels | 3 |
| Voltage | DC 5–12V |
| Video Signal Impedance | 75Ω |
| Control Signal | PWM |
| IN1 Pulse Width | 1000μs ±200 |
| IN2 Pulse Width | 1500μs ±200 |
| IN3 Pulse Width | 2000μs ±200 |
| Colour | Blue |
| Condition | New |
Port Guide

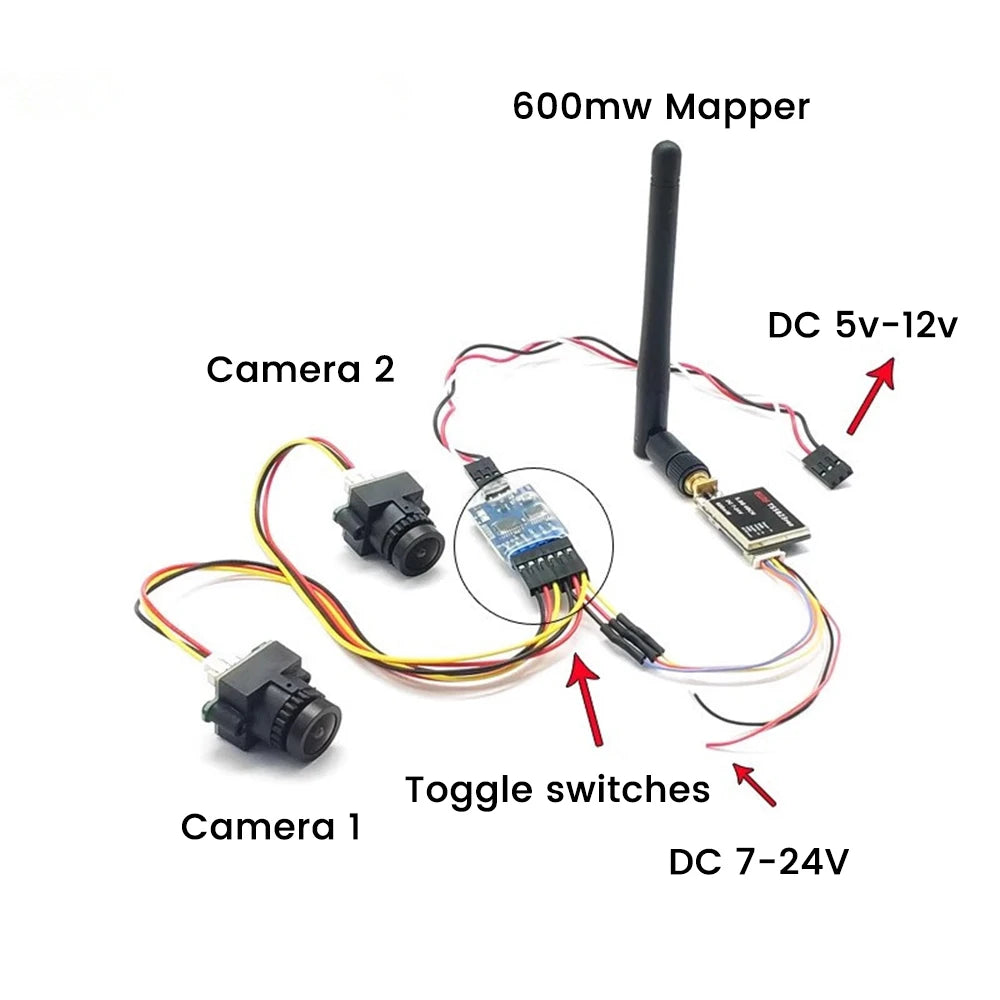

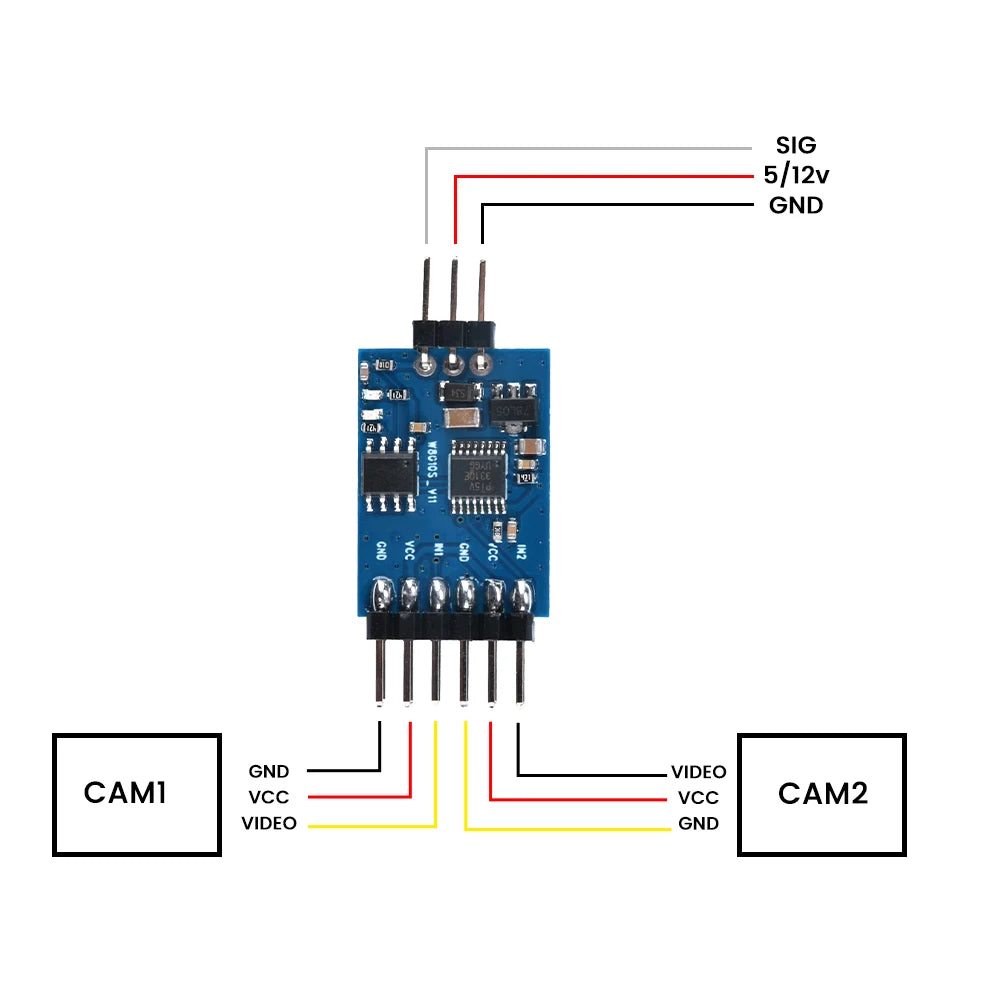

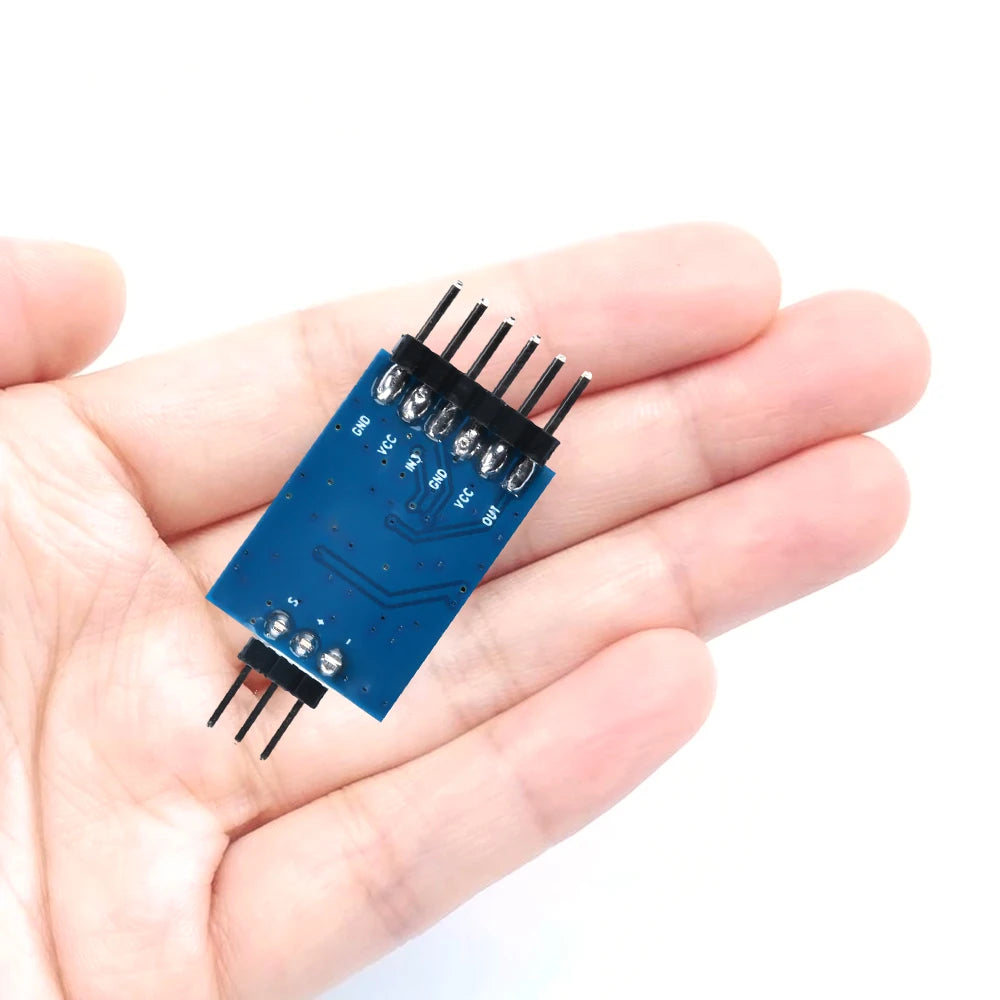

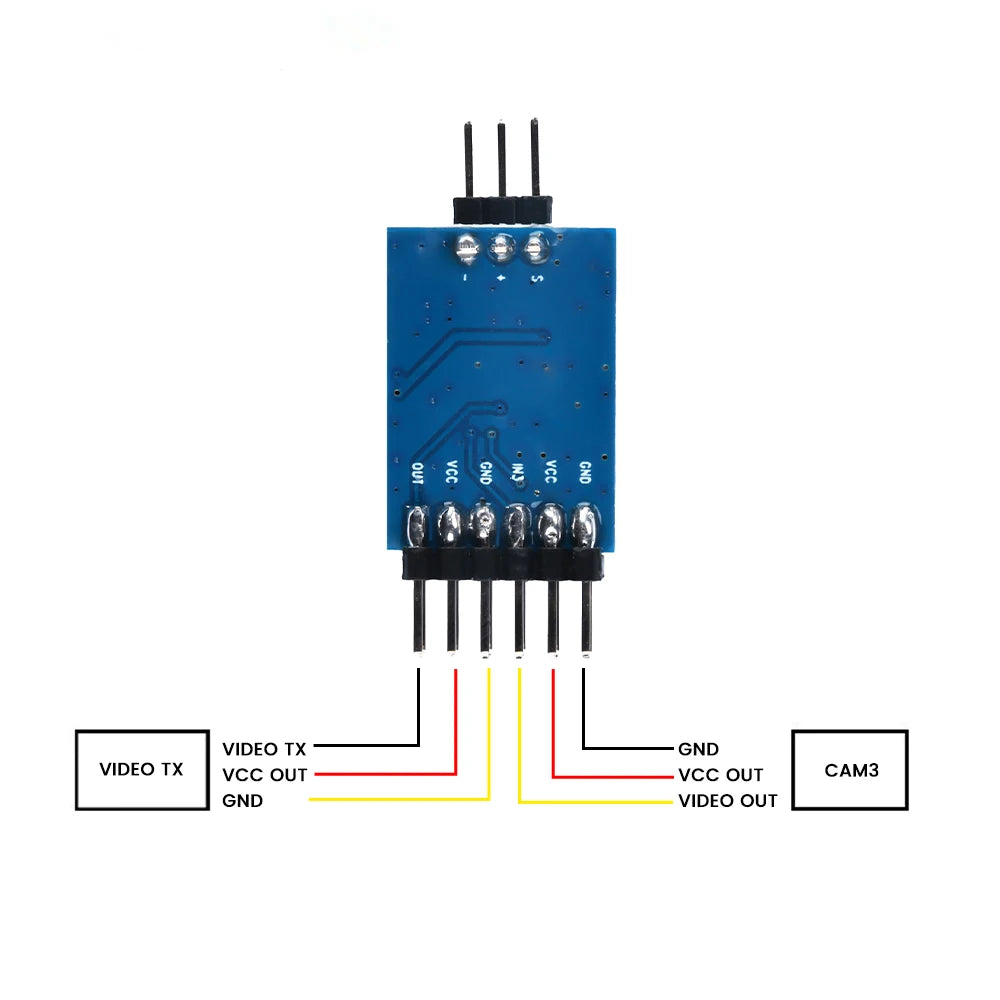

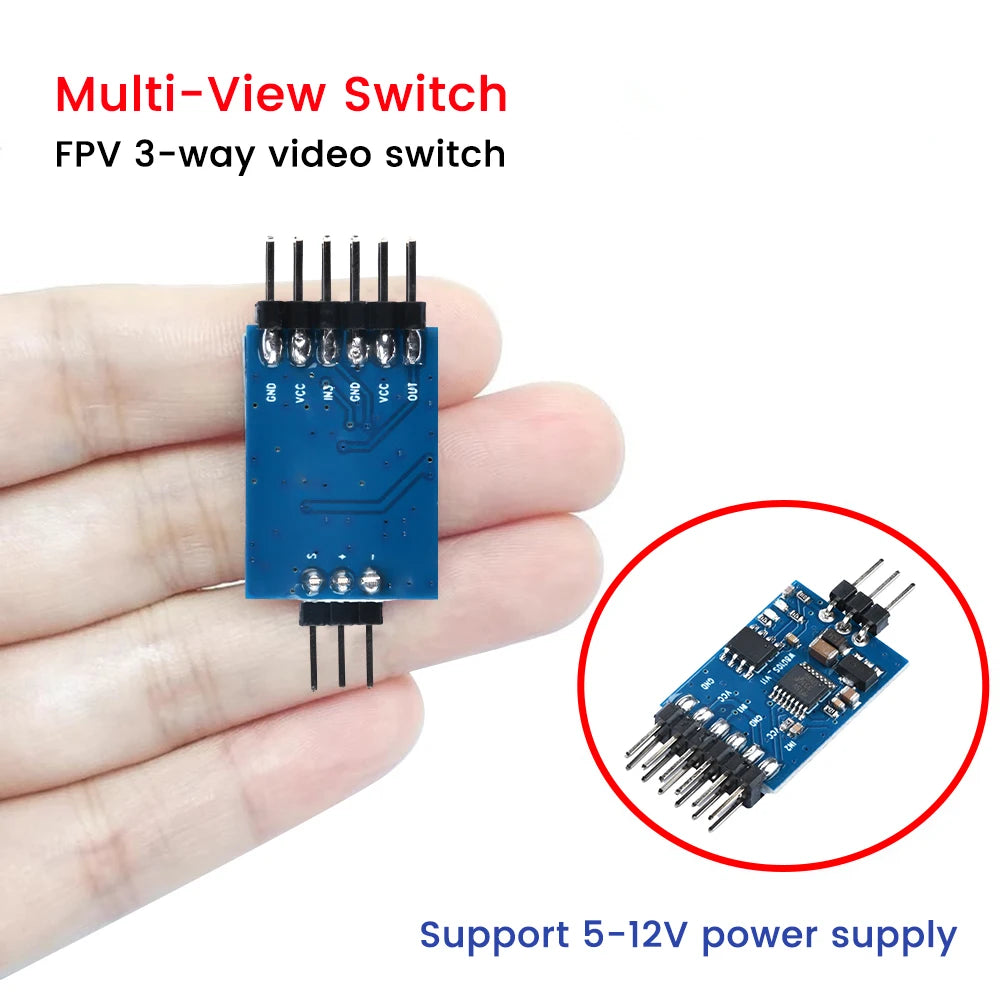

- IN1, IN2, IN3 — Video signal inputs
- OUT — Video signal output
- – — Negative terminal (ground)
- + — Positive terminal (power)
- S — PWM signal reception
What's in the Box?
- 3-Channel Video Switcher Module × 1
