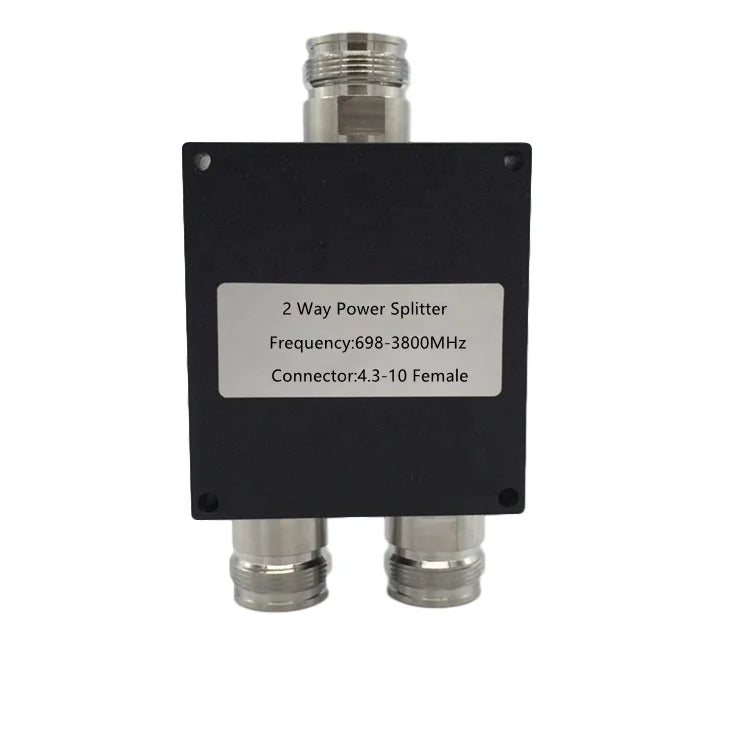

HERKOMYOU 4.3-10 Female RF Power Splitter — 698–3800MHz, 50W, Low PIM, IP65
Engineered for demanding outdoor deployments, this Wilkinson Microstrip Power Splitter / Divider by HERKOMYOU delivers rock-solid RF signal distribution across the full 698–3800 MHz band — covering 4G LTE, 5G NR sub-6 GHz, and legacy 2G/3G frequencies in a single compact housing. Available in 2-Way, 3-Way, and 4-Way configurations, it is fitted with industry-standard 4.3-10 Female connectors at all ports, making it ideal for modern base stations, distributed antenna systems (DAS), and indoor coverage networks.
With an impressive Low PIM rating of -150 dBc @ 2×43 dBm and an IP65-rated weatherproof enclosure, this power divider maintains signal integrity even in harsh outdoor environments. The low insertion loss (3.8 dB for 2-way) and tight port isolation (≥20 dB) ensure clean, even signal splitting with minimal interference between output ports.
Made in Mainland China.
Key Features
- Wide Frequency Coverage: 698–3800 MHz — supports 2G, 3G, 4G LTE, and 5G NR
- Multiple Configurations: 2-Way, 3-Way, and 4-Way power splitting available
- 4.3-10 Female Connectors: All ports use the compact MINI DIN 4.3-10 standard
- Low PIM Performance: -150 dBc @ 2×43 dBm for interference-free operation
- IP65 Weatherproof: Fully protected against dust ingress and water jets
- 50W Average Power Handling: Suited for high-power RF environments
- Low Insertion Loss: 3.8 dB (2-Way), ensuring efficient signal distribution
- High Isolation: ≥20 dB between output ports
- Low VSWR: ≤1.30 for excellent impedance matching
- 50Ω Impedance: Standard RF system compatibility
- Wide Operating Temperature: -35°C to +70°C
- Lightweight: Only 0.4 kg net weight
Technical Specifications
| Frequency Range | 698–3800 MHz |
| Configurations | 2-Way / 3-Way / 4-Way |
| Insertion Loss | 2-Way: 3.8 dB |
| Isolation | ≥20 dB |
| VSWR | ≤1.30 |
| Impedance | 50Ω |
| Connector Type | 4.3-10 Female (MINI DIN) |
| Average Power | 50W |
| PIM3 | -150 dBc @ 2×43 dBm |
| IP Rating | IP65 |
| Operating Temperature | -35°C to +70°C |
| Net Weight | 0.4 kg |
| Application | Outdoor / Indoor DAS / Base Station / Repeater |
| Origin | Mainland China |
Typical Applications
- 5G NR and 4G LTE base station signal distribution
- Cell site repeater and tower RF splitting
- Indoor distributed antenna systems (DAS)
- Telecom infrastructure and RF test environments
- Multi-operator shared antenna deployments
Need a 3-Way or 4-Way configuration? Contact us directly to discuss your specific deployment requirements — we're happy to assist!
Looking for other storage and organization solutions for your workspace? Check out our Airtight Transparent PET Storage Bottle or explore our Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer for keeping your workbench tidy.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What frequency range does this 4.3-10 Female RF power splitter support?
A: This power splitter covers 698–3800 MHz, making it compatible with 2G, 3G, 4G LTE, and 5G NR sub-6 GHz networks. It is suitable for use in base stations, repeaters, and distributed antenna systems that require broad-band signal distribution across multiple cellular bands.
Q: What is the PIM rating of this power divider and why does it matter?
A: The unit achieves a Low PIM (Passive Intermodulation) rating of -150 dBc at 2×43 dBm. A low PIM value is critical for modern 4G/5G deployments because high PIM can generate interference products that degrade receiver sensitivity and reduce network capacity. This rating ensures clean signal splitting with minimal interference contribution from the passive component itself.
Q: Is this power splitter suitable for outdoor installation?
A: Yes. The unit carries an IP65 ingress protection rating, meaning it is fully sealed against dust and protected against water jets from any direction. Combined with its wide operating temperature range of -35°C to +70°C, it is well-suited for permanent outdoor mounting in all climates and weather conditions.
Q: Can I use this power splitter for both combining and splitting RF signals?
A: Yes. Like all passive Wilkinson-type RF power dividers, this unit is fully reciprocal — it can be used in either the splitting (one input to multiple outputs) or combining (multiple inputs to one output) direction, depending on your application's RF topology.
