Take Full Control of Your Fan Speed with USB Type-C Power

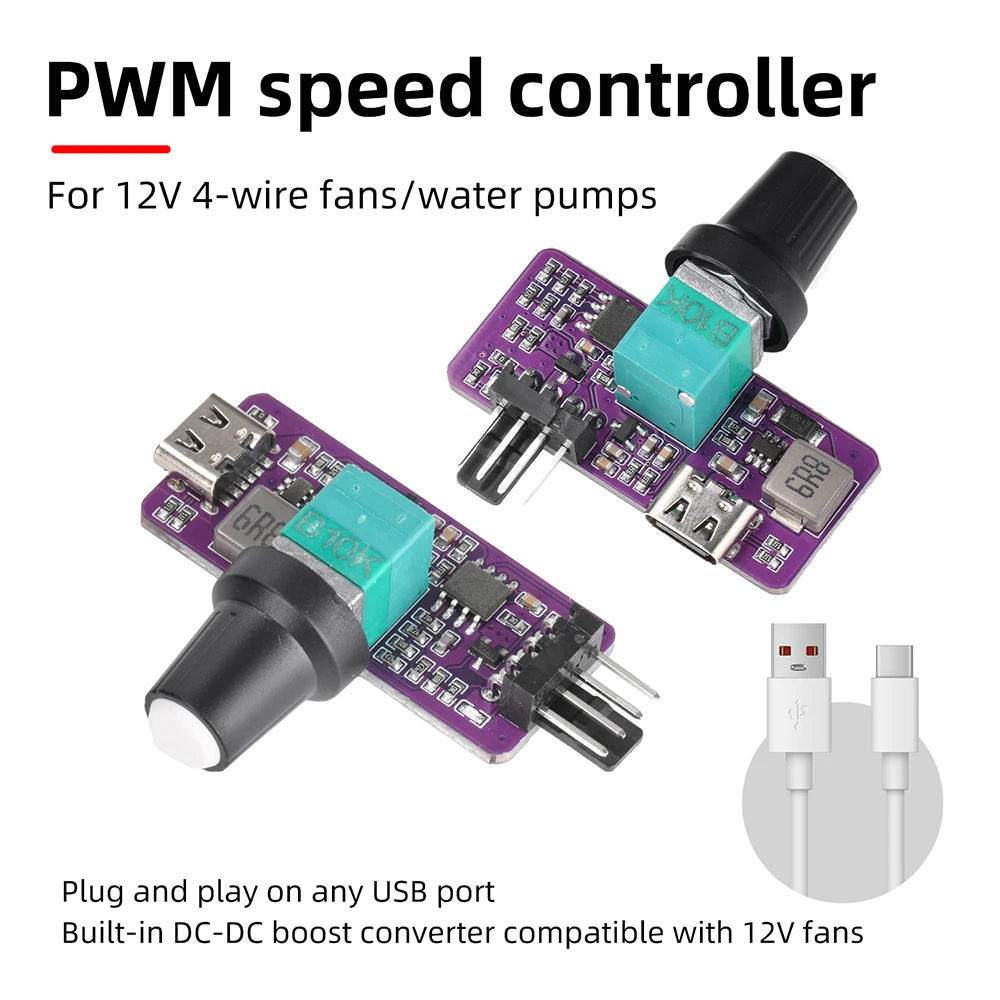

The Gaqqee 4-Pin PWM Fan Speed Controller is a compact DIY module that converts a standard USB Type-C 5V input into a 12V PWM output — perfect for powering and controlling 4-pin PWM fans, water-cooling pumps, and other DC components in custom PC builds and silent system setups. Made in Mainland China.
Key Features

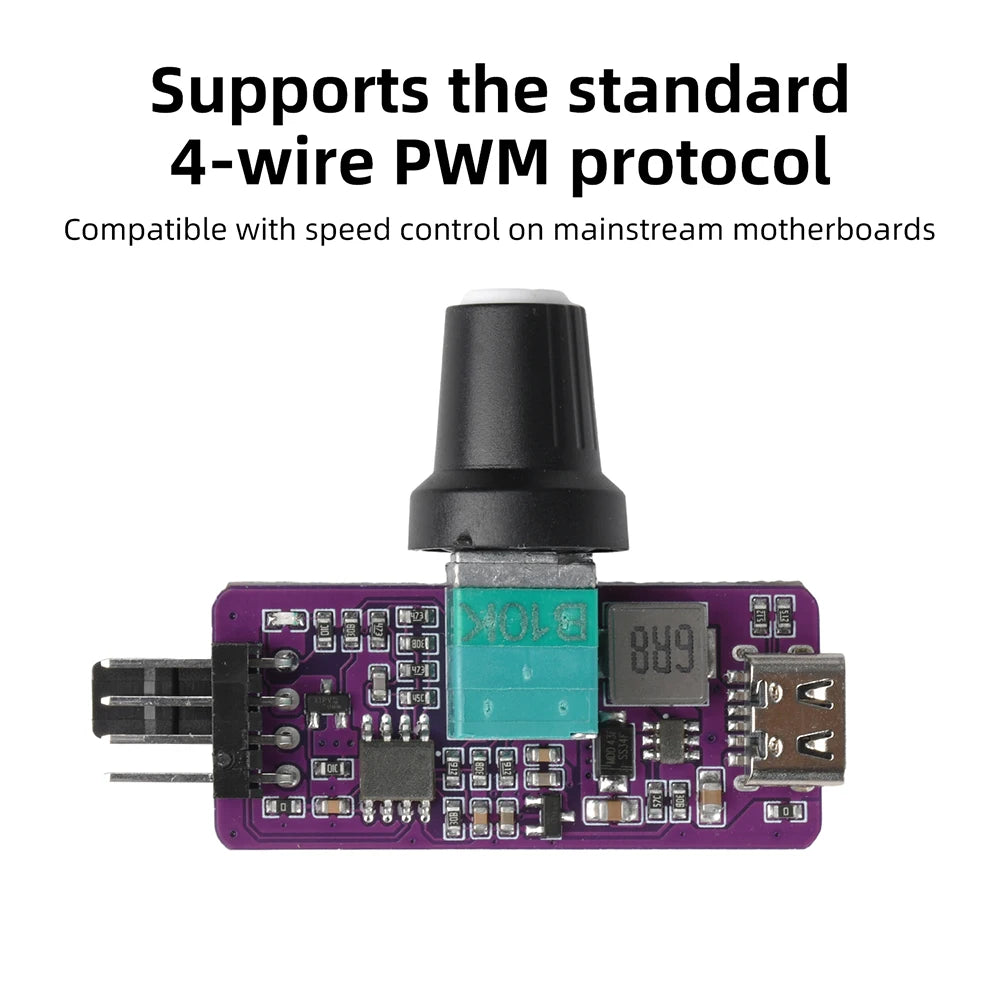

- Standard 4-Wire PWM Protocol: Fully compatible with speed control on mainstream motherboards and DIY fan setups.

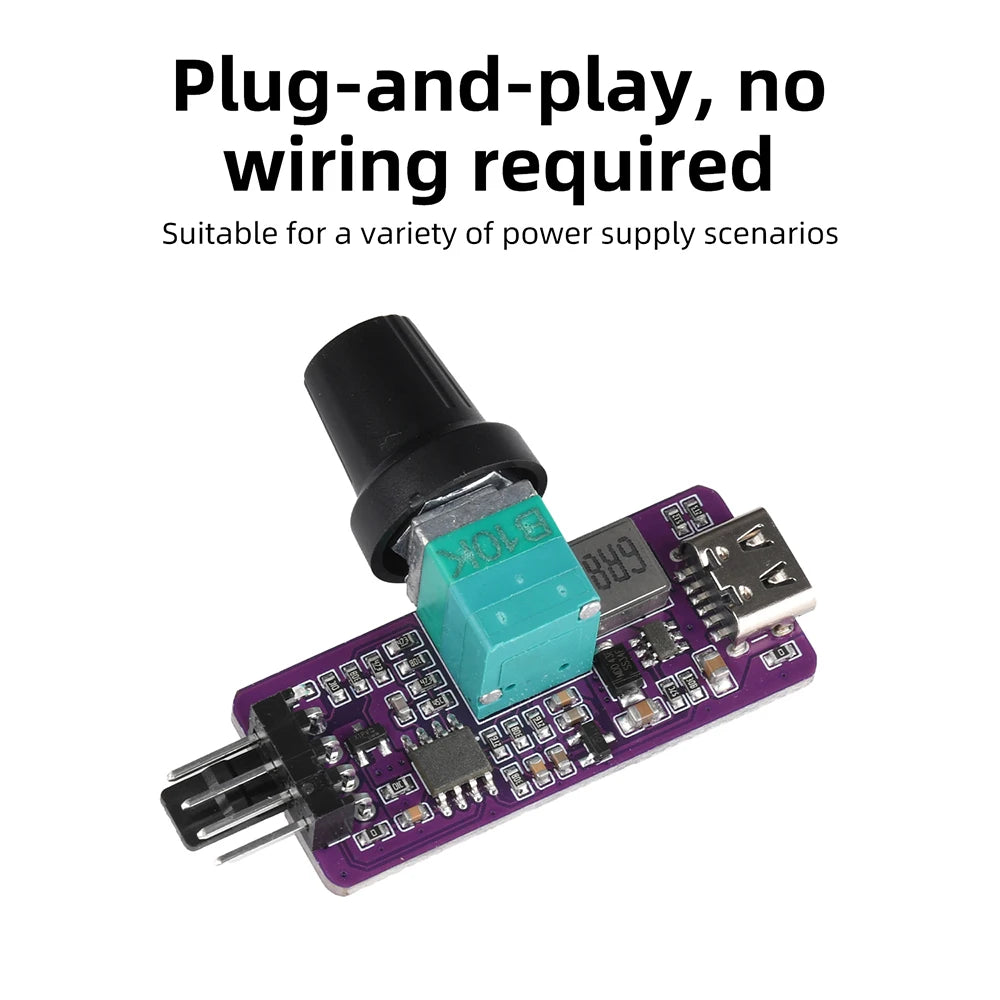

- Plug-and-Play Convenience: No complex wiring required — simply connect via USB Type-C and get started instantly.

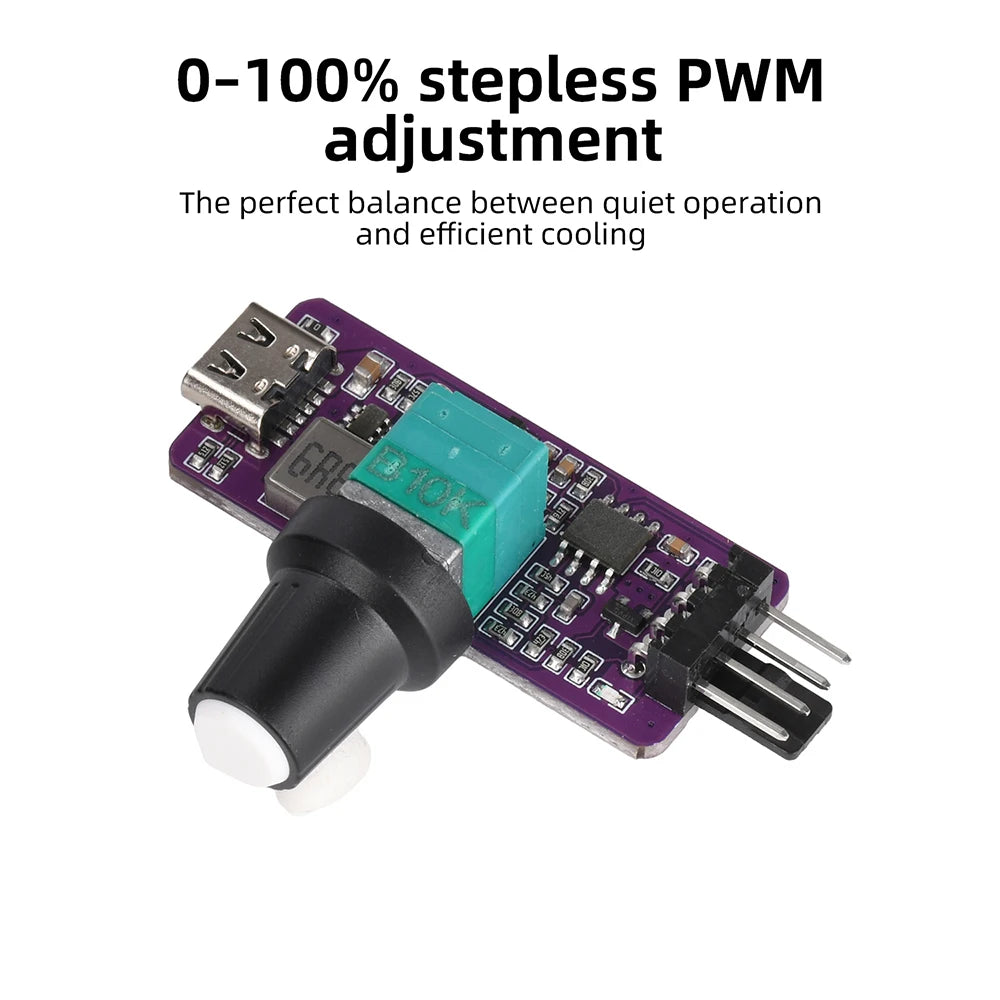

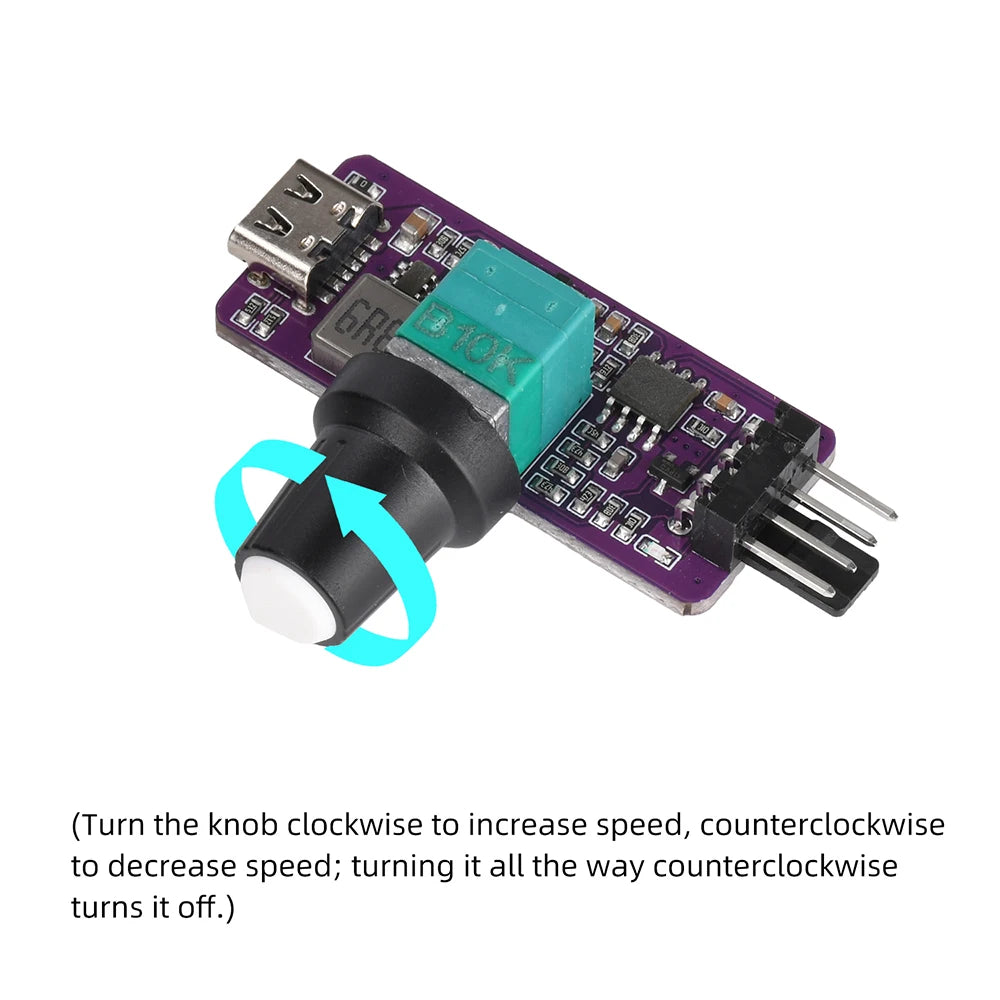

- 0–100% Stepless PWM Adjustment: Fine-tune fan speed across the full range for the ideal balance between silence and cooling performance.

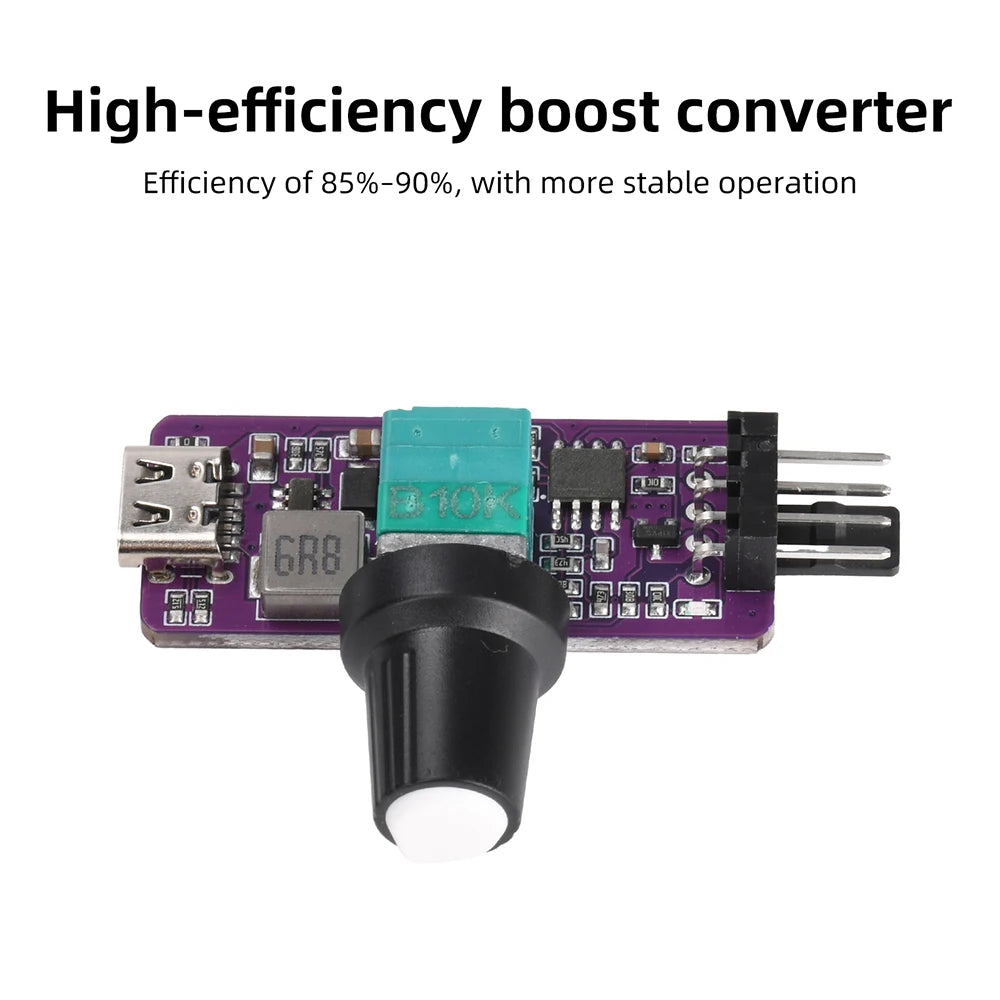

- High-Efficiency DC-DC Boost Conversion: Onboard boost circuit steps up 5V to 12V with 85–90% efficiency for stable, consistent operation.
- Compact & Low-Power Design: Ideal for space-constrained builds, silent PC systems, and creative DIY electronics projects.
Technical Specifications
| Input Voltage | 5V DC |
| Output Voltage | 12V DC |
| PWM Frequency | Approx. 25 kHz |
| Output Current | Rated 0.5A (Max. 0.7A short-term) |
| Speed Control Range | PWM Duty Cycle 0–100% |
| Input Port | USB Type-C Female |
| Output Port | 4-Pin PWM (KF2510) |
| Efficiency | 85–90% |
| Package Type | TQFP Module |
| Quantity | 1 × Speed Controller Module |
Important Usage Note
The built-in boost circuit generates some heat during conversion. To ensure reliable long-term operation, it is recommended to keep the output current below 0.5A. A brief peak of up to 0.7A is supported for short durations only.
What's in the Box
- 1 × PWM Speed Controller Module
Related Products You May Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
- U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What power source does this PWM fan controller use?
A: This PWM fan speed controller uses a standard USB Type-C female input rated at 5V DC. It includes a built-in DC-DC boost circuit that steps the voltage up to 12V, making it compatible with most USB Type-C power banks, adapters, or PC USB ports.
Q: Is this module compatible with standard 4-pin PWM PC fans?
A: Yes. The module outputs via a standard 4-pin KF2510 PWM header and supports the standard 4-wire PWM protocol, making it compatible with most 4-pin PWM PC fans, water-cooling pumps, and other 12V PWM accessories used in DIY PC builds.
Q: What is the maximum safe output current for this controller?
A: The rated continuous output current is 0.5A. While the module can briefly handle up to 0.7A, it is recommended to stay at or below 0.5A during regular use to prevent excessive heat buildup from the boost conversion circuit and to ensure long-term reliability.
Q: Does this require any software or driver installation?
A: No software or drivers are needed. The Gaqqee PWM speed controller module is a fully hardware-based, plug-and-play solution — just connect your USB Type-C power source and your 4-pin PWM fan or pump to get started immediately.
