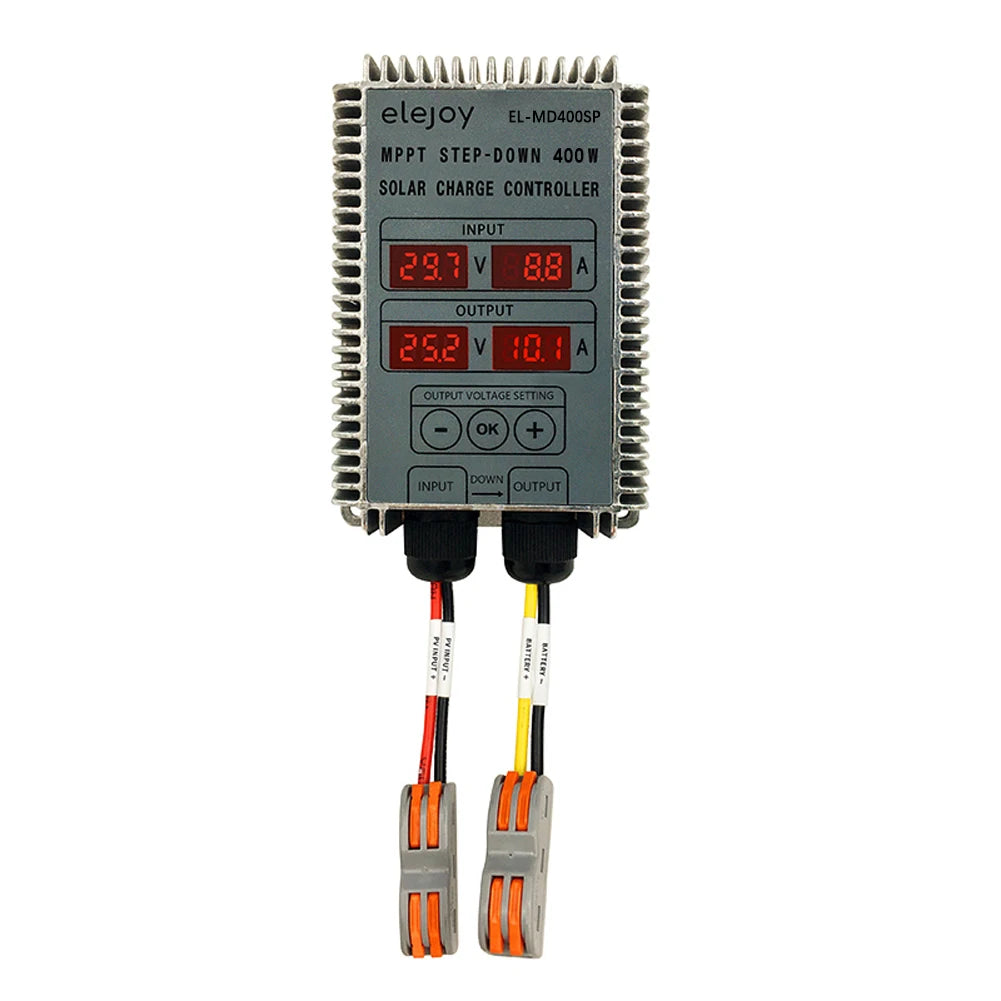

400W MPPT Solar Charge Controller with Real-Time LED Monitoring
Maximize every ray of sunlight with this high-efficiency 400W MPPT Solar Charge Controller. Featuring step-up/step-down conversion, real-time LED display monitoring, and a fully adjustable output voltage between 10–30V, this controller is the smart choice for off-grid solar setups, RVs, cabins, and DIY solar projects. Compatible with lead-acid, lithium-ion, and other battery types that accept a 10–30V recharging voltage.
Made in Mainland China.
Key Features
- Real-Time LED Display: Clearly shows live input and output current and voltage at a glance, so you always know exactly what your system is doing.
- Adjustable Output Voltage (10–30V): Dial in the exact voltage your battery bank requires — versatile enough for a wide range of 12V and 24V battery systems.
- 99% MPPT Efficiency: Advanced Maximum Power Point Tracking algorithm continuously finds and locks onto the optimal operating point of your solar panels for maximum energy harvest.
- 97% PWM Conversion Efficiency: Minimizes energy loss during charge conversion, keeping more power in your batteries.
- Overheat Protection: Automatically reduces output power at 100°C and shuts off at 110°C; resumes normal operation once the temperature drops back below 85°C.
- Short-Circuit Protection: Automatically closes output upon detecting a short circuit and restores normal operation once the fault is cleared.
- Input Under-Voltage Protection: Protects the controller by shutting down when input DC voltage drops below 15V, resuming automatically when voltage normalizes.
- Aluminum Construction: Durable aluminum body provides excellent heat dissipation and long-term durability in demanding environments.
- Wide Operating Temperature Range: Performs reliably from -40°C to 65°C, suitable for harsh outdoor installations.

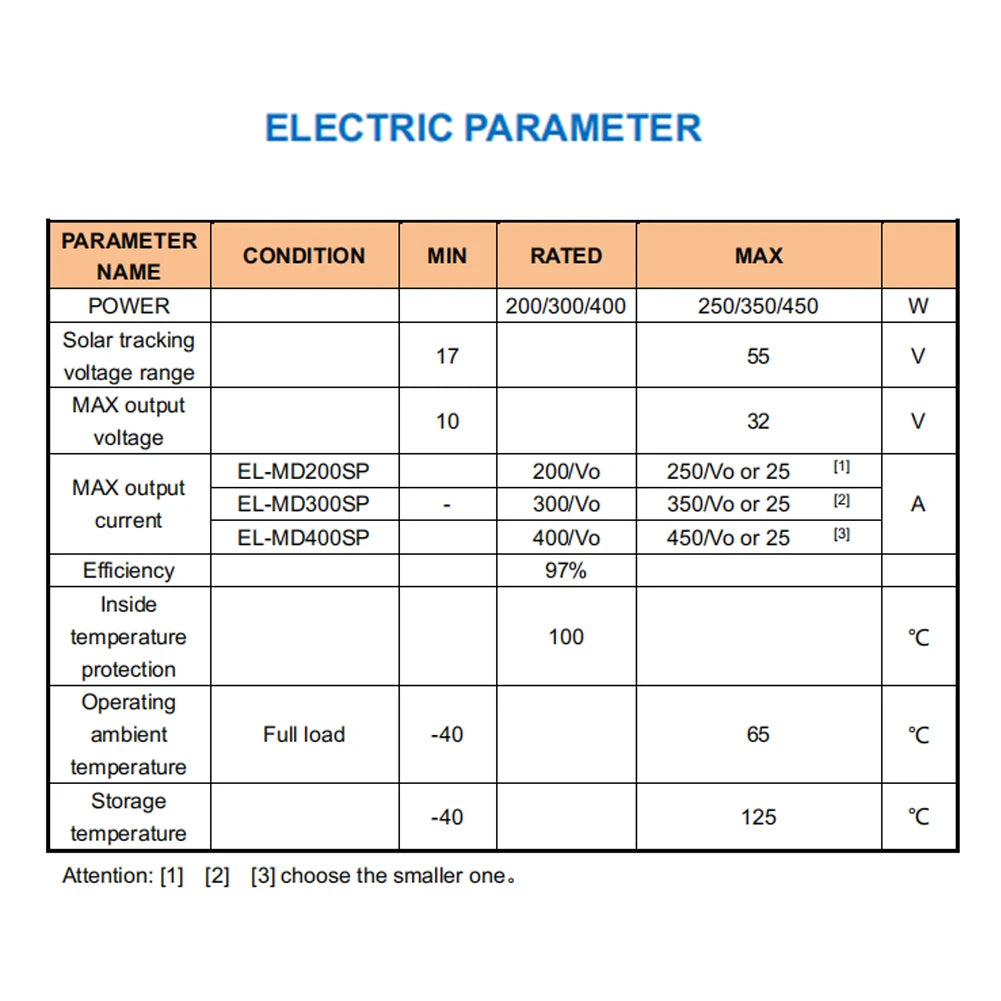

Technical Specifications
| Output Power Options | 200W / 300W / 400W (optional) |
| Solar Panel Open Circuit Voltage | 18V – 55V |
| Solar Panel Max Power Voltage | 17V – 55V |
| PV Input Starting Voltage | 18V – 55V |
| PV Input Tracking Voltage | 17V – 55V |
| Output Battery Voltage | 10–30V (adjustable) |
| Output Battery Current (Max) | 25A |
| No-Load Loss | 0.35W |
| Voltage Adjustment Rate | 1% |
| Load Adjustment Rate | 1% |
| PWM Conversion Efficiency | 97% |
| MPPT Efficiency | 99% |
| Working Temperature | -40°C – 65°C |
| Material | Aluminum |
| Item Size | 130 × 80 × 40 mm / 5.1 × 3.1 × 1.6 in |
| Item Weight | 450g / 1.0 lb |
| Installation Hole Pitch | 110mm × 70mm |
| Installation Hole Diameter | 5mm |
| Wire Lead Length | 50mm |
| Package Size | 160 × 90 × 50 mm / 6.3 × 3.5 × 2.0 in |
| Package Weight | 500g / 1.1 lb |
What's in the Box
- 1 × MPPT Solar Charge Controller (power level optional: 200W / 300W / 400W)
You May Also Like
Explore more great products from our store:
- Airtight Transparent PET Storage Bottle | Beads & Crafts – great for organizing small solar hardware and accessories.
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer – a stylish way to keep your workspace tidy.
- Ceramic Mini Sealed Storage Jar – Portable Travel Container – compact storage for small connectors and fittings.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What types of batteries is this MPPT solar charge controller compatible with?
A: This MPPT solar charge controller is compatible with lead-acid, lithium-ion, and other battery types that operate within a 10–30V recharging voltage range. The adjustable output voltage makes it flexible enough to suit both 12V and 24V battery systems commonly used in off-grid solar setups, RVs, and marine applications.
Q: What solar panel specifications are required for this controller?
A: The controller works with solar panels that have an open circuit voltage of 18V–55V and a maximum power voltage of 17V–55V. The photovoltaic input starting voltage is 18V, and the tracking voltage range is 17V–55V. Panels rated up to 400W total output power are supported.
Q: Does this controller protect against short circuits and overheating?
A: Yes. The controller includes built-in short-circuit protection that automatically shuts off the output when a fault is detected and restores operation once the fault is cleared. It also features thermal protection: output power is reduced at 100°C, the unit shuts off at 110°C, and automatically resumes when the internal temperature falls back below 85°C.
Q: Can I monitor the controller's performance in real time?
A: Absolutely. The integrated LED display shows live input and output voltage and current readings, allowing you to monitor your solar system's performance at a glance without any additional equipment.
