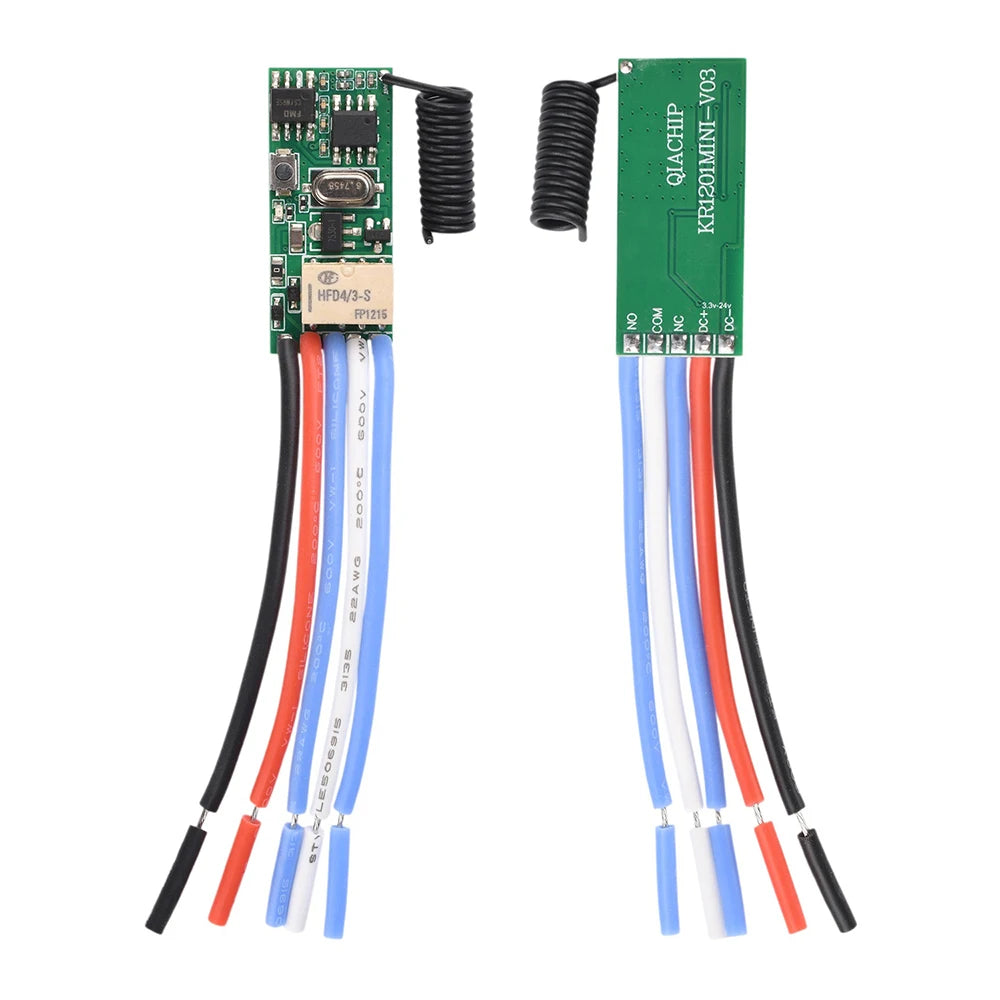

433MHz Mini Wireless Remote Control Switch Module
Take full control of your lights, appliances, and DIY electronics with the Gaqqee 433MHz Mini Wireless Remote Control Switch Module. Operating across a wide voltage range of DC 3V–18V, this compact receiver module supports momentary, latching, and interlocking modes — making it one of the most versatile wireless switching solutions for hobbyists, makers, and electricians alike.
Key Features
- Wide Voltage Compatibility: Works with DC 3V to 18V power supplies, fitting a huge range of projects and installations.
- 433.920 MHz Frequency: Reliable ASK/OOK modulation with a receiving sensitivity of -100 dBm for a stable, interference-resistant signal.
- Multiple Operating Modes: Choose from Momentary, Latching, Interlocking, Code Clearing, and custom switch-state modes to suit any application.
- Button Learning Technology: Quickly pair up to 12 sets of remote commands using the simple button-learning method — no software needed.
- Low Power Consumption: Standby current of just ≈6 mA; typical operating current of only 7.5 mA, keeping energy use to a minimum.
- Versatile Load Capacity: Supports up to 30W / 1A at 30V DC or 0.3A at 125V AC, suitable for LED strips, lamps, motors, and more.
- Wide Operating Temperature: Rated from -20°C to 80°C for reliable use in a variety of environments.

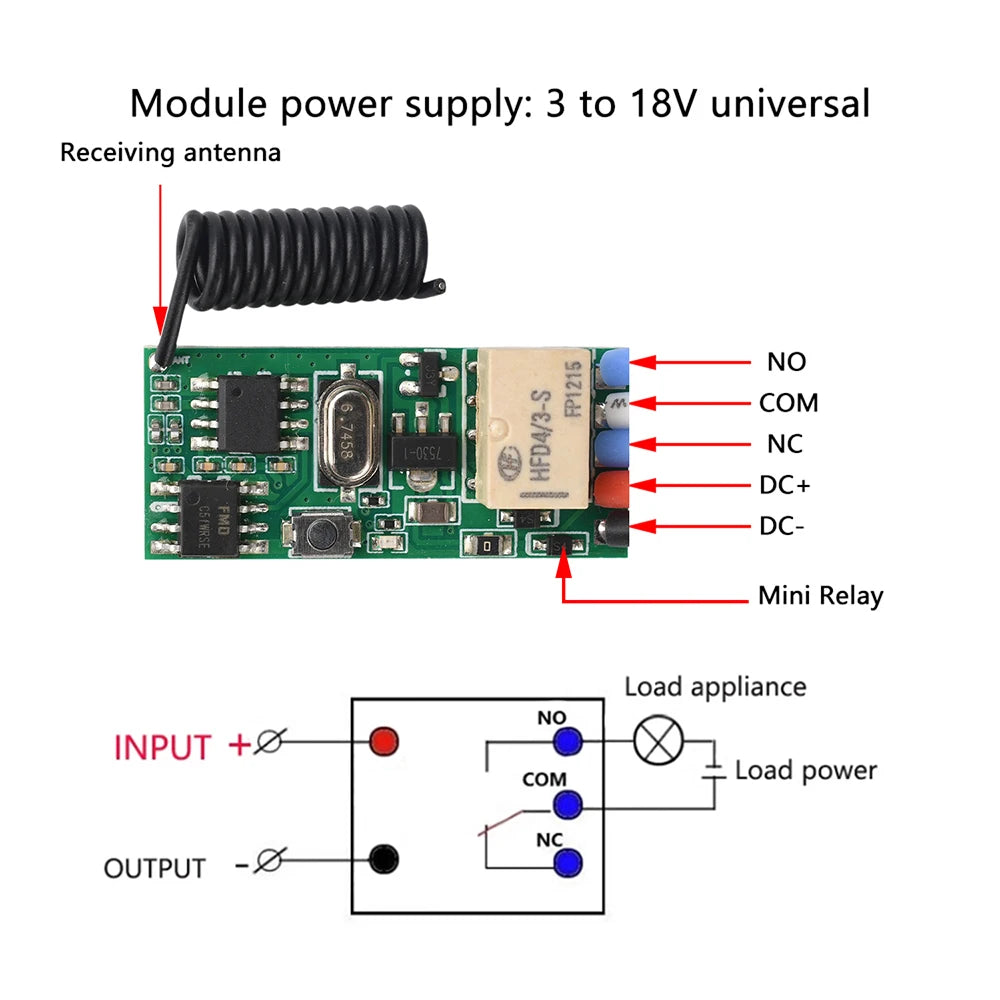

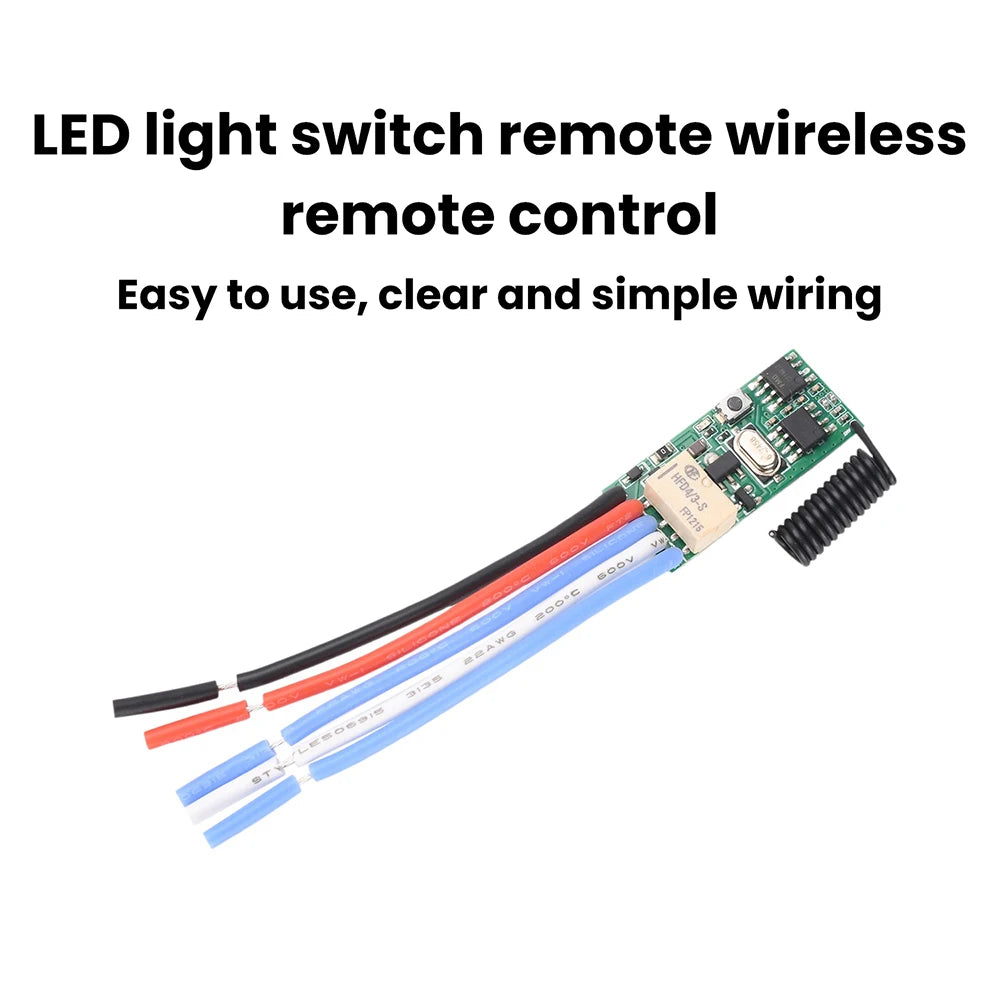

- Easy Wiring: Clear, straightforward connections make installation quick even for beginners.

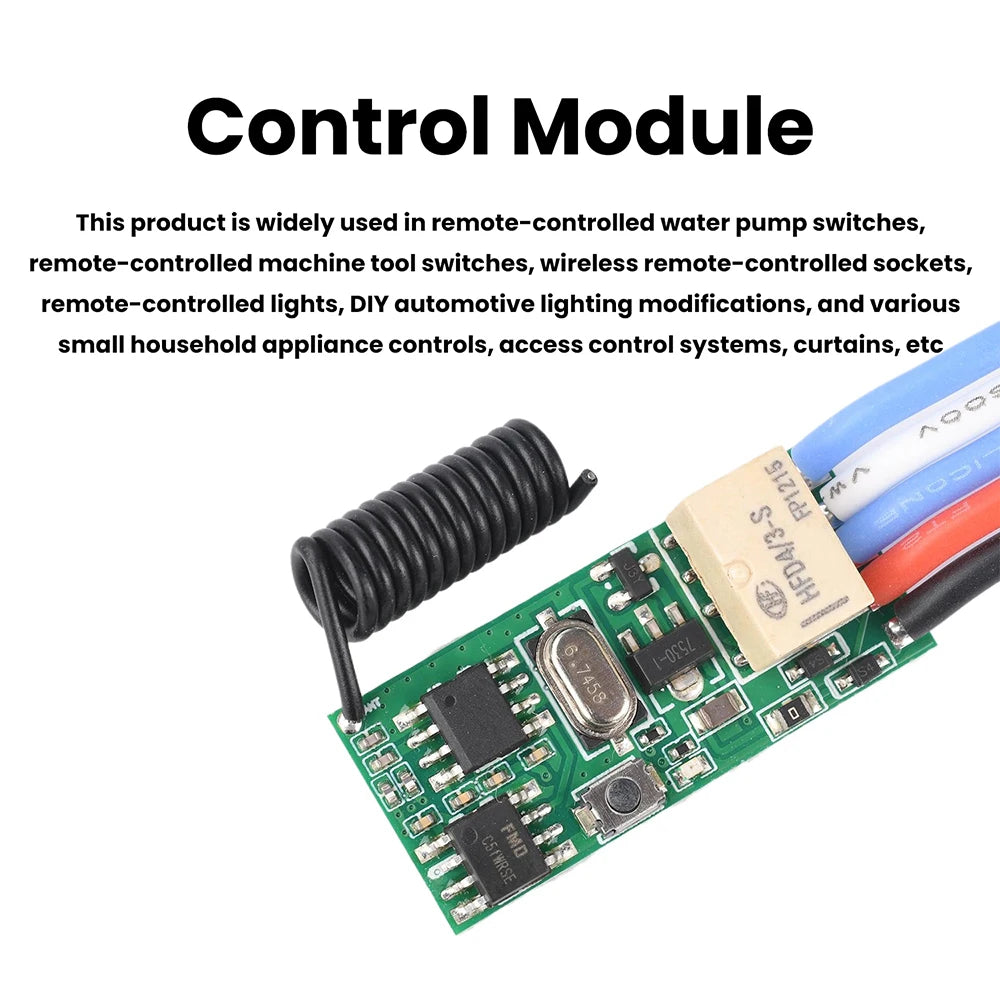

Recommended Applications
- LED strip light and LED fixture remote switching
- Water pump and small motor control
- Wireless socket and smart plug projects
- DIY automotive lighting modifications
- Access control systems and electronic door locks
- Remote curtain and blind control
- UV disinfection lamp control (110V, 30W, US standard)
- DIY model and robotics remote control
Technical Specifications
| Operating Voltage | DC 3V – 18V |
| Standby Current | ≈6 mA |
| Operating Current | ~7.5 mA (module only) |
| Load Power | 30W max | 1A/30V DC | 0.3A/125V AC |
| Receiving Frequency | 433.920 MHz |
| Receiving Sensitivity | -100 dBm |
| Modulation Type | ASK/OOK |
| Encoding Format | 1527 Learning Code |
| Learning Method | Button Learning |
| Storage Capacity | Up to 12 sets of commands |
| Operating Temperature | -20°C to 80°C |
| Output Impedance | 50 Ohms |
| Package | TQFP |
What's in the Box
- 1 × Wireless Remote Control Switch Module
Made in China.
You May Also Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
- U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What operating modes does the 433MHz wireless remote control switch module support?
A: The module supports five operating modes: Momentary (output active only while button is held), Latching (toggle on/off with each press), Interlocking (for multi-channel mutual exclusion), Code Clearing (erase stored remotes), and custom switch-state setting (define whether the output is on or off upon activation). This makes it suitable for a wide variety of DIY and professional control applications.
Q: How many remote controls can I pair with this switch module?
A: The module stores up to 12 sets of remote commands using the built-in button-learning method. Pairing is simple — just press the learn button, then transmit the code from your 433.920 MHz compatible remote, and the module will memorize it instantly. No computer or additional software is required.
Q: Is this module compatible with LED strip lights and 110V lamps?
A: Yes. The module is compatible with low-voltage LED strips (within its DC 3V–18V and 30W/1A load rating) as well as with 110V AC loads up to 0.3A — such as a 110V 30W UV lamp. Always ensure your load stays within the specified current and power limits for safe operation.
Q: What is the difference between this module and a standard wall switch?
A: Unlike a fixed wall switch, this wireless receiver module can be triggered remotely via any 433.920 MHz ASK/OOK compatible transmitter. It can be embedded directly into your project, hidden inside an enclosure, or wired inline — offering far greater flexibility for automation, access control, automotive, and DIY electronics projects.
