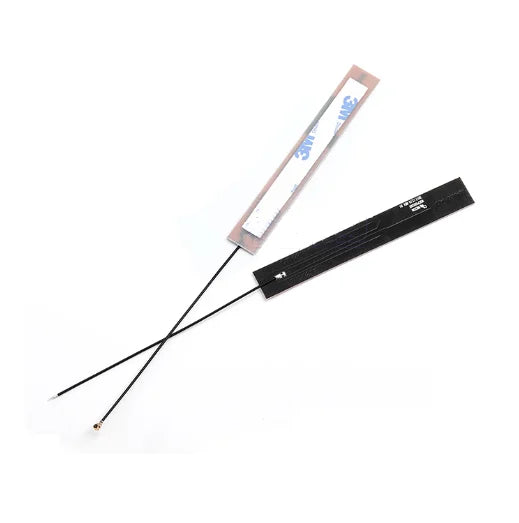

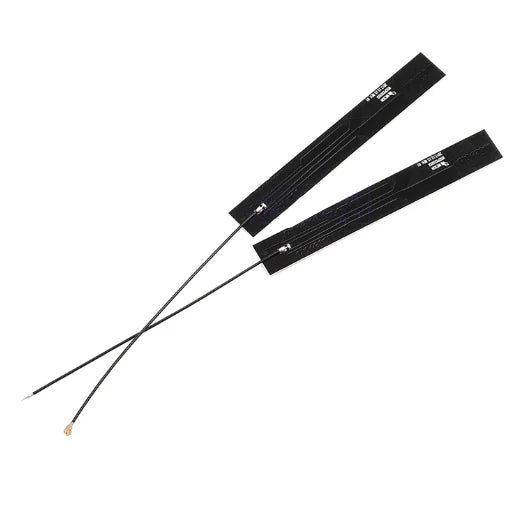

4G LTE PCB Antenna – Omnidirectional 8dBi Gain | 700–2700MHz
Upgrade your wireless connectivity with this high-performance 4G LTE Built-in PCB Antenna. Engineered for a wide frequency range of 700–2700MHz, it delivers reliable omnidirectional coverage for LTE, GSM, GPRS, 3G, 4G, NB-IoT, and SIM800/900 applications. With an impressive 8dBi gain and low standing wave ratio, this compact PCB antenna is ideal for IoT devices, embedded systems, routers, modems, and custom electronics projects.
Key Specifications
- Frequency Range: 700–2700MHz
- Antenna Gain: 8dBi

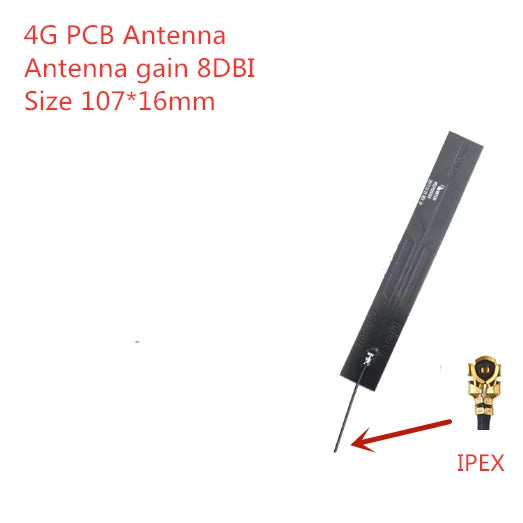

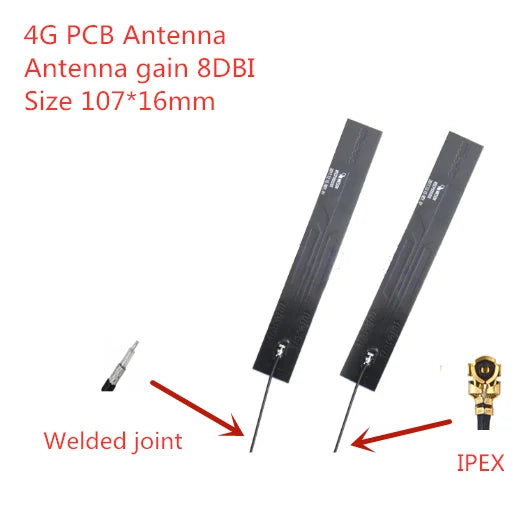

- Antenna Size: 107 × 16mm
- Wire Length: 120mm
- Standing Wave Ratio (VSWR): ≤ 1.8
- Impedance: 50 Ohms
- Type: Built-in PCB Antenna
- Compatibility: LTE, GSM, GPRS, 3G, 4G, NB-IoT, SIM800, SIM900
Why Choose This PCB Antenna?
- Wide Frequency Coverage: A single antenna covers multiple network standards — LTE, GSM, GPRS, 3G, 4G, and NB-IoT — reducing the need for multiple components.
- High Gain Performance: 8dBi omnidirectional gain ensures strong, stable signal reception in all directions.
- Compact & Embeddable Design: At just 107×16mm, it fits easily into tight enclosures, PCBs, and IoT hardware.
- Low VSWR: A standing wave ratio of ≤1.8 minimizes signal reflection for efficient power transfer.
- Customizable: Need a different cable length or connector type? Custom configurations are available upon request — just reach out before ordering.
- Factory Direct Quality: Built by a dedicated antenna manufacturer with strict quality controls and a stable supply chain.
Ideal Applications
- IoT & M2M (Machine-to-Machine) devices
- GSM/LTE modems and routers
- Smart home and industrial automation systems
- GPS and cellular tracking hardware
- Embedded system development and prototyping
- NB-IoT sensor nodes and data loggers
Made in Mainland China.
Looking for more tools and storage solutions for your electronics projects? Check out our Airtight Transparent PET Storage Bottle to keep small components organized, or explore the Vintage Baroque Embossed Metal Tray as a stylish organizer for your workspace accessories.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What network standards does this 4G LTE PCB antenna support?
A: This omnidirectional PCB antenna supports a broad range of wireless standards including LTE (4G), GSM (2G), GPRS, 3G, NB-IoT, and is compatible with SIM800 and SIM900 modules. Its wide frequency range of 700–2700MHz makes it highly versatile for most cellular and IoT applications.
Q: Can I request a custom cable length or connector type for this PCB antenna?
A: Yes! Custom cable lengths and connector types are available. Simply contact the seller before placing your order to discuss your specific requirements. Bulk orders also qualify for preferential pricing.
Q: What does the 8dBi gain mean for my device's connectivity?
A: An 8dBi gain indicates this PCB antenna amplifies and focuses the wireless signal more effectively than standard low-gain antennas. In practical terms, this means stronger, more stable connections — especially useful for IoT devices and embedded systems operating at the edge of network coverage.
Q: What is the antenna's VSWR and why does it matter?
A: The Standing Wave Ratio (VSWR) of this antenna is ≤1.8, which means minimal signal energy is reflected back from the antenna toward the transmitter. A lower VSWR equals more efficient signal transmission and better overall performance from your wireless device.
