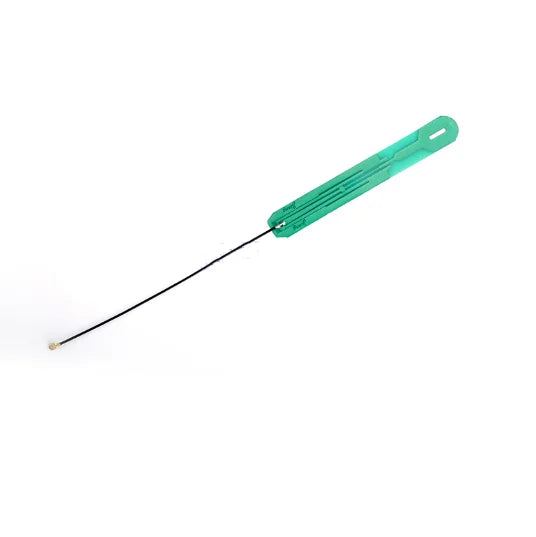

4G LTE Built-In PCB Antenna — High Gain, Wide-Band Coverage
Upgrade your wireless module with this compact, high-performance 4G LTE PCB Antenna. Designed for embedded applications, it supports the full 700–2700 MHz frequency range, covering GSM, GPRS, 2G, 3G, and 4G LTE networks in a single slim board. The IPX (U.FL) connector ensures a secure, low-profile connection to your module, making it ideal for IoT devices, routers, industrial controllers, GPS trackers, and custom electronics projects. Made in Mainland China.
Key Specifications
- Product Name: 4G PCB Antenna
- Frequency Range: 700–2700 MHz (GSM / GPRS / 2G / 3G / 4G LTE)
- Antenna Gain: 6 dBi

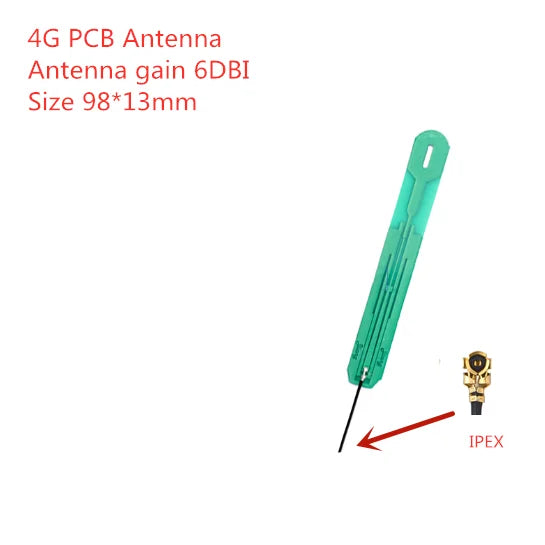

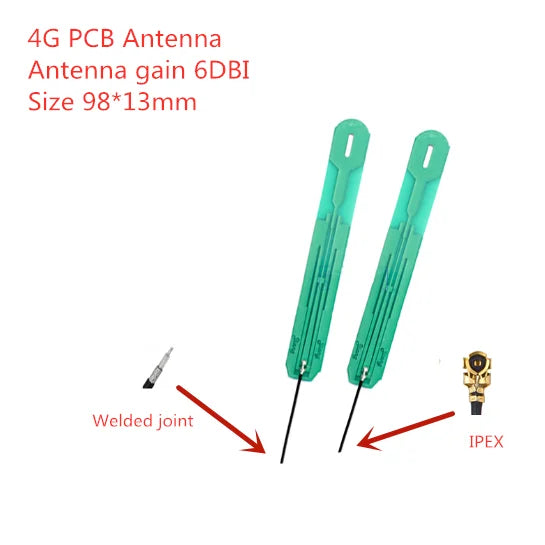

- Antenna Size: 98 × 13 mm
- Cable Length: 120 mm
- Standing Wave Ratio (VSWR): ≤ 1.8
- Impedance: 50 Ohms

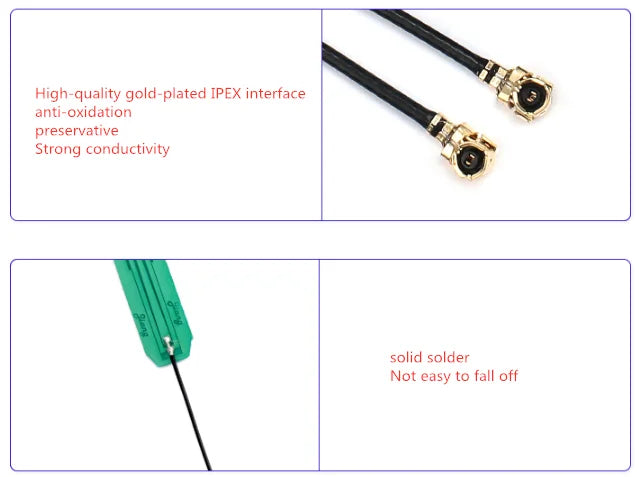

- Connector Type: IPX (U.FL)
Why Choose This PCB Antenna?
- ✅ Wide-Band Support: One antenna covers 2G through 4G LTE bands — no need for multiple antennas.
- ✅ High 6 dBi Gain: Maximises signal reception and transmission for reliable connectivity.
- ✅ Compact & Lightweight: Slim PCB form factor fits neatly inside enclosures and modules.
- ✅ Low VSWR ≤ 1.8: Efficient power transfer with minimal signal reflection.
- ✅ 50-Ohm Impedance: Standard impedance matches the vast majority of RF modules.
- ✅ IPX Connector: Snap-on U.FL connection for easy, tool-free installation.
- ✅ Custom Options Available: Contact us for custom cable lengths and alternative connector types.
Ideal Applications
- IoT and M2M wireless modules
- 4G LTE routers and gateways
- GPS and asset-tracking devices
- Industrial automation controllers
- Smart home and security systems
- Embedded PCB design projects
Related Products You May Like
Looking for more tools and accessories for your projects? Check out these popular items from our store:
- Airtight Transparent PET Storage Bottle | Beads & Crafts — great for organising small electronic components.
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm — a versatile DIY workbench tool.
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer — handy for organising small parts and connectors.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What frequency bands does this 4G LTE PCB antenna support?
A: This PCB antenna covers the 700–2700 MHz frequency range, making it compatible with GSM, GPRS, 2G, 3G, and 4G LTE networks. This wide-band range ensures it works across the most commonly used cellular bands globally.
Q: What connector type does this antenna use?
A: The antenna uses an IPX (U.FL) connector with a 120 mm cable. If you require a different cable length or a different connector type (such as SMA, RP-SMA, or others), custom configurations are available — please contact us before ordering.
Q: What devices is this 4G PCB antenna compatible with?
A: It is compatible with any 4G LTE or multi-band cellular module that accepts an IPX/U.FL connection and operates at 50-ohm impedance. Common use cases include IoT modules, 4G routers, GPS trackers, industrial controllers, and embedded electronics with a 4G module.
Q: Can this antenna be used for both 2G and 4G networks simultaneously?
A: Yes. Because its frequency range spans 700–2700 MHz, it covers legacy 2G/3G bands as well as modern 4G LTE bands. Your module or device determines which band is active at any given time; the antenna itself supports them all.
