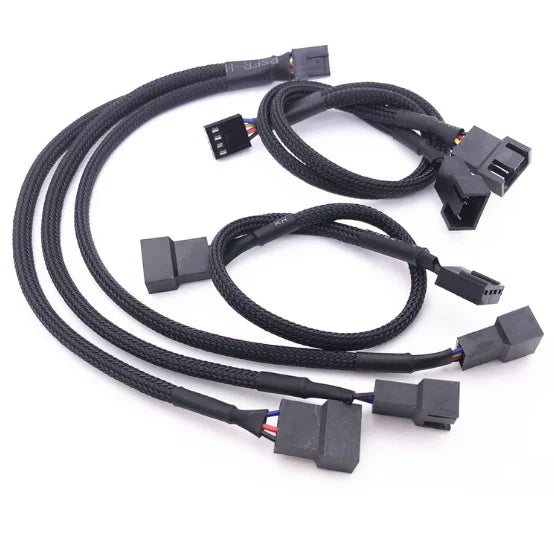

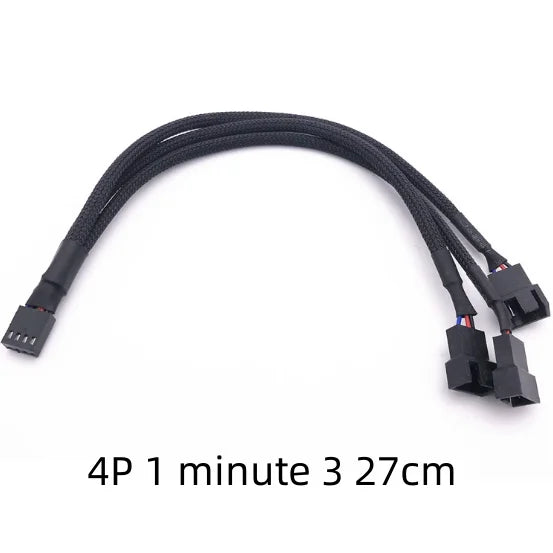

4-Pin PWM Fan Splitter Extension Cable – 1 to 3 Motherboard Fan Header
Maximize your PC's cooling potential without running out of motherboard fan headers. This compact 4-Pin PWM 1-to-3 Fan Splitter Cable lets you connect three chassis fans to a single 4-Pin motherboard header — all while maintaining PWM temperature-controlled speed regulation for your primary fan.
Key Features
- 1-to-3 Fan Header Expansion: One 4-Pin motherboard connector splits into three fan outputs, making the most of limited header availability.
- PWM Temperature Control: One output is a full 4-Pin connector supporting both PWM speed regulation and fan speed monitoring; the other two are 3-Pin outputs supporting PWM temperature control (speed monitoring not active on these two to avoid signal conflict).
- Broad Compatibility: The 4-Pin headers accept both 4-Pin PWM fans and standard 3-Pin fans. Note: 3-Pin fans connected to this cable cannot use PWM speed regulation, but will operate normally. Many newer motherboards with DC speed regulation support are also compatible.
- Quality Build: 1007 24AWG wire with PVC insulation, tinned copper conductors (11×0.12TS), and a rated operating temperature of 80°C for reliable, long-term performance.
- Neat & Compact: At just 27cm in length and only 16g, this cable fits comfortably inside any PC case without cluttering your build.
Specifications
| Cable Length | 27 cm |
| Wire Type | 1007 24AWG |
| Insulation Material | PVC |
| Conductor | Tinned Copper – 11×0.12TS |
| Wire Outer Diameter | OD 1.4mm |
| Rated Temperature | 80°C |
| Wire Color | Black |
| Weight | 16g |
| Connector | 1× 4-Pin Motherboard (input) → 1× 4-Pin + 2× 3-Pin Fan (output) |
| Country of Origin | Made in Mainland China |
Important Note on Speed Measurement

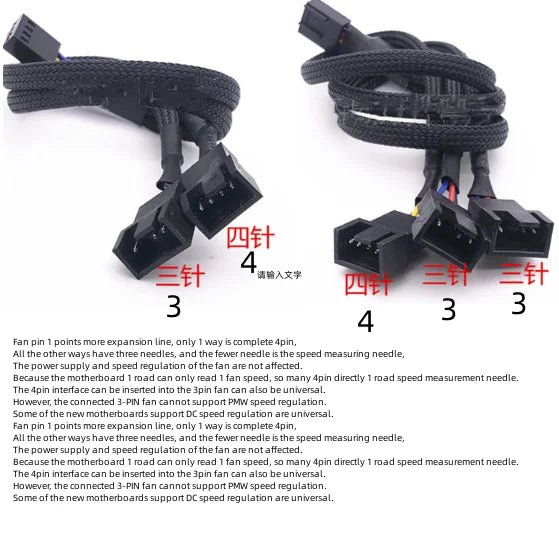

To prevent tachometer signal conflicts, only one of the three output connectors retains the full 4-Pin layout (speed measurement + temperature control). The remaining two outputs are 3-Pin (temperature control / speed regulation only, no tachometer signal). This is by design — a single motherboard header can only read one fan's RPM at a time.
Perfect For
- PC builders adding multiple case fans to a build with limited headers
- Upgrading cooling on compact ITX or mATX motherboards
- Anyone running radiator fans, intake/exhaust setups, or multi-fan configurations
You May Also Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts
- Ceramic Mini Sealed Storage Jar – Portable Travel Container
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Can I connect three 4-Pin PWM fans to this splitter cable?
A: Yes — the 4-Pin and 3-Pin output connectors are both physically compatible with 4-Pin PWM fans. However, only the single 4-Pin output connector supports full PWM speed regulation and RPM monitoring. Fans plugged into the two 3-Pin outputs will receive temperature-controlled voltage regulation but will not report RPM back to the motherboard.
Q: Will this 4-Pin PWM fan splitter cable work with 3-Pin fans?
A: Absolutely. All three output connectors are compatible with standard 3-Pin fans. Keep in mind that 3-Pin fans connected here will not support PWM speed regulation, but will function normally. Motherboards that support DC voltage-based speed regulation offer even broader compatibility.
Q: Why do only two of the three outputs have 3 pins instead of 4?
A: This is an intentional design to prevent tachometer signal conflicts. Since a motherboard header can only read one fan's RPM at a time, the speed-measurement (tachometer) pin has been removed from two of the three outputs. The power supply and speed regulation functions are completely unaffected on all three outputs.
Q: Is this cable compatible with my motherboard?
A: This cable is designed to work with any standard ATX motherboard featuring a 4-Pin fan header. It is widely compatible across major motherboard brands. If your motherboard uses DC speed regulation, all three output fans may benefit from automatic speed control.
