60W Self-Priming Pump Misting Cooling System | 1/4" Nozzle

60W Self-Priming Pump Misting & Cooling System with Adjustable Atomizer Nozzle

Transform any outdoor or indoor space into a cool, refreshing environment with this powerful 60W self-priming pump misting cooling system. Featuring a 1/4" adjustable atomizer nozzle compatible with 4/7mm tubing, this kit delivers ultra-fine mist droplets (3–7 microns) for efficient humidification, garden irrigation, dust suppression, and ambient temperature management. Whether you're setting up a patio misting line, greenhouse irrigation, or industrial cooling station, this system has everything you need in one convenient package.

Key Features

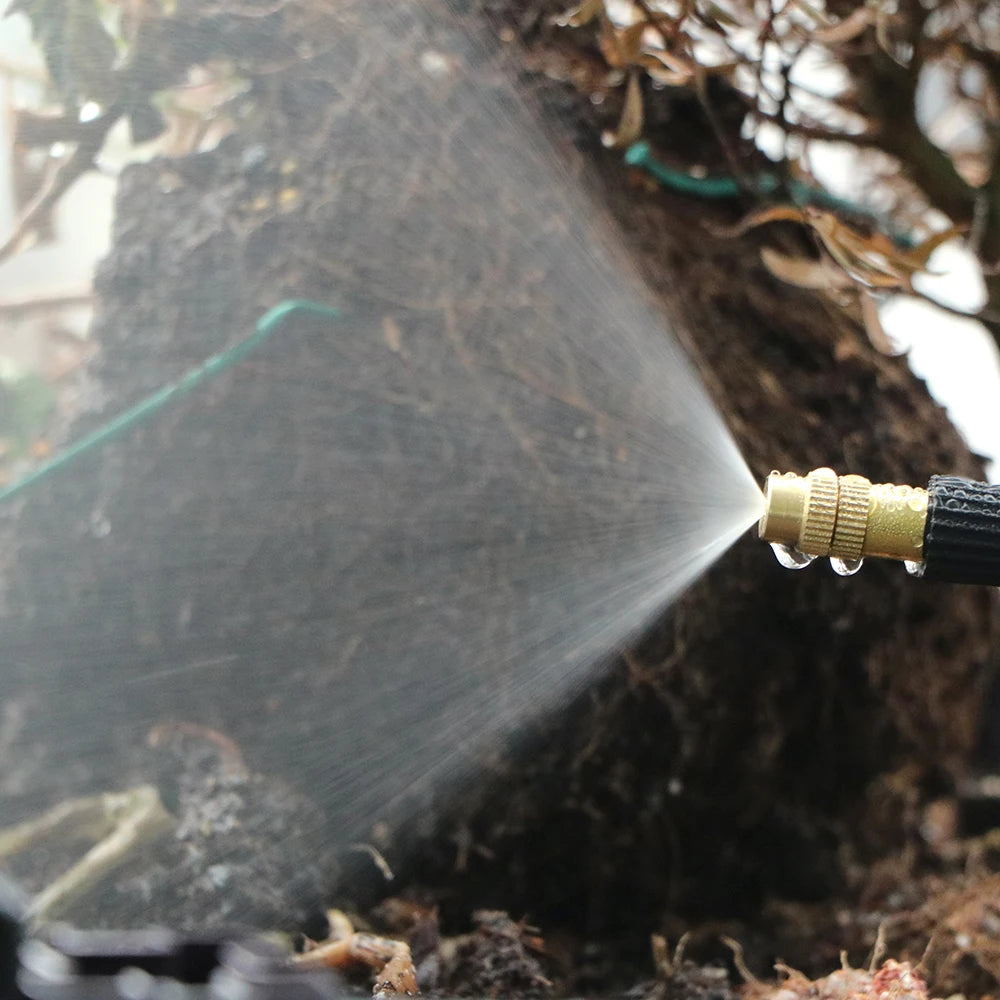

• Adjustable Brass & Plastic Atomizer Nozzle: Rotate to fine-tune spray size and flow rate (20–260 cc/min) to suit any application.
• Premium, Weather-Resistant Build: Made from durable, weatherproof materials — wear-resistant, rust-free, and designed for long-term outdoor use without leaks or clogging.
• Ultra-Fine Atomization: No air assistance required. Produces droplets as fine as 3–7 microns for thorough, even coverage — fully atomized, energy-efficient, and cost-effective.
• Versatile Applications: Ideal for humidification, ambient cooling, garden and greenhouse watering, dust particle reduction, and more. Perfect for patios, stadiums, entertainment venues, shopping malls, farms, factories, and mines.
• Food-Grade PE Tubing: Safe, flexible, and durable tubing ensures clean water delivery throughout the system.
• Programmable Digital Timer (optional set): Set up to 16 on/off programs with 1-minute accuracy. Hour, minute, and weekly scheduling included. Built-in NiMH battery backup, LED indicator, max load 10A.
• Saves Time & Water: Adjustable flux lets you water plants, vegetables, bonsai, and trees with precision — no waste, no effort.

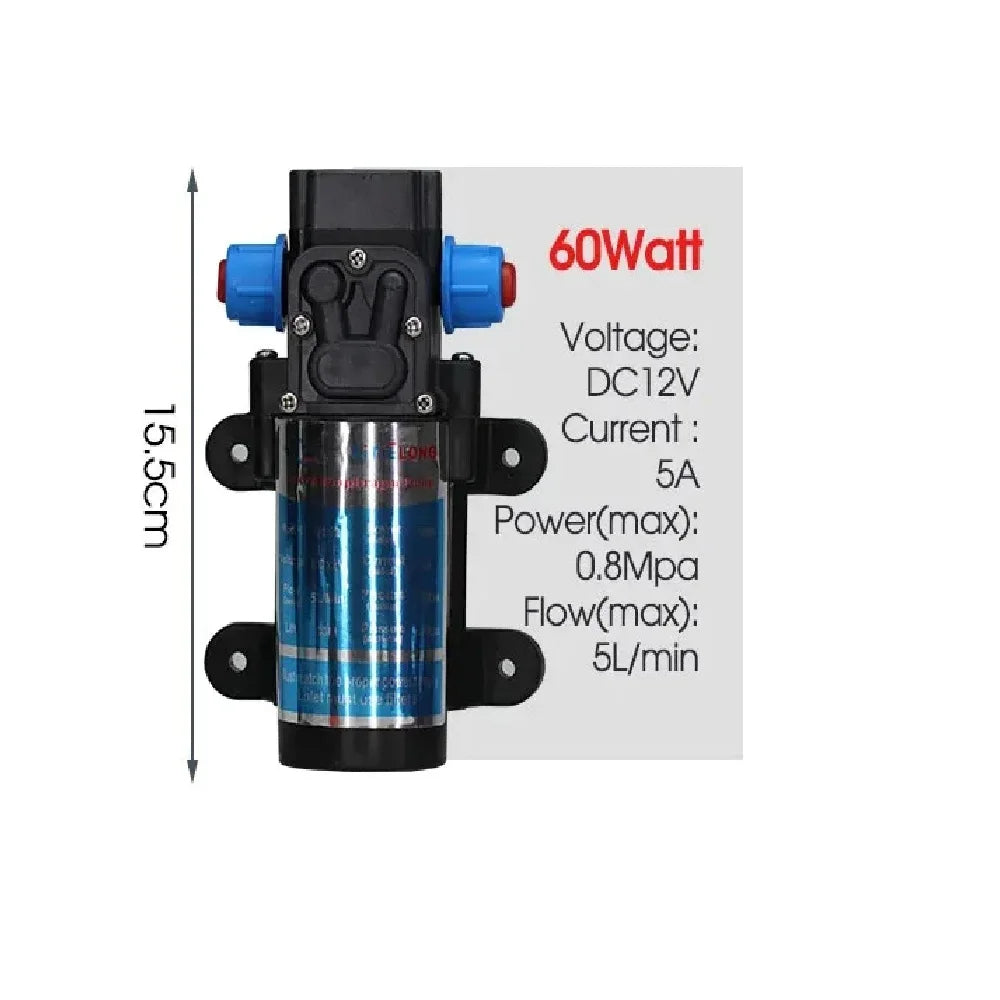

Pump Specifications

• Pump Power: 60W DC 12V
• Flow Rate (Max): 5 L/min
• Working Pressure (Max): 0.8 MPa (165 PSI)
• Input Voltage: AC 110V–240V (universal)
• Output: 12V / 6A (AC-to-DC adapter included)
• Spray Rate: 20–260 cc/min
• Operating Temperature: 0°C – 60°C

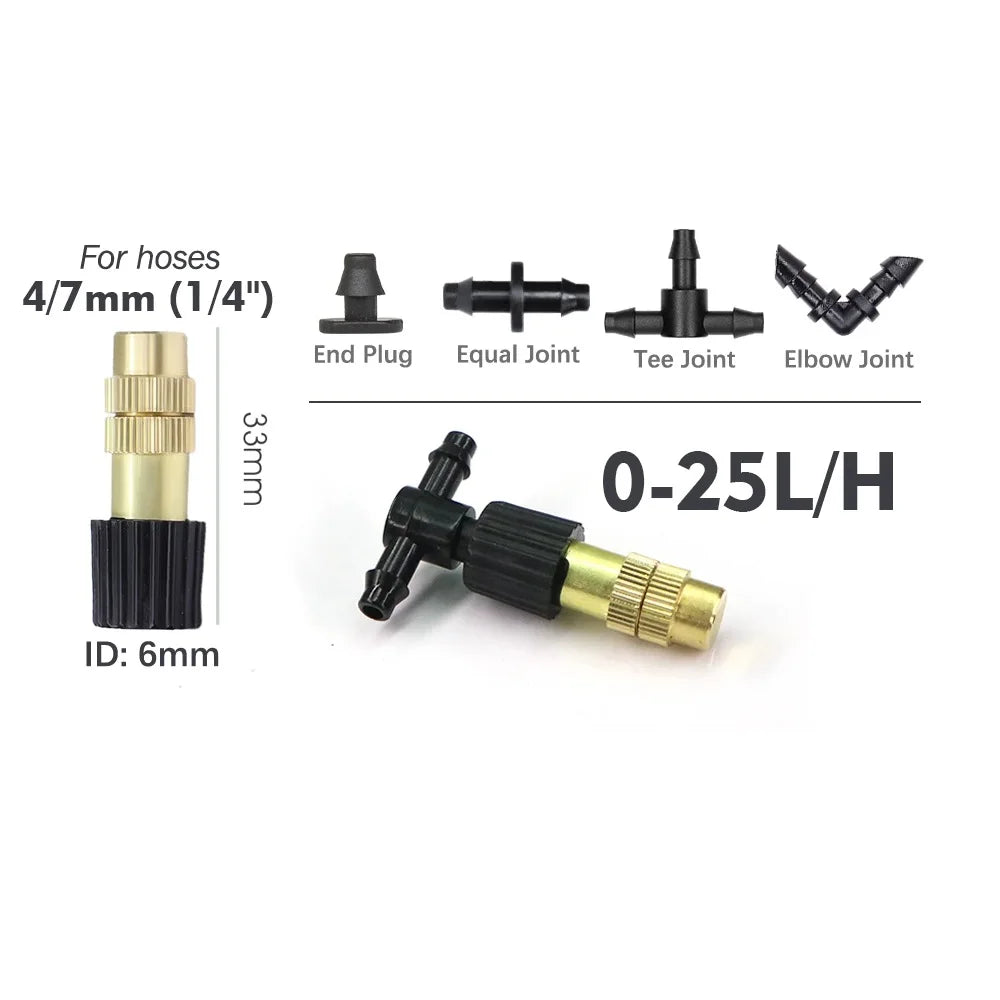

• Nozzle Orifice: 0.6 mm (custom size available on request)
• Nozzle Connector: Slip-lock connector
• Tubing: Food-grade PE tubing
• Material: Plastic & Brass nozzle

Timer Specifications (Included in Timer & Pump+Timer Sets)

• EU Voltage: 220–240V AC, 50Hz
• Battery: Built-in NiMH 1.2V (non-removable)
• Programs: Up to 16 on/off schedules
• Minimum Setting Time: 1 minute
• Time Settings: Hour / Minute / Week
• Max Load: 10A
• Shell Material: PC
• Work Life: >100 hours

Available Sets

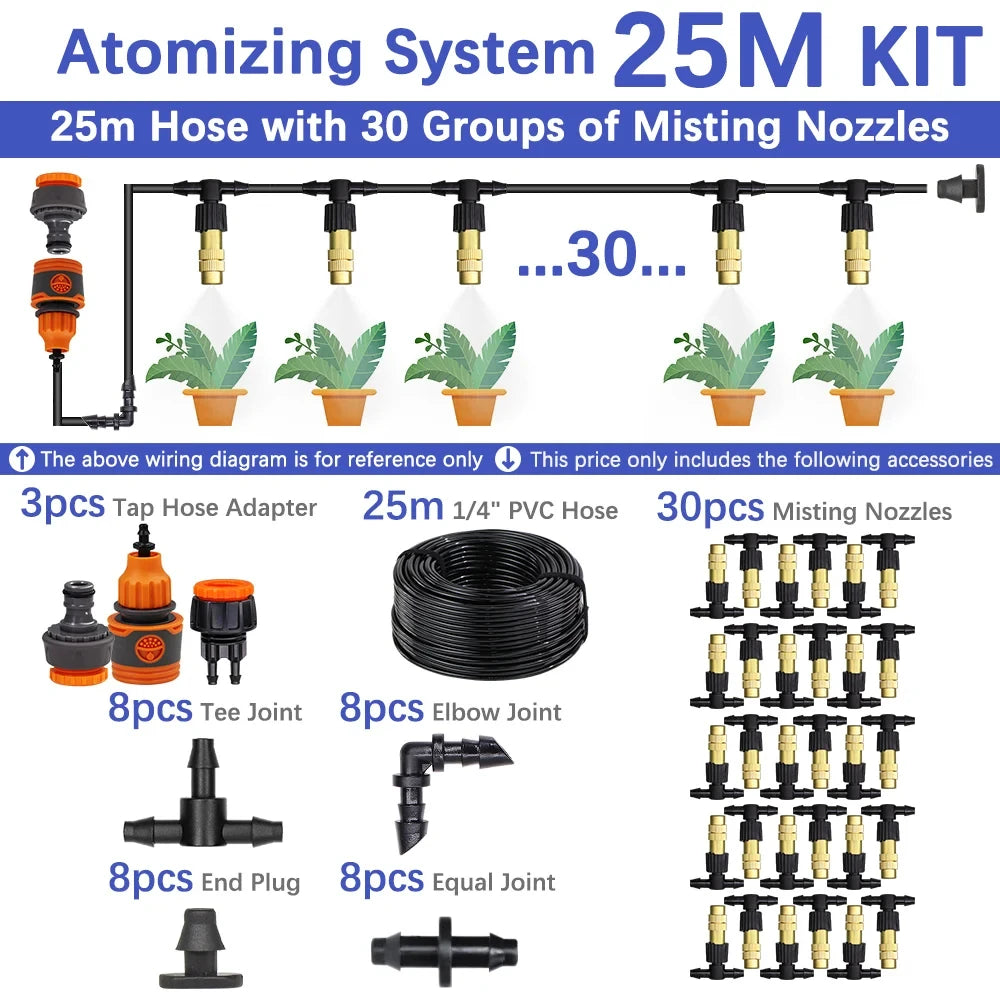

• Common Set (nozzles + tubing)

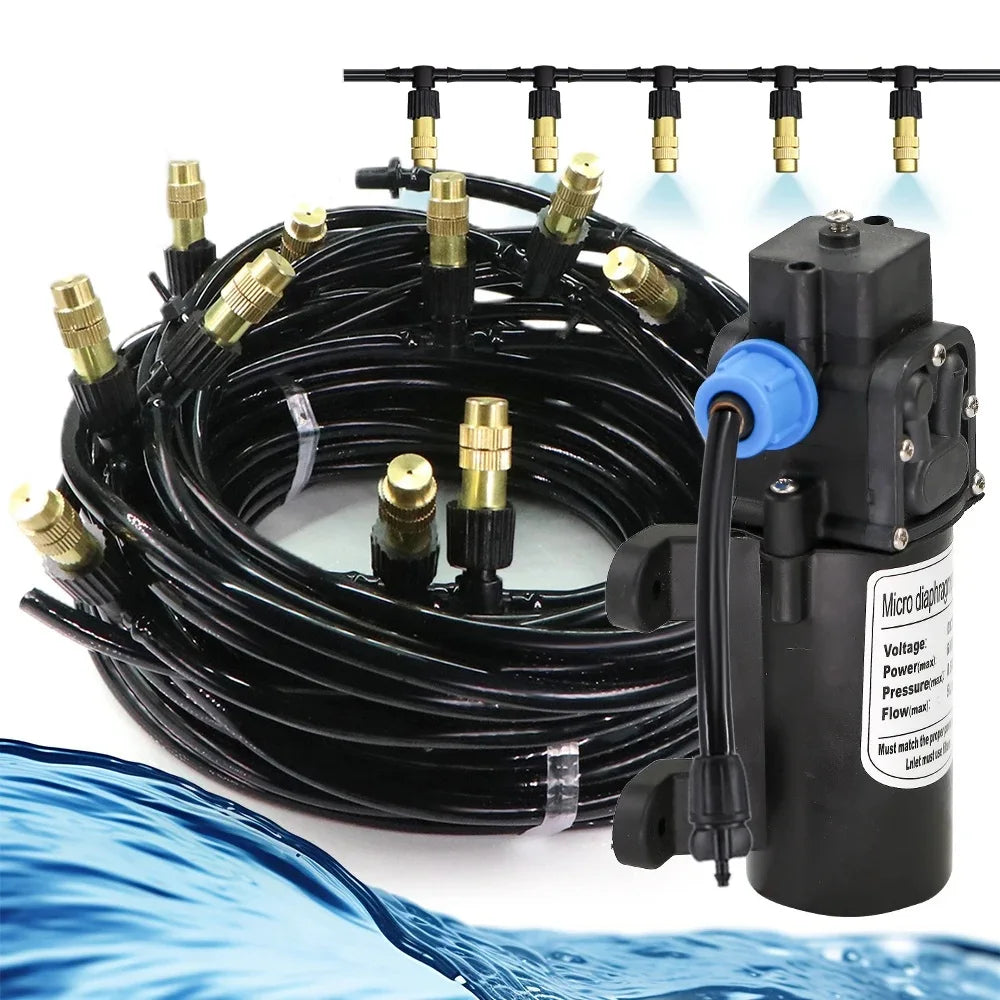

• 60W Pump Set (pump + power supply + nozzles + tubing)
• Pump + Timer Set (full automation)

Made in Mainland China.

You May Also Like

• Airtight Transparent PET Storage Bottle | Beads & Crafts
• Ceramic Mini Sealed Storage Jar – Portable Travel Container
• Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer

Learn more: National Weather Service heat safety

Frequently Asked Questions

Q: What is included in the 60W pump misting cooling system set?

A: The 60W pump set includes a DC 12V 60W self-priming pump, a 12V 6A AC-to-DC power adapter (compatible with 110V–240V), adjustable 1/4" atomizer nozzles, slip-lock connectors, and food-grade PE tubing. Pump + Timer sets also include a programmable digital timer with up to 16 scheduling programs.

Q: Can I adjust the spray rate and mist output?

A: Yes! The atomizer nozzle can be rotated to adjust both the spray pattern and the flow rate, which ranges from 20 to 260 cc/min. This makes it easy to customize the output for garden watering, greenhouse humidification, or outdoor cooling as needed.

Q: Is this system suitable for outdoor use in all weather?

A: Absolutely. The system is built from weatherproof, wear-resistant materials designed for long-term outdoor service. The nozzles are made of brass and durable plastic that resist rust and clogging, making them reliable across a wide range of environments — from garden patios to industrial settings.

Q: What is the operating temperature range for this misting system?

A: The system is rated for use in temperatures between 0°C and 60°C (32°F–140°F), making it suitable for both temperate and warm climates.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
