6A Lithium Battery Active Balancing Board 3S 4S 6S 8S 17S

6A High-Current Active Balancing Board for Lithium Battery Packs

Keep your lithium battery pack running at peak efficiency with the Gaqqee 6A Active Balancing Energy Transfer Module. Available in 3S, 4S, 6S, 8S, and 17S configurations, this precision-engineered board uses hybrid active energy transfer balancing to maintain voltage equilibrium across every cell — automatically and continuously — with ultra-low power consumption.

Whether you're building a DIY battery management system, upgrading an e-bike pack, or managing a high-capacity storage bank, this module delivers the accuracy and reliability your project demands. Made in Mainland China.

Key Features

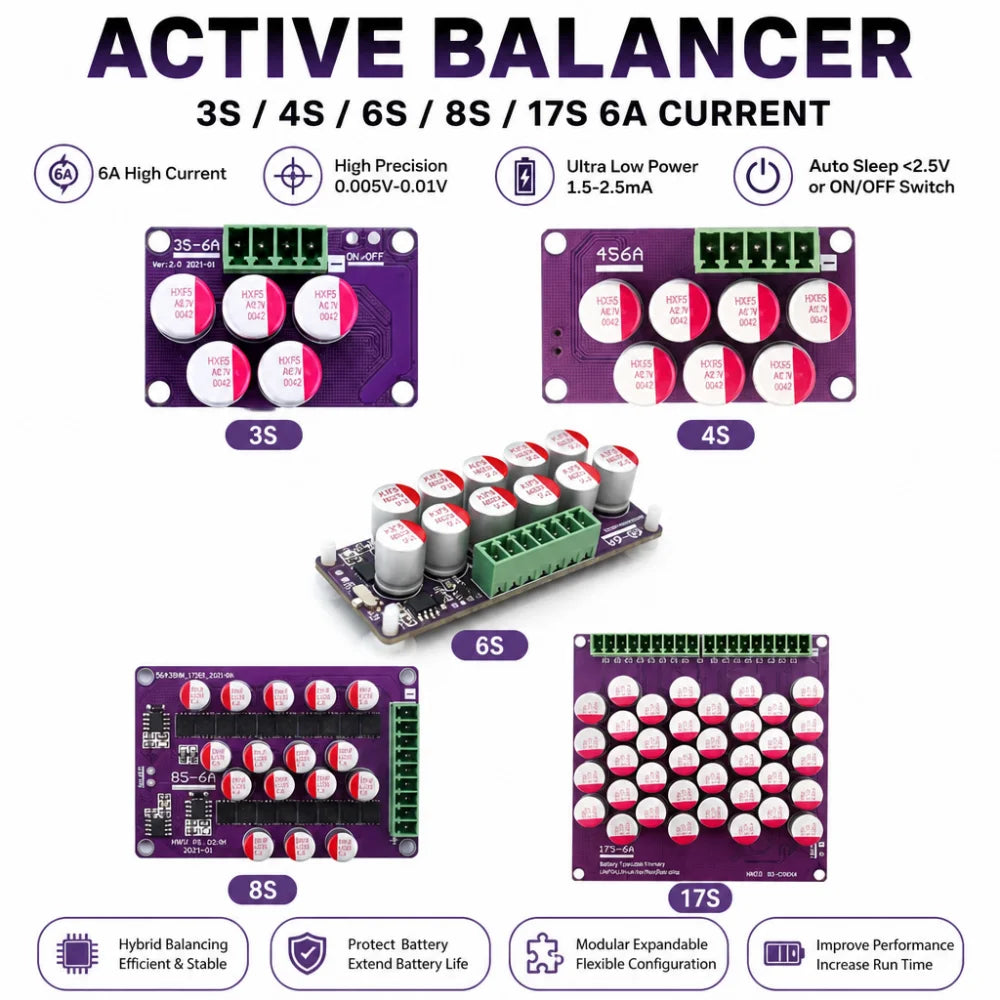

• Multiple Configurations: Choose from 3S, 4S, 6S, 8S, or 17S to match your exact battery series setup.
• Wide Battery Compatibility: Works with Ternary Lithium (NMC), Lithium Iron Phosphate (LiFePO4), and Lithium Titanate (LTO) batteries — cell voltage range 2.5V–4.4V per cell.
• Maximum 6A Balancing Current: Current scales proportionally with voltage differential — ~6A at 1V difference, ~3A at 0.5V, ~1.2A at 0.2V — delivering fast, precise balancing exactly when it's needed.

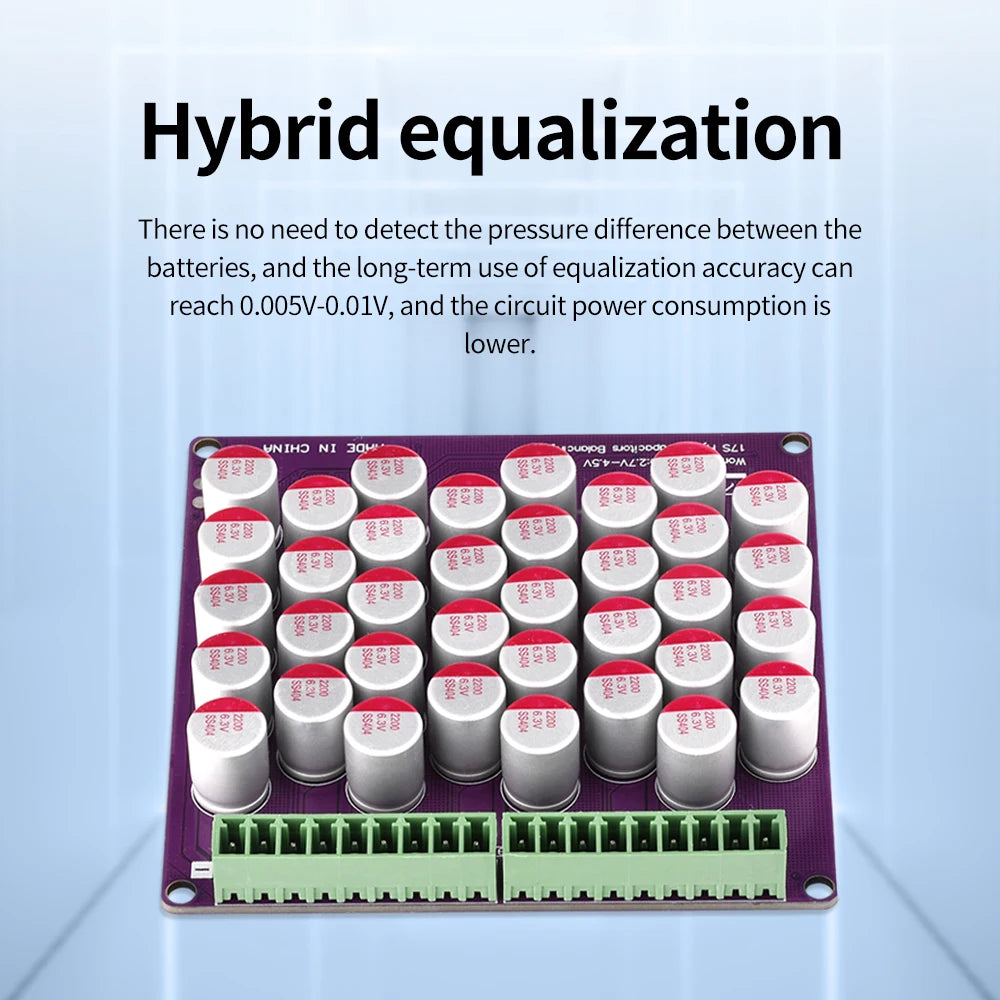

• Hybrid Capacitive Energy Transfer: Adjacent cells transfer energy via capacitive coupling, followed by high-frequency equivalent parallel connection. No voltage differential detection required — the circuit operates continuously for constant cell equilibrium.

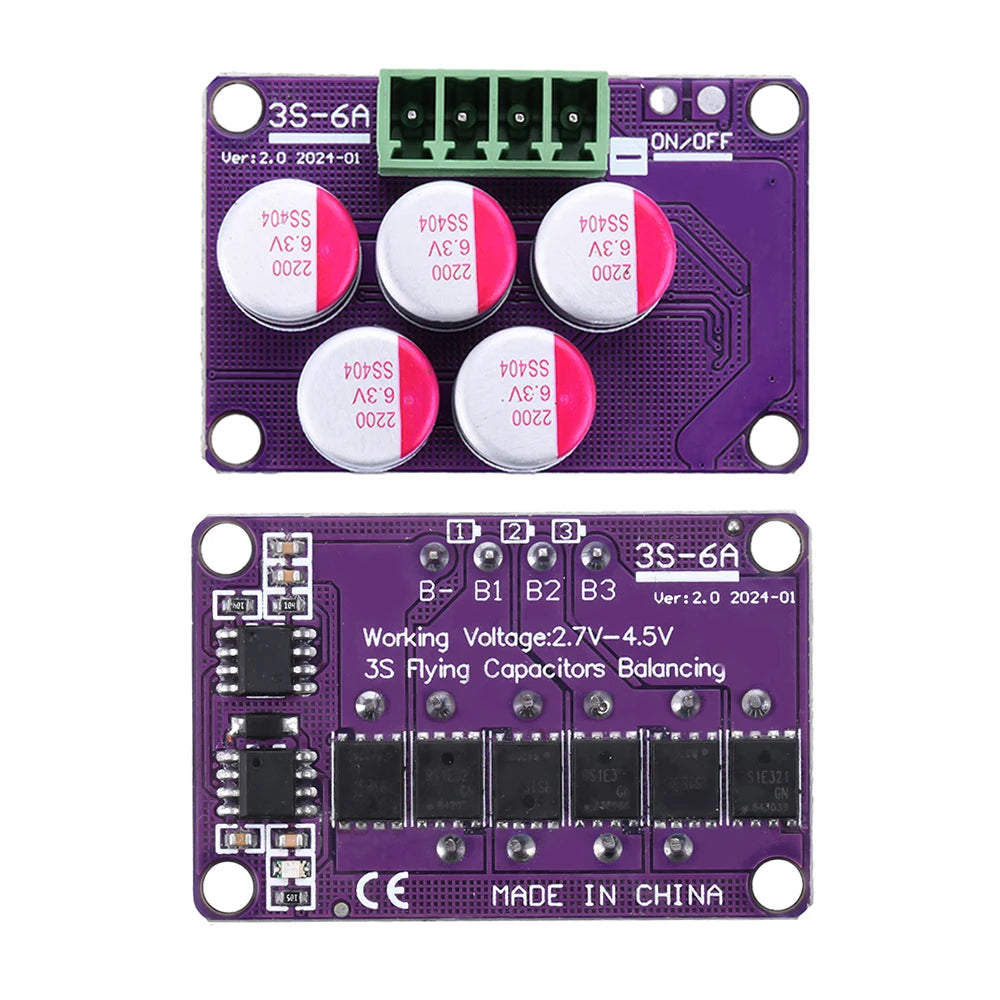

• MCU + Low-Resistance MOSFETs: Microcontroller-driven control paired with low-RDS(on) MOSFETs ensures highly efficient switching with minimal heat generation.
• Outstanding Balancing Accuracy: Long-term balancing precision of 0.005V–0.01V — ideal for sensitive battery chemistries.

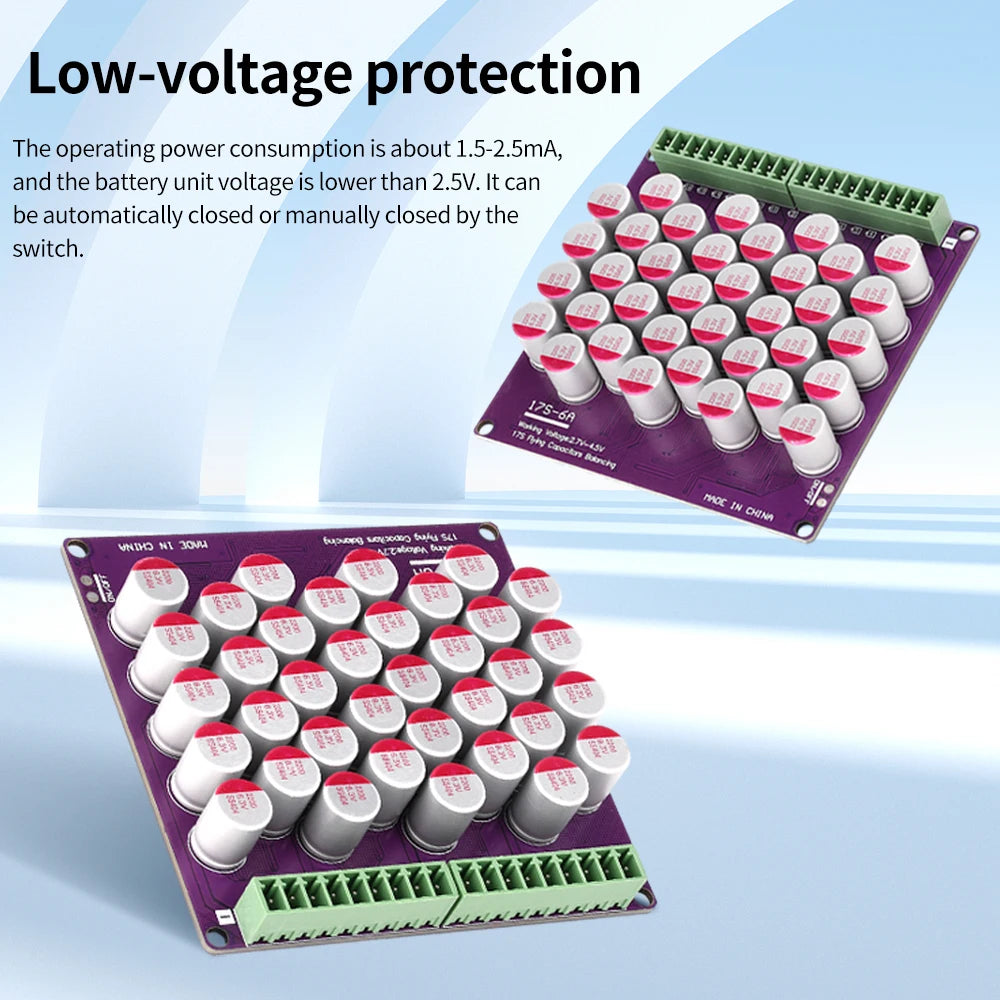

• Ultra-Low Operating Power: Only 1.5mA–2.5mA during operation. Automatic sleep mode activates when any cell drops below 2.5V, reducing standby consumption to near-zero microampere levels.

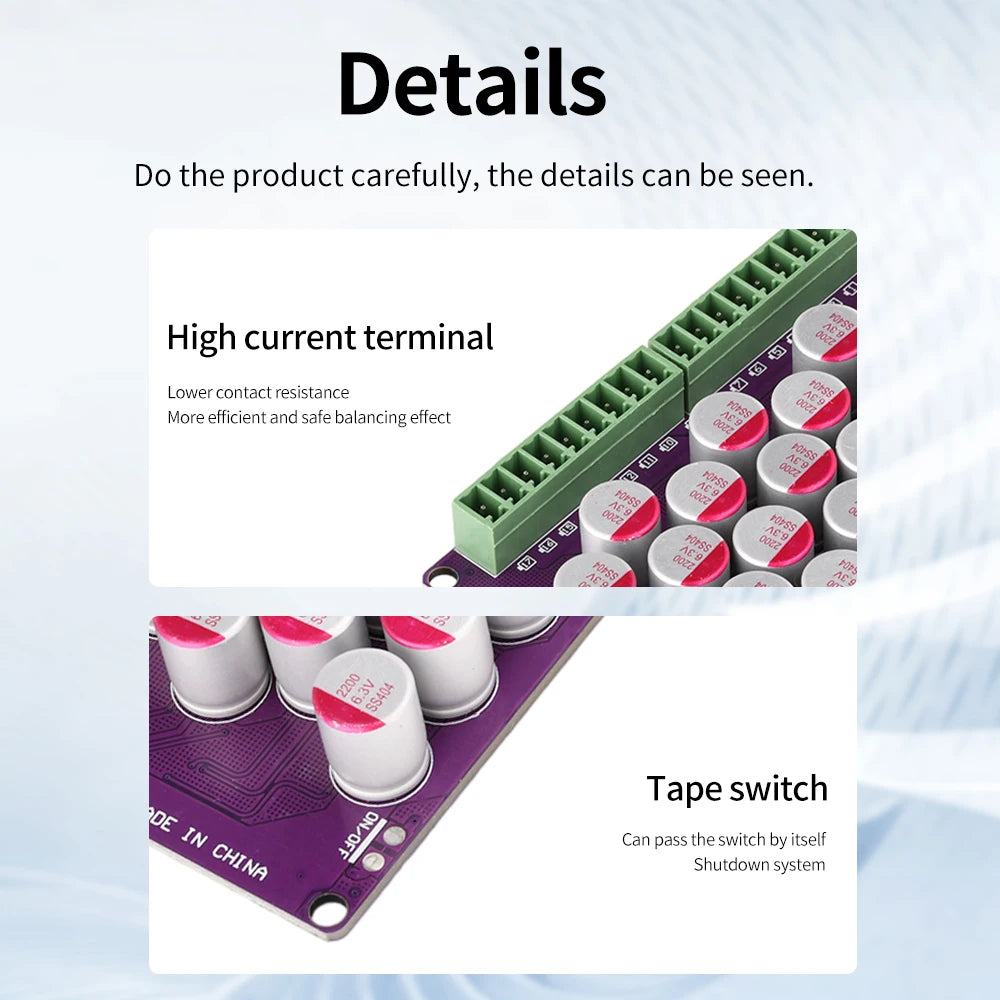

• Manual On/Off Switch: Instantly deactivate the module when not in use — standby power consumption drops to 0mA.
• Operational Indicator LED: Illuminated = system running normally. Extinguished = cell voltage below 2.5V (sleep mode) or switch is off.

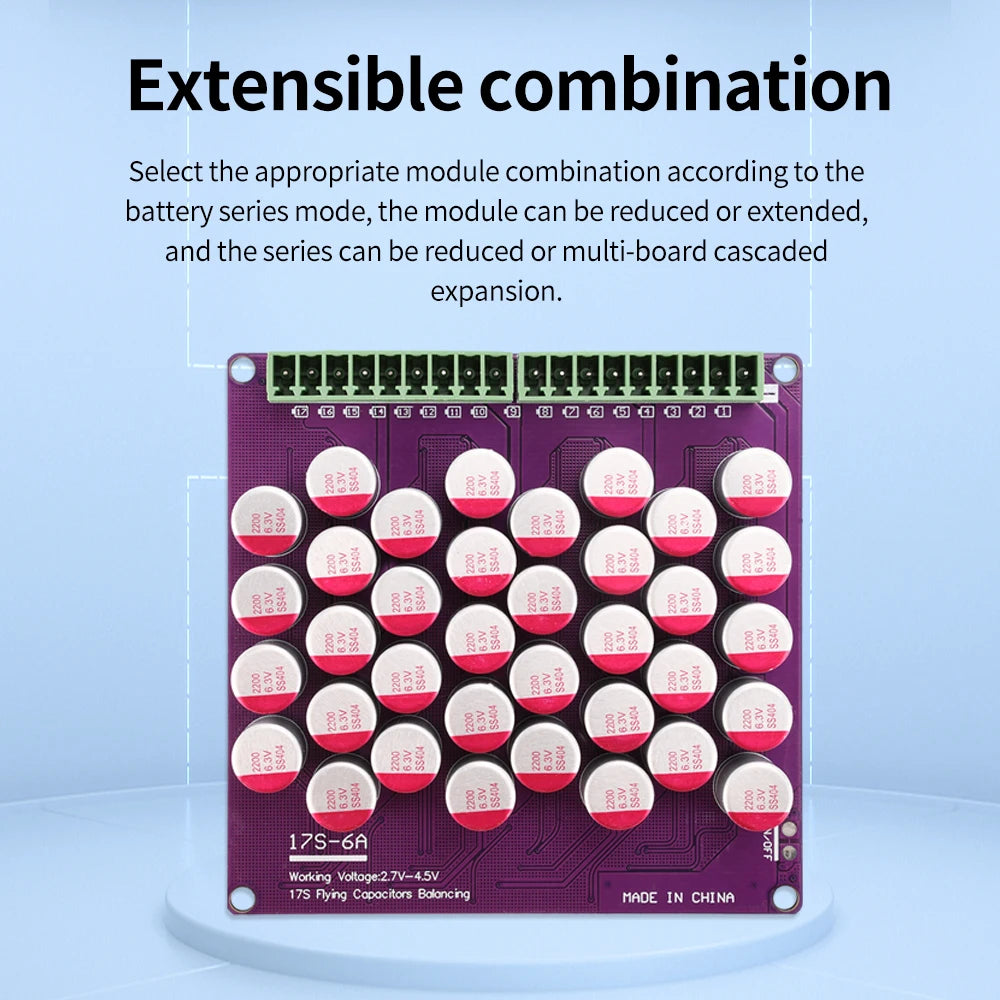

• Modular & Cascadable: Modules can be cascaded or combined for flexible series configurations. Mix and match boards to suit custom battery architectures.

Technical Specifications

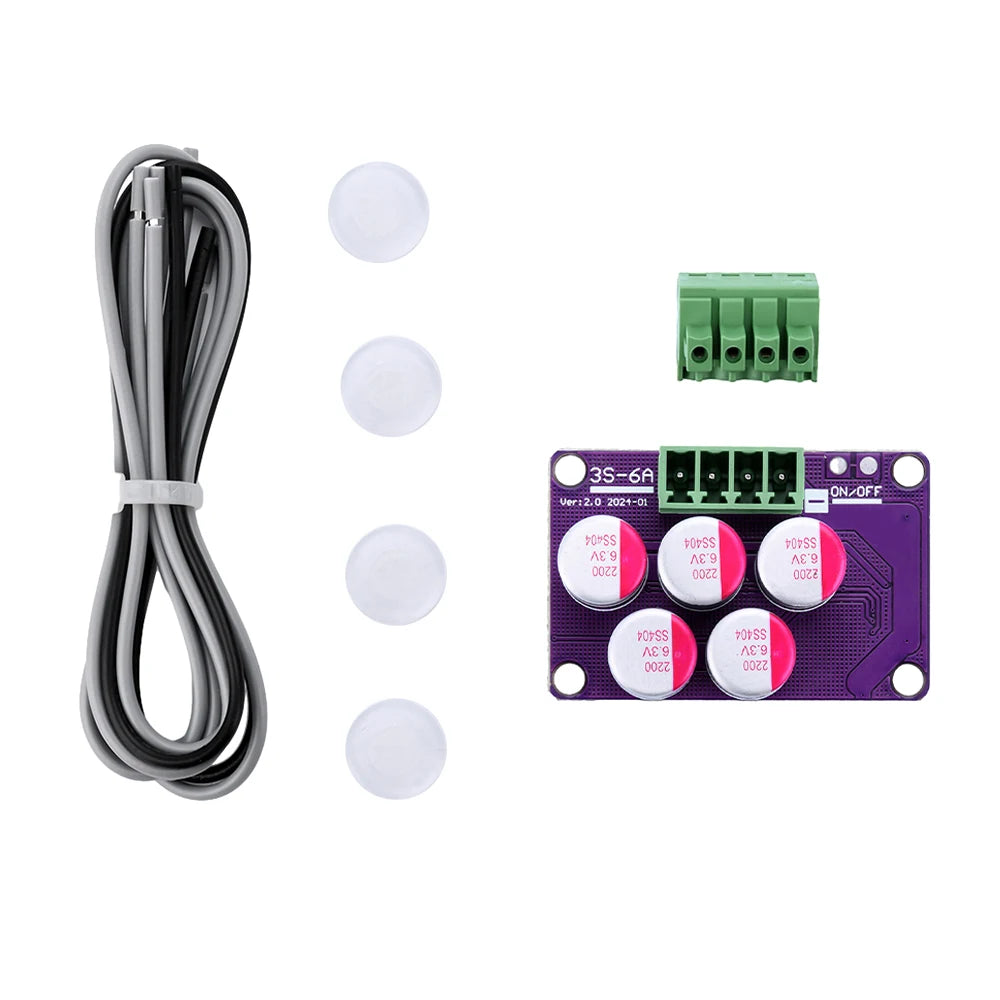

What's in the Box

• 1× Main Circuit Board
• 1× Connection Plug (1007 18AWG 0.75mm²)
• Wires (quantity determined by selected model)

Important Safety Notes

• Observe polarity at all times. Incorrect wiring or short circuits can cause irreversible damage to components.
• Single series configuration only. Do not use in parallel configurations — pay close attention to all wiring connections.
• Ensure proper insulation protection for all wiring and cables before powering on.

Related Products You May Like

• Airtight Transparent PET Storage Bottle | Beads & Crafts — great for organizing small electronic components and hardware.
• Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer — a stylish tray to keep your boards and tools neatly arranged on your workbench.
• Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm — a handy DIY tool for custom enclosure and cable management projects.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Which battery chemistries is this active balancing board compatible with?

A: The Gaqqee 6A active balancing board is compatible with Ternary Lithium (NMC), Lithium Iron Phosphate (LiFePO4), and Lithium Titanate (LTO) batteries. It supports a cell voltage range of 2.5V–4.4V per cell, making it highly versatile across common lithium battery chemistries.

Q: What is the difference between the 3S, 4S, 6S, 8S, and 17S variants?

A: The "S" number refers to the number of cells connected in series in your battery pack. For example, a 4S configuration balances a 4-cell series pack. Choose the variant that matches your battery pack's series configuration. Modules can also be cascaded for custom configurations — refer to the included wiring diagrams for details.

Q: Does the balancing board work continuously, or only when a large voltage difference is detected?

A: The hybrid active balancing module operates continuously during normal use, transferring energy between adjacent cells via capacitive coupling regardless of the voltage differential. It does not require a minimum voltage difference to activate. The system only enters sleep mode automatically when any individual cell voltage drops below 2.5V, protecting the battery from over-discharge.

Q: How do I safely install and wire this balancing board?

A: Always observe correct polarity and follow the wiring diagram included with the module. Use only a single series configuration — never parallel. Ensure all wiring connections are properly insulated before powering on. Incorrect wiring or short circuits may cause irreversible damage. If you are unsure, consult a qualified electronics technician before installation.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
