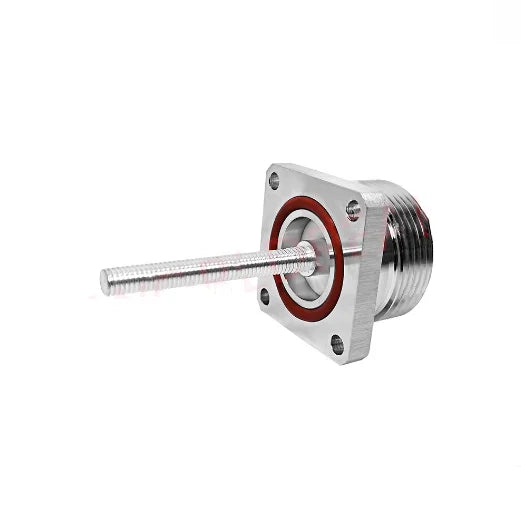

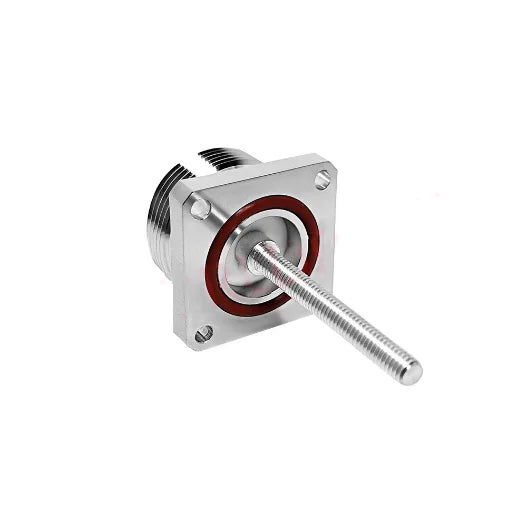

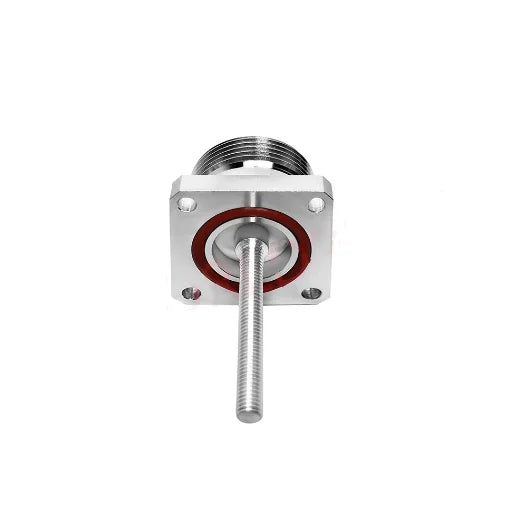

7/16 DIN Female 4-Hole Flange Coaxial RF Connector (M5 Thread, L29, 38mm Tooth Length)
Upgrade your RF coaxial assembly with this precision-engineered 7/16 DIN Female 4-Hole Flange Connector. Featuring an M5 mounting thread, an L29 interface standard, and a 38mm tooth length, this connector is designed for reliable, low-loss signal transmission in demanding RF and telecommunications installations.
Key Features
- Standard: 7/16 DIN (L29) female interface — industry-standard for high-power RF applications
- Mounting Style: 4-hole flange for secure panel or bulkhead installation
- Thread Size: M5 mounting threads for precise, stable fastening
- Tooth Length: 38mm — ideal for panel-mount and through-wall installations
- No assembly required — ready to install straight out of the box
- Compatible with standard 7/16 DIN coaxial cables used in broadcast, cellular, and wireless infrastructure
- Durable construction for long-term, stable RF performance
Specifications
| Connector Type | 7/16 DIN (L29) Female |
| Mounting | 4-Hole Flange |
| Thread | M5 |
| Tooth Length | 38mm |
| Assembly Required | No |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Cellular and mobile base station antenna systems
- Broadcast transmitter infrastructure
- Wireless network equipment panels
- RF laboratory and testing setups
- High-power coaxial cable termination
Related Products You May Like
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
- Stainless Steel Ceramic Trimming Tool – Curved Skip Knife
- Airtight Transparent PET Storage Bottle | Beads & Crafts
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is a 7/16 DIN (L29) female flange RF connector used for?
A: The 7/16 DIN (L29) female flange RF connector is widely used in high-power radio frequency applications such as cellular base stations, broadcast transmitters, and wireless infrastructure panels. The 4-hole flange design allows secure panel or bulkhead mounting, while the female interface connects directly to standard 7/16 DIN male coaxial cable assemblies.

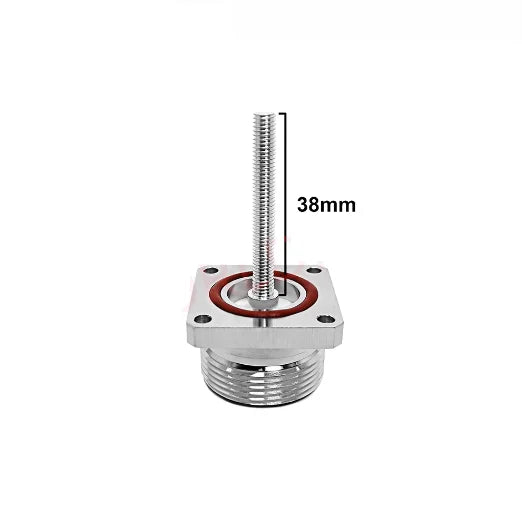

Q: What does the 38mm tooth length mean on this connector?
A: The 38mm tooth (thread engagement) length refers to the length of the threaded section of the connector body. This measurement is important for ensuring proper fit when mounting through panels or enclosures of varying thickness — a longer tooth length provides more flexibility for different installation depths.
Q: Does this 7/16 DIN flange connector require any assembly?
A: No assembly is required. The connector arrives fully pre-assembled and ready to install. Simply mount it to your panel using the 4-hole M5 flange pattern and connect your 7/16 DIN coaxial cable.
Q: What mounting hardware is needed for the 4-hole flange?
A: The 4-hole flange uses M5 bolts or screws (not included) for panel mounting. Ensure your mounting surface is flat and the hole pattern aligns with standard 7/16 DIN 4-hole flange dimensions for a secure, stable installation.
