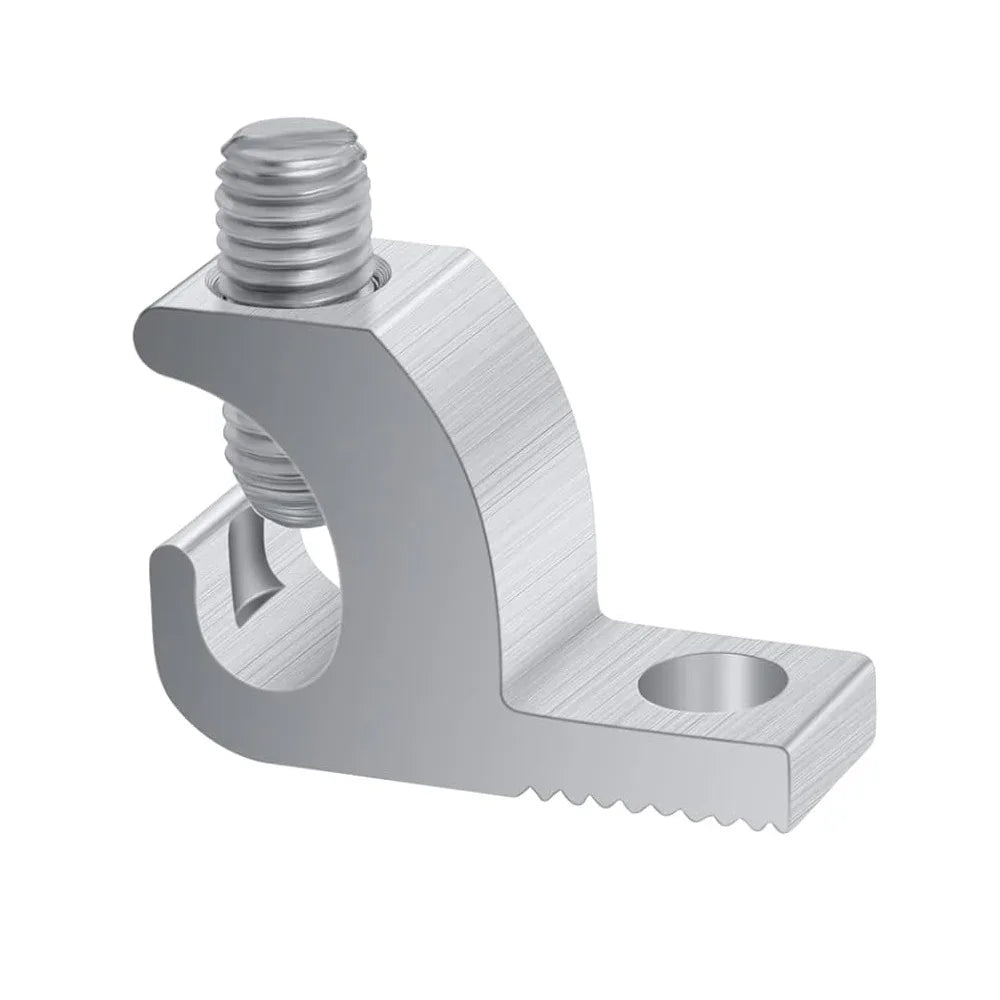

Aluminum Lay-In Grounding & Bonding Connector
Keep your electrical installations secure and code-ready with this heavy-duty Aluminum Lay-In Connector. Designed for conduit grounding and bonding applications, it features a corrosion-resistant aluminum body and a durable 304 stainless steel set screw — built to handle everything from swimming pools and spa equipment to copper tubing and conduit sleeves.
Key Features

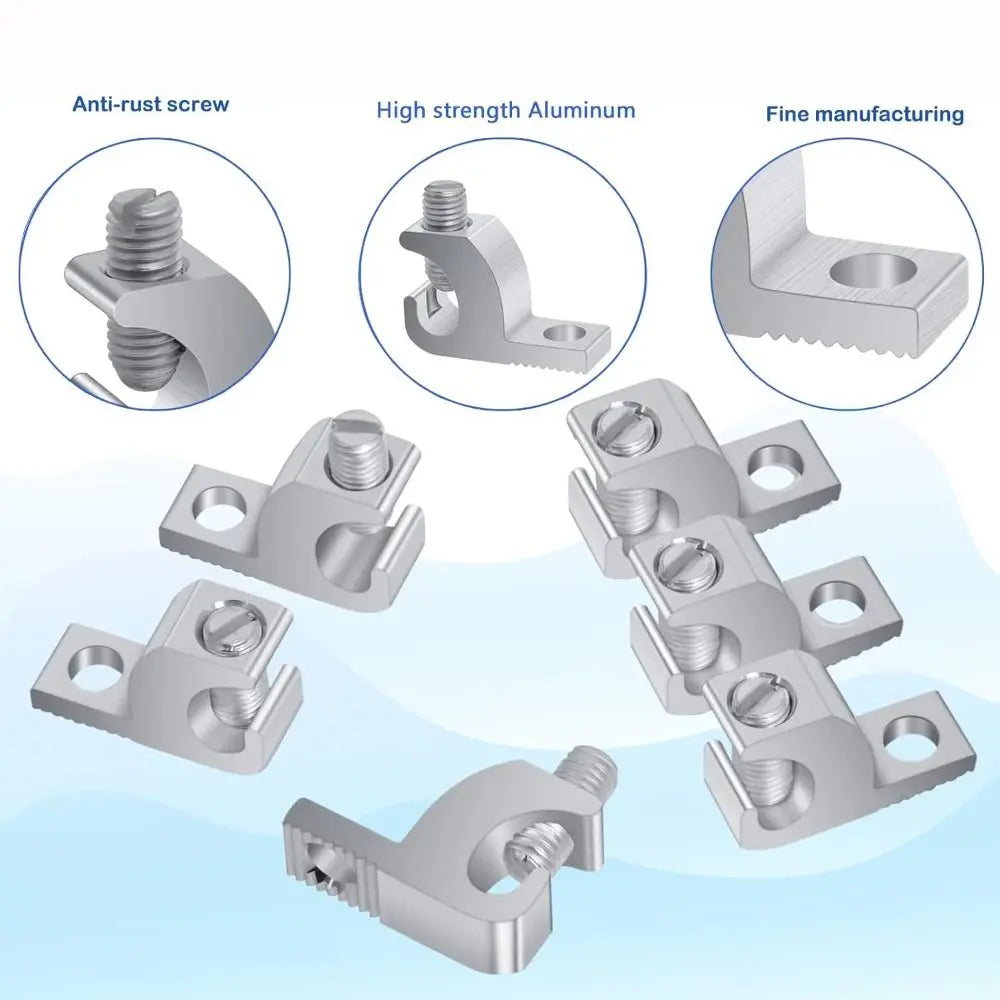

- High-Conductivity Aluminum Body: Corrosion-resistant, non-rusting aluminum construction with a compact structure and fine surface finish — engineered to withstand varying weather conditions and temperatures for long-lasting performance.

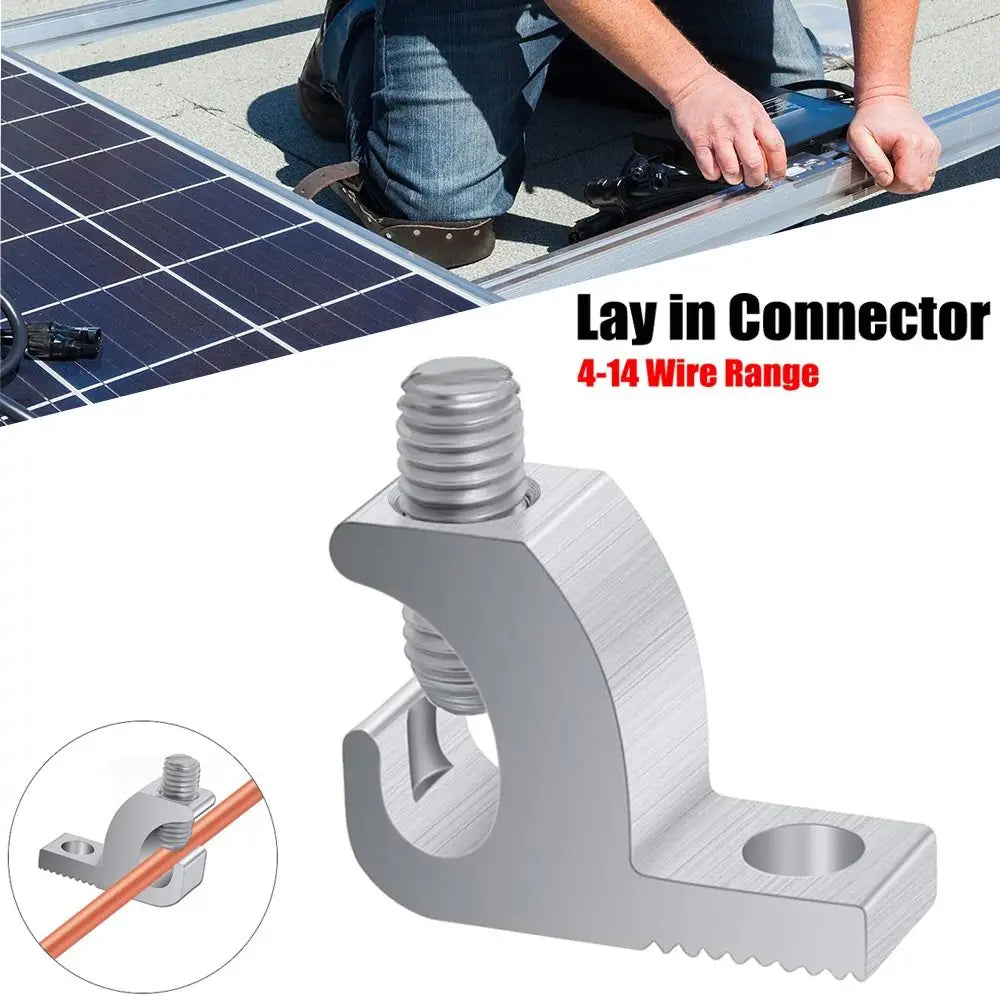

- Open Lay-In Design: The open-channel design lets installers quickly drop the ground conductor directly into multiple conduits as a jumper, without interrupting or cutting the ground wire — saving time on every job.
- Quick & Easy Installation: Simply loosen the 304 stainless steel set screw, lay in the wire, and tighten. No splicing required. Ideal for fast modifications or future maintenance access.
- Wide Wire Range – 4 to 14 AWG: Accommodates a broad range of copper conductors from 4 AWG to 14 AWG, making it versatile for both residential and light commercial grounding projects.
- Non-Insulated Screw Terminal: Non-insulated design suitable for direct burial and conduit grounding applications.

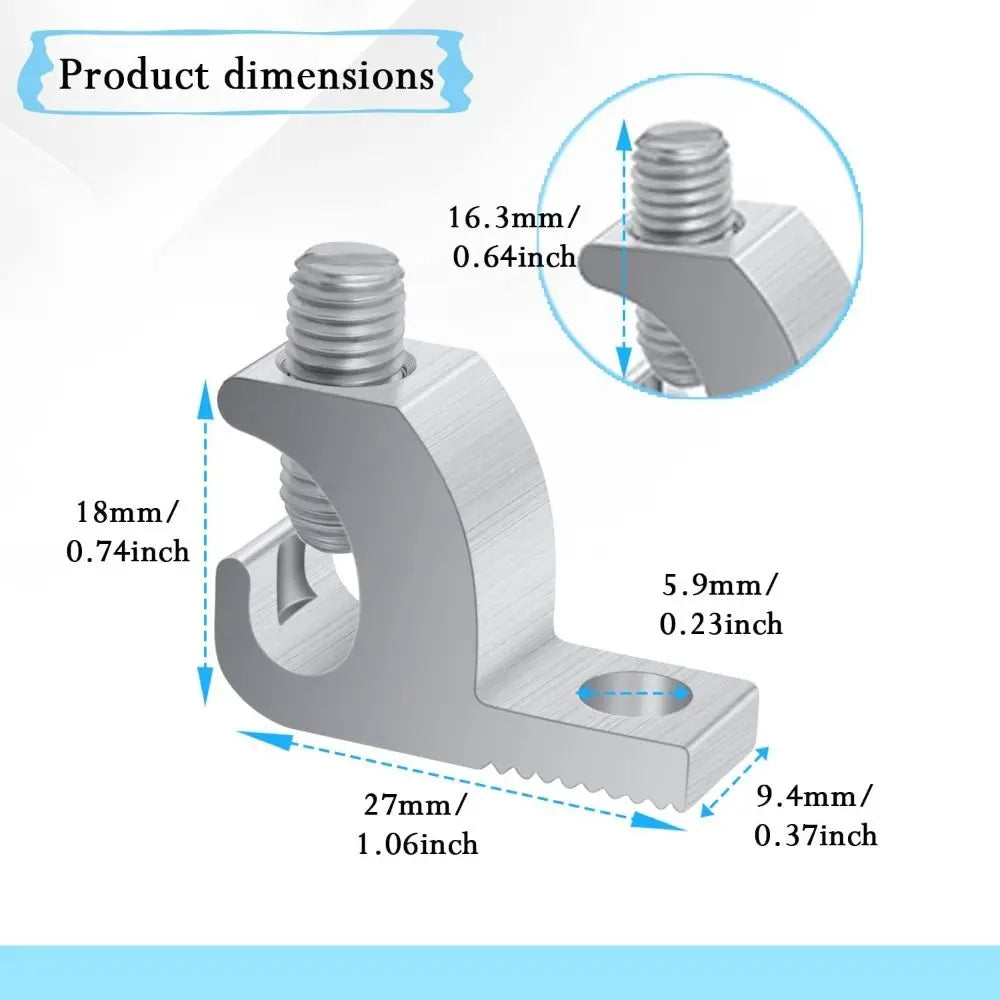

- Compact Size: Measures approximately 27 × 18 mm (1.06 × 0.74 in) — fits neatly into tight spaces without bulk.

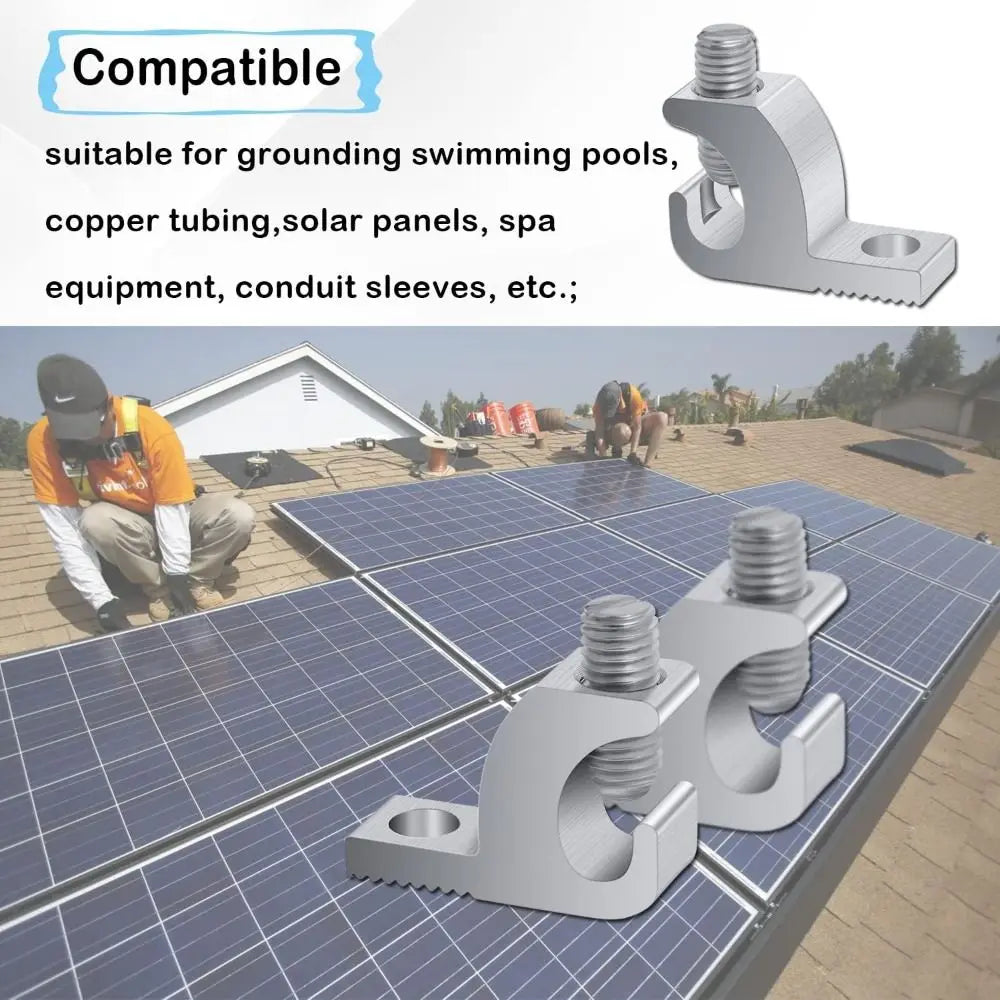

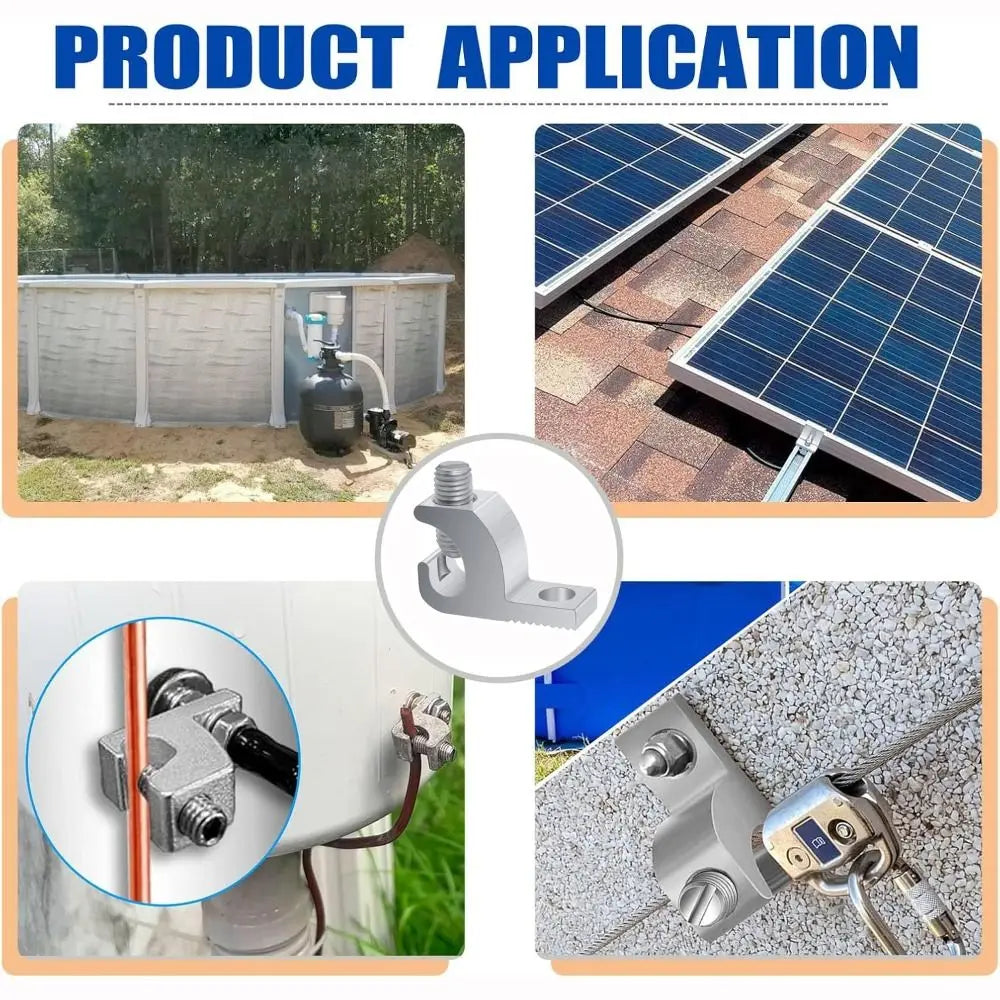

Ideal Applications
- Conduit grounding and bonding
- Swimming pool and spa equipment grounding
- Copper tubing and conduit sleeve connections
- Direct burial ground conductor installations
Specifications
| Contact Material | Aluminum |
| Screw Material | 304 Stainless Steel |
| Wire Range | 4–14 AWG (Copper Conductors Only) |
| Insulation | Non-Insulated |
| Terminal Type | Screw Terminal (Quick Connect) |
| Dimensions | 27 × 18 mm / 1.06 × 0.74 in |
| Country of Origin | Made in China |
Package Contents
- 1 × Aluminum Lay-In Connector
Looking for more tools and hardware for your projects? Check out our Leather Hole Punch Tool – DIY Stitching Punch or browse our handy Airtight Transparent PET Storage Bottle for organizing small parts and connectors on your workbench.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What wire types are compatible with this aluminum lay-in connector?
A: This lay-in bonding lug connector is designed for copper conductors only, accommodating wire sizes from 4 AWG to 14 AWG. It is not intended for use with aluminum wire conductors.
Q: Can this connector be used for direct burial grounding applications?
A: Yes. The open-channel lay-in design is well-suited for direct burial conduit grounding applications. The corrosion-resistant aluminum body and 304 stainless steel screw help it withstand underground and outdoor environmental conditions.
Q: How do I install this lay-in grounding lug?
A: Installation is straightforward — loosen the 304 SS set screw, lay the copper ground conductor into the open channel, then tighten the screw to secure. No wire cutting or splicing is needed, making it easy to use as a jumper across multiple conduits.
Q: Is this connector suitable for pool and spa bonding?
A: Yes. This bonding lug is commonly used for grounding and bonding applications including swimming pools, spa equipment, copper tubing, and conduit sleeves, making it a practical choice for both residential and light commercial electrical work.
