Bluetooth 5.0 MP3 Decoder Board 2×25W Amplifier with FM Radio

Bluetooth 5.0 MP3 Decoder & Amplifier Board – 2×25W with FM Radio & Mic Input

Upgrade any audio setup with the Gaqqee Bluetooth 5.0 MP3 Decoder Amplifier Board — a compact, all-in-one audio module delivering 2×25W stereo power, wireless music streaming, FM radio, and multi-format playback. Whether you're building a custom car audio system, a DIY speaker enclosure, or a smart home audio project, this board provides a feature-rich, affordable solution for makers, hobbyists, and engineers alike.

Key Features

• Bluetooth 5.0 Wireless Streaming: Enjoy stable, low-latency wireless audio from any Bluetooth-enabled device.
• 2×25W Stereo Output: Simultaneously drive two 25W speakers for rich, full-bodied stereo sound.
• Multi-Format Playback: Supports MP3, WMA, WAV, APE, and FLAC lossless audio formats via USB or TF card.
• Built-In FM Radio: Full FM tuner covering 87.5–107.5 MHz with auto-scan functionality.
• Microphone Input (MIC Jack): Easily connect an external microphone for announcements, recording, or karaoke-style use.
• 6 EQ Sound Modes: Choose from Classical, Jazz, Rock, Bass Boost, Pop, and Normal for tailored listening experiences.
• Multiple Input Modes: Seamlessly switch between USB, TF Card, FM Radio, AUX Line-In, and Bluetooth.
• Recording Function: Record audio to a connected USB drive or TF card directly from the board.
• Infrared Remote Control: Included IR remote for convenient hands-free operation.
• Wide Voltage Input: Operates on DC 7V–16V (recommended 12V, ≥2A), making it ideal for automotive and bench-top use.
• Modular Design: Easy integration into toys, household appliances, fitness equipment, broadcasting systems, and more.

Specifications

Button Functions at a Glance

• VOL+: Short press = next track | Long press = volume up | Double press = next folder
• VOL–: Short press = previous track | Long press = volume down | Double press = previous folder
• SCAN: Short press = play/pause | In FM mode = auto-tune
• REPEAT: Single-track repeat or sequential playback toggle
• EQ: Cycles through 6 sound field modes
• MODE: Switch input sources | Long press = start/stop recording

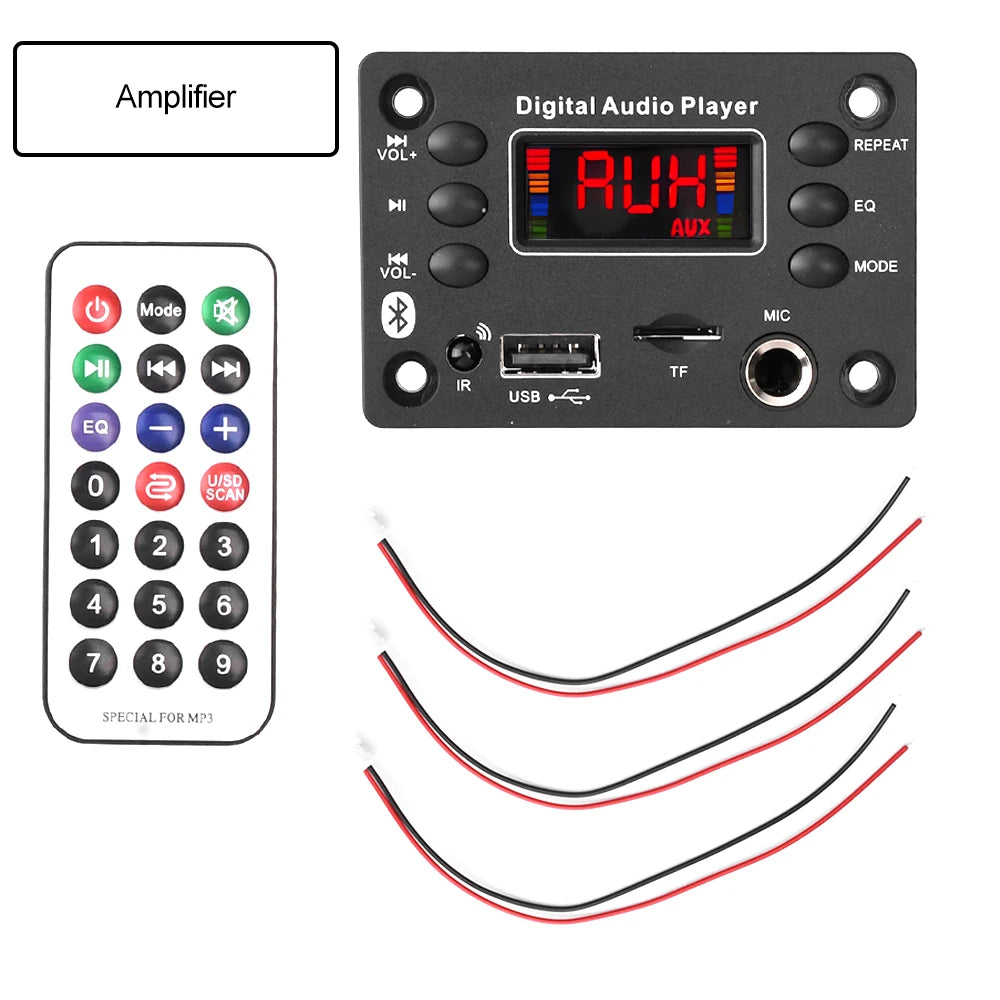

What's in the Box

• 1× MP3 Decoder Amplifier Module
• 1× IR Remote Control
• 4× Terminal Cables

Related Products You May Like

• Airtight Transparent PET Storage Bottle | Beads & Crafts – Great for organizing small electronic components and cables.
• Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer – Stylish tray to keep your workstation tidy.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What power supply do I need for the Bluetooth MP3 Decoder Amplifier Board?

A: The board operates on a DC 7V–16V input. For optimal performance, a 12V DC power supply with a current rating of at least 2A is recommended. This makes it suitable for both car audio installations (12V car battery) and bench-top DIY projects.

Q: What audio file formats does this MP3 decoder board support?

A: This board supports a wide range of audio formats including MP3, WMA, WAV, APE, and FLAC lossless audio. Files can be played from a USB flash drive (up to 32GB) or a TF memory card (up to 32GB).

Q: Can I use this amplifier board in a car audio system?

A: Yes! The board is designed to work within a DC 7V–16V voltage range, which matches standard 12V car electrical systems. With Bluetooth 5.0, FM radio, USB/TF playback, and 2×25W stereo output, it is an excellent choice for upgrading or building a custom car audio system.

Q: Does the board support recording, and what storage device is required?

A: Yes, the board features a built-in recording function. To use it, connect a USB flash drive or TF card to the board, then long-press the MODE button to begin recording. Press again to stop recording and automatically play back the recorded file.
