BNC Male Right Angle Clamp Connector – RG58 RG174 RG6 Coaxial

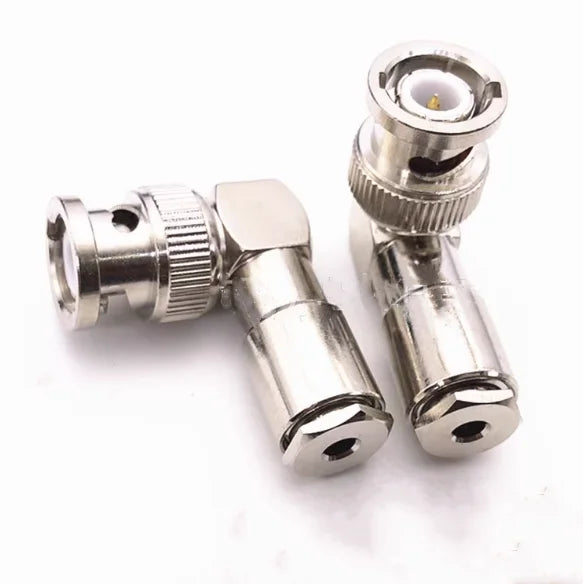

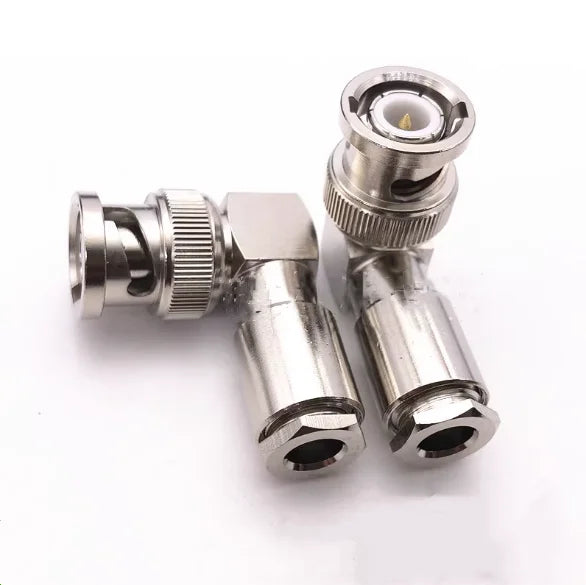

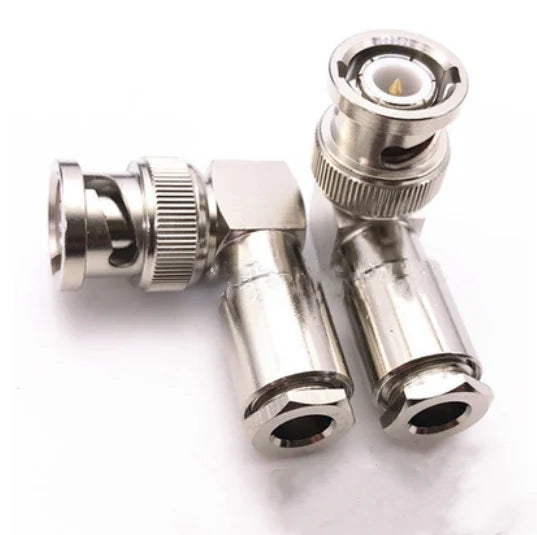

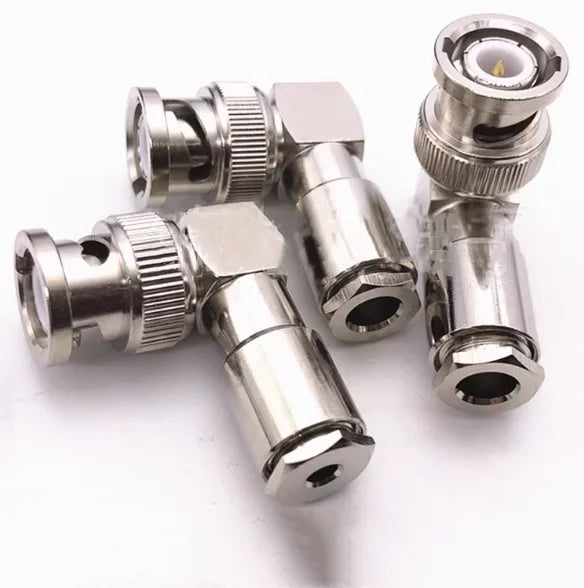

BNC Male Right Angle Clamp RF Coaxial Connector

Keep your coaxial cable runs neat and secure with this BNC Male Plug Right Angle Clamp Connector. Designed for a wide range of coaxial cable types, this compact RF connector delivers a reliable, low-loss signal connection — perfect for electronics projects, surveillance systems, audio/video setups, and RF testing equipment.

Compatible Cable Types

• RG174 / RG316 – Thin, lightweight cables ideal for compact RF applications
• RG58 / RG142 – Standard 50-ohm coaxial cables for RF and communications use
• RG5 / RG6 – Larger-diameter cables used in video and broadcast applications

Key Features

• Right Angle Design – 90° connector orientation saves space and reduces cable strain in tight installations

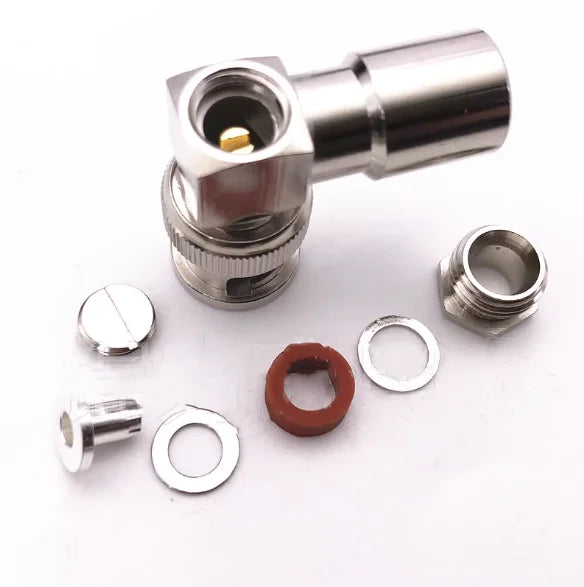

• Clamp Termination – Secure mechanical grip on the cable jacket for a stable, durable connection
• BNC Male Plug – Industry-standard bayonet-style locking interface for quick connect/disconnect
• RF Coaxial – Engineered to maintain signal integrity across supported frequency ranges
• Versatile Compatibility – Works across multiple popular coaxial cable series
• Durable Construction – Robust metal body built to withstand repeated use

Ideal For

• CCTV and security camera installations
• Ham radio and amateur RF equipment
• Test and measurement instrumentation
• Audio/video broadcast and production setups
• Electronics prototyping and lab work

Made in Mainland China.

You May Also Like

• Airtight Transparent PET Storage Bottle | Beads & Crafts
• Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
• U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What cable types is this BNC right angle connector compatible with?

A: This BNC male right angle clamp connector is compatible with RG174, RG316, RG58, RG142, RG5, and RG6 coaxial cables, making it a highly versatile choice for a wide range of RF and video applications.

Q: What does the right angle design offer compared to a straight connector?

A: The 90° right angle orientation allows the cable to exit perpendicular to the connector body, which is ideal for installations with limited clearance, reducing cable bending stress and keeping your setup tidy.

Q: Is this connector suitable for CCTV and security camera systems?

A: Yes. BNC connectors are the industry standard for CCTV and analog security camera installations. This right angle clamp version is particularly useful in wall-mount or panel installations where space behind the connector is limited.

Q: How is the cable secured to this connector?

A: The connector uses a clamp-style termination that mechanically grips the outer jacket of the coaxial cable, providing a secure and stable connection without requiring soldering in many configurations.
