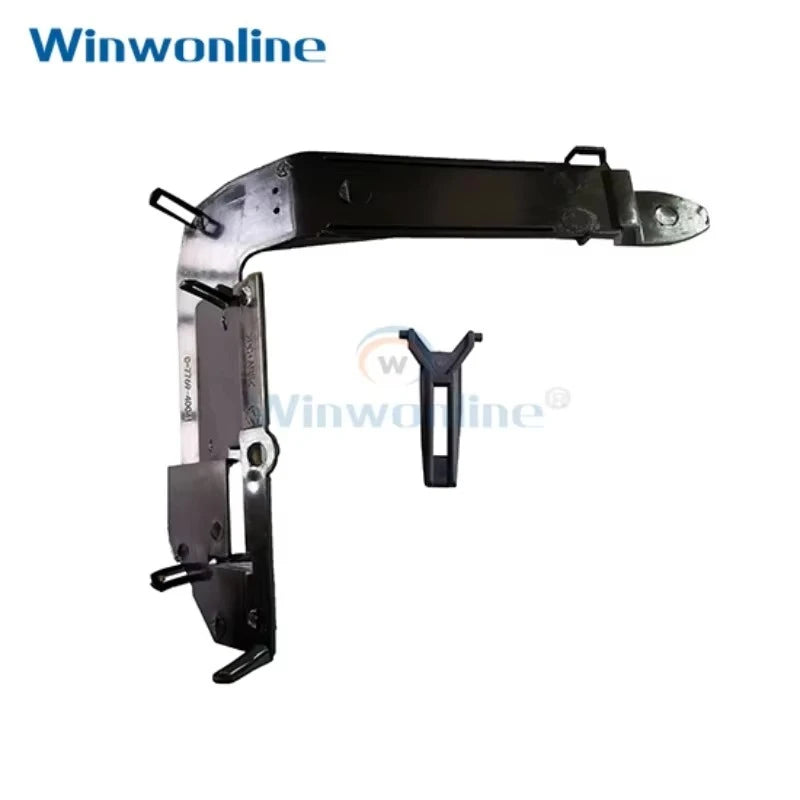

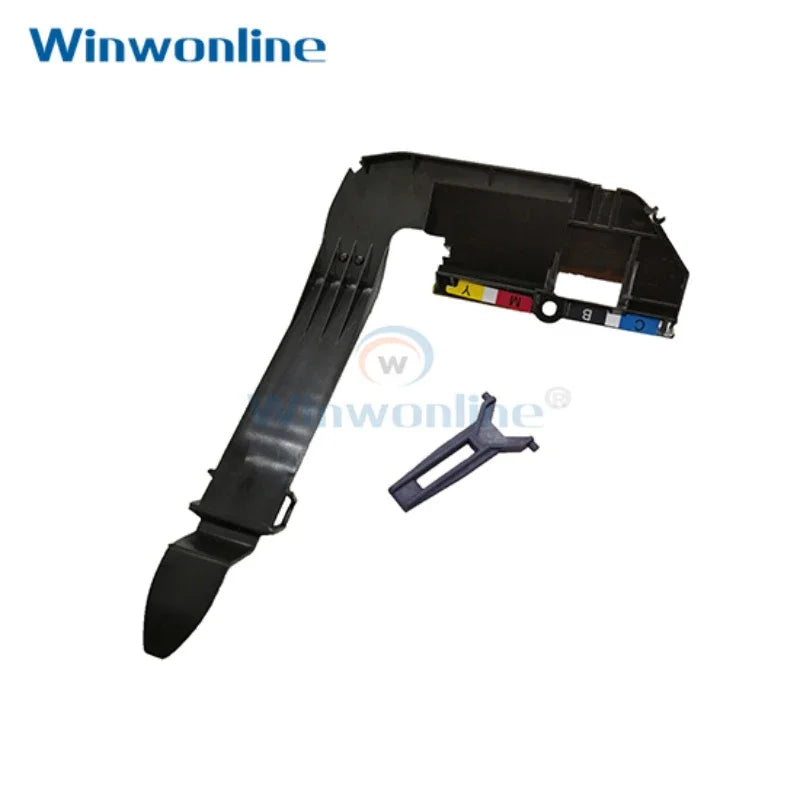

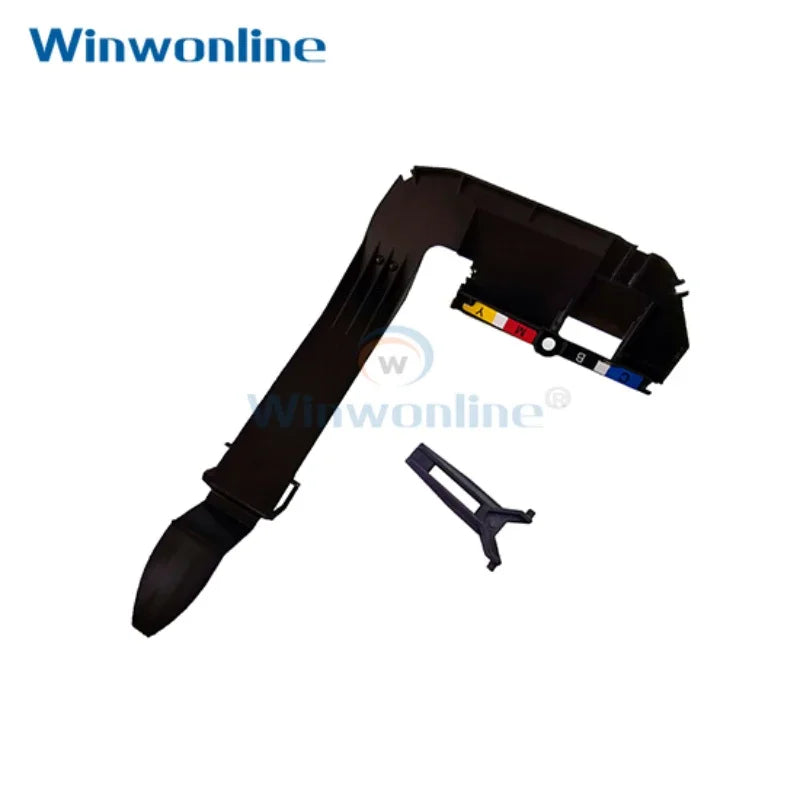

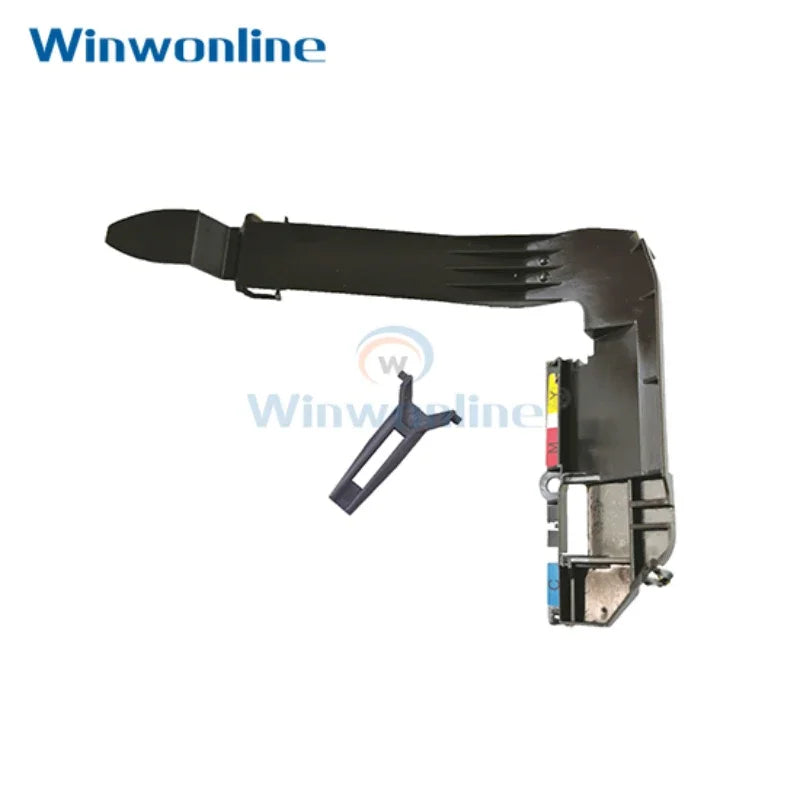

C7769-40041 Ink Tube Cover Lock – HP Designjet 500 / 510 / 800 Series
Keep your HP Designjet plotter running at peak performance with this replacement Ink Tube Cover Lock (Upper Cover of Ink Tube Supply System), OEM number C7769-40041. Designed as a direct-fit replacement part, it securely houses and protects the ink tube supply system — helping maintain consistent ink flow and reducing the risk of tube misalignment or damage during operation.
Key Features
- OEM Part Number: C7769-40041
- Compatible Models: HP Designjet 500, 500PS, 510, 510PS, 800, 800PS Plotters
- Function: Upper cover with locking mechanism for the ink tube supply system
- Quantity: 1 Set
- Packaging: Neutral/plain packaging
- Made in China
Compatibility
| HP Designjet 500 | ✔ Compatible |
| HP Designjet 500PS | ✔ Compatible |
| HP Designjet 510 | ✔ Compatible |
| HP Designjet 510PS | ✔ Compatible |
| HP Designjet 800 | ✔ Compatible |
| HP Designjet 800PS | ✔ Compatible |
Why Replace This Part?
Over time, the ink tube cover lock on large-format plotters can become cracked, brittle, or lose its locking function due to regular wear and tear. A damaged or missing cover can cause ink tube displacement, inconsistent ink delivery, and potential damage to other internal components. Replacing it promptly with this precision-fit part helps restore proper tube management and extends the working life of your plotter.
What's in the Box?
- 1 × Ink Tube Cover Lock (C7769-40041) for HP Designjet 500/510/800 Series
You May Also Like
Looking for more tools and accessories to keep your equipment in top shape? Browse these related items in our store:
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
- Stainless Steel Ceramic Trimming Tool – Curved Skip Knife
- Airtight Transparent PET Storage Bottle | Beads & Crafts
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the OEM part number for this ink tube cover lock?
A: The OEM part number is C7769-40041. This is the official reference number used to identify the upper cover of the ink tube supply system compatible with HP Designjet 500, 500PS, 510, 510PS, 800, and 800PS plotters.
Q: Is this ink tube cover lock a direct replacement for my HP Designjet plotter?
A: Yes. This part is designed as a direct-fit replacement for the HP Designjet 500, 500PS, 510, 510PS, 800, and 800PS series plotters. Please verify your printer model before purchasing to ensure compatibility.
Q: Does this part come with installation instructions?
A: The part ships in neutral packaging without printed instructions. We recommend consulting your HP Designjet service manual or an experienced technician for installation guidance to ensure proper fitting of the ink tube cover lock.
Q: How many pieces are included in each order?
A: Each order includes 1 set (1 piece) of the C7769-40041 Ink Tube Cover Lock for HP Designjet plotters.
