Gaqqee Ultra-Slim Mini Digital Voltmeter – Precision Voltage Monitoring in a Compact Form Factor

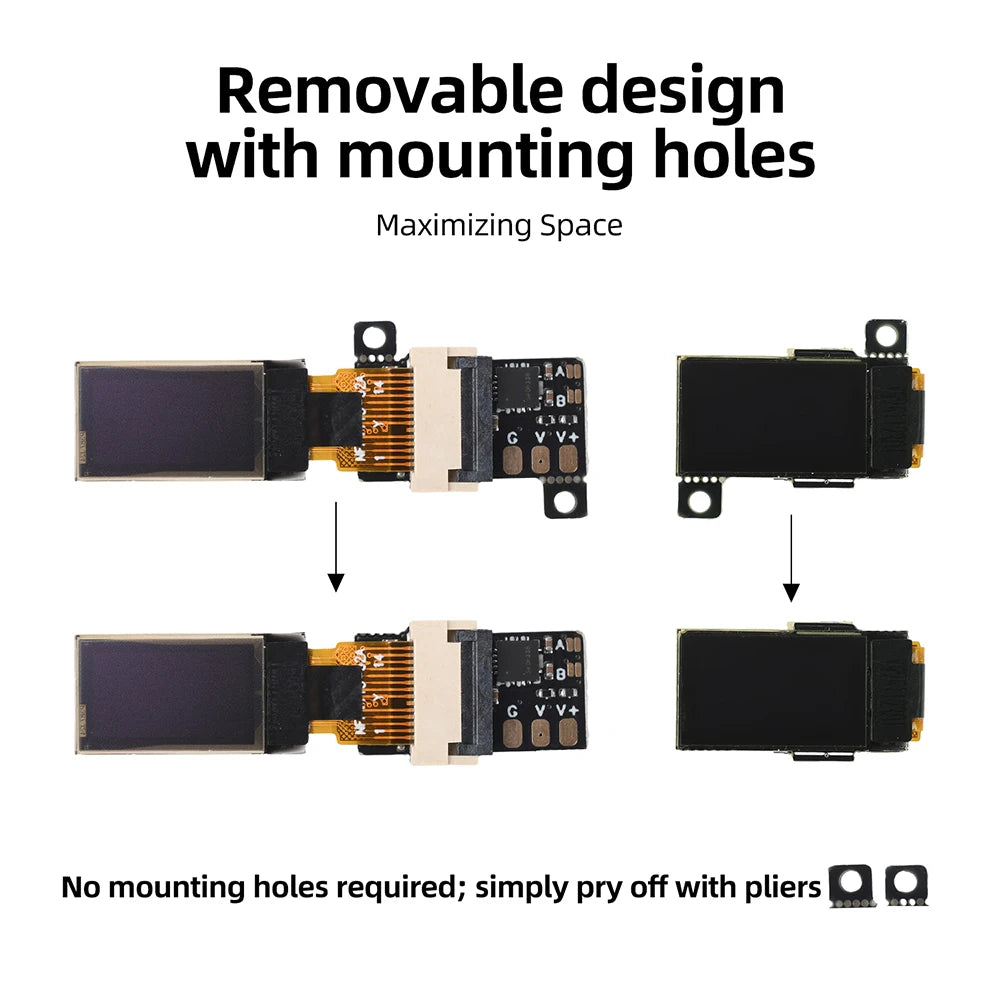

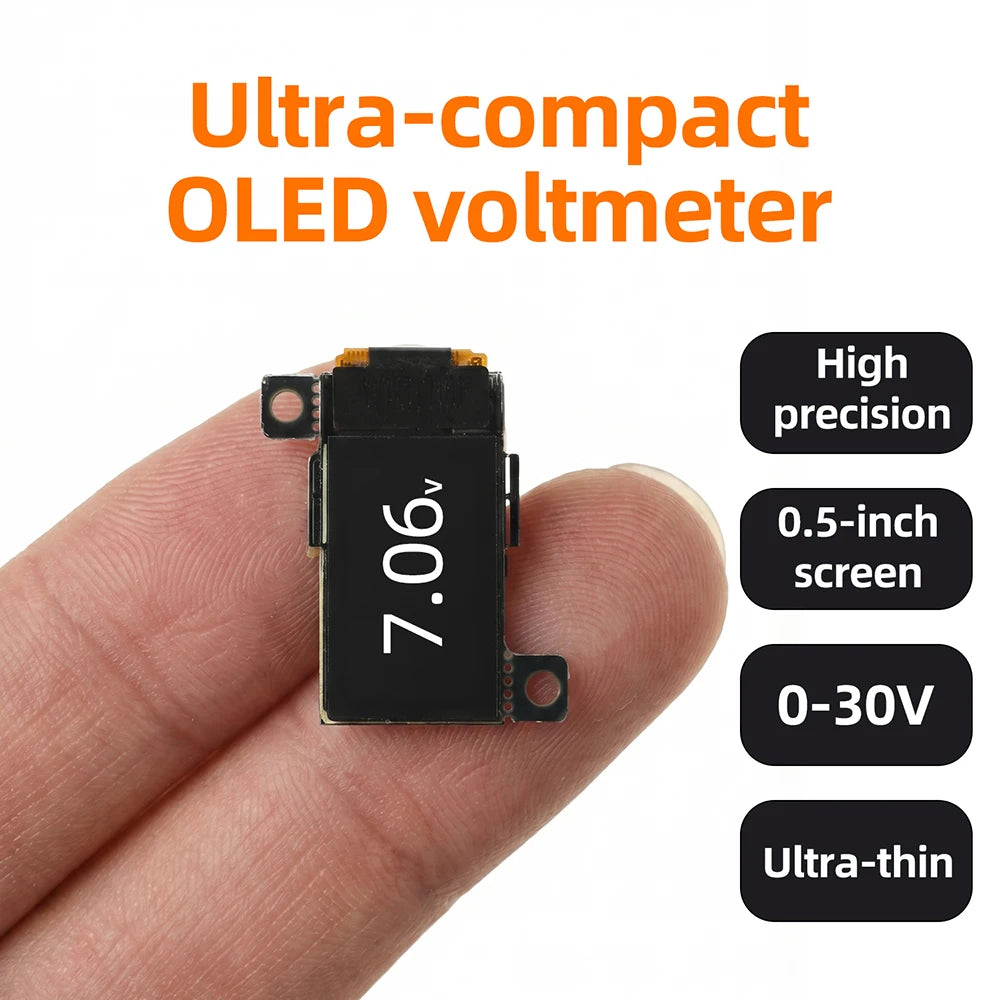

Meet the Gaqqee DC 0–30V Ultra-Slim Mini Digital Voltmeter — a high-precision, space-saving voltage measurement module purpose-built for DIY electronics, embedded systems, industrial control panels, and automotive battery monitoring. Measuring just 37.5 × 15 × 3 mm, this sleek module slips effortlessly into tight enclosures while delivering professional-grade accuracy you can rely on.
Made in Mainland China.
Why You'll Love This Voltmeter
- Ultra-compact, ultra-slim profile – At only 3 mm thick, it integrates seamlessly into power supplies, control boards, and custom enclosures without sacrificing readability.

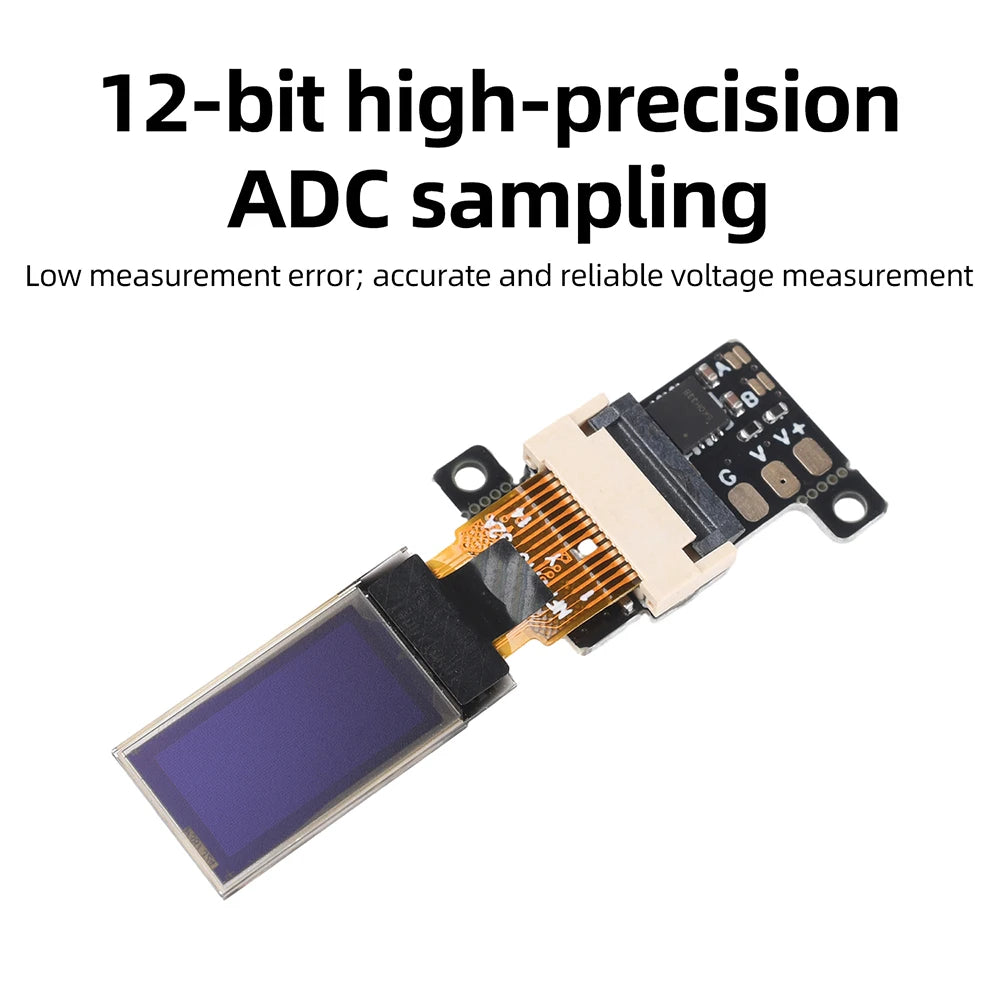

- 12-bit ADC high-precision sampling – Delivers approximately 0.7% measurement accuracy (e.g., a 10 V input displays with ≤0.07 V error), ensuring reliable and repeatable readings every time.

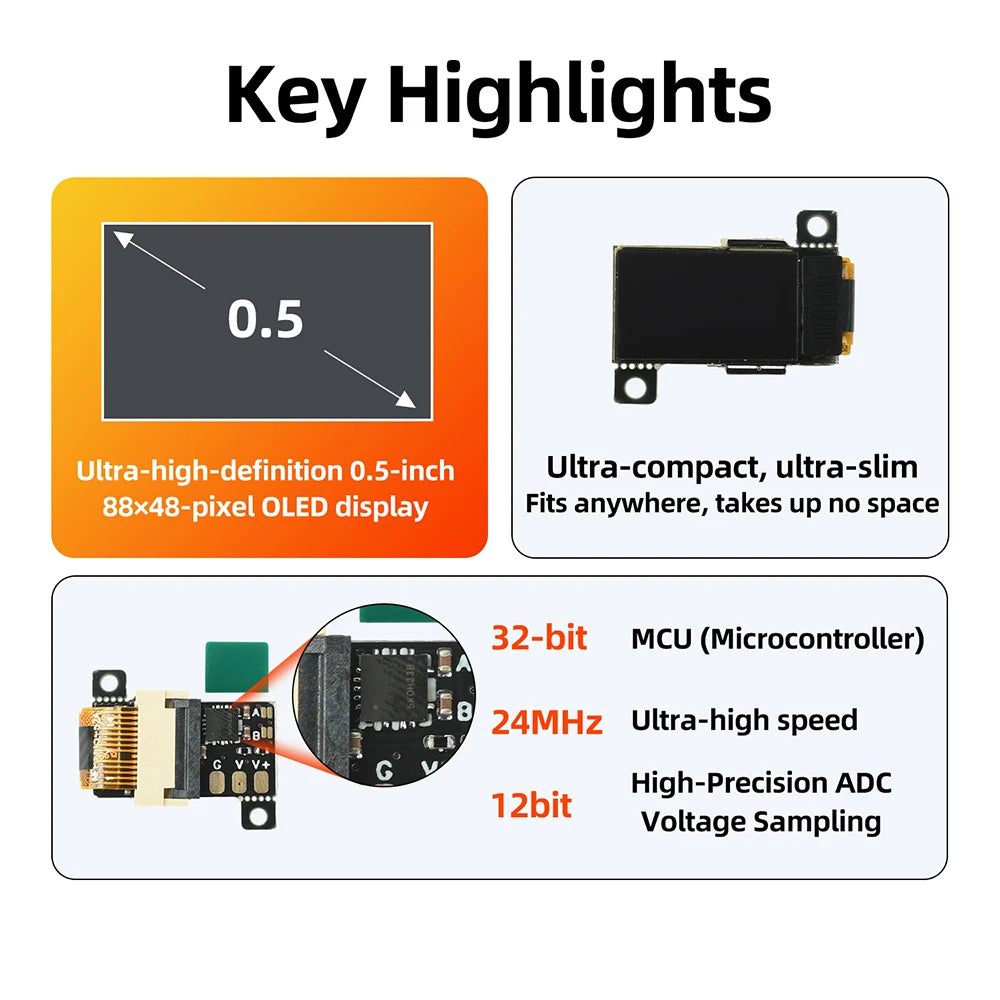

- Crisp 0.5-inch OLED display (88×48 resolution) – Bright white characters with auto-shifting decimal point make readings instantly clear, even in low-light environments.

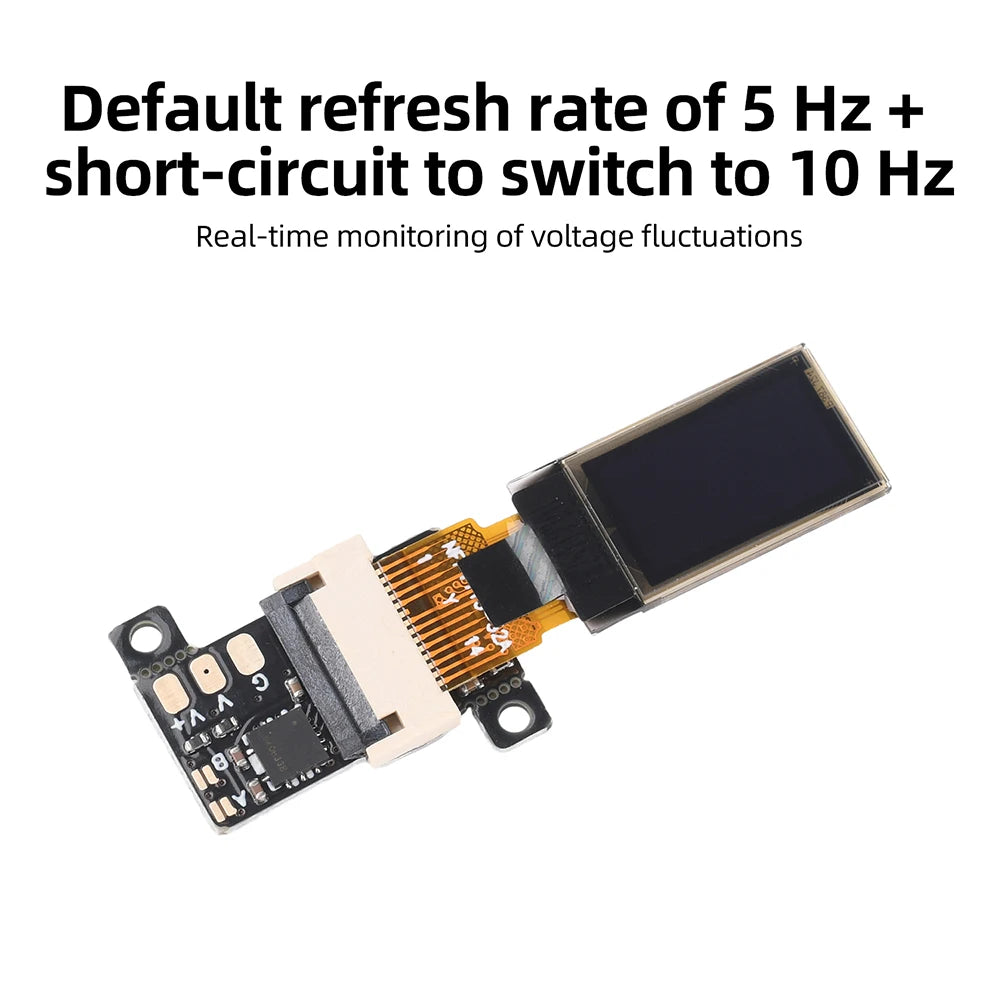

- Adjustable refresh rate: 5 Hz / 10 Hz – Default 5 Hz is ideal for stable readings; short-circuit Pin B to switch to 10 Hz for real-time tracking of fast-changing voltage dynamics.
- Wide measurement & supply range – Measures DC 0–30 V; supply voltage DC 3.5–30 V; operating current <20 mA — efficient and versatile.
- Configurable jumper settings – Jumper A toggles the voltage "V" symbol on/off; Jumper B switches refresh rate — customize the display to suit your project.
- CE & RoHS certified – Meets international safety and environmental standards.
Key Specifications
| Measurement Range | DC 0–30 V |
| Supply Voltage | DC 3.5–30 V |
| Operating Current | <20 mA |
| ADC Resolution | 12-bit |
| Measurement Accuracy | ≈0.7% |
| Display | 0.5-inch OLED, 88×48 px, white characters |
| Refresh Rate | 5 Hz (default) / 10 Hz (Pin B jumpered) |

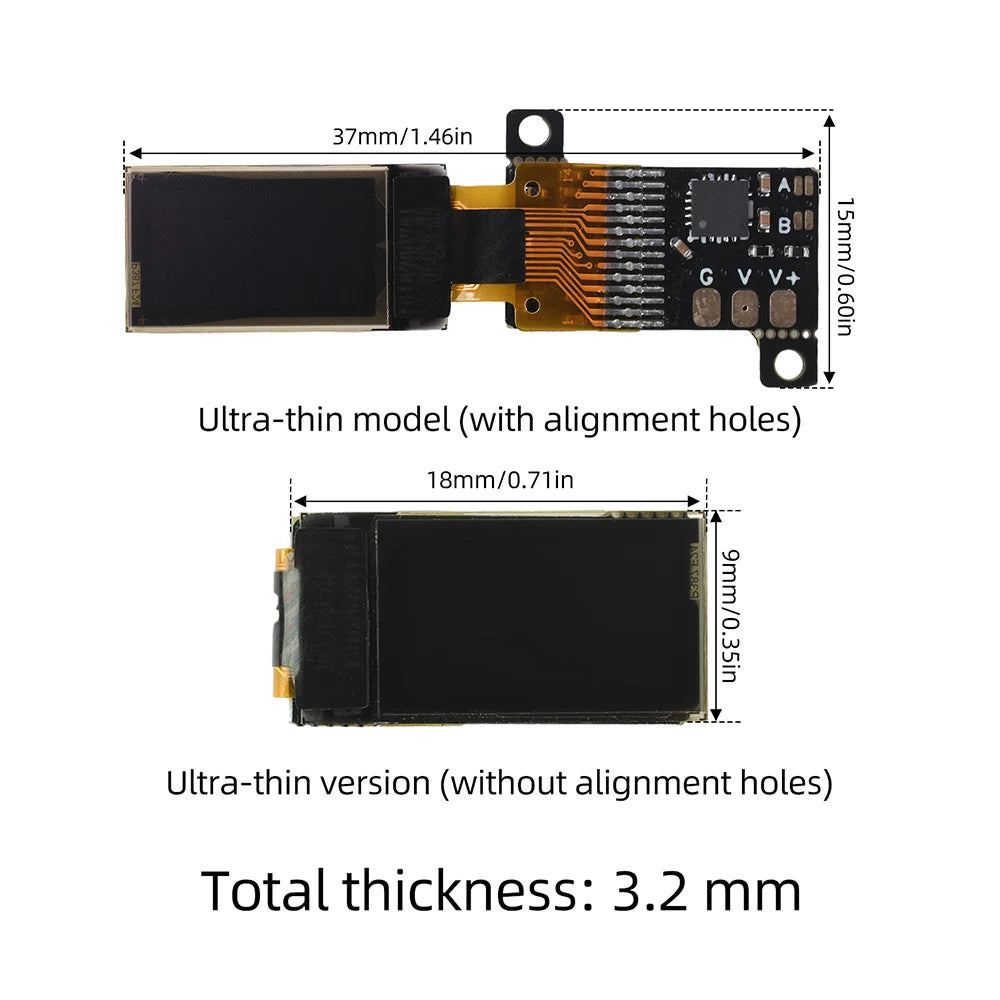

| Dimensions | 37.5 × 15 × 3 mm |
| Certifications | CE, RoHS |
| Country of Origin | Mainland China |
Jumper Configuration Guide
- Jumper A (open – default): Voltage symbol "V" is displayed. Jumper A (closed): "V" symbol hidden.
- Jumper B (open – default): 5 Hz refresh rate. Jumper B (closed / short-circuited): 10 Hz refresh rate for dynamic voltage tracking.

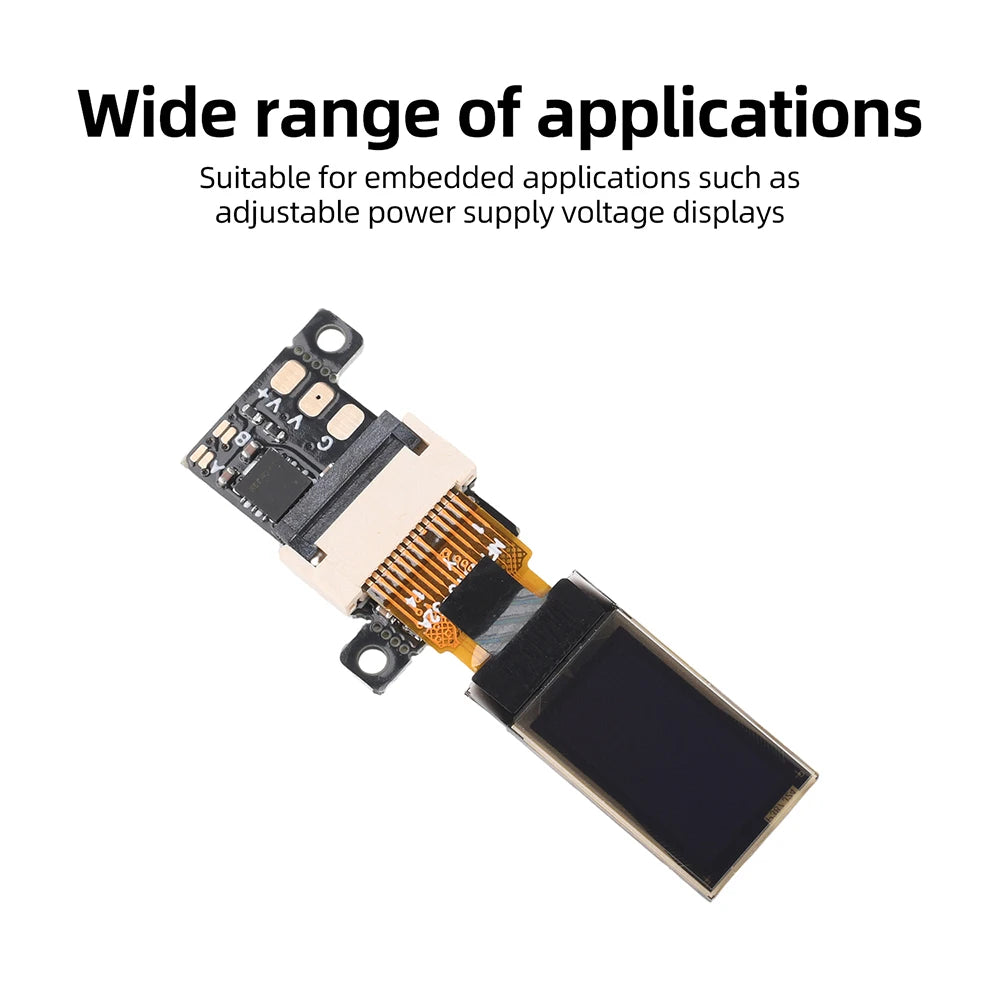

Ideal Applications
- Adjustable bench power supply voltage display
- Industrial control equipment panels
- Sensor supply voltage monitoring
- Vehicle/battery voltage monitoring
- DIY electronics & embedded system projects
- Robotics and maker projects
What's in the Box
- 1× Ultra-Slim Mini Digital Voltmeter Module
Looking for more DIY tools and project supplies? Check out our Leather Hole Punch Tool | DIY Stitching Punch or keep your components neatly organized with the Airtight Transparent PET Storage Bottle for Beads & Crafts. Need precision craft tools? Explore our Stainless Steel Ceramic Trimming Tool.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage range can the mini digital voltmeter measure?
A: The Gaqqee mini digital voltmeter measures DC 0–30 V. It requires a supply voltage of DC 3.5–30 V and consumes less than 20 mA during operation, making it suitable for a wide range of electronics and embedded applications.
Q: How do I switch the refresh rate from 5 Hz to 10 Hz?
A: Simply short-circuit (jumper) Pin B on the module. By default the refresh rate is 5 Hz, which is great for stable voltage displays. Shorting Pin B switches it to 10 Hz, enabling faster real-time tracking of changing voltage levels.
Q: Can this voltmeter be embedded into a custom enclosure or power supply?
A: Absolutely. At just 37.5 × 15 × 3 mm, the ultra-slim profile is specifically designed for embedded integration into adjustable power supplies, control panels, battery monitors, robotics projects, and any compact DIY electronics build.
Q: What does the 12-bit ADC mean for measurement accuracy?
A: The 12-bit ADC provides high-resolution analog-to-digital conversion, resulting in approximately 0.7% measurement accuracy. For example, at a 10 V input, the display error is no more than ±0.07 V — highly reliable for electronics testing and monitoring.
