DC 3.7V to 20KV High-Voltage Boost Module – Integrated Arc Discharge Generator

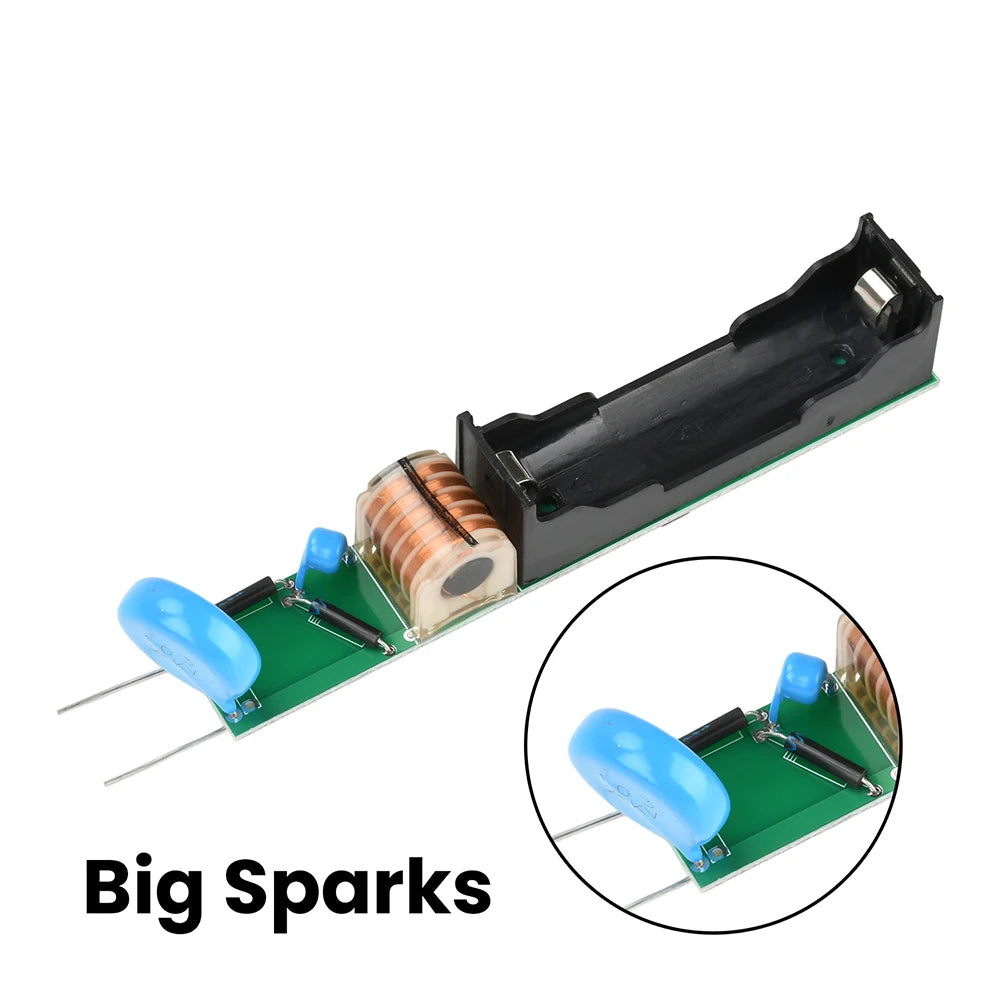

This compact high-voltage boost module converts a standard 3.7V 18650 lithium battery input into a powerful 20 kV output, producing a visible electric arc with a discharge distance of approximately 13–18mm. Engineered with a high-power boost chip refined through multiple design iterations, this module is ideal for electronics enthusiasts, DIY projects, science demonstrations, and hobbyist high-voltage experiments.

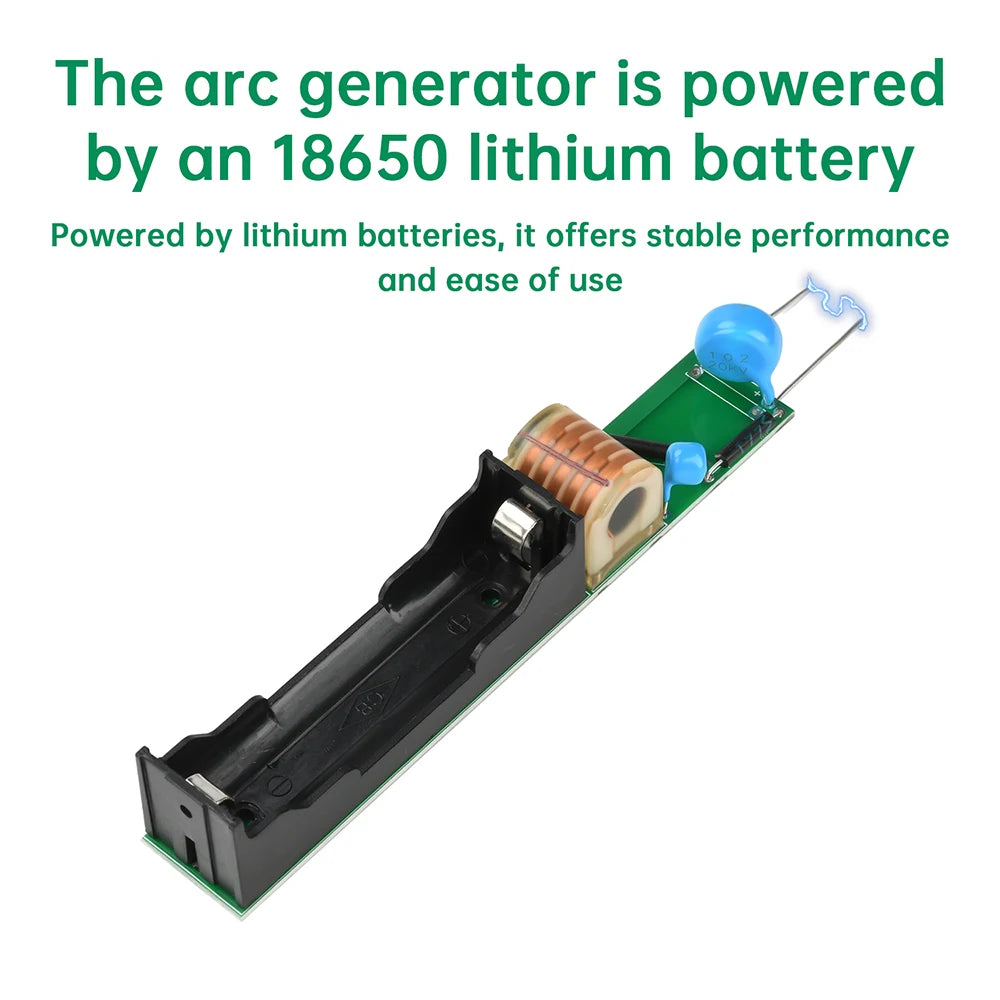

The module integrates seamlessly with a single 18650 lithium battery and is sized to fit standard plastic tubing for easy enclosure. Output voltage is fully adjustable by varying the resistance, giving you flexible control over performance. Made in Mainland China.
Key Features

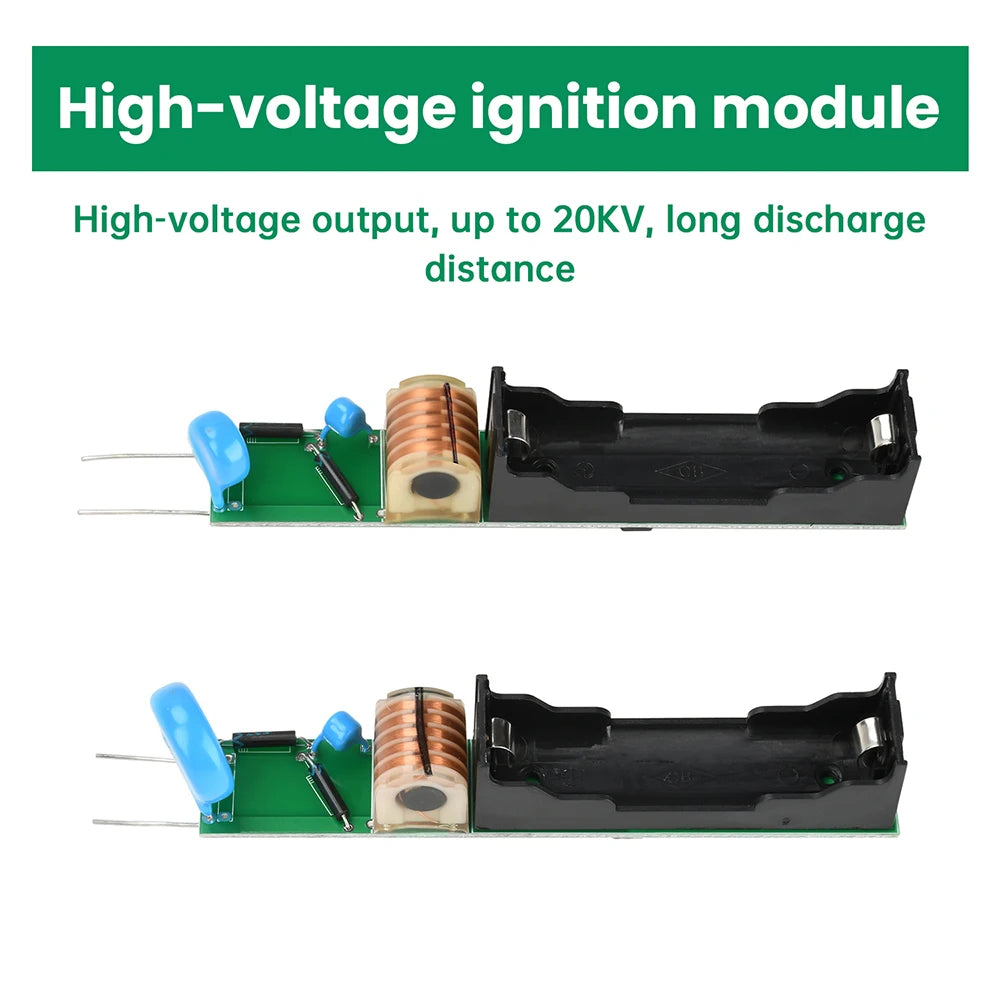

- High-Voltage Output: Delivers up to 20 kV at 4.2V input for a striking arc discharge.
- Long Discharge Range: Arc discharge distance of approximately 13–18mm for impressive output.

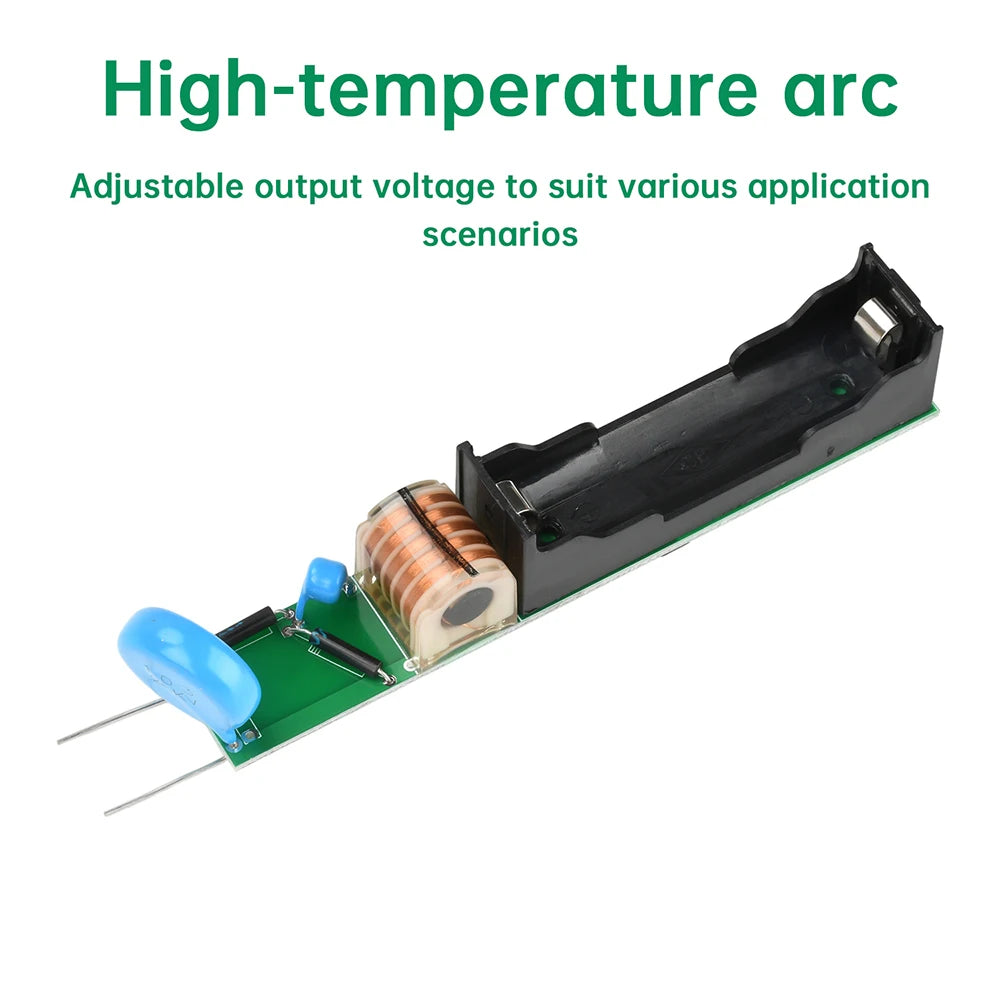

- Adjustable Output Voltage: Tune the output up or down by adjusting resistance to match your application.
- No-Load Operation Supported: Safe to operate without a load — no risk of damage during standby.
- Low Standby Consumption: Standby current of just ~0.3mA; remove the battery for extended storage.
- Compact & Durable Build: Dimensions: 130mm × 22mm × 25mm — fits standard plastic tube housings.
- Simple Power Source: Runs on a single standard 3.7V 18650 lithium cell (not included).
Technical Specifications
| Supply Voltage | 3.7V (standard 18650 lithium battery) |
| Maximum Output Voltage | ~20 kV (at 4.2V input) |
| Operating Current (Discharge) | ~2A |
| Discharge Distance | ~13–18mm |
| Standby Current | ~0.3mA |
| Recommended Battery Capacity | 2200mAh or higher |

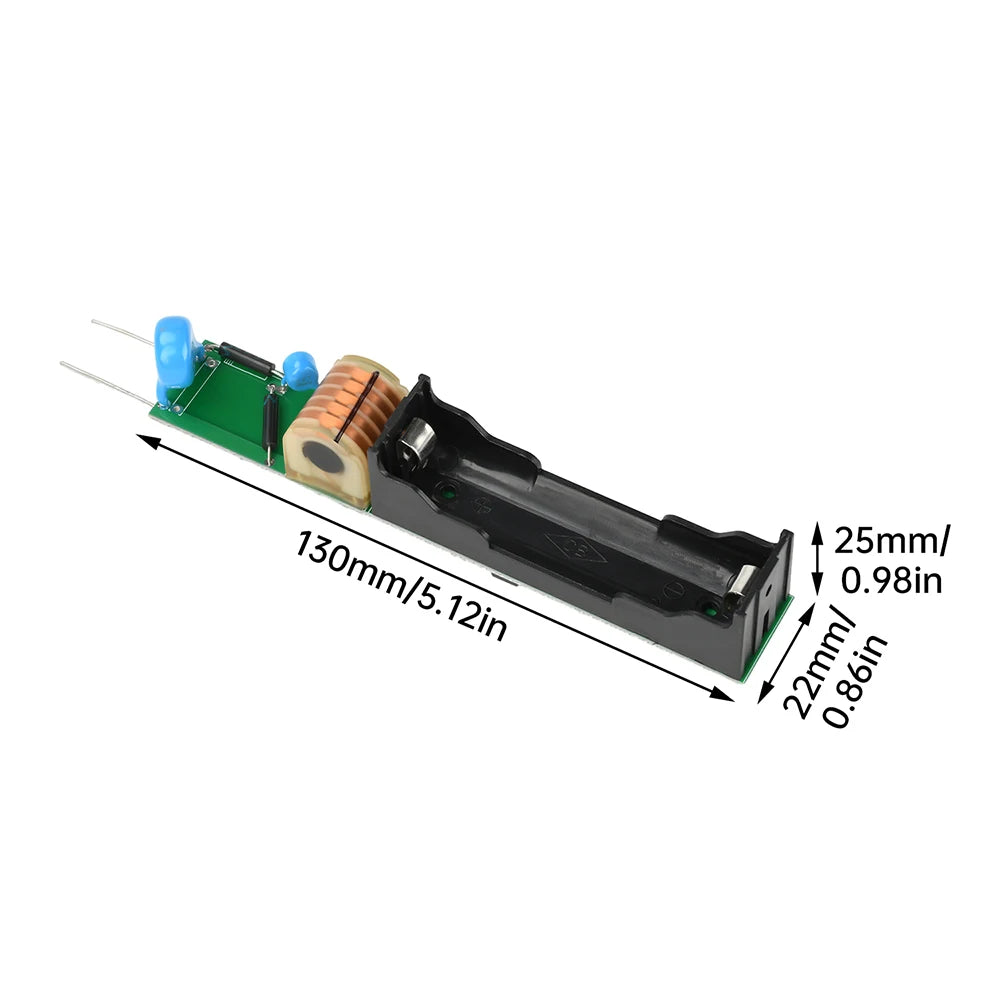

| Module Dimensions | 130mm × 22mm × 25mm |
| Package Type | TQFP integrated module |
| Quantity | 1 × Module (battery not included) |
| Country of Origin | Mainland China |
What's in the Box
- 1 × DC 3.7V 20KV High-Voltage Boost Module
- Note: 18650 lithium battery is NOT included.
