Digital Inductive Hour Meter with LCD Display
Keep your engine maintenance on schedule with this compact, waterproof Digital LCD Hour Meter Counter. Designed for any gas-powered engine, it tracks total operating hours so you never miss an oil change, spark plug swap, or valve adjustment again. Compatible with ATVs, motorcycles, snowmobiles, boats, generators, bikes, and more — if it has a spark plug wire, this meter works with it.
Made in Mainland China.
Key Features
- No Battery Required – Powers itself inductively via the spark plug wire; zero wiring hassle.
- Wide Compatibility – Works on any single-cylinder or multi-cylinder gas engine with a spark plug wire.

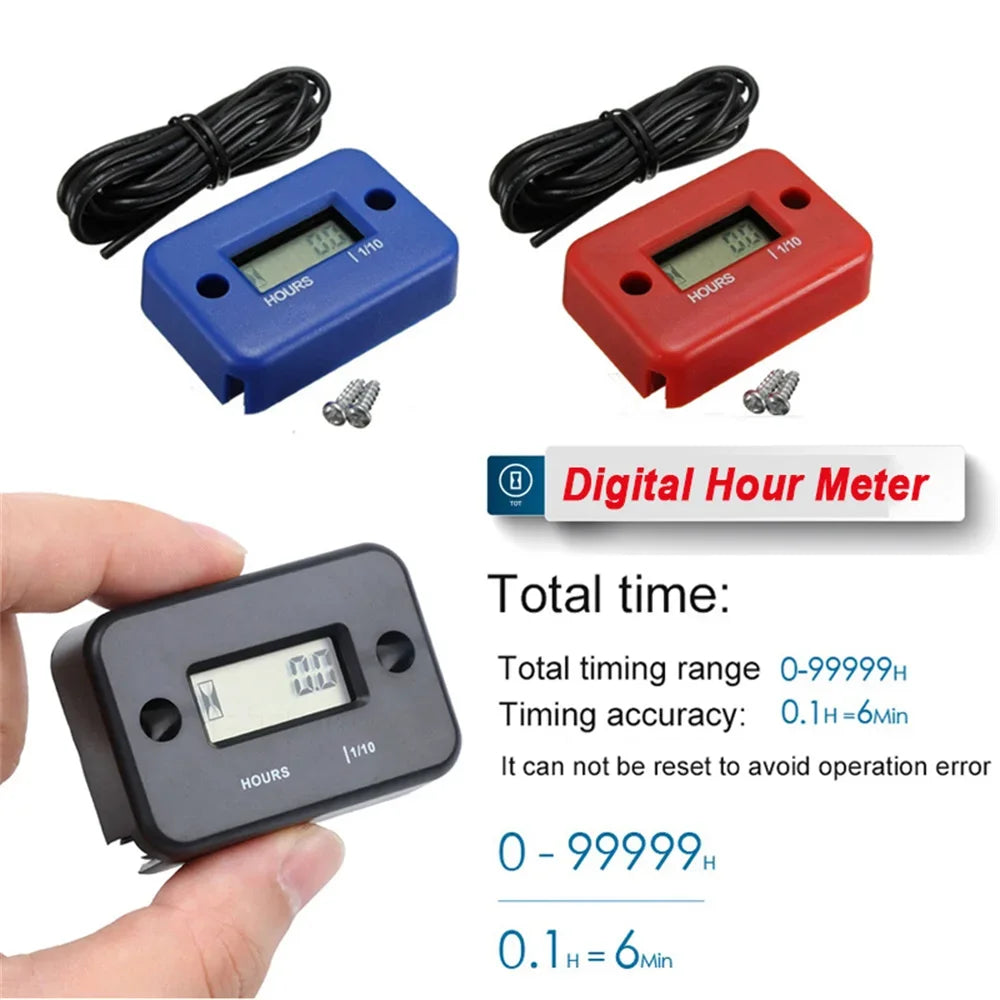

- Large LCD Display – Reads up to 9,999.9 hours with 0.1-hour resolution for precise tracking.
- Hourglass Indicator – Flashing hourglass icon confirms the meter is actively counting.
- Automatic Rollover – Seamlessly rolls back to 0.0 after reaching max hours.

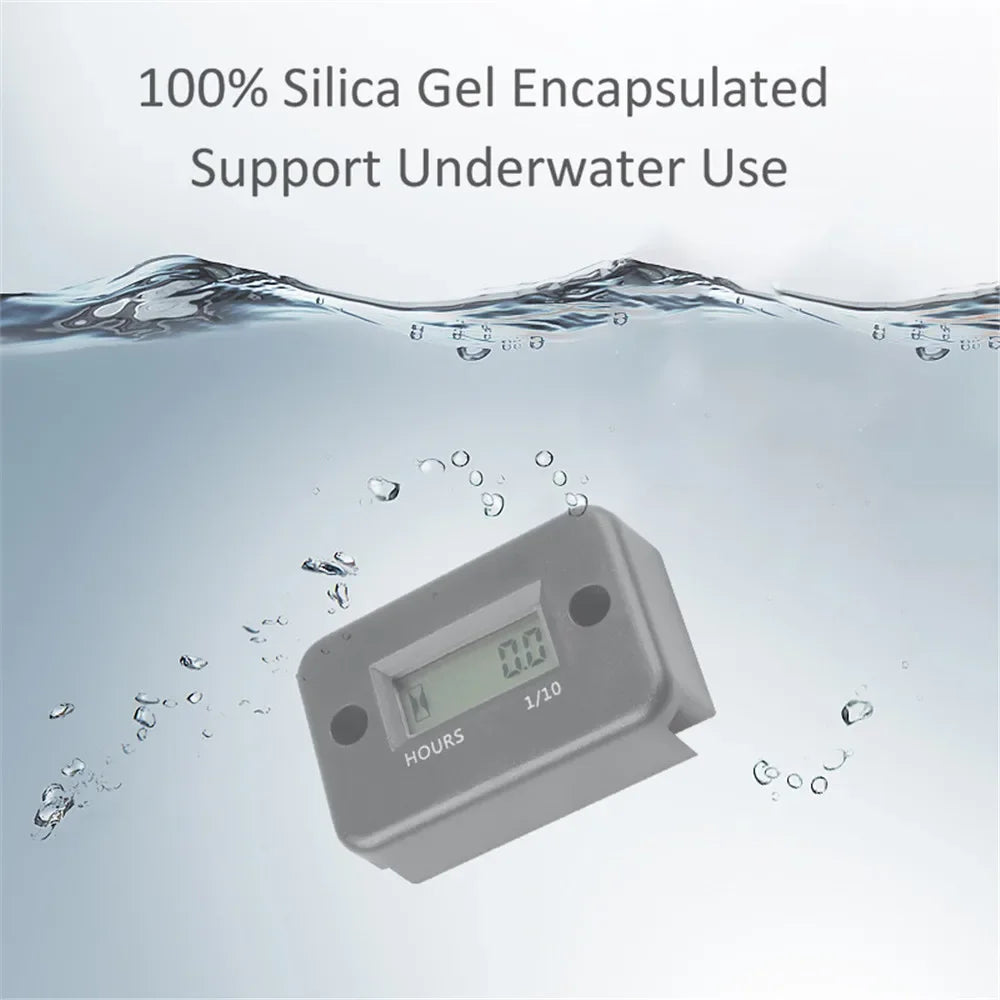

- Waterproof & Shock-Resistant – 100% epoxy-encapsulated ABS casing withstands water, vibration, and temperatures up to 85 °C.
- Tool-Free Mounting – Peel-and-stick or screw-mount installation; wrap induction wire around spark plug tube 5 times and secure with the included cable tie.
Specifications
| Material | ABS Plastic (epoxy encapsulated) |
| Display | LCD |
| Item Dimensions | 54 × 36.5 × 14.5 mm |
| Item Weight | ~50 g |
| Max. Count | 9,999.9 hours |
| Resolution | 0.1 hour |
| Heat Resistance | Up to 85 °C |
| Power Source | Inductive (no battery) |
| Certification | CCC |

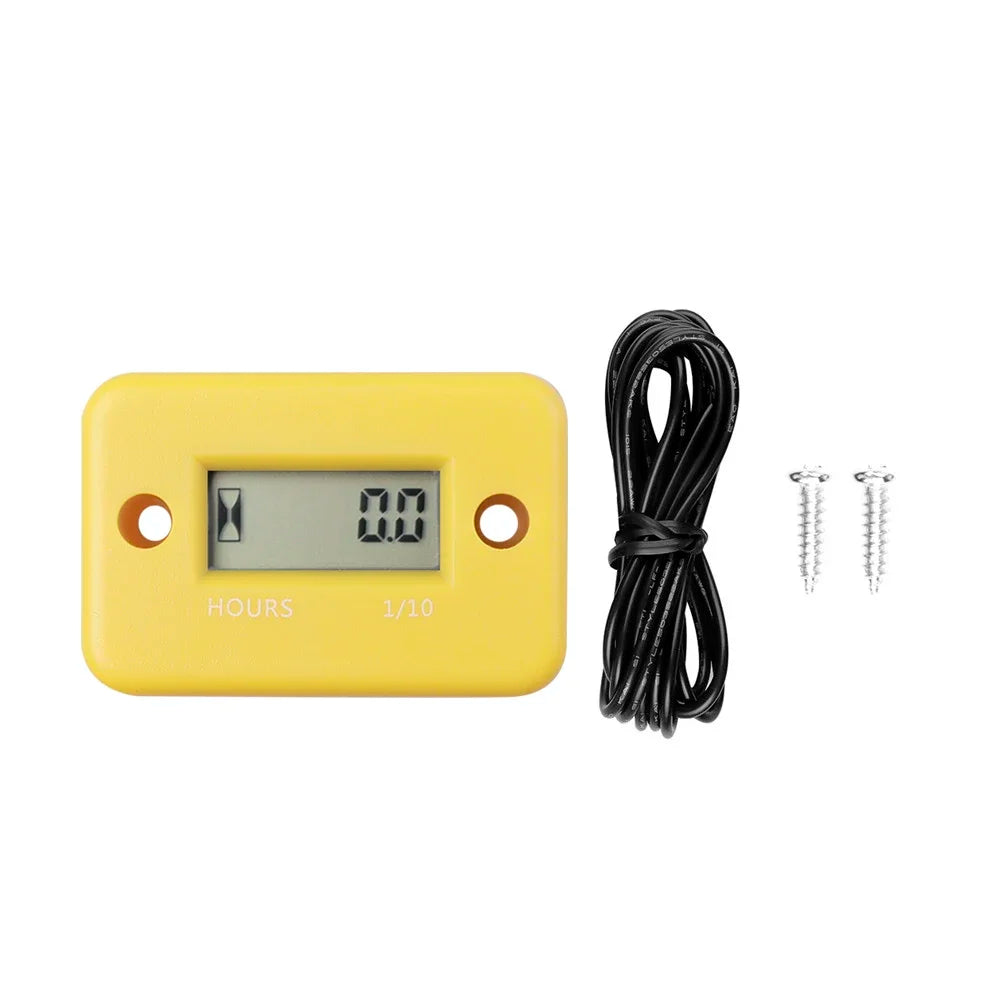

Package Contents
- 1 × Digital Hour Meter
- 1 × Induction Wire
- 2 × Mounting Screws

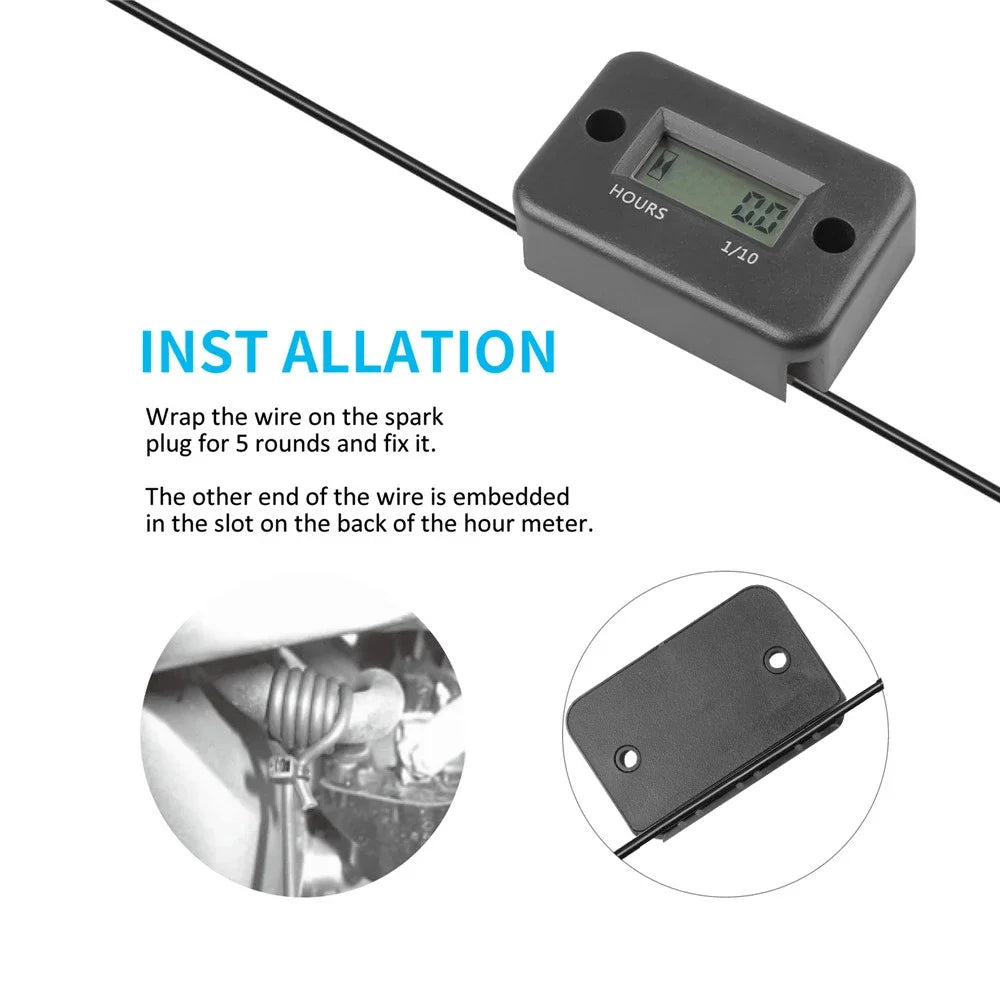

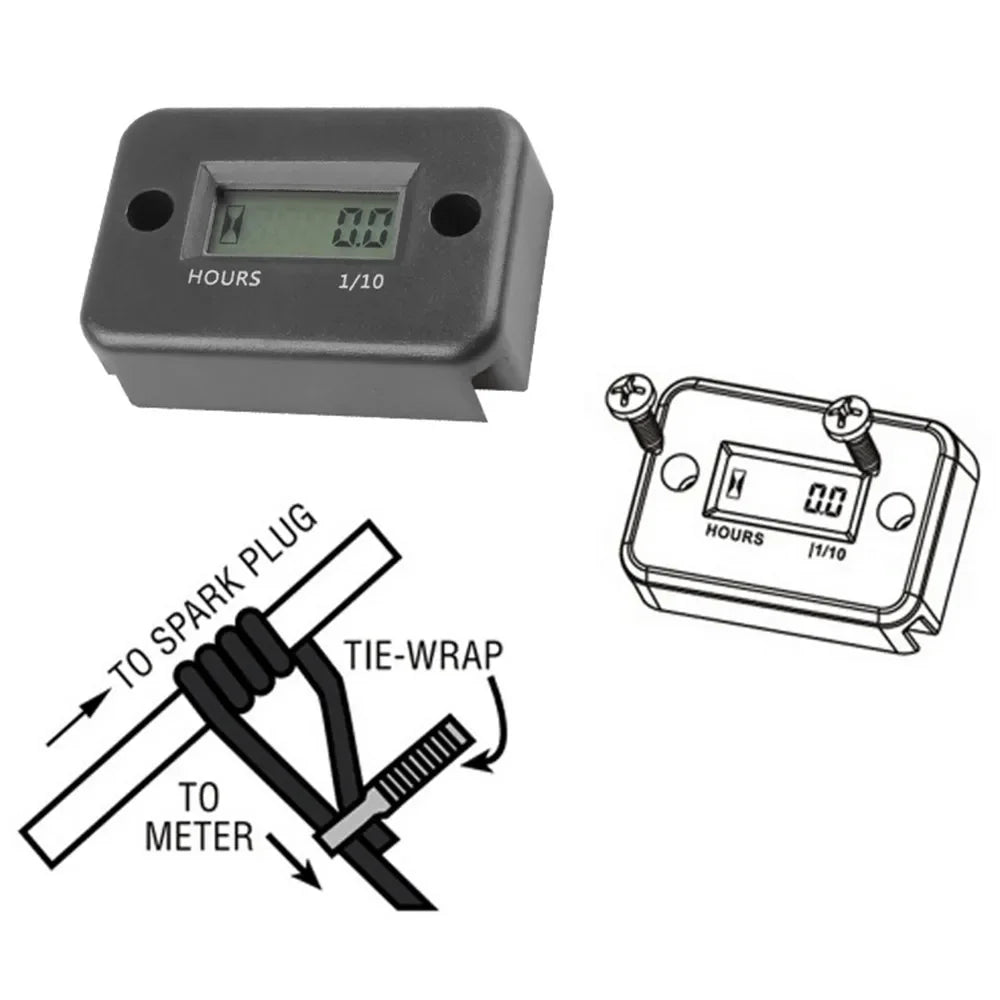

Installation Guide
- Wrap the end of the induction wire around the spark plug tube 5 times.
- Secure the wire with the included cable tie.
- Insert the other end of the induction wire into the groove on the back of the meter.
- Choose your mounting location and fix the meter with the provided screws or peel-and-stick backing.
Pair this hour meter with the right tools for your projects. Check out our Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm for general workshop needs, or keep your supplies organized with our Airtight Transparent PET Storage Bottle for small hardware and accessories.
Learn more: FuelEconomy.gov on vehicle maintenance
Frequently Asked Questions
Q: Does the digital hour meter need a battery to operate?
A: No battery is required. The digital hour meter is entirely inductive — it draws power from the electromagnetic field around your spark plug wire, so there are no batteries to replace and no external wiring connections needed.
Q: What types of engines is this digital LCD hour meter compatible with?
A: This hour meter is compatible with any gas-powered engine that uses a spark plug wire, including ATVs, motorcycles, snowmobiles, boats, generators, go-karts, lawnmowers, and more. It is not a tachometer and does not measure RPM.
Q: Is the hour meter waterproof for outdoor or marine use?
A: Yes. The ABS casing is 100% epoxy-encapsulated, making it resistant to water, shock, and heat up to 85 °C — ideal for use on boats, snowmobiles, and other outdoor equipment exposed to the elements.
Q: How do I read the display and know it is counting correctly?
A: The large LCD screen shows elapsed hours in 0.1-hour increments up to 9,999.9 hours. While the engine is running, a small hourglass icon flashes on and off to confirm the meter is actively counting time.
