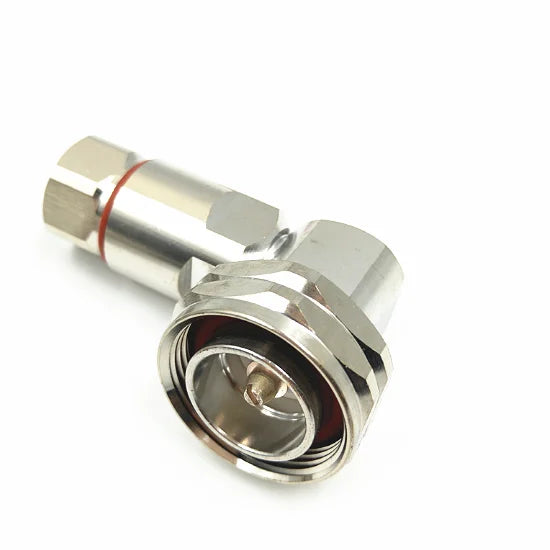

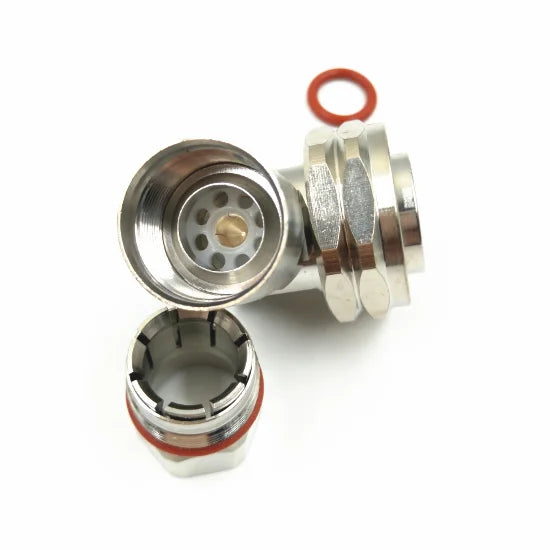

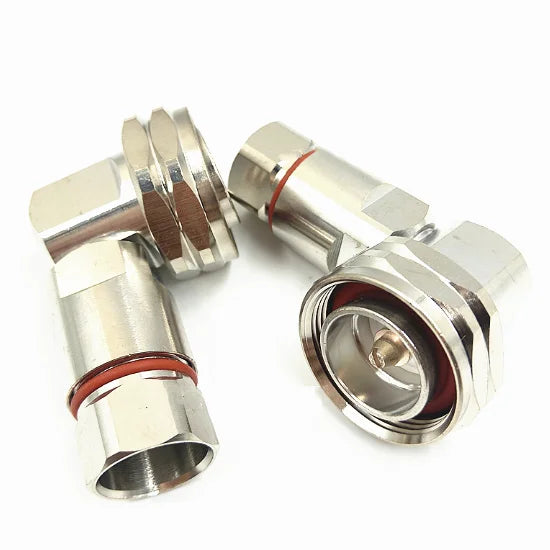

DIN 7/16 (L29) Male Right Angle Clamp Solder RF Connector – 1/2" Corrugated Cable (50-12)
Upgrade your RF transmission setup with this precision-engineered DIN 7/16 (L29) Male Right Angle RF Connector. Designed specifically for 1/2" corrugated coaxial cable (50-12), this clamp-solder connector delivers a secure, low-loss connection ideal for demanding RF and telecommunications applications. The right-angle design is perfect for installations where space is limited or where cable routing requires a 90° bend.
Made in Mainland China.
Key Features
- Connector Type: DIN 7/16 (L29) Male – industry-standard interface for high-power RF systems
- Angle: Right angle (90°) – ideal for compact or constrained installation spaces
- Attachment Method: Clamp and solder – provides a robust, reliable mechanical and electrical connection
- Compatible Cable: 1/2" corrugated coaxial cable (50-12 series)
- Impedance: 50 Ohm – standard RF impedance for minimal signal reflection
- High-quality construction: Built for long-term durability in professional RF infrastructure
- Quantity: 1 piece per order
Typical Applications
- Mobile base stations and cellular antenna systems
- Broadcast transmission equipment
- High-power RF distribution networks
- Telecommunications infrastructure and repeaters
- Two-way radio and land mobile radio (LMR) systems
Why Choose This Connector?
The DIN 7/16 interface is widely recognized in the RF industry for its superior intermodulation performance and high-power handling capability. The right-angle orientation paired with clamp-solder termination ensures a mechanically stable, gas-tight connection that maintains signal integrity even in vibration-prone environments.
Looking for other useful tools and storage accessories for your workspace? Check out our Airtight Transparent PET Storage Bottle for organizing small components, or browse our Vintage Baroque Embossed Metal Tray for a stylish desktop organizer.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What cable type is this DIN 7/16 RF connector compatible with?
A: This connector is specifically designed for 1/2" corrugated coaxial cable, also known as the 50-12 series. It is not intended for smooth-wall or other diameter cables — always verify your cable type before ordering to ensure a proper fit.
Q: What does "clamp solder" mean for this RF connector?
A: "Clamp solder" refers to the dual termination method used to attach the connector to the cable. The clamp provides a secure mechanical grip on the cable's outer conductor/jacket, while the solder connection ensures a reliable, low-resistance electrical bond to the inner conductor. This combination delivers superior stability and signal performance.
Q: Is this connector suitable for outdoor or weatherproof installations?
A: This connector is not rated as water resistant. For outdoor installations, it is recommended to use appropriate weatherproofing tape or protective boots to seal the connection against moisture ingress and environmental exposure.
Q: What is the impedance of this DIN 7/16 connector?
A: This connector is built to the standard 50 Ohm impedance specification, making it compatible with the vast majority of RF systems, including cellular, broadcast, and land mobile radio infrastructure.
