DSO183 DIY Digital Oscilloscope Kit – 500kHz, Type-C Powered

DSO183 Digital Oscilloscope DIY Soldering Kit with Built-In Signal Generator

Take your electronics learning to the next level with the DSO183 Digital Oscilloscope DIY Kit by Gaqqee. This compact, single-board oscilloscope packs professional-grade measurement capability into a pocket-sized module — perfect for hobbyists, students, makers, and electronics enthusiasts who want a hands-on, build-it-yourself experience. Powered via a convenient Type-C USB port at just 5V DC, it's ready to use anywhere.

Made in Mainland China.

Why You'll Love It

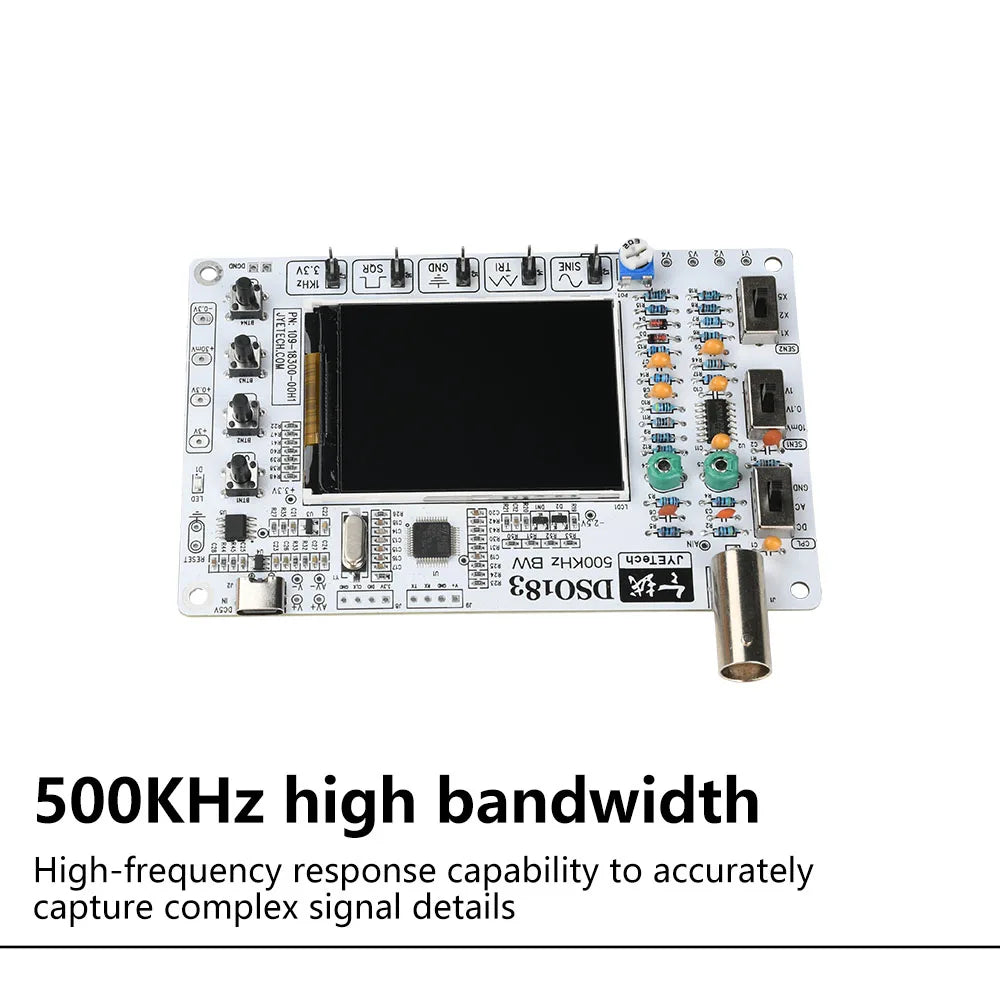

• 500 kHz Bandwidth — Captures high-frequency signals with accuracy, revealing fine details of complex waveforms.
• 12-Bit ADC Resolution — Delivers precise, high-fidelity signal measurements for reliable analysis.
• 1.5 Msps Real-Time Sampling Rate — Fast enough to faithfully reproduce rapid signal transitions and transient events.

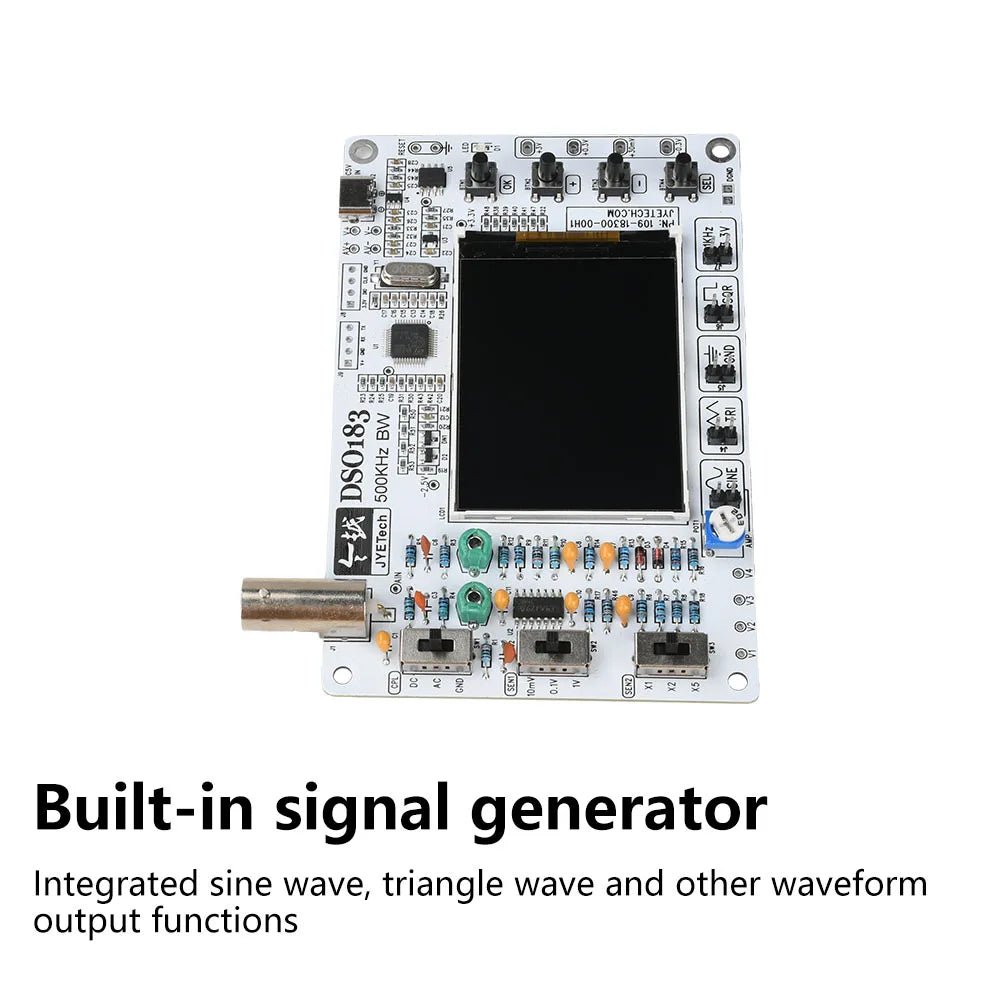

• Built-In Signal Generator — Outputs sine and triangle waves (0–500 kHz range) so you can test circuits without additional equipment.
• Waveform Storage & Recall — Save waveforms and instantly recall them for comparative analysis and repeated testing.
• Multiple Trigger Modes — Auto, Normal, and Single trigger modes give you full control over signal capture.
• Flexible Coupling — DC, AC, and GND coupling modes accommodate a wide range of signal types.
• Type-C Powered — Draws less than 100 mA from any standard USB power source; no proprietary charger needed.
• DIY Soldering Kit — Comes as components to solder yourself, making it an ideal learning project and a rewarding build.
• Ultra-Compact Form Factor — At just 118 × 76 × 12 mm, it fits comfortably on your workbench or in your toolkit.

Full Technical Specifications

What's in the Box

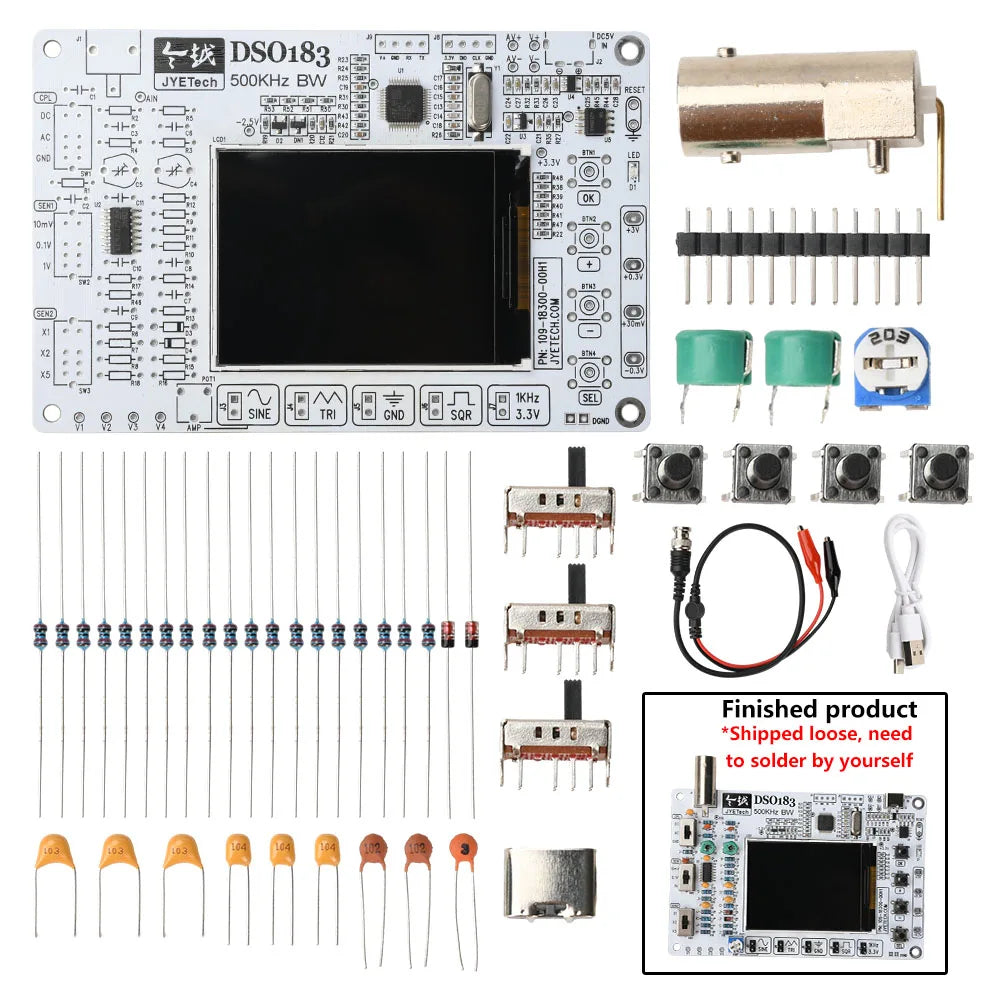

• DIY kit components × 1
