ES8311 NS4150B Audio Amplifier Microphone Module for ESP32

ES8311 + NS4150B Digital Audio Amplifier & Microphone Module for ESP32

Upgrade your audio projects with the Gaqqee ES8311 + NS4150B Digital Audio Amplifier Board — a compact, high-performance audio module designed for seamless integration with ESP32-C3, ESP32-S3, and other mainstream development boards. Featuring a dual-chip solution, built-in microphone support, and a 3W amplifier, this module delivers clear audio capture and powerful speaker output right out of the box.

Key Features

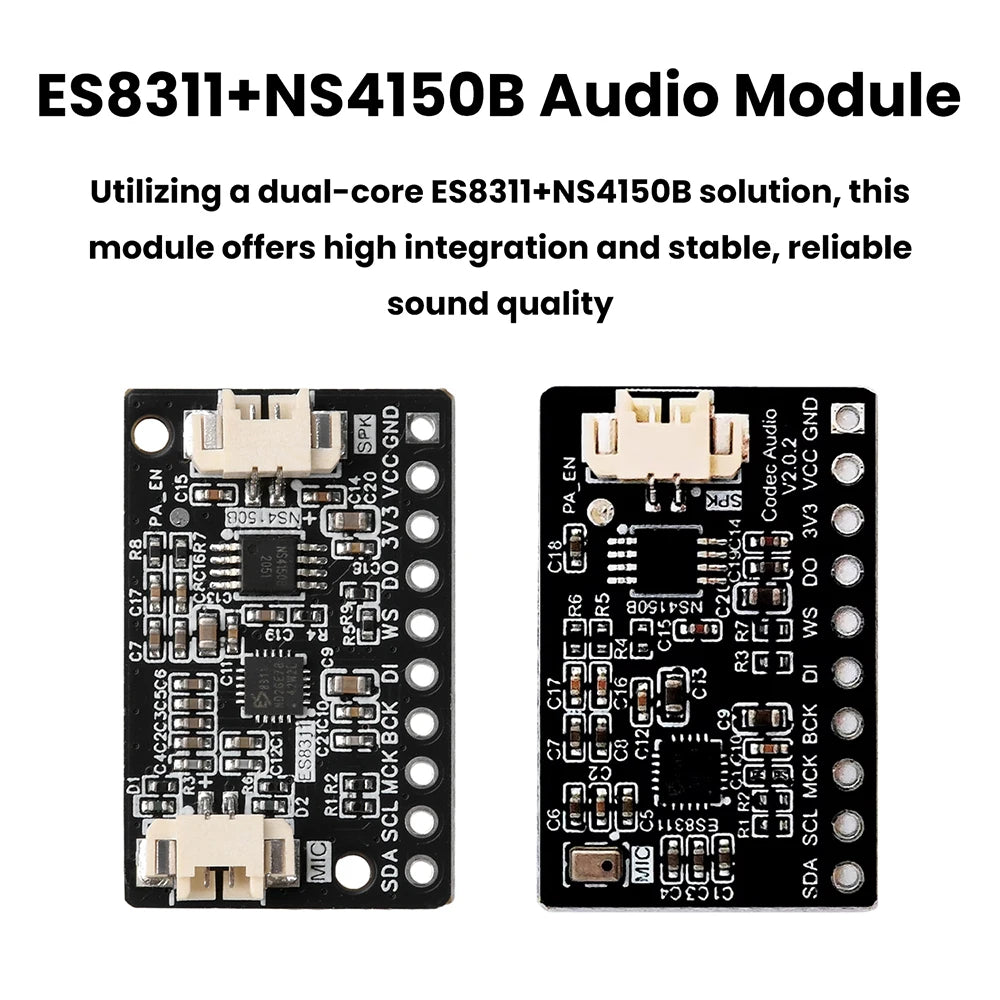

• Dual-Chip Architecture: Combines the ES8311 audio codec and NS4150B amplifier for high integration, stable performance, and reliable audio quality.

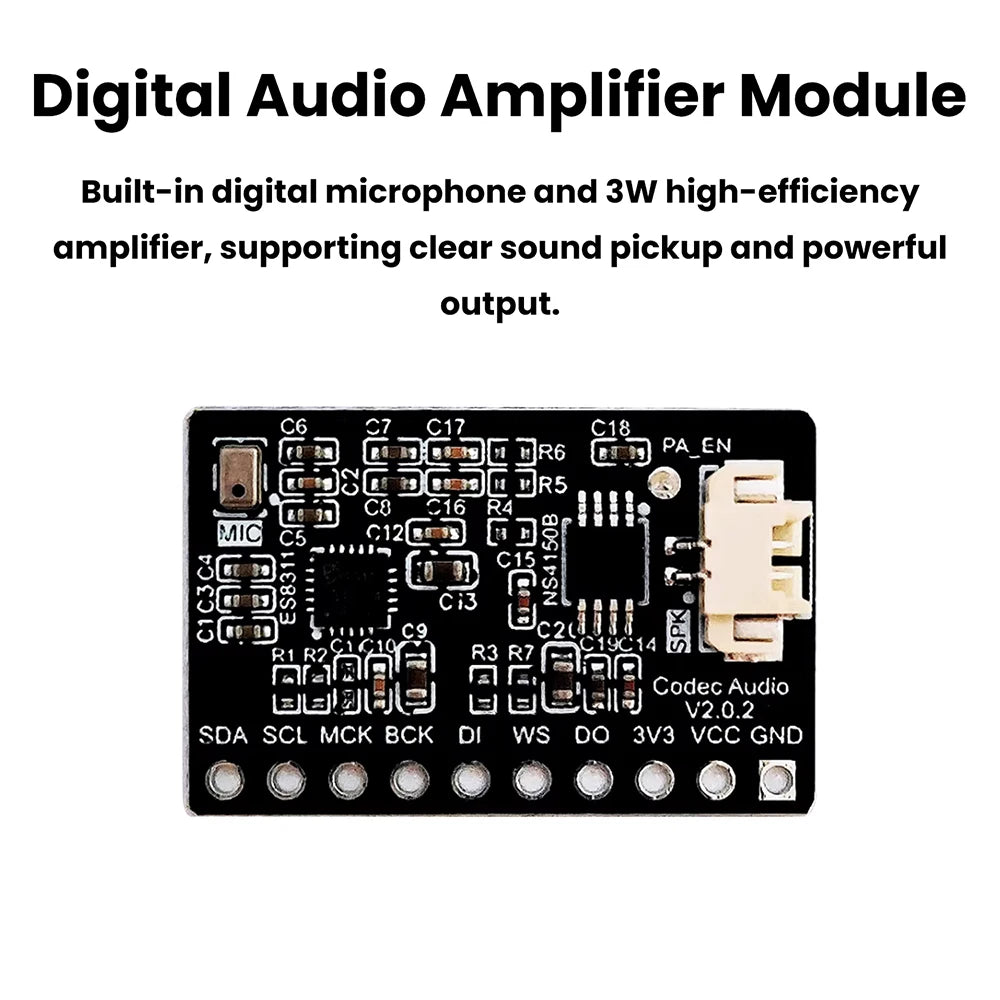

• Built-In Microphone Support: Onboard microphone input enables clear voice and audio capture for IoT, smart speaker, and voice-recognition applications.
• 3W High-Efficiency Amplifier: Delivers robust speaker output while maintaining low power consumption.

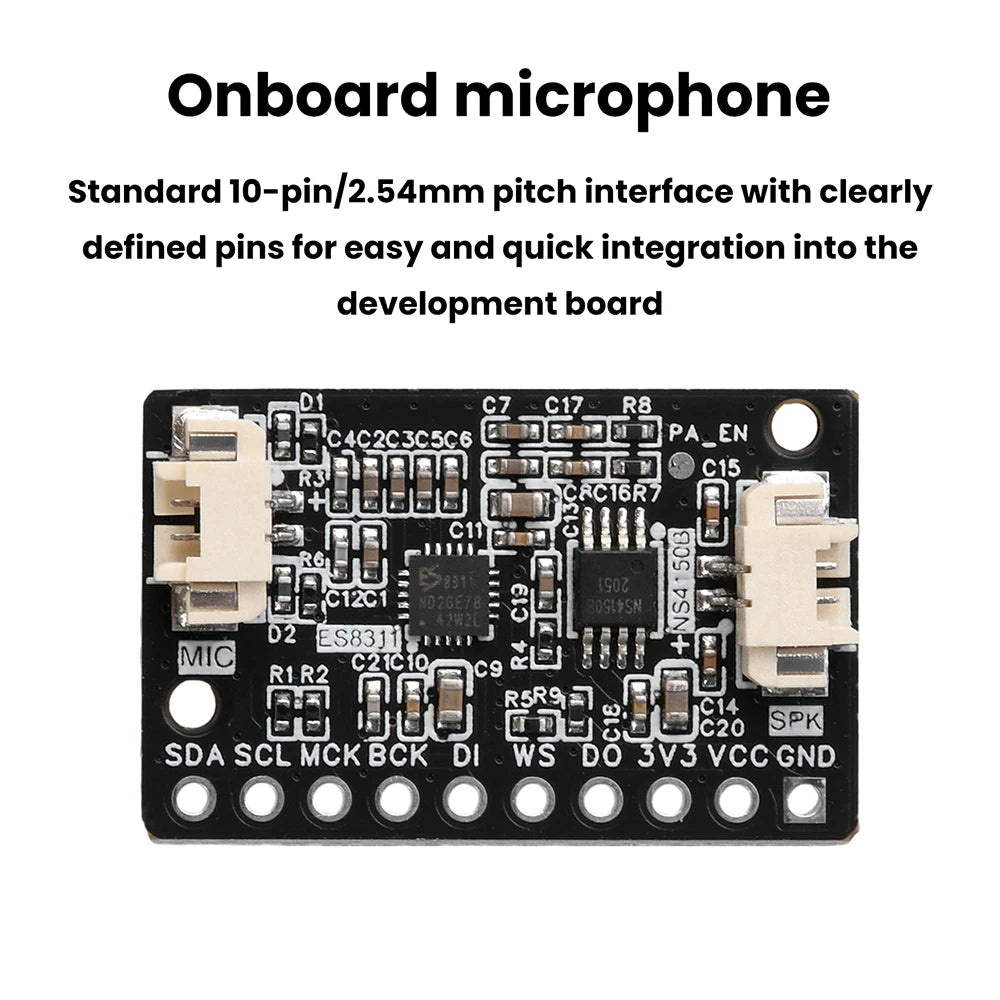

• Universal 10-Pin Connector: Standard 2.54mm pitch header with clearly labeled pins for fast, error-free integration with development boards.

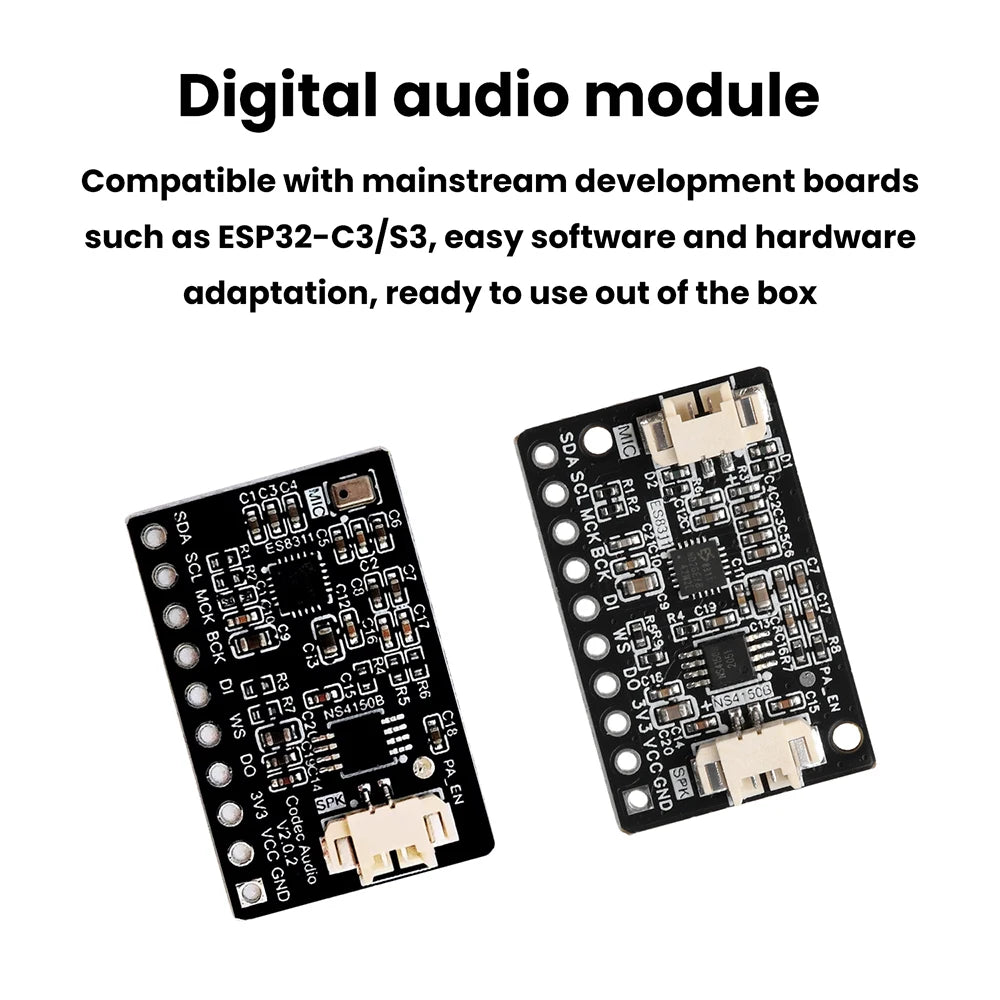

• ESP32 Compatible: Works seamlessly with ESP32-C3, ESP32-S3, and other popular microcontroller platforms — hardware and software ready from day one.

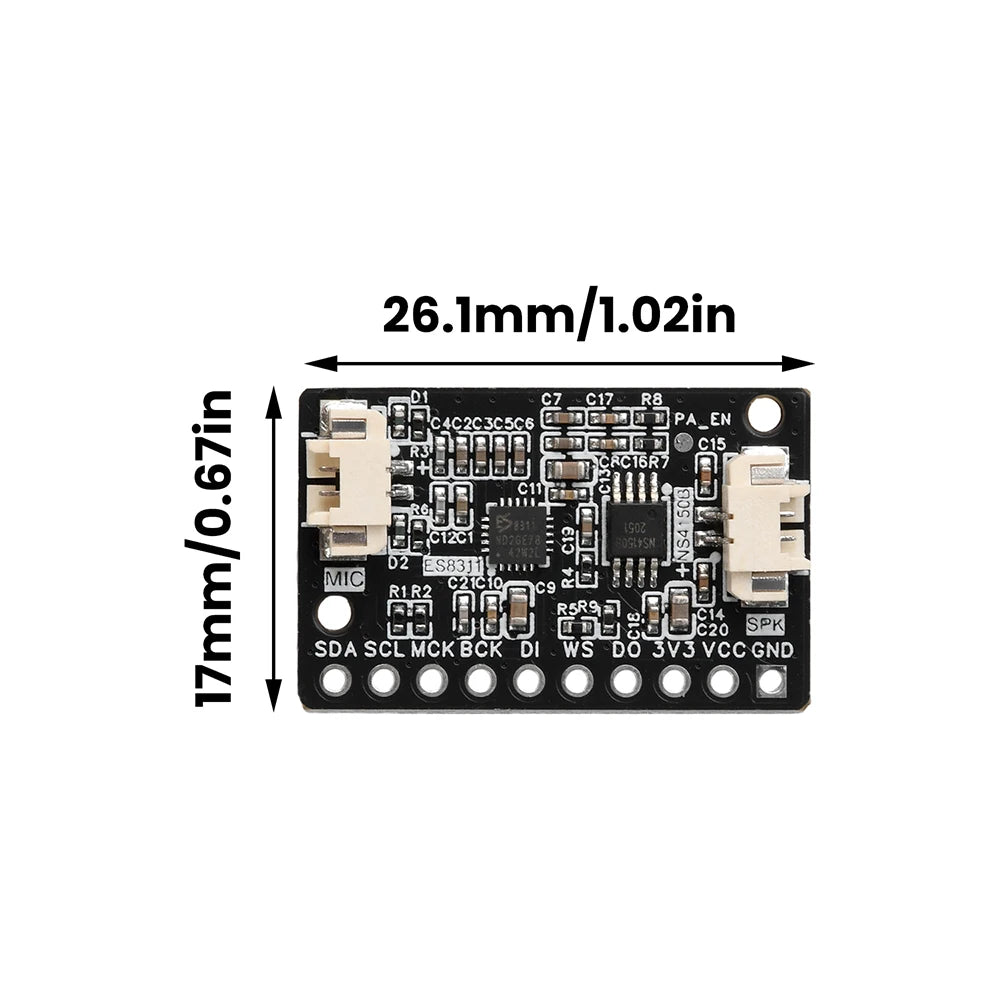

• Compact Form Factor: Measures just 26.1mm × 17mm (PCB thickness 1.2mm), saving valuable space in your builds.
• Flexible Communication Interfaces: Supports I²C (SDA, SCL) and I²S (MCK, BCK, DI, WS, DO) protocols for versatile connectivity.

Specifications

What's in the Box

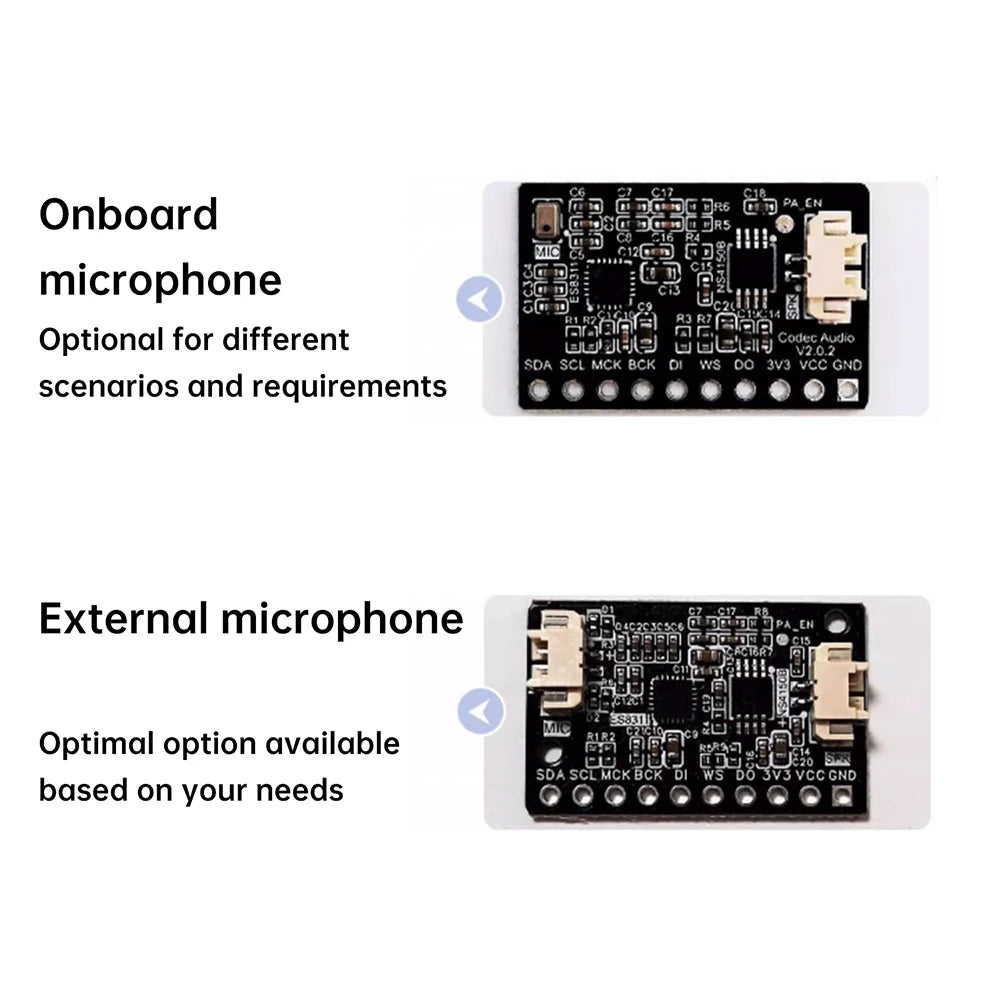

Kit 1 (Onboard Microphone):

• 1× Onboard Microphone Audio Module
• 1× Header

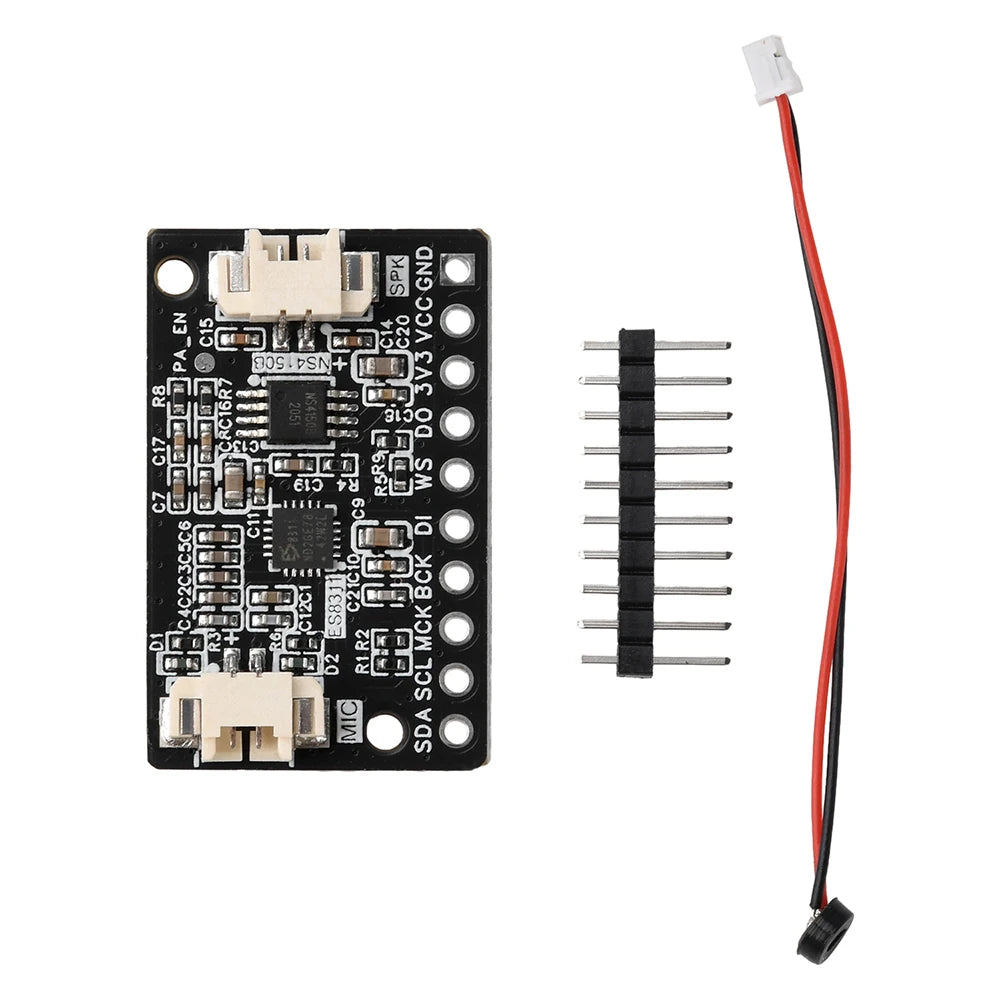

Kit 2 (External Microphone):

• 1× External Microphone Audio Module
• 1× Header
• 1× External Microphone

Perfect For

• IoT smart speaker and voice assistant projects
• ESP32-based audio streaming and playback
• Voice recognition and audio recording applications
• Maker, prototyping, and embedded audio development

You May Also Like

• Airtight Transparent PET Storage Bottle | Beads & Crafts — keep your components organized
• Ceramic Mini Sealed Storage Jar – Portable Travel Container — handy for small parts storage
• Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer — organize your workspace in style

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Is the ES8311 NS4150B audio module compatible with ESP32-S3 development boards?

A: Yes! The module is fully compatible with ESP32-S3, ESP32-C3, and other mainstream development boards. The standard 10-pin, 2.54mm pitch connector and support for I²C and I²S interfaces make integration straightforward with most popular microcontroller platforms.

Q: What is the difference between Kit 1 and Kit 2?

A: Kit 1 includes an onboard microphone audio module and a header, making it ideal for compact builds where the microphone is integrated directly on the PCB. Kit 2 includes an external microphone audio module, a header, and a separate microphone, allowing for more flexible microphone placement in your project enclosure.

Q: What power supply does this audio amplifier module require?

A: The module operates on 3.3V logic with VCC (5V recommended) and GND. This makes it easy to power directly from most ESP32 development boards without additional regulators.

Q: Can this module be used for both audio playback and audio recording?

A: Yes. The ES8311 audio codec supports both audio input (via the built-in or external microphone) and audio output (via the NS4150B 3W amplifier to a connected speaker), making it suitable for full-duplex audio applications.
