Gaqqee ESP32-C5-N4 Dual-Band Wi-Fi 6 & Bluetooth 5 Development Board
Take your IoT and embedded projects to the next level with the Gaqqee ESP32-C5-N4 Development Board — a compact, high-performance module featuring dual-band 2.4 GHz + 5 GHz Wi-Fi 6 (802.11ax) and Bluetooth 5.0, powered by a blazing-fast 240 MHz RISC-V single-core processor. Whether you're building smart home systems, industrial IoT nodes, or consumer electronics prototypes, this board delivers the connectivity, speed, and flexibility you need.
Key Features
- High-Performance Processor: 32-bit RISC-V single-core CPU clocked up to 240 MHz for stable, responsive computing.
- Dual-Band Wi-Fi 6: Supports 2.4 GHz + 5 GHz 802.11ax for faster throughput and reduced network congestion.
- Bluetooth 5.0: Long-range, low-energy Bluetooth for seamless wireless device communication.
- Multi-Protocol IoT Support: Compatible with Thread 1.4 and Zigbee 3.0 for versatile smart-ecosystem integration.

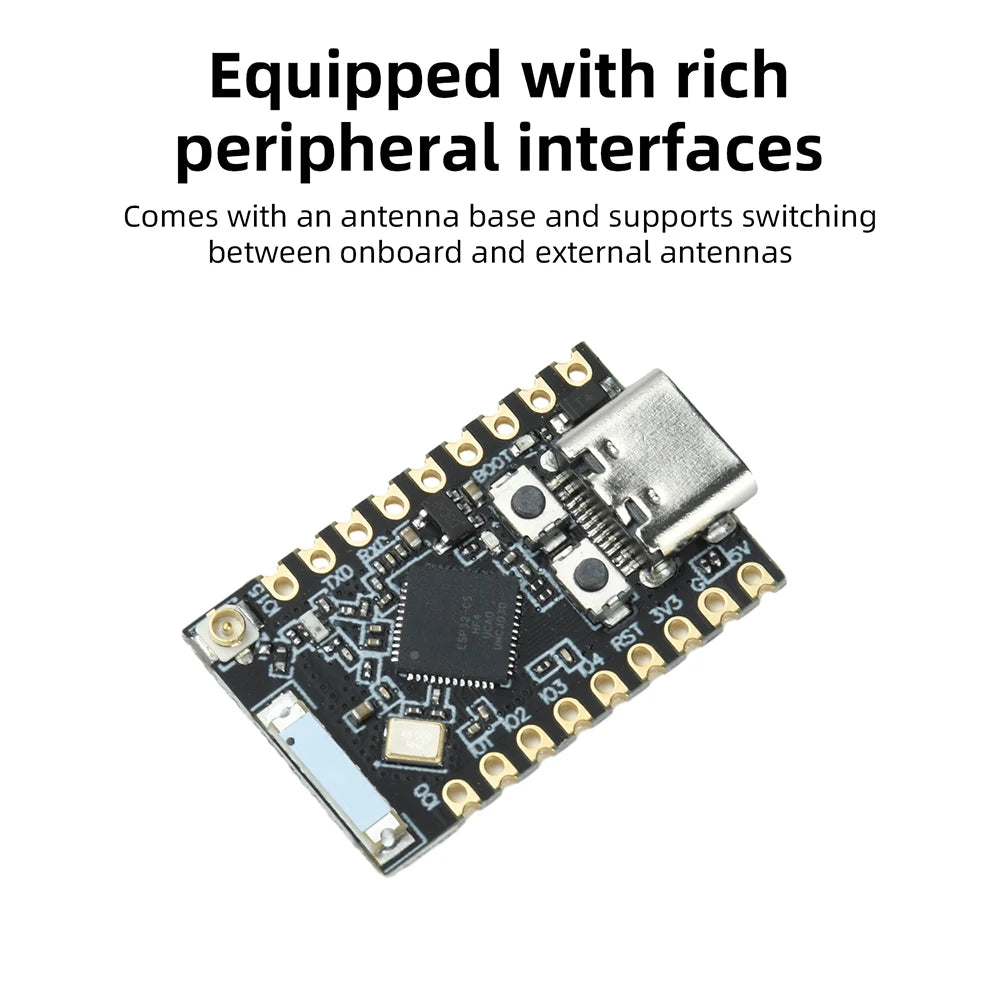

- Flexible Antenna Options: Features an onboard antenna plus an external antenna socket — switch between them based on your deployment needs.
- USB Type-C Port: Modern, reversible connector for easy programming and serial debugging.
- Rich Peripheral Interfaces: Supports UART, SPI, I2C, ADC, DAC, PWM, and USB Serial/Debug interface.
- Wide Operating Temperature: Rated from -40°C to +85°C, making it suitable for demanding industrial environments.
- Energy-Efficient Design: Low-power consumption with a standard 3.3V supply voltage (DC 3.0V–3.6V).
Technical Specifications
| Processor | 32-bit RISC-V single-core, up to 240 MHz |
| RAM | 384 KB (HP) + 16 KB (LP) |
| ROM | 320 KB |
| Built-in Flash | 4 MB (default) |
| Wi-Fi | Dual-band 2.4 GHz + 5 GHz, Wi-Fi 6 (802.11ax) |
| Bluetooth | Bluetooth 5.0 (BLE) |
| Protocols | Thread 1.4, Zigbee 3.0 |
| Peripherals | UART, SPI, I2C, ADC, DAC, PWM, USB Serial/Debug |
| Operating Voltage | DC 3.0V – 3.6V (recommended 3.3V) |
| Operating Temperature | -40°C to +85°C |
| Package | TQFP Module |
| Connector | USB Type-C |
Typical Application Scenarios
- Smart Home: Smart plugs, multi-protocol gateways, sensor networks, and home automation hubs.
- Industrial IoT: Wireless sensor nodes, data acquisition terminals, and automation control devices.
- Consumer Electronics: Wearable devices, smart appliances, and wireless audio accessories.

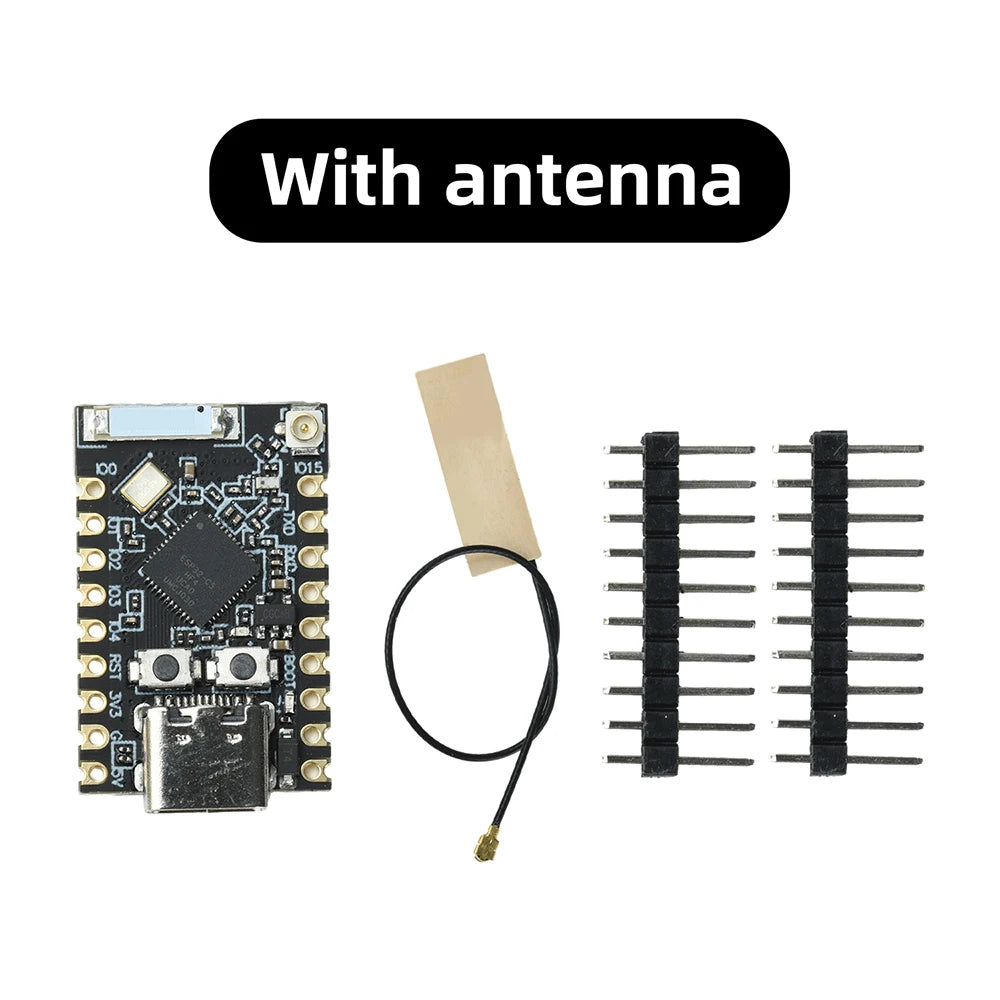

What's in the Box
- 1× ESP32-C5-N4 Development Board
- 2× Pin Header Assemblies
- 1× Antenna (optional — choose a version with or without antenna at checkout)
Made in Mainland China.
Explore More From Our Store
Looking for storage solutions for your components? Check out our Airtight Transparent PET Storage Bottle — great for organizing small electronic parts and beads. For tidy project setups, our Vintage Baroque Embossed Metal Tray makes a stylish organizer for your workspace.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What makes the ESP32-C5-N4 different from other ESP32 development boards?
A: The ESP32-C5-N4 stands out with its dual-band Wi-Fi 6 (2.4 GHz + 5 GHz, 802.11ax) support — a first for the ESP32 series — combined with Bluetooth 5.0, Thread 1.4, and Zigbee 3.0 compatibility. It also features a 240 MHz RISC-V processor, 4 MB built-in Flash, and a modern USB Type-C interface, making it ideal for next-generation IoT development.
Q: Can I use an external antenna with this development board?
A: Yes! The ESP32-C5-N4 board includes both an onboard antenna and an external antenna socket (U.FL connector). You can choose between the two based on your project's range and placement requirements. An external antenna is included with select variants of this board.
Q: Is this board suitable for industrial or outdoor IoT applications?
A: Absolutely. The ESP32-C5-N4 is rated for an operating temperature range of -40°C to +85°C, making it well-suited for harsh industrial or outdoor environments where temperature extremes are a concern.
Q: What programming interfaces and peripherals are supported?
A: The board supports a wide range of interfaces including UART, SPI, I2C, ADC, DAC, PWM, and a USB Serial/Debug port via the Type-C connector. It is compatible with standard ESP-IDF and Arduino IDE toolchains for easy firmware development.
