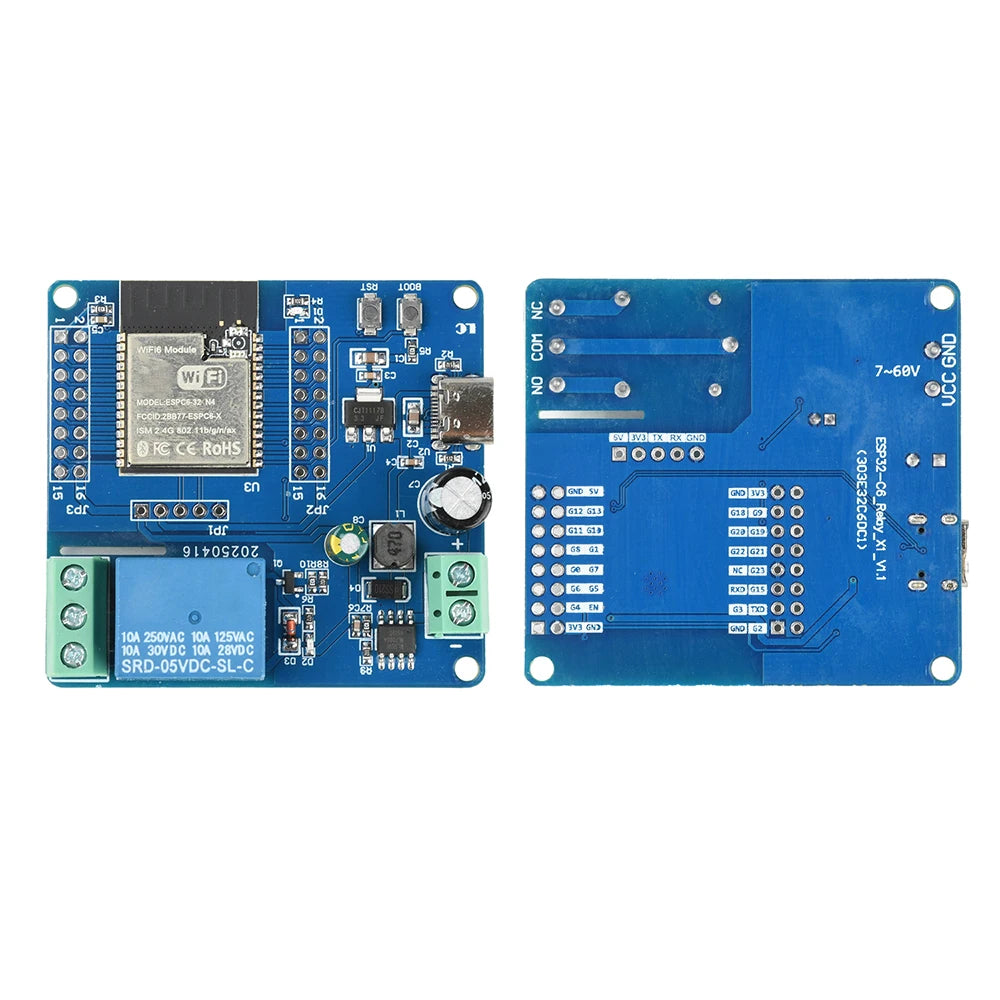

ESP32-C6 Wi-Fi 6 & Bluetooth 5.3 Single-Channel Relay Development Board
Take your IoT projects to the next level with the Gaqqee ESP32-C6 Single-Channel Relay Development Board. Built on Espressif's cutting-edge ESP32-C6 module — the first SoC to support Wi-Fi 6 — this compact, feature-rich board gives makers, engineers, and hobbyists everything they need to prototype and deploy smart automation solutions fast.
Key Features

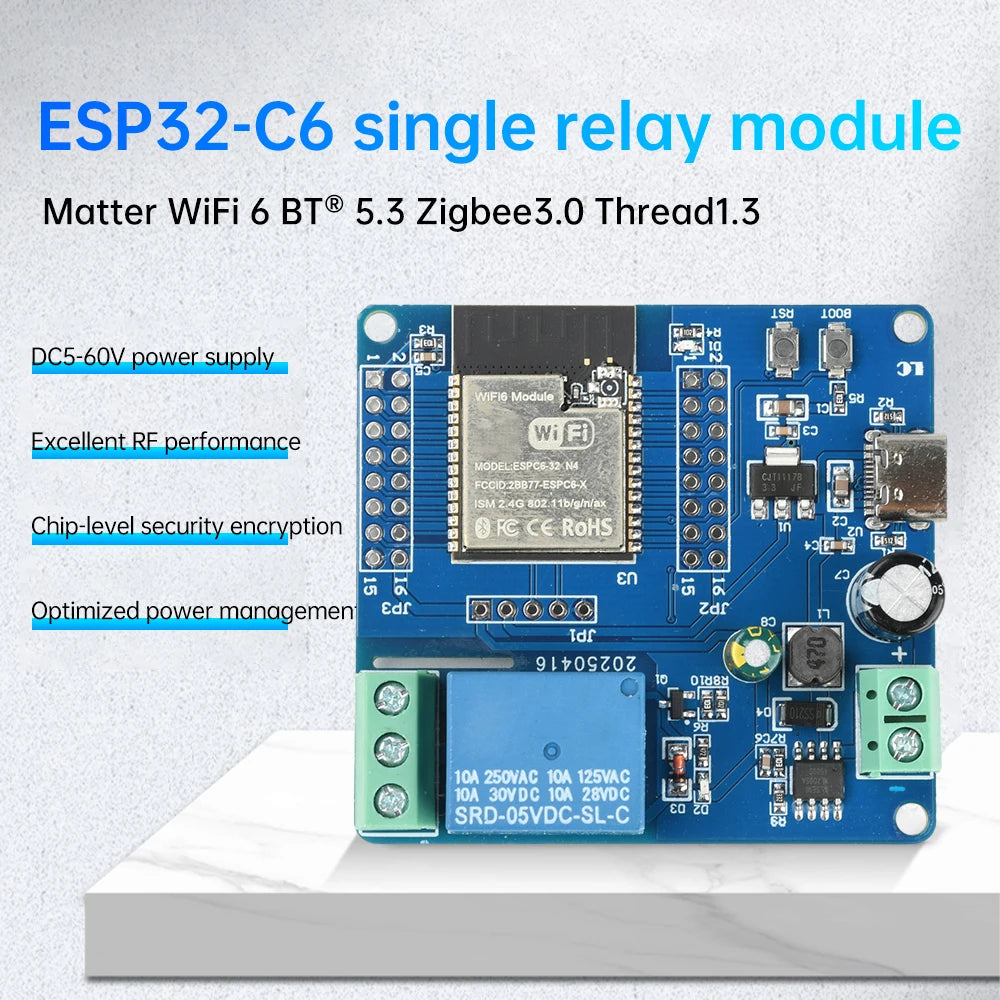

- Wi-Fi 6 & Multi-Protocol Wireless: Supports 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5.3 (LE), Zigbee, and Thread (802.15.4) — fully Matter-compatible for seamless smart home integration.
- Wide-Range Power Input: Flexible power options — DC 7–60V or Type-C 5V — adapt to a broad range of application environments and power supplies.
- Dual-Core RISC-V Processor: High-performance 32-bit RISC-V core at up to 160MHz paired with a low-power 32-bit RISC-V core at up to 20MHz for efficient task management.
- Generous Memory: 512KB SRAM, 320KB ROM, and 4MB Flash ensure ample space for complex firmware and IoT applications.
- 30 Programmable GPIOs: Full support for SPI, UART, I2C, I2S, RMT, TWAI, PWM, Motor Control PWM, and SDIO — maximum expandability for your peripherals.
- Integrated Sensors: On-board 12-bit ADC and temperature sensor simplify environmental monitoring and control workflows.
- On-Board Relay: 5V relay capable of switching loads up to AC 250V / DC 30V — perfect for controlling real-world devices.

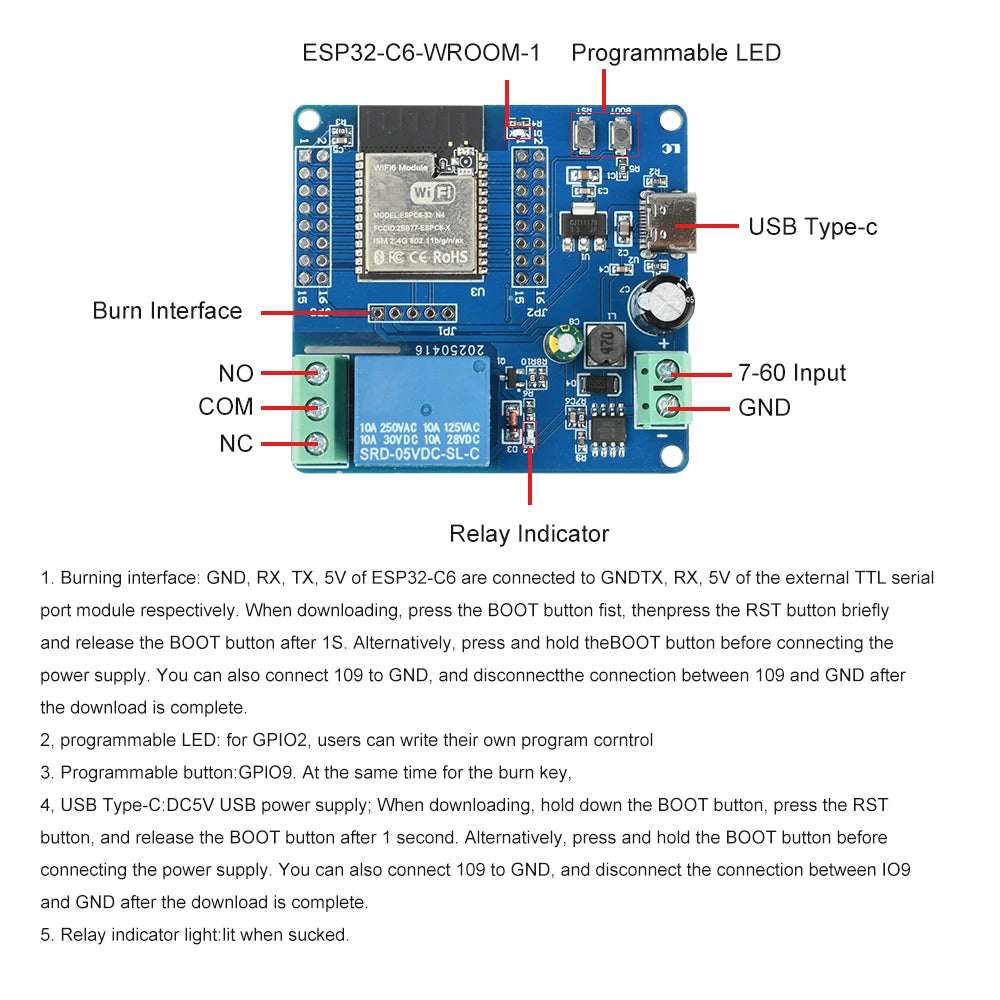

- Rapid Prototyping Ready: Pre-installed programmable buttons and LEDs let you start testing immediately with minimal setup.
- Type-C Interface: Modern, reversible USB Type-C connector for easy programming and power delivery.
- 3mm Mounting Holes: Secure panel or enclosure mounting right out of the box.
Technical Specifications
| Module Model | ESP32-C6 |
| Power Supply | DC 7–60V or Type-C 5V (select one) |
| Relay Output | 5V relay; controls loads up to AC 250V / DC 30V |
| HP Core Speed | Up to 160MHz (32-bit RISC-V) |
| LP Core Speed | Up to 20MHz (32-bit RISC-V) |
| Memory | 512KB SRAM | 320KB ROM | 4MB Flash |
| GPIO Pins | 30 programmable (QFN40 package) |
| Wireless | Wi-Fi 6, Bluetooth 5.3 LE, Zigbee, Thread |
| ADC | 12-bit |

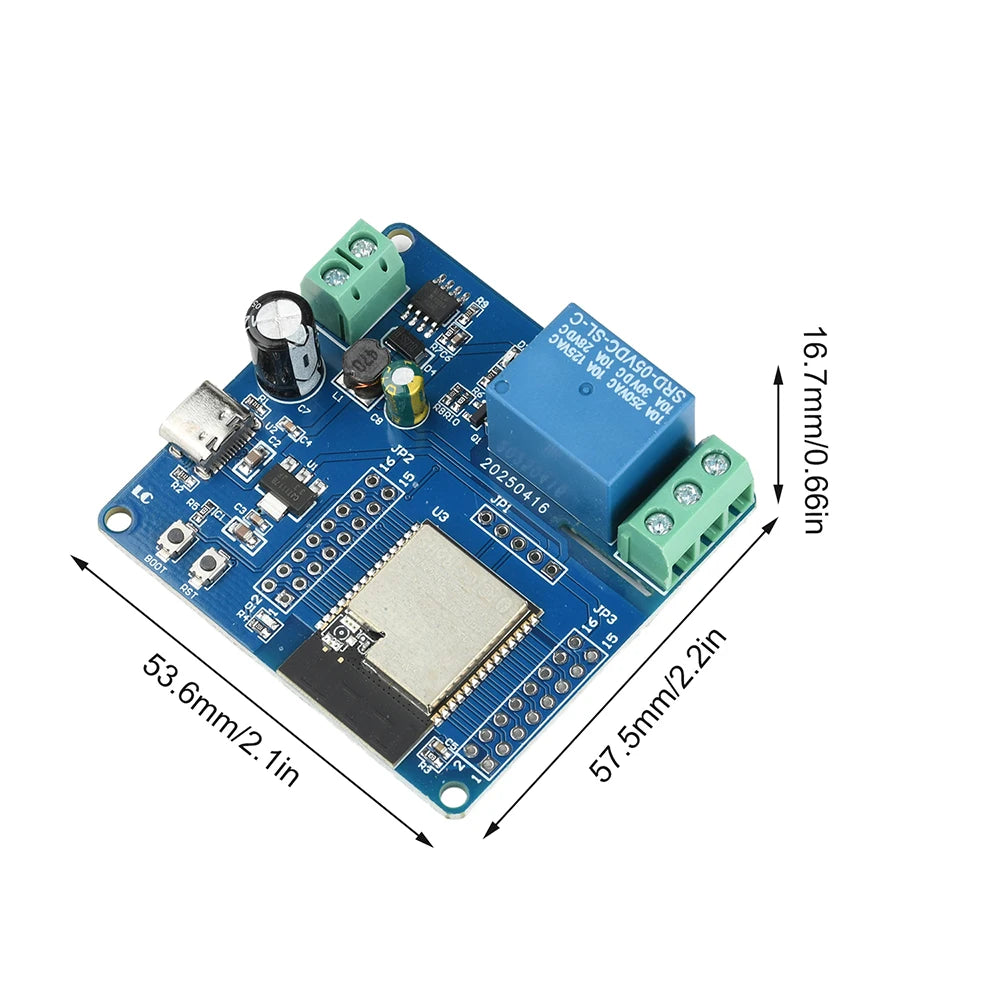

| Dimensions | 57.5mm × 53.7mm |
| Mounting Hole Diameter | 3mm |
| Package | TQFP |

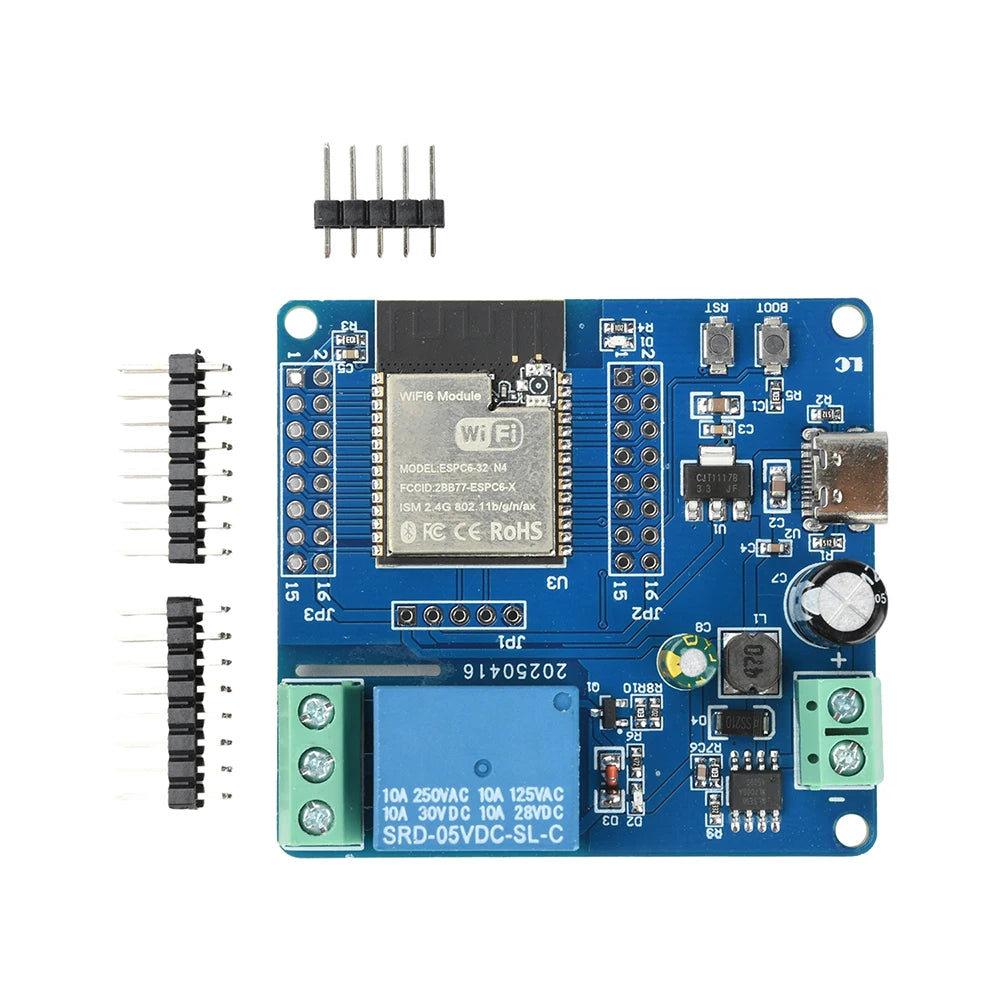

What's in the Box
- ESP32-C6 Single-Channel Relay Module ×1
- 8-Pin Dual-Row Header ×2
- 5-Pin Single-Row Header ×1
Made in Mainland China.
Perfect Pairings for Your Workshop
Keep your components neat and organised with the Airtight Transparent PET Storage Bottle — ideal for storing jumper wires, resistors, and small electronic components. For secure long-term storage of modules and project boards, check out our Cute Rabbit Round Tin Storage Box.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What power supply options does the ESP32-C6 relay board support?
A: The board supports two power input options — DC 7–60V via the onboard power terminals, or 5V via the Type-C USB interface. Only one input should be used at a time. The wide DC voltage range makes it ideal for industrial and automotive-style applications, while Type-C offers convenient desktop or USB-powered development.
Q: Is the ESP32-C6 relay board compatible with Matter smart home ecosystems?
A: Yes! The ESP32-C6 natively supports the Matter protocol thanks to its integrated Wi-Fi 6, Bluetooth 5.3, Zigbee, and Thread (802.15.4) wireless stack. This makes it one of the best choices for building Matter-compliant smart home devices that work across Apple Home, Google Home, Amazon Alexa, and other Matter-enabled platforms.
Q: What loads can the on-board relay control?
A: The on-board 5V relay is rated to switch loads up to AC 250V or DC 30V, making it suitable for controlling mains lighting, low-voltage DC motors, solenoid valves, and a wide range of household or industrial devices. Always ensure your load's current and voltage ratings fall within the relay's specifications for safe operation.

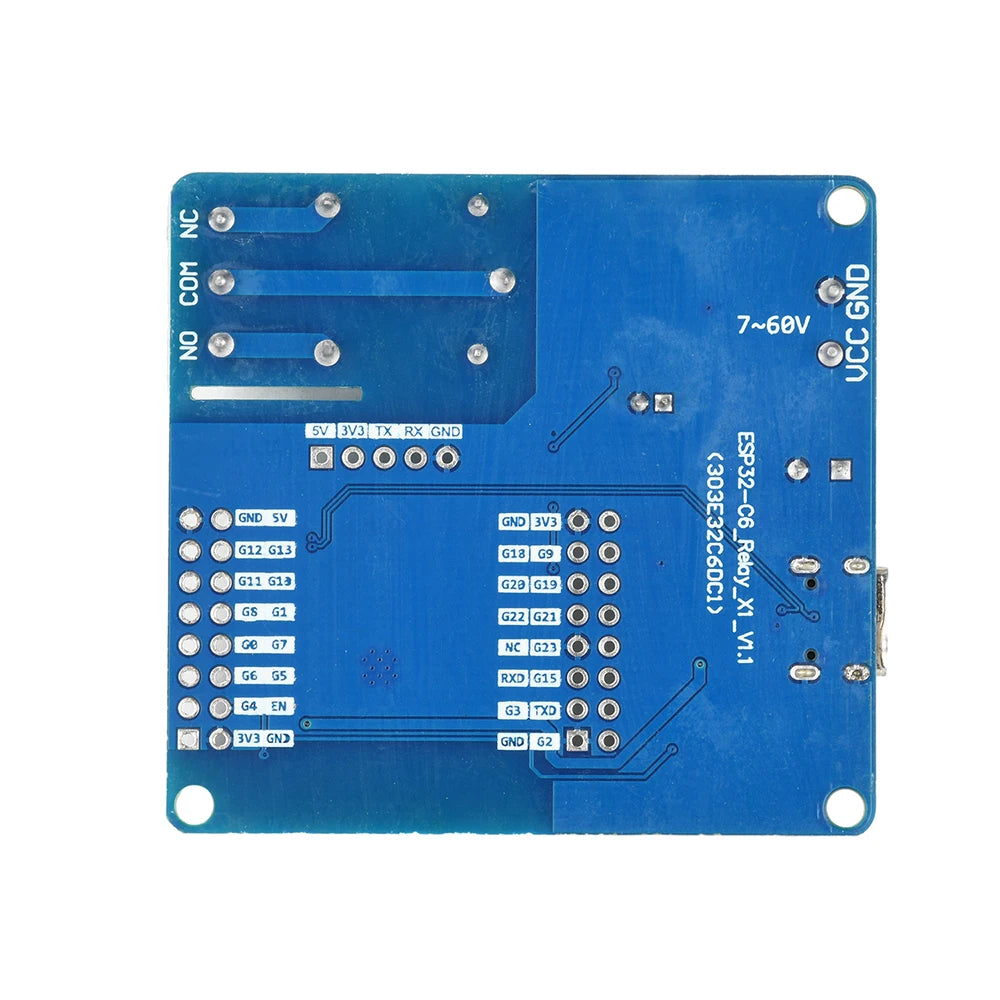

Q: How many GPIO pins are available and what protocols do they support?
A: The ESP32-C6 exposes 30 programmable GPIO pins (QFN40 package). These pins support a wide range of protocols including SPI, UART, I2C, I2S, RMT, TWAI, PWM, Motor Control PWM, and SDIO — giving you extensive flexibility to connect sensors, displays, actuators, and communication modules in your IoT projects.
