ESP32-S3 1.69-Inch LCD Development Board
Meet the ultimate compact powerhouse for your next embedded project. The ESP32-S3 1.69-inch LCD Development Board combines a high-performance dual-core processor, vibrant colour display, onboard sensors, and full wireless connectivity into a tiny 37.12 × 30mm footprint. Whether you're prototyping IoT devices, wearables, or custom smart gadgets, this board gives you everything you need to move fast.
Made in Mainland China.
Key Features
- Dual-Core ESP32-S3R8 Processor: Xtensa 32-bit LX7 dual-core running at up to 240 MHz for powerful, responsive performance.
- 2.4 GHz Wi-Fi & Bluetooth 5 (LE): Supports 802.11 b/g/n Wi-Fi and Bluetooth 5 Low Energy with an integrated onboard antenna — no external components needed.
- Generous Memory: 512 KB SRAM + 384 KB ROM onboard, plus 8 MB PSRAM and 16 MB external Flash for demanding applications.

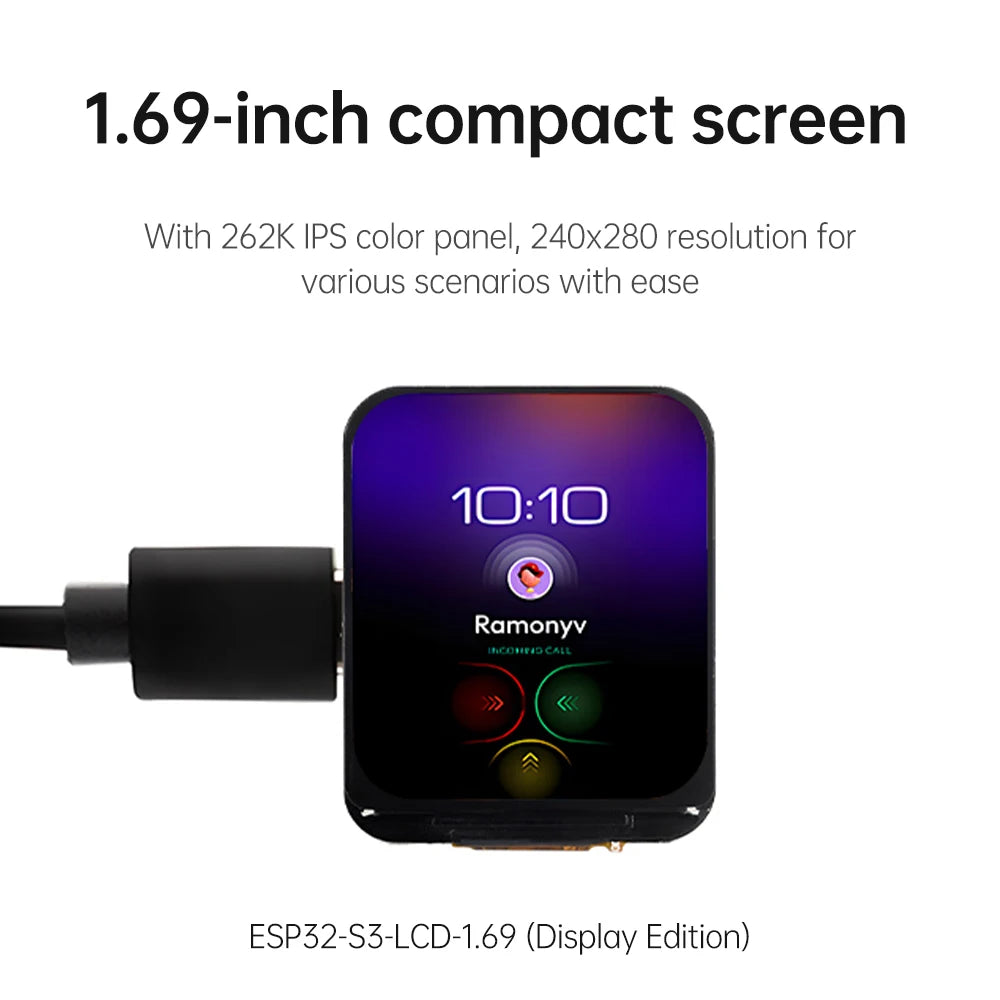

- 1.69-Inch Colour LCD: 240×280 resolution, 262K colours, driven by the ST7789V2 chip over SPI — crisp, vivid image rendering in a small package.
- Six-Axis IMU (QMI8658): Integrated 3-axis accelerometer and 3-axis gyroscope for motion detection, gesture sensing, and step counting.
- Real-Time Clock (PCF85063): Onboard RTC with a reserved SH1.0 battery slot for time-keeping even when the main power is off.
- Type-C USB Port: Modern reversible connector for programming and power — no more fumbling with orientation.
- LiPo Battery Support: 3.7V MX1.25 lithium battery charge/discharge interface with onboard charging chip.
- Flexible GPIO Breakout: 5 GPIO, I2C, and UART pins exposed for peripherals, sensors, and debugging.
- Low-Power Modes: Separate module power supply configuration supports multiple low-power scenarios to extend battery life.
- Onboard Buttons: RST, BOOT, and a customisable side button for quick interaction during development.
Technical Specifications
| MCU | ESP32-S3R8 Xtensa LX7 Dual-Core @ 240 MHz |
| Memory | 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB Flash |
| Wireless | 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE) |
| Display | 1.69" TFT LCD, 240×280, 262K colours, ST7789V2 driver |
| IMU | QMI8658 (3-axis accelerometer + 3-axis gyroscope) |
| RTC | PCF85063 |
| Interface | Type-C USB, I2C, UART, SPI |
| Battery | 3.7V MX1.25 LiPo interface |
| Dimensions | 37.12 mm × 30 mm |
| Origin | Mainland China |
