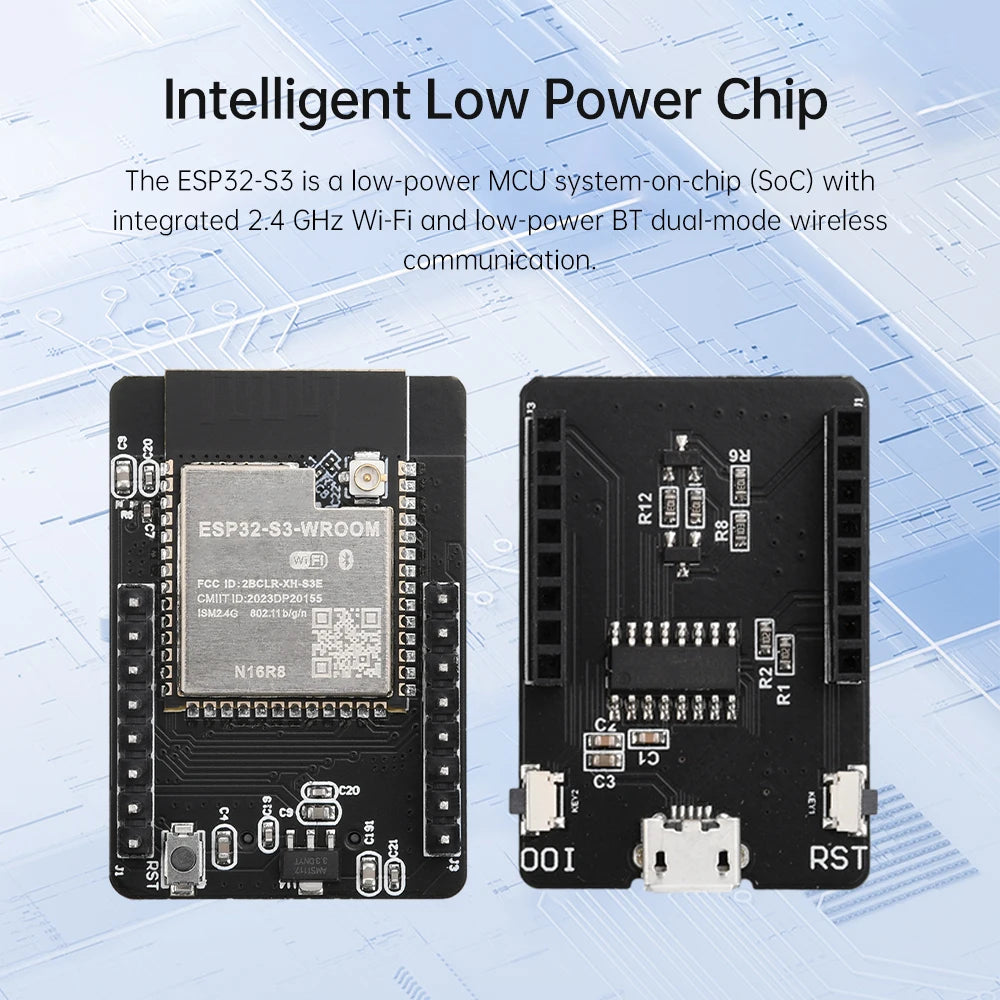

ESP32-S3-CAM WiFi & Bluetooth Development Board – ESP32-S3-WROOM-1 N16R8
Unlock powerful dual-mode wireless capability with the ESP32-S3-CAM Development Board, built around the ESP32-S3-WROOM-1 N16R8 module by Gaqqee. Featuring a high-performance Xtensa® 32-bit LX7 dual-core processor running at up to 240 MHz, this compact module is perfect for makers, engineers, and IoT developers building the next generation of connected devices — from smart home systems and service robots to industrial automation and audio equipment.
Made in Mainland China.
Key Features
- Dual-Mode Wireless: 2.4 GHz Wi-Fi (IEEE 802.11b/g/n) and Bluetooth 5 / BLE with mesh support — both sharing a single antenna for streamlined design.

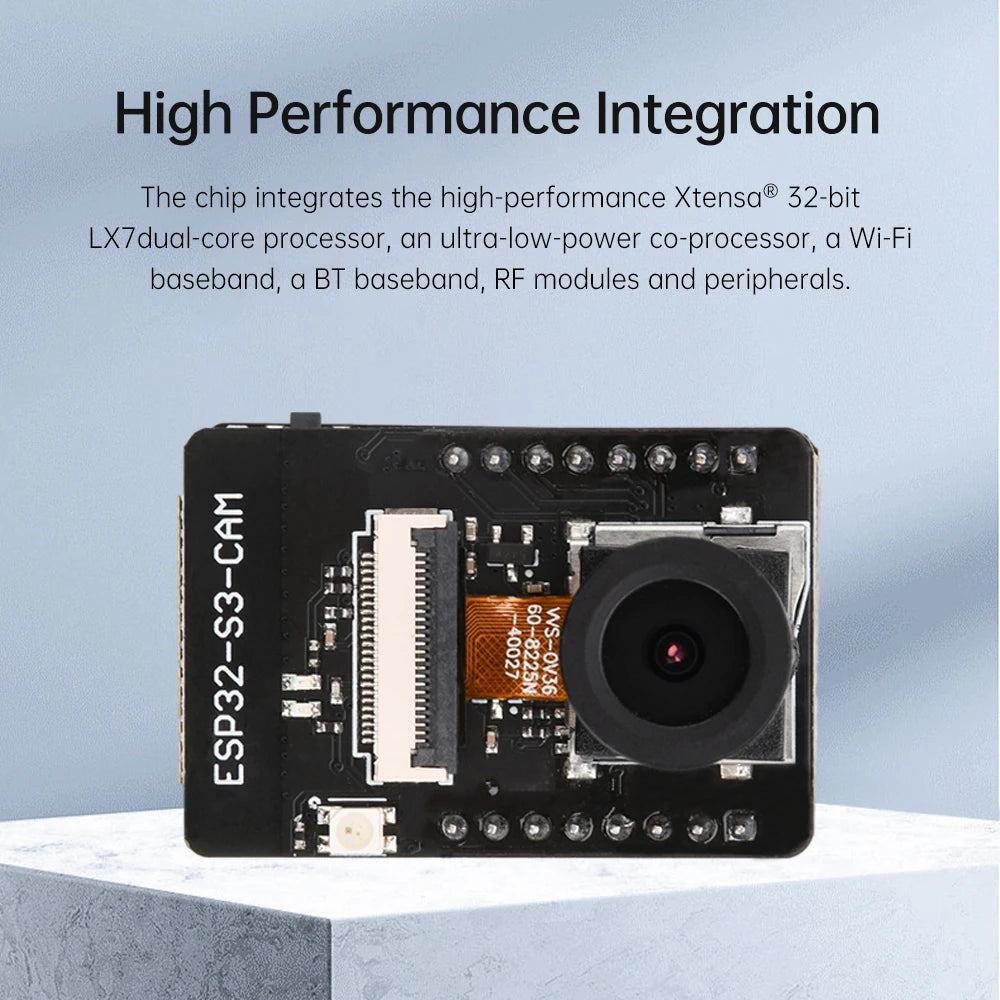

- High-Performance CPU: Xtensa® 32-bit LX7 dual-core processor up to 240 MHz with vector instructions for neural network acceleration and signal processing.
- Generous Memory: 512 KB SRAM, 384 KB ROM, 16 KB RTC SRAM, and 8 MB PSRAM, with support for multiple SPI/Octal/QPI/OPI external flash configurations.
- 45 Programmable GPIOs: Supporting SPI, I2S, I2C, PWM, RMT, ADC, UART, SD/MMC, and TWAIâ„¢ peripheral interfaces.
- Low Power Consumption: Multiple low-power operating modes make it ideal for battery-powered and energy-sensitive deployments.

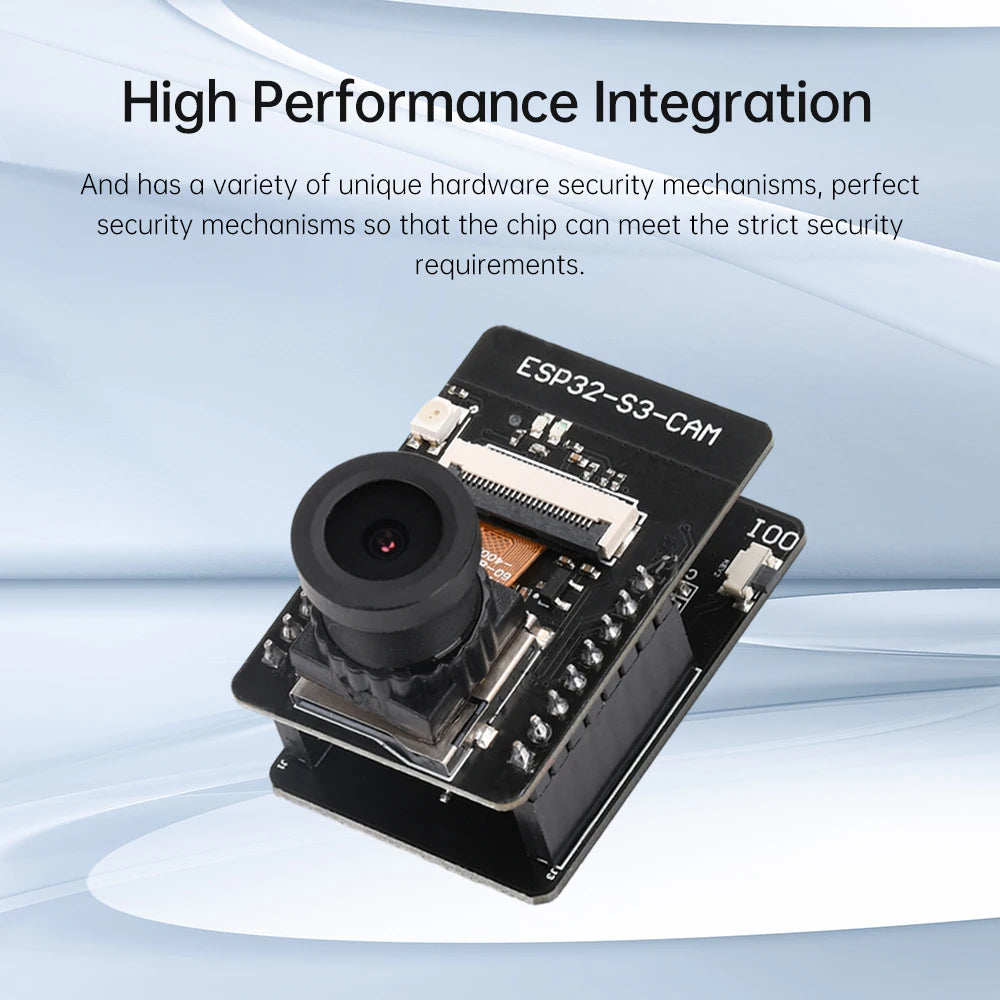

- Hardware Security: Unique hardware security mechanisms for compliance with stringent security standards.

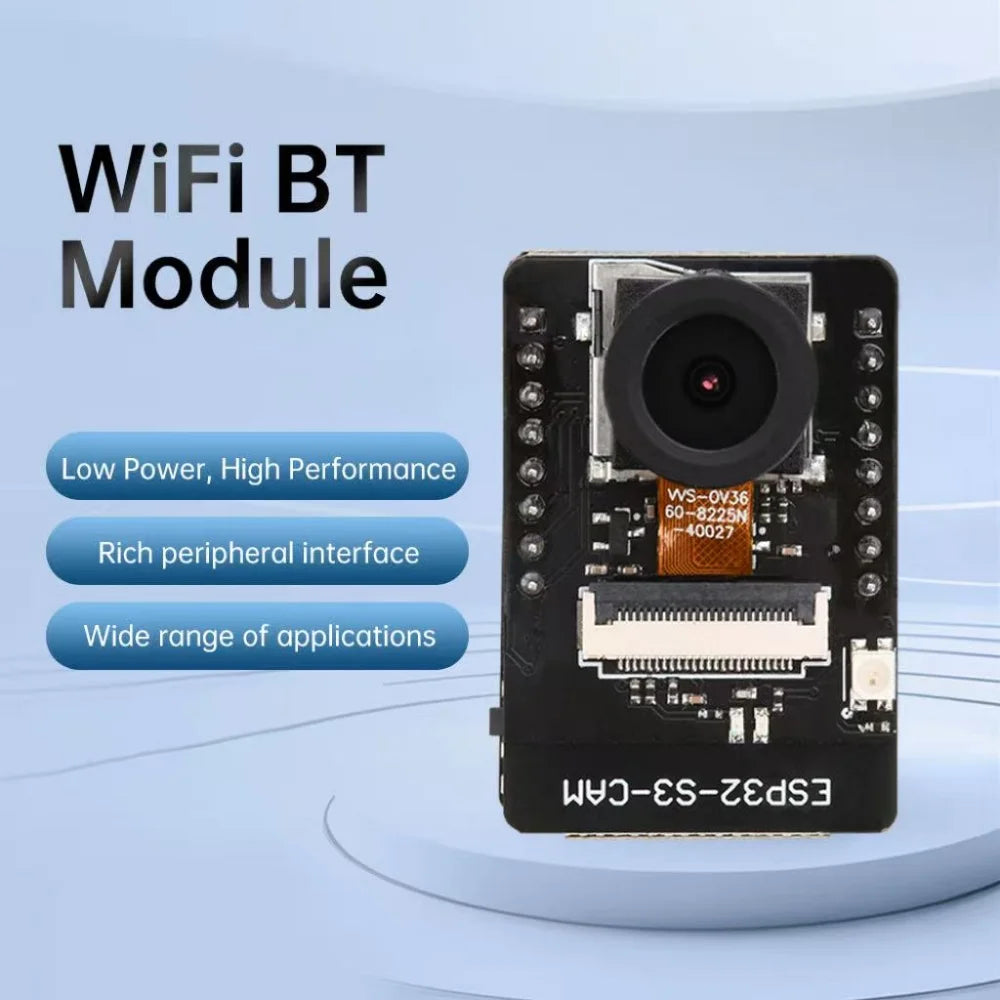

- Camera Ready: Compatible with OV2640 and OV3660 camera modules (included in select bundle sets).
Wi-Fi Specifications
- IEEE 802.11b/g/n protocols
- 20 MHz and 40 MHz bandwidth in the 2.4 GHz band
- 1T1R mode with data rates up to 150 Mbps
- 4 × virtual Wi-Fi interfaces
- Station, SoftAP, and Station + SoftAP simultaneous modes
- Antenna Diversity & 802.11mc FTM support
Bluetooth Specifications
- Bluetooth 5 & Bluetooth mesh
- High-Power Mode: 20 dBm
- Supported data rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
- Advertising Extensions & Multiple Advertisement Sets
- Wi-Fi and Bluetooth coexistence on shared antenna
Technical Specifications
| Processor | Xtensa® 32-bit LX7 Dual-Core, up to 240 MHz |
| SRAM | 512 KB |
| ROM | 384 KB |
| RTC SRAM | 16 KB |
| PSRAM | 8 MB |
| Operating Voltage | 3V – 3.6V |
| Operating Temperature | -40°C to 65°C |
| GPIOs | 45 Programmable |
| Package | TQFP |
| Condition | New |
What's in the Box – Bundle Options
- Set 1: 1× ESP32-S3-CAM Development Board
- Set 2: 1× ESP32-S3-CAM Development Board + 1× OV2640 Camera

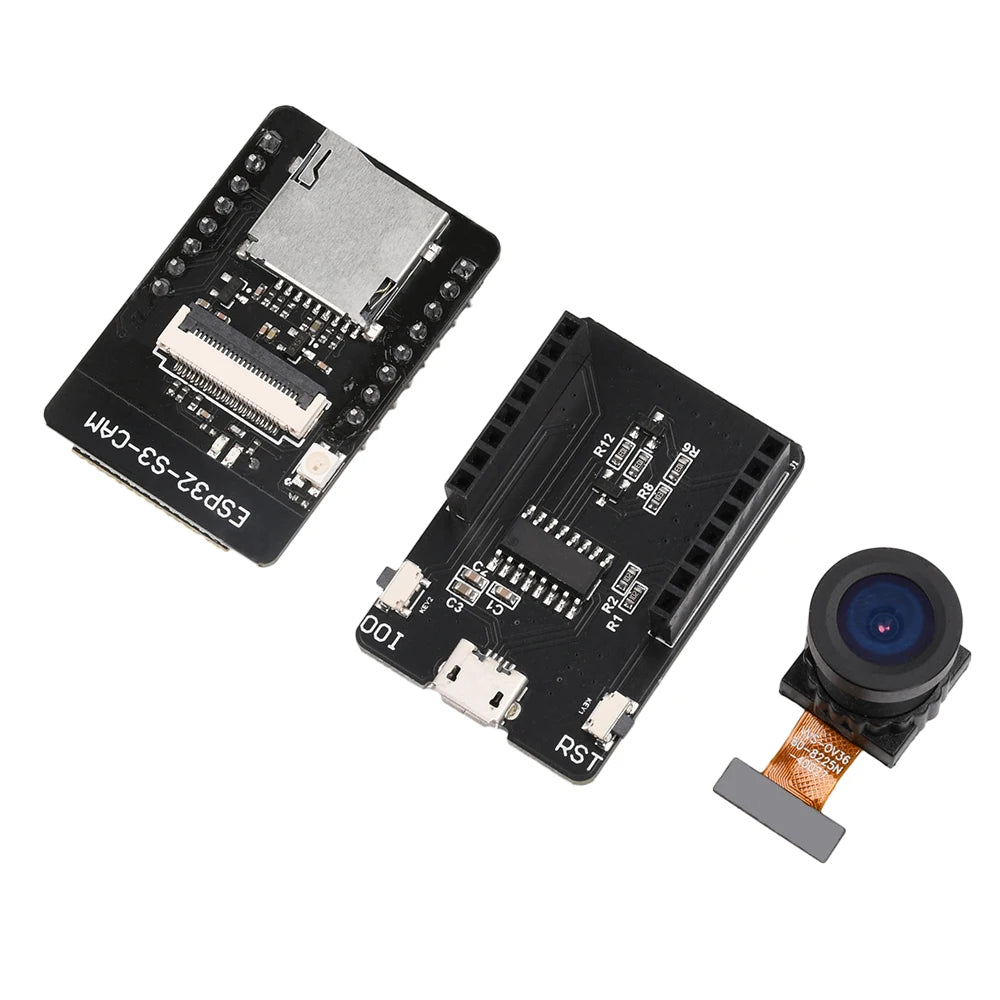

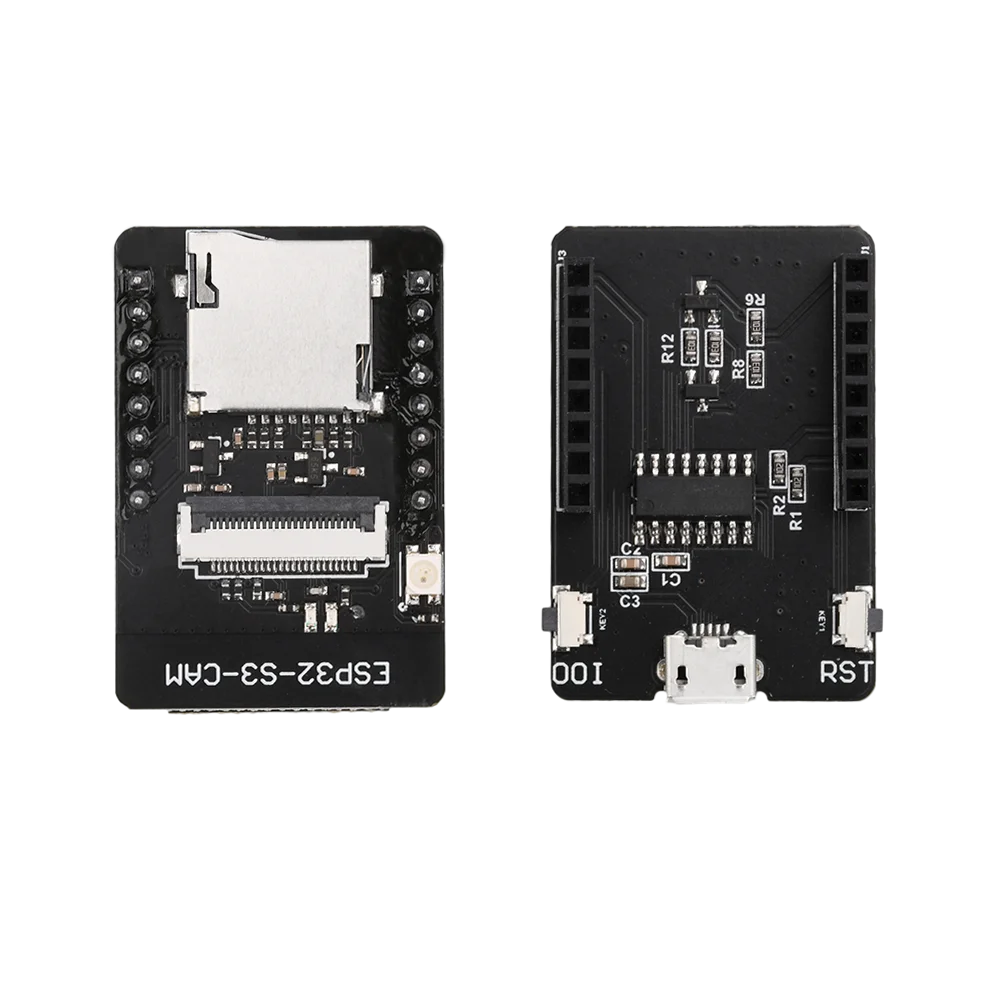

- Set 3: 1× ESP32-S3-CAM Development Board + 1× OV2640 Camera + 1× Programmer
- Set 4: 1× Programmer only
- Set 5: 1× ESP32-S3-CAM Development Board + 1× OV3660 Camera + 1× Programmer
Popular Applications
Smart home automation, industrial monitoring, consumer electronics, smart agriculture, service robots, audio equipment, IoT prototyping, edge AI inference, and computer vision projects.
You May Also Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts — great for organizing small components and electronic parts.
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer — a stylish tray to keep your dev boards and accessories organized on your workbench.
- Ceramic Mini Sealed Storage Jar – Portable Travel Container — ideal for storing tiny electronic components safely.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What camera modules are compatible with the ESP32-S3-CAM development board?
A: The ESP32-S3-CAM development board is compatible with the OV2640 and OV3660 camera modules. Depending on the bundle set you choose, a camera may be included. The OV2640 is widely used for general image capture, while the OV3660 offers higher resolution output — both connect directly to the board's dedicated camera interface.
Q: What wireless protocols does the ESP32-S3-WROOM-1 N16R8 module support?
A: The ESP32-S3-WROOM-1 N16R8 module supports 2.4 GHz Wi-Fi (IEEE 802.11b/g/n) with data rates up to 150 Mbps, as well as Bluetooth 5 and Bluetooth Low Energy (BLE) including Bluetooth mesh. Both Wi-Fi and Bluetooth share the same antenna, simplifying board layout for compact IoT designs.
Q: What is the operating voltage range for this ESP32-S3-CAM board?
A: The ESP32-S3-CAM development board operates within a supply voltage range of 3V to 3.6V, making it compatible with standard 3.3V systems. It supports an operating temperature range from -40°C to 65°C, suitable for a wide range of indoor and light industrial environments.
Q: Does this board support machine learning or AI applications?
A: Yes. The ESP32-S3's Xtensa® LX7 dual-core processor includes dedicated vector instructions specifically designed to accelerate neural network computations and signal processing tasks, making it well-suited for edge AI and machine learning inference applications, such as image recognition and keyword spotting.
