ESP32-S3 CAM Wi-Fi & Bluetooth Development Board – ESP32-S3-WROOM-1 N16R8
Power your next IoT, robotics, or computer vision project with the ESP32-S3 CAM Development Board. Built around the ESP32-S3-WROOM-1 N16R8 module, this compact yet feature-rich board combines a dual-core 240 MHz processor, 8 MB PSRAM, 16 MB Flash, integrated 2.4 GHz Wi-Fi (802.11 b/g/n), and Bluetooth 5 / BLE in a single platform — all accessible through dual Type-C ports for easy programming and power delivery.
Choose from OV2640, OV5640, or OV3660 camera modules (Kit Two) to enable live video streaming, image capture, and machine-vision applications right out of the box. Whether you're a hobbyist, student, or professional developer, this board delivers exceptional performance for wireless multimedia, edge AI, and connected device prototyping.
Made in Mainland China.
Key Features
- Dual-Core CPU: Xtensa® LX7 running at up to 240 MHz for fast, responsive processing
- Generous Memory: 384 KB ROM | 512 KB SRAM | 16 KB RTC SRAM | 8 MB PSRAM | 16 MB Flash (N16R8)
- Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz, up to 150 Mbps (1T1R mode), STA / SoftAP / STA+SoftAP mixed mode
- Bluetooth 5 / BLE: Supports Bluetooth Mesh, broadcast extensions, 125 Kbps–2 Mbps; Wi-Fi & BT share antenna
- Camera Support: OV2640 / OV5640 / OV3660 via 8-to-16-bit DVP camera interface
- Dual Type-C Ports: USB OTG + USB Serial/JTAG for simultaneous programming and power

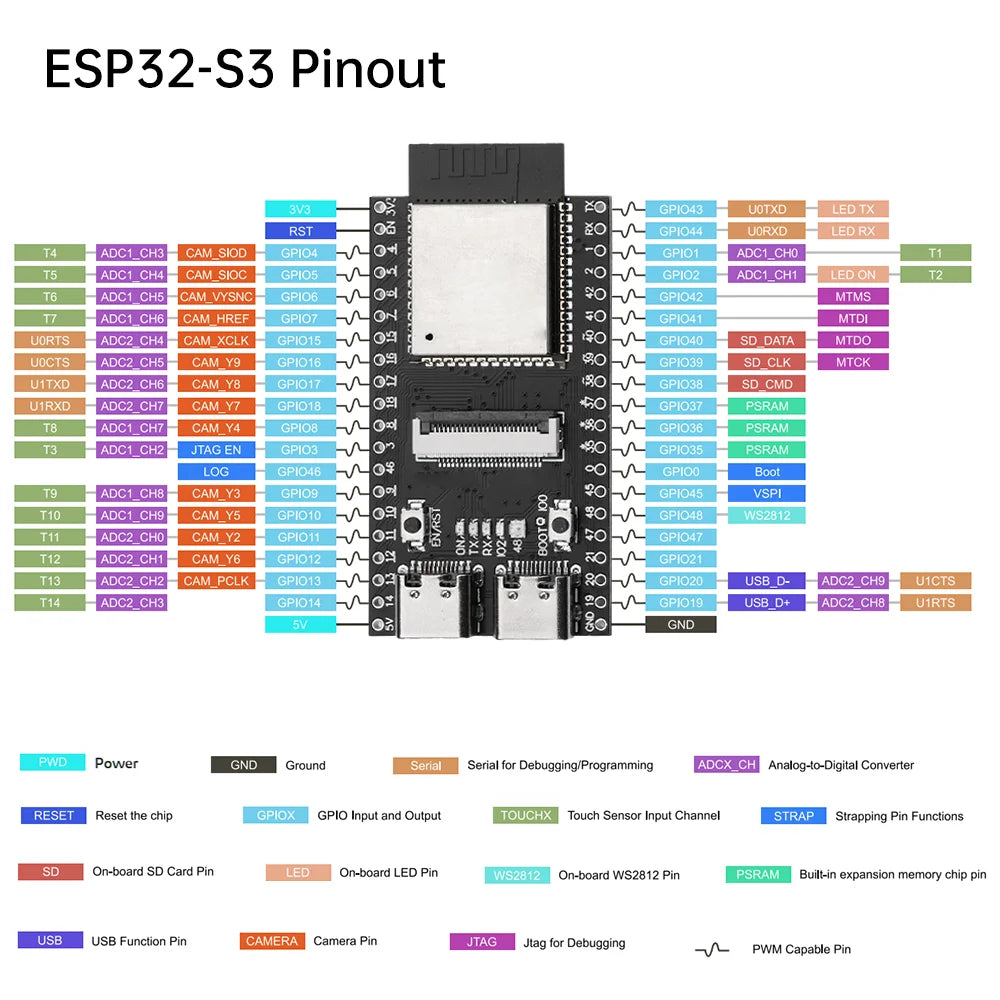

- 45 GPIO Pins: Extensive I/O for sensors, displays, actuators, and custom peripherals
- Rich Peripheral Set: 4× SPI, 3× UART, 2× I²C, 2× I²S, 1× USB OTG, LCD interface, SDIO, MCPWM, RMT, and more
- Analog Interfaces: 2× 12-bit SAR ADC (up to 20 channels), 14× capacitive touch GPIOs, onboard temperature sensor
- Advanced Security: Multiple dedicated hardware security mechanisms for robust, production-ready designs
- Low-Power Modes: Multiple sleep states to minimize energy consumption in battery-powered applications
- Operating Temperature: –40°C to +65°C | Supply Voltage: 3.0 V – 3.6 V

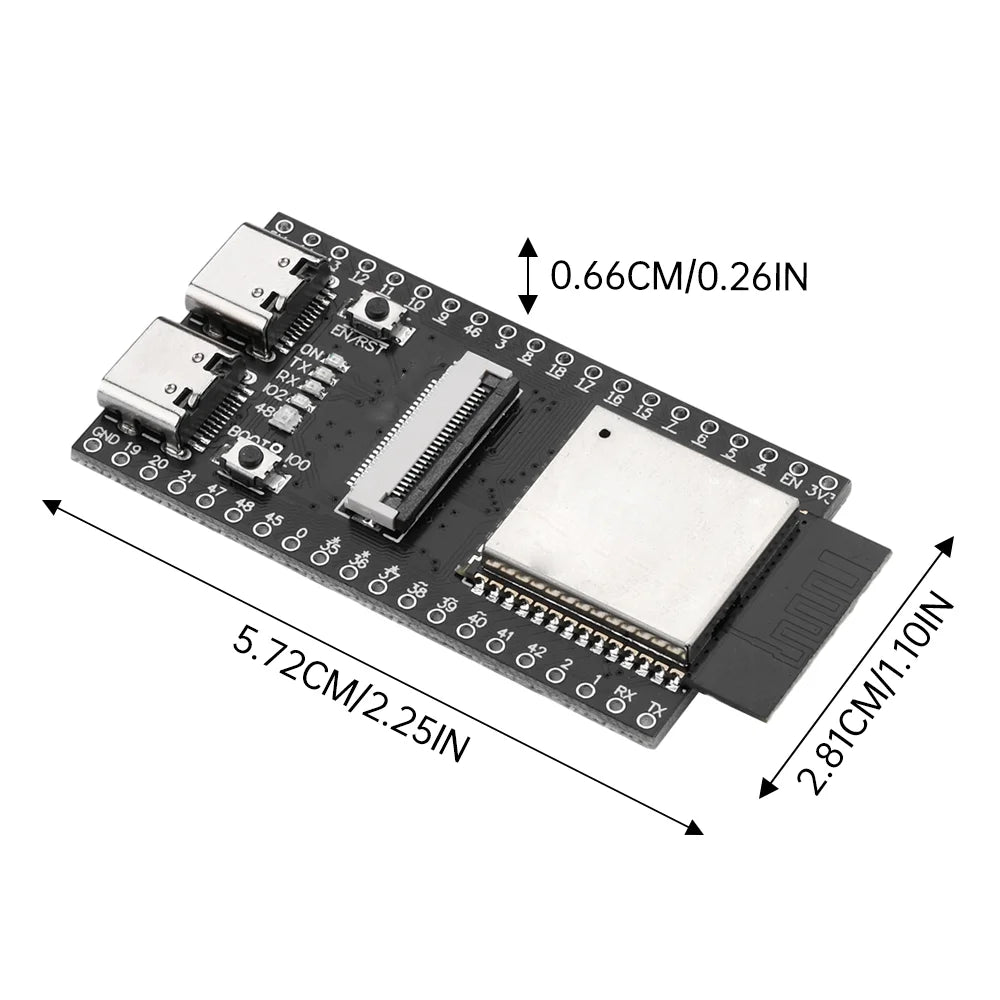

- Compact Footprint: 57 mm × 28 mm
Technical Specifications
| Controller | Dual-core 32-bit Xtensa® LX7, up to 240 MHz |
| Module | ESP32-S3-WROOM-1 N16R8 |
| Flash / PSRAM | 16 MB Flash / 8 MB PSRAM |
| Wi-Fi Standard | IEEE 802.11 b/g/n (2.4 GHz), up to 150 Mbps |
| Bluetooth | BLE 5.0, Bluetooth Mesh, 125 Kbps–2 Mbps |
| GPIO | 45 pins |
| ADC | 2× 12-bit SAR ADC, up to 20 channels |
| SPI / UART / I²C | 4× SPI / 3× UART / 2× I²C |
| USB | 1× Full-speed USB OTG + 1× USB Serial/JTAG |
| Camera Interface | DVP 8-bit to 16-bit |
| LCD Interface | 8/16-bit parallel RGB, I8080, MOTO680 |
| Operating Voltage | 3.0 V – 3.6 V |
| Temperature Range | –40°C to +65°C |
| Dimensions | 57 mm × 28 mm |
What's in the Box
Kit One: 1× ESP32-S3 Development Board + 2× Pin Header

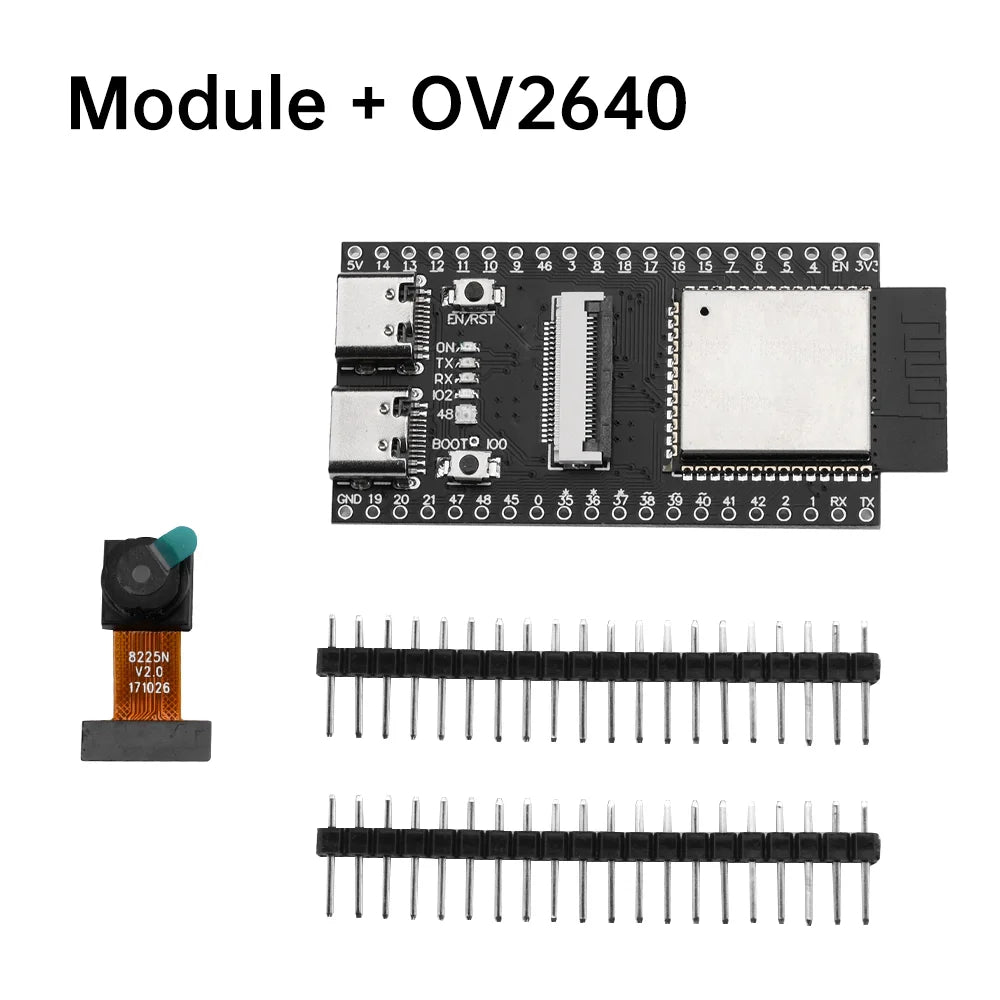

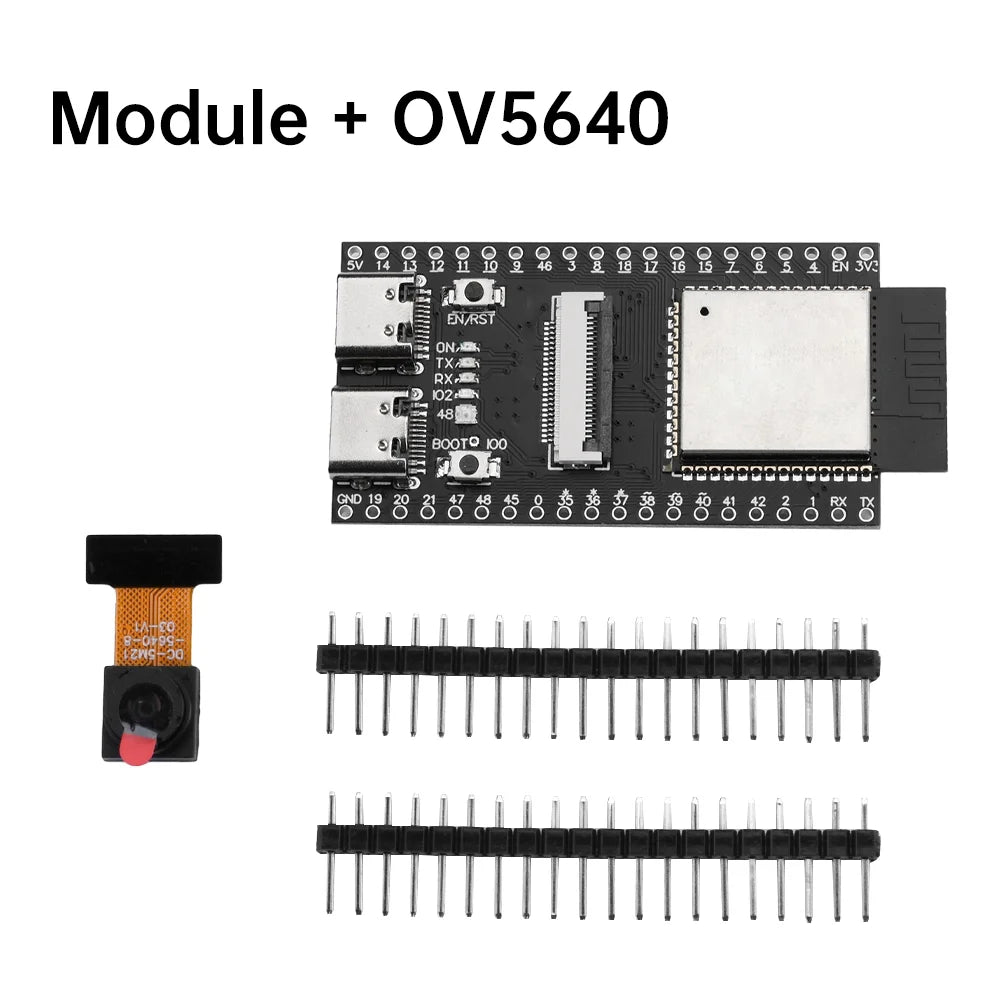

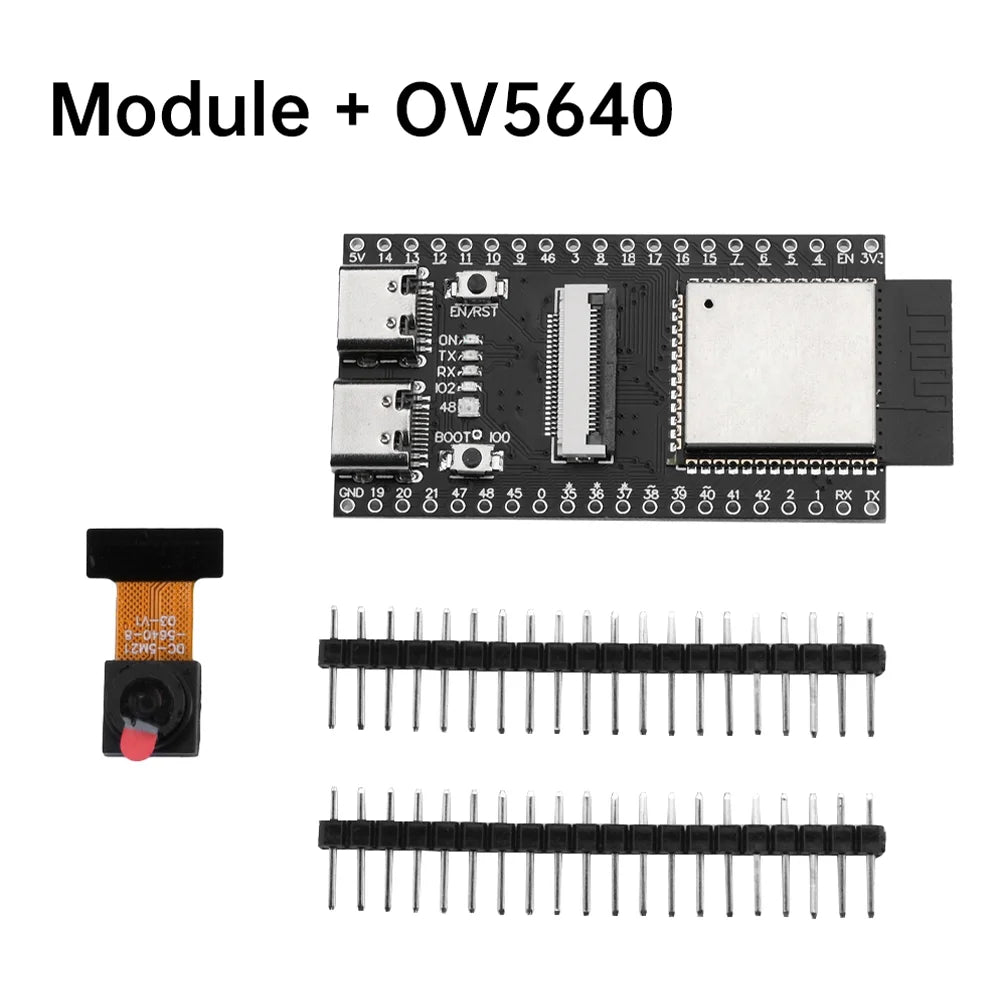

Kit Two: 1× ESP32-S3 Development Board + 2× Pin Header + 1× Camera Module (OV2640 / OV5640 / OV3660 — selectable at checkout)
Related Products You Might Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts — keep your components and small parts neatly organized
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer — a stylish tray for your desk and workbench accessories
- Ceramic Mini Sealed Storage Jar – Portable Travel Container — compact storage for small electronic components and accessories
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What cameras are compatible with this ESP32-S3 development board?
A: This ESP32-S3 CAM board supports the OV2640, OV5640, and OV3660 camera modules via its 8-to-16-bit DVP camera interface. If you select Kit Two, you can choose your preferred camera module at the time of purchase. The OV2640 is a popular 2MP choice for streaming, while the OV5640 offers 5MP resolution for higher-detail image capture.
Q: What programming environments and frameworks does this board support?
A: The ESP32-S3 development board is compatible with the Arduino IDE, ESP-IDF (Espressif IoT Development Framework), MicroPython, and PlatformIO. The dual Type-C ports — one for USB OTG and one for USB Serial/JTAG — make flashing firmware and debugging straightforward on Windows, macOS, and Linux.
Q: Does the board support simultaneous Wi-Fi and Bluetooth operation?
A: Yes. The ESP32-S3 features Wi-Fi and Bluetooth coexistence using a shared antenna. You can run Wi-Fi (IEEE 802.11 b/g/n) and Bluetooth 5 / BLE concurrently, making it ideal for applications that need both wireless connectivity and local BLE sensor communication at the same time.
Q: What is the difference between Kit One and Kit Two?
A: Kit One includes the ESP32-S3 development board and 2× pin headers — ideal if you already have a compatible camera module or do not need camera functionality. Kit Two adds a selectable camera module (OV2640, OV5640, or OV3660), giving you everything needed to start a camera-based project immediately.
Q: What supply voltage does the ESP32-S3 CAM board require?
A: The board operates at a supply voltage of 3.0 V to 3.6 V. It can be conveniently powered via either of its Type-C USB ports, which handle voltage regulation onboard, so no separate regulator is needed in most development setups.
