ESP32-S3-N16R8 0.96" OLED AI Voice Development Board – XiaoZhi Chatbot Module
Build your own AI-powered voice chatbot with the compact MINI ESP32-S3-N16R8 Development Board. Powered by a blazing-fast 240 MHz dual-core processor and pre-loaded with AI voice firmware, this versatile module is perfect for makers, engineers, and students diving into AIoT, smart home projects, and advanced programming education. Featuring built-in Wi-Fi, Bluetooth 5.0, a microphone, and optional 0.96-inch OLED display, the XiaoZhi AI chatbot kit is ready to bring your ideas to life right out of the box.
Made in Mainland China.
Key Features
- Dual-Core AI Processor: Xtensa® 32-bit LX7 microprocessor, up to 240 MHz — supports AI vision, voice recognition, and neural network processing.
- 0.96" OLED Display: Crisp graphical display for interactive UI and real-time feedback (included in Package 1 & Package 3).
- Built-In Microphone & Speaker Output: High-quality voice input/output with on-board amplifier and speaker cable included.
- Wi-Fi & Bluetooth 5.0: 802.11 b/g/n (2.4 GHz, up to 150 Mbps) plus BT LE 5.0 — ideal for smart home and IoT connectivity.
- Generous Memory: 384 KB ROM, 512 KB SRAM, 16 KB RTC SRAM, and up to 16 MB external PSRAM (N16R8 variant).

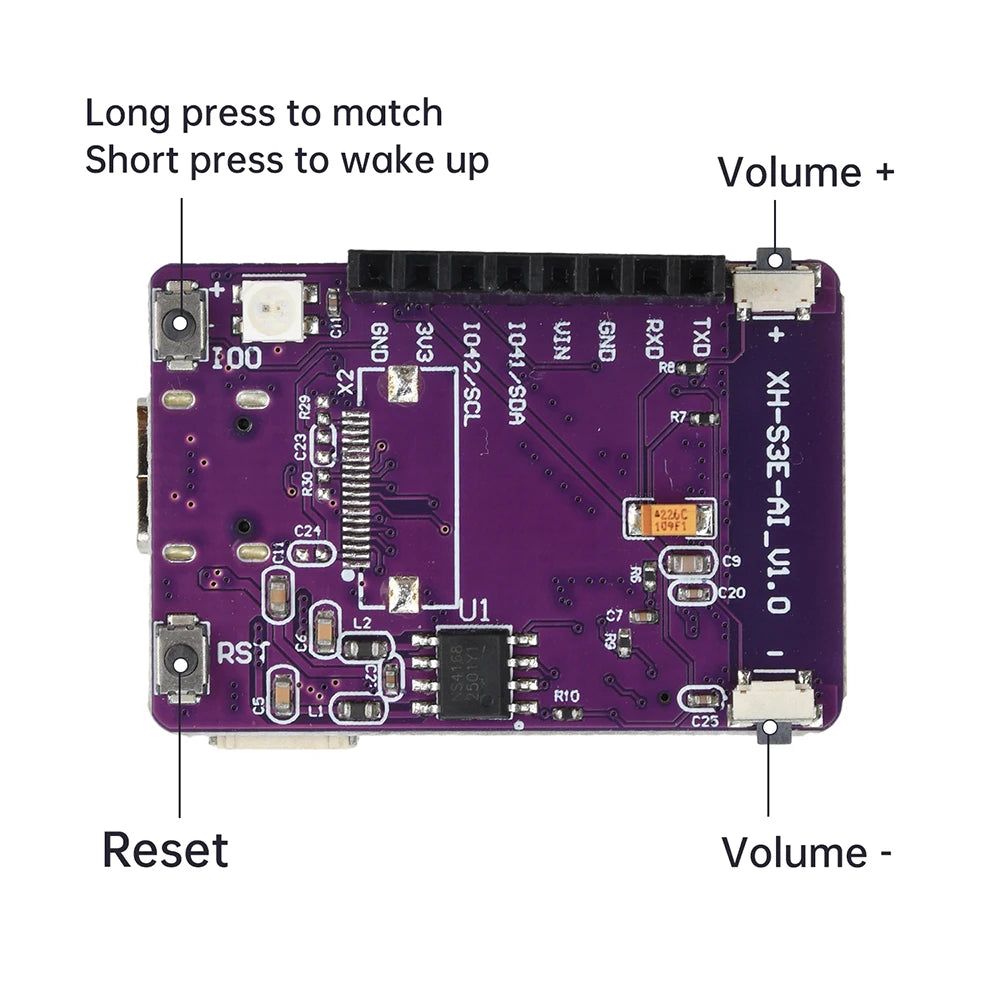

- Rich Peripheral Interfaces: Multiple GPIO pins supporting SPI, I²C, I²S, UART, PWM, ADC, and DAC.
- Wide Operating Temperature: Reliable from -40°C to +85°C — suitable for both indoor and industrial environments.

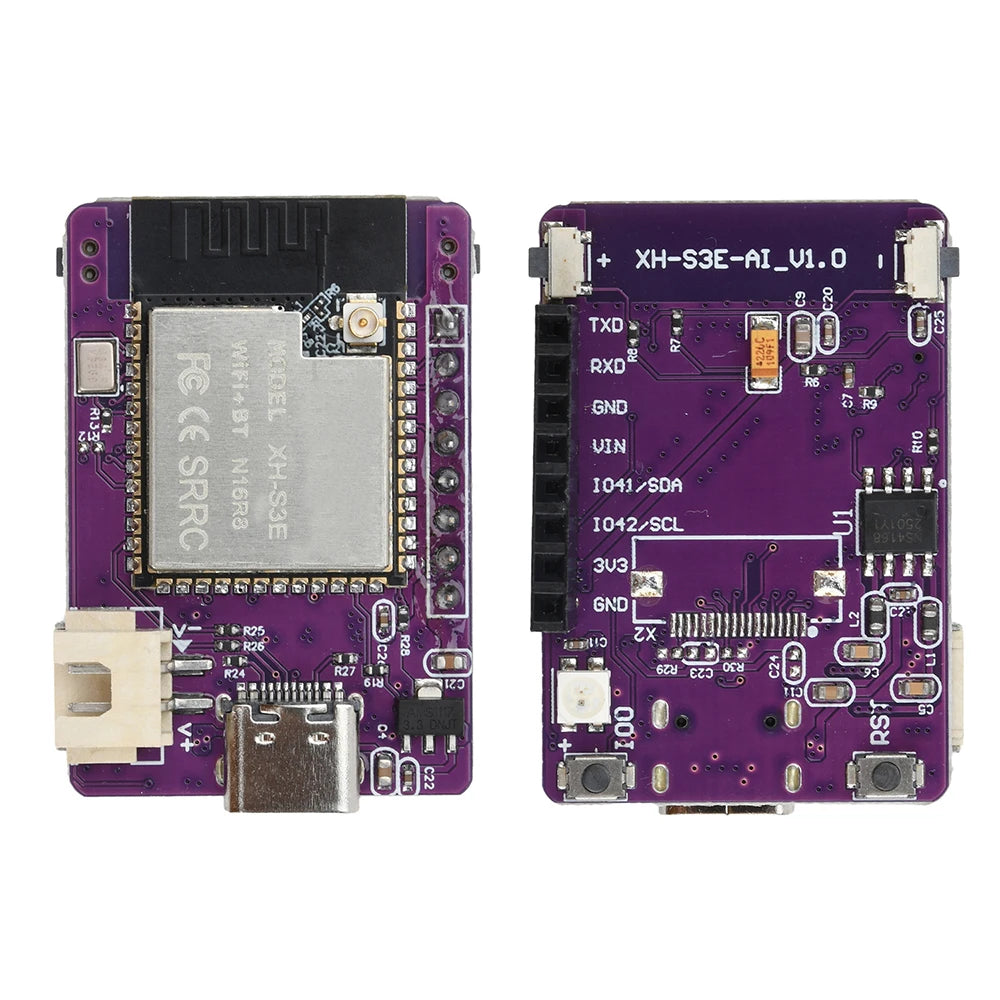

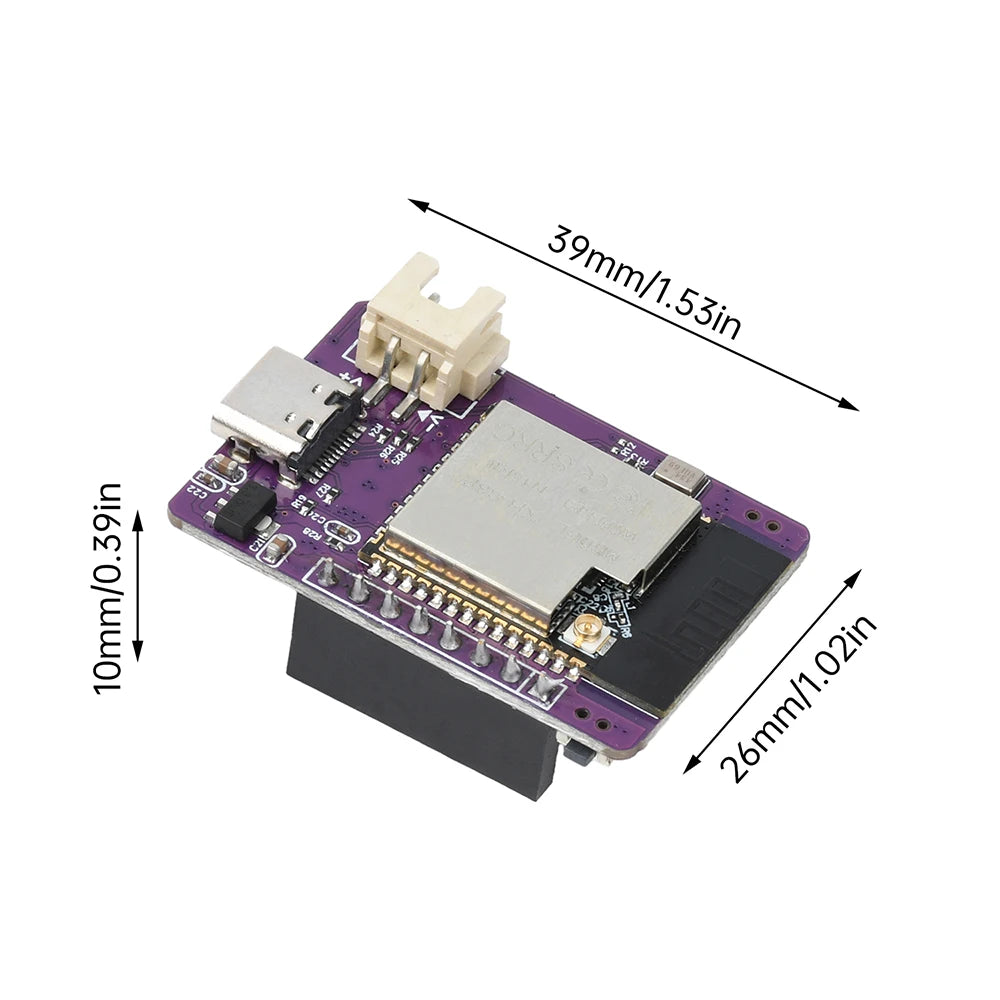

- Compact Form Factor: PCB dimensions just 39 mm × 26 mm; custom casing-friendly design.
- Type-C Port: Modern USB Type-C interface for easy programming and power delivery.
- Pre-Loaded AI Voice Firmware: Start building your XiaoZhi AI conversational robot immediately — no firmware flashing required.
Technical Specifications
| Processor | Xtensa® Dual-Core 32-bit LX7, up to 240 MHz |
| RAM / ROM | 512 KB SRAM, 384 KB ROM, 16 KB RTC SRAM + 16 MB PSRAM |
| Wi-Fi | 802.11 b/g/n 2.4 GHz, up to 150 Mbps |
| Bluetooth | BT LE 5.0 |
| Display | 0.96-inch OLED (optional / Package 1 & 3) |
| Operating Voltage | 3.0 V – 3.6 V |
| Operating Temperature | -40°C to +85°C |
| PCB Size | 39 mm × 26 mm |
| Interface | USB Type-C |
| Peripheral I/O | SPI, I²C, I²S, UART, PWM, ADC, DAC, GPIO |
| Country of Origin | Mainland China |
Application Scenarios
- AIoT: Speech recognition, image processing, smart home automation systems.
- Smart Devices: Smart speakers, smart control panels, and home appliances.
- Industrial Control: Automation and control systems requiring high reliability.
- Education & Robotics: High-end programming education, robotics, and Internet of Things projects.
Package Options
- Package 1: MINI ESP-S3-N16R8 Development Board (with AI voice firmware) + Speaker Cable + 0.96-inch OLED Display

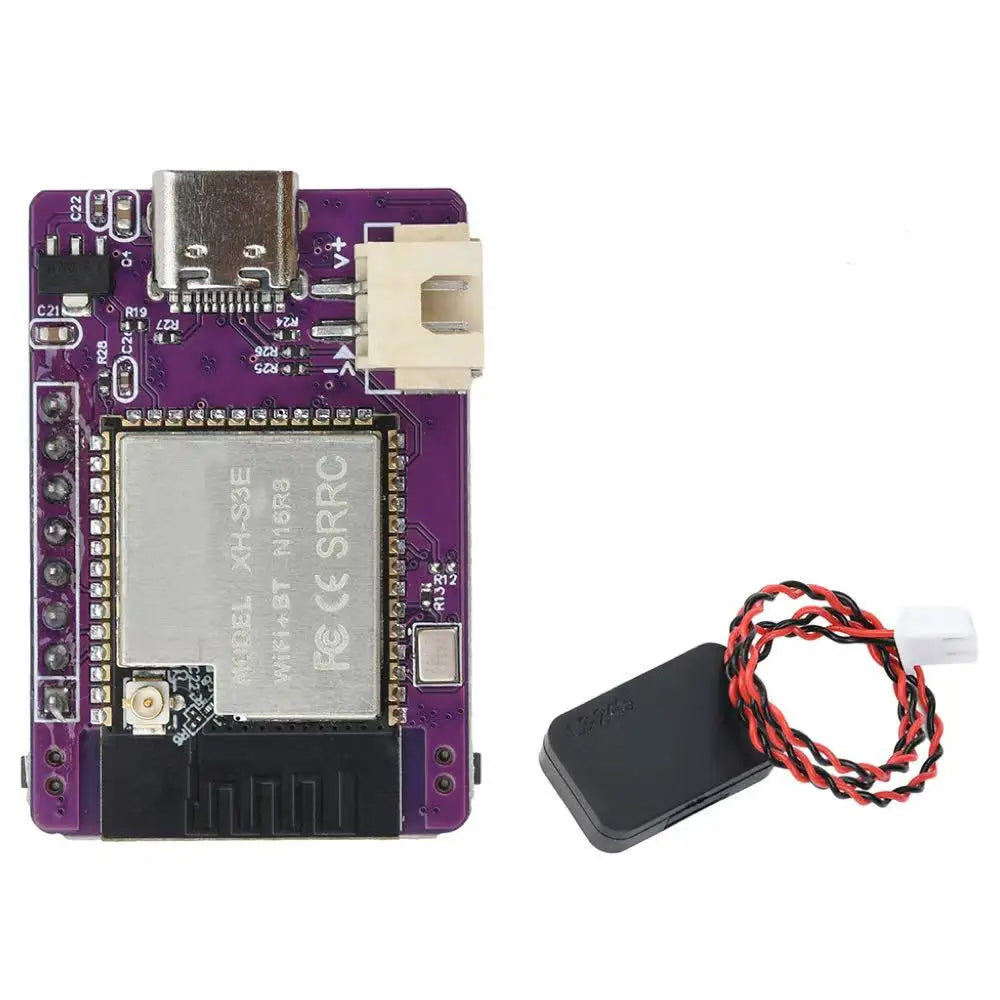

- Package 2: MINI ESP-S3-N16R8 Development Board (with AI voice firmware) + Speaker Cable
- Package 3: 0.96-inch OLED Display only
Select your preferred configuration at checkout.
Explore More From Our Store
- Airtight Transparent PET Storage Bottle – Great for Organizing Small Components & Beads
- Ceramic Mini Sealed Storage Jar – Portable Container for Small Parts Storage
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Does the ESP32-S3-N16R8 development board come pre-loaded with AI voice firmware?
A: Yes! The MINI ESP32-S3-N16R8 development board (included in Package 1 and Package 2) comes pre-loaded with AI voice firmware, so you can start building and testing your XiaoZhi AI voice chatbot project immediately without needing to flash firmware yourself.
Q: What is included in each package option for this ESP32-S3-N16R8 module?
A: Package 1 includes the MINI ESP32-S3-N16R8 development board, a speaker cable, and the 0.96-inch OLED display. Package 2 includes only the development board and speaker cable (no display). Package 3 includes the 0.96-inch OLED display only — ideal if you already own the main board.
Q: Is this ESP32-S3 development board suitable for beginners and educational projects?
A: Absolutely. The board is well-suited for students, hobbyists, and educators. Its pre-loaded firmware, compact size, and rich peripheral support (Wi-Fi, Bluetooth, GPIO, I²C, UART, etc.) make it an excellent platform for learning IoT, AIoT, robotics, and smart home development projects.
Q: What interfaces and connectivity does the ESP32-S3-N16R8 board support?
A: The board supports 802.11 b/g/n Wi-Fi (2.4 GHz) and Bluetooth Low Energy 5.0, as well as a wide range of peripheral interfaces including SPI, I²C, I²S, UART, PWM, ADC, and DAC via multiple GPIO pins. It connects to your computer via a USB Type-C port.
