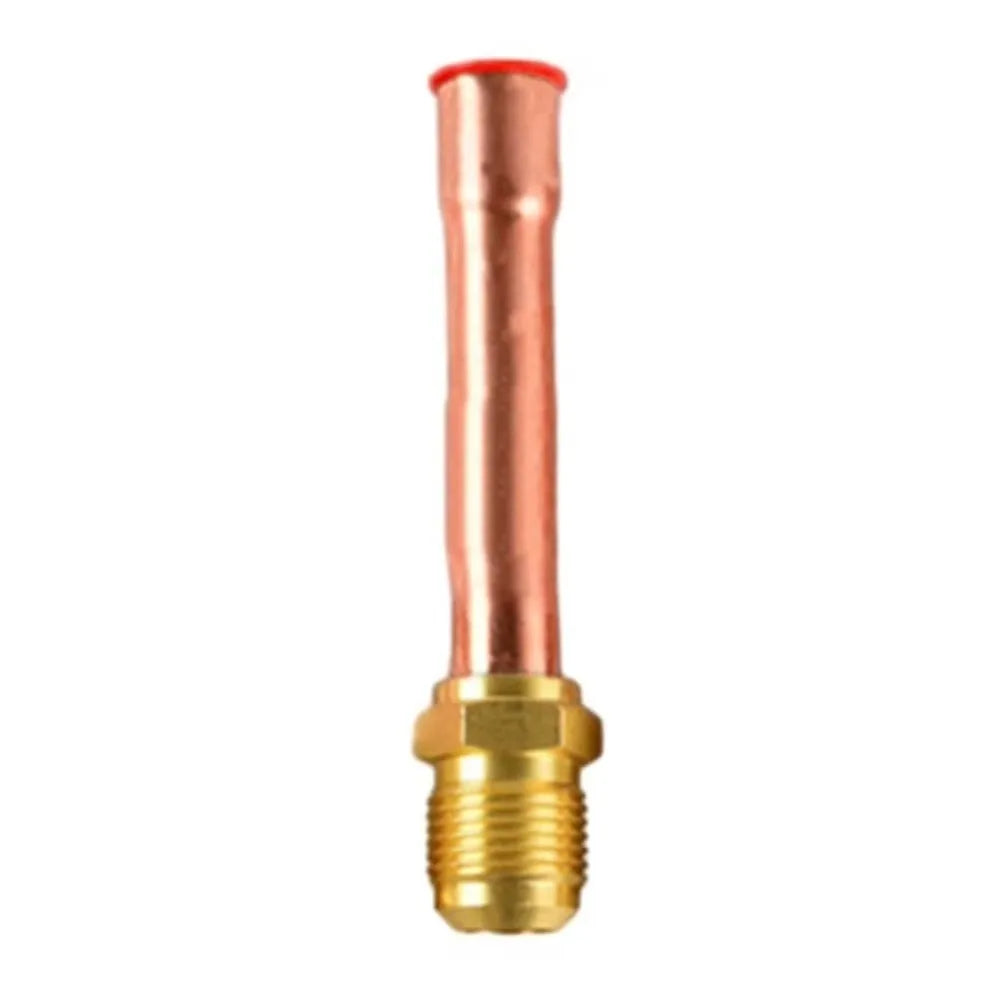

Forged Brass SAE Flare Pipe Fitting for HVAC & Refrigeration
Keep your air conditioning and refrigeration systems running smoothly with this precision-engineered Forged Brass SAE Flare Pipe Fitting. Designed for seamless integration with a wide range of HVAC setups, this durable copper coupler delivers reliable, leak-free connections across multiple pipe sizes — all in one versatile component. Made in Mainland China.
Key Features

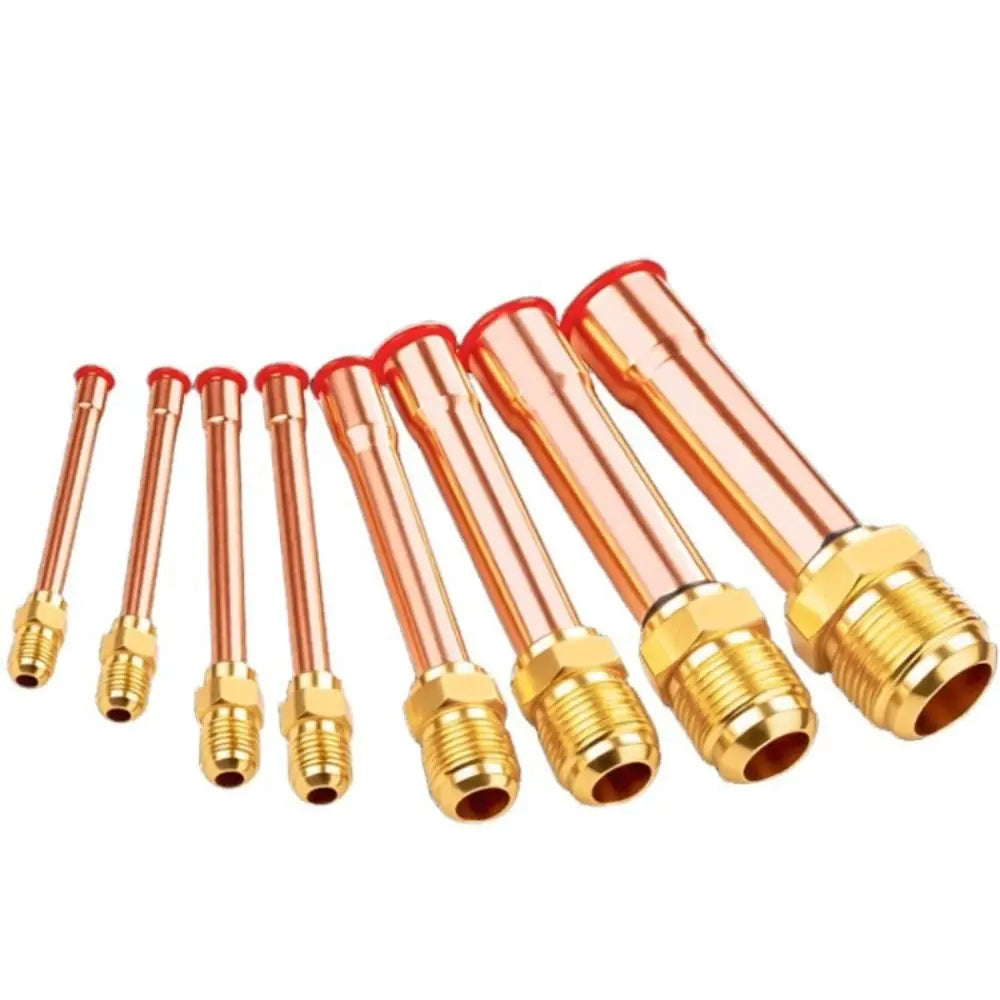

- Multiple SAE Sizes: Compatible with SAE 1/4", 3/8", 1/2", 5/8", and 3/4" threaded connections to suit diverse pipe configurations and installations.
- Forged Brass Construction: High-quality forged brass material provides exceptional durability, corrosion resistance, and long-lasting performance under demanding conditions.
- Wide Temperature Range: Engineered to operate effectively from -20°C to 120°C, making it suitable for both extreme cold and high-heat HVAC environments.
- High Pressure Rating: Rated up to 229 PSI (1.6 MPa) for dependable performance in pressurized systems.
- British Fill Pipe Interface: Designed with the most commonly used British filling pipe interface for broad compatibility.
- Easy Installation: Threaded connector adapter design allows for quick, convenient installation without special tools.
- Versatile Applications: Ideal for air conditioning branch pipes, refrigeration equipment, ship pipes, copper water pipes, and cooling hydraulic systems.

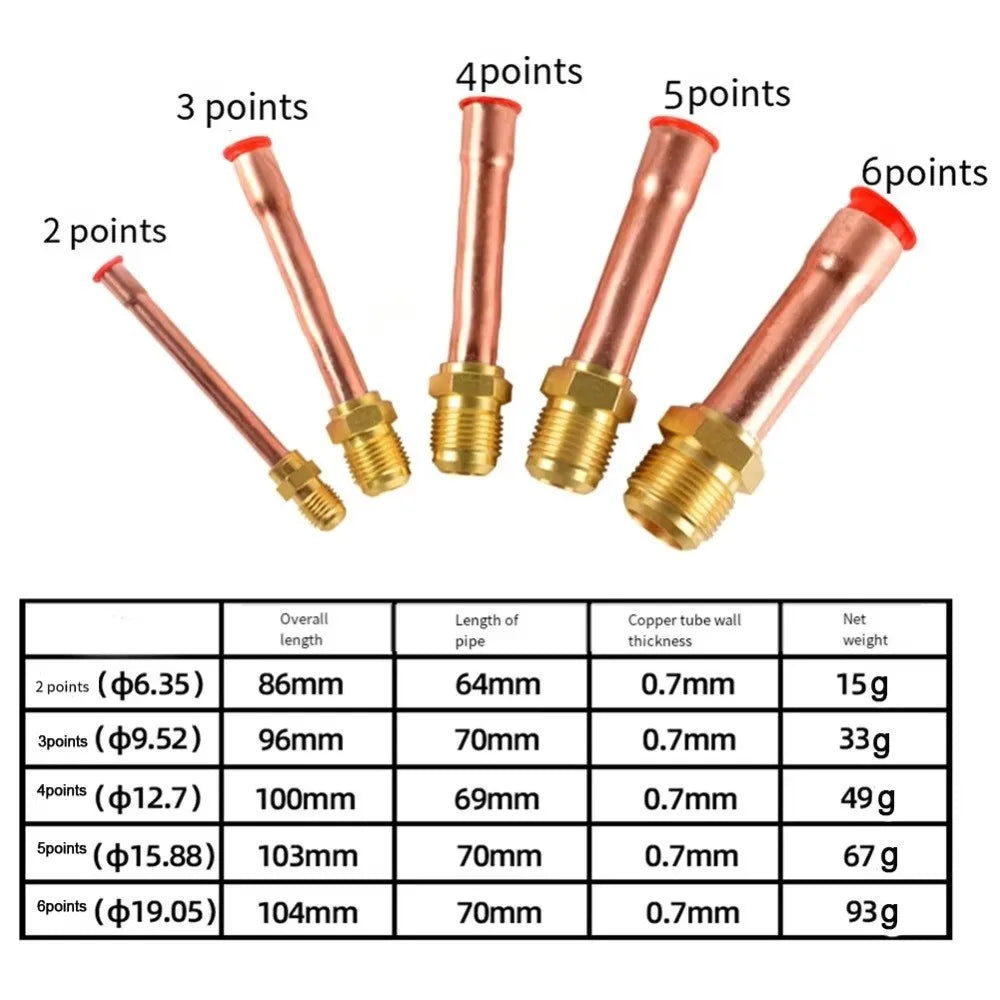

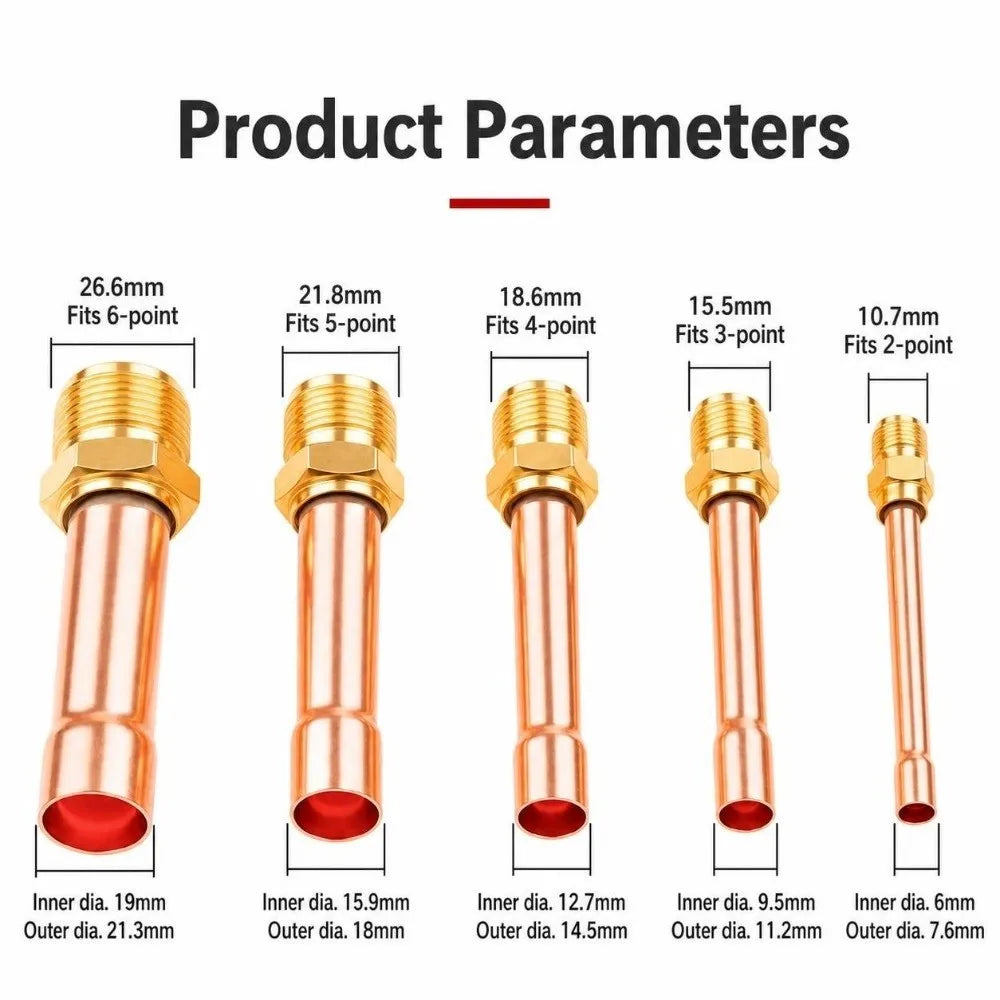

Size Specifications
| Metric Size | SAE Size | Nut Thread | Overall Length | Tube Length |
|---|---|---|---|---|
| 6.35mm | SAE 1/4" | 7/16"-20 UNF | 86mm | 64mm |

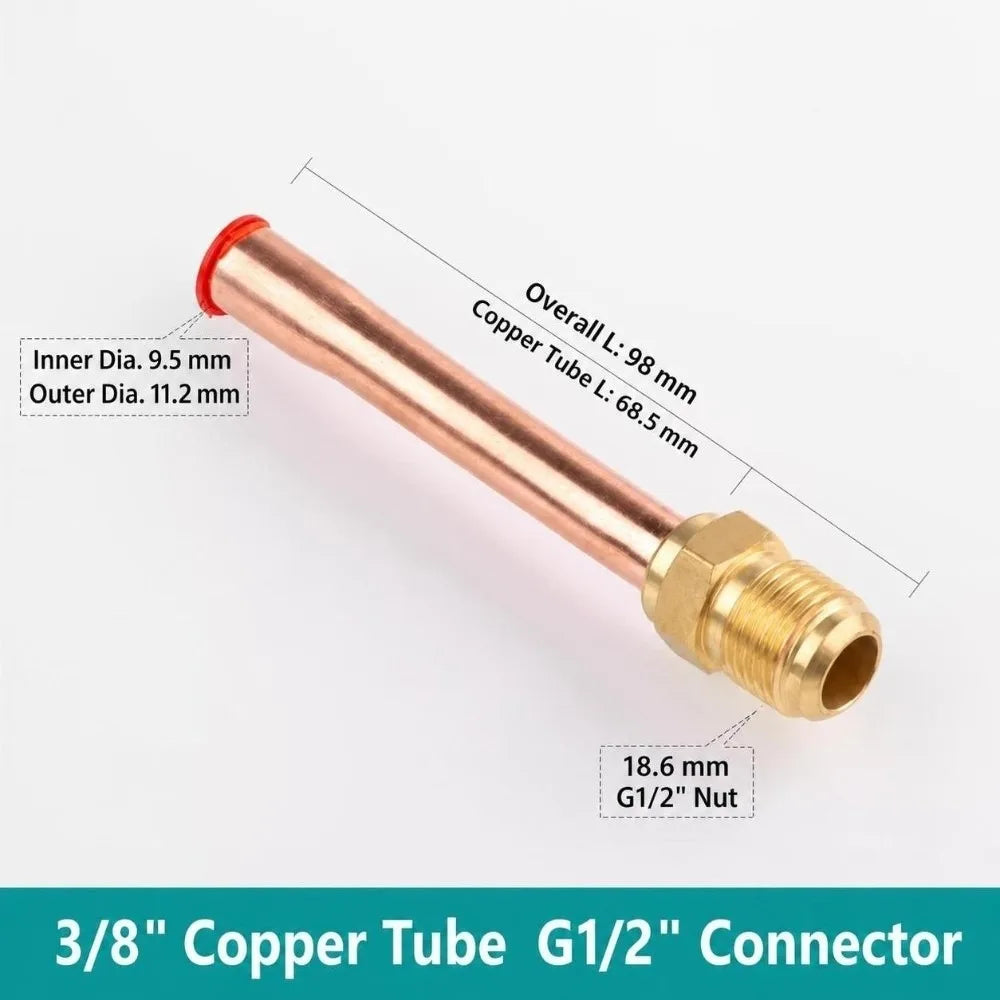

| 9.52mm | SAE 3/8" | 5/8"-18 UNF | 96mm | 70mm |

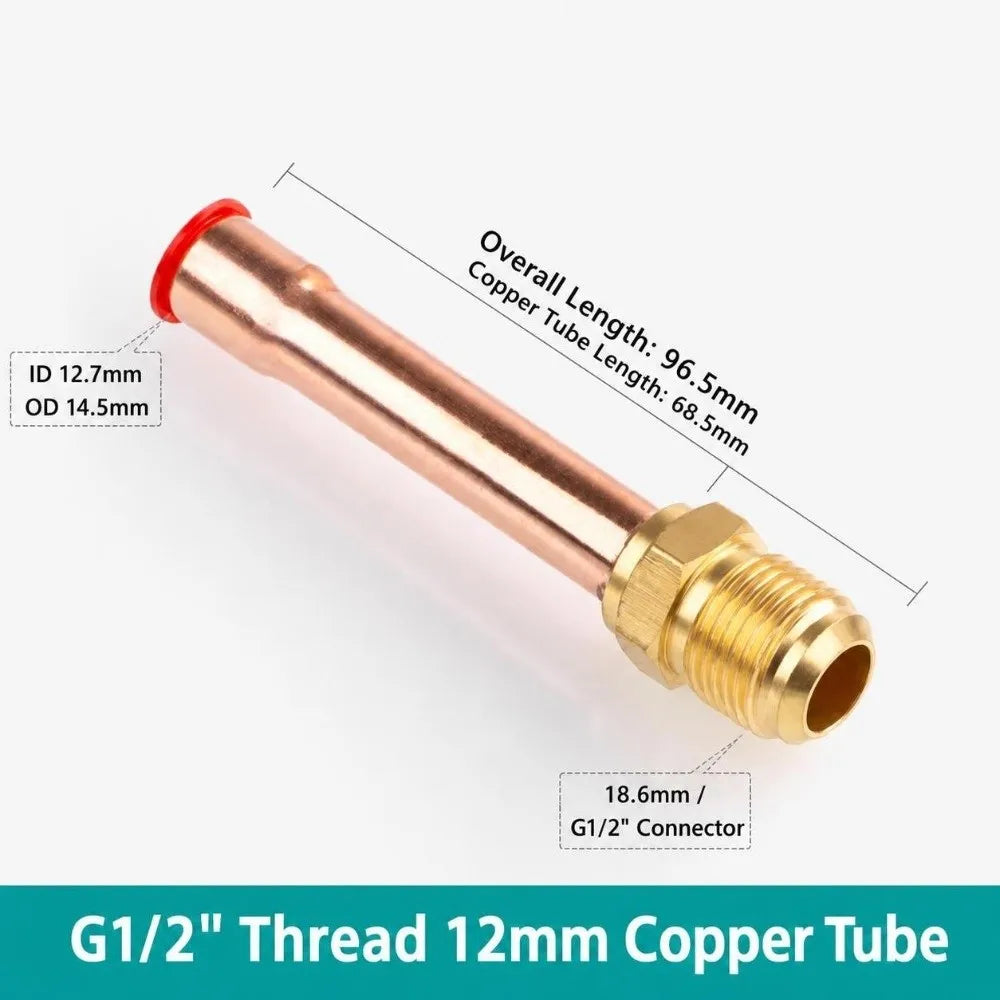

| 12.7mm | SAE 1/2" | 3/4"-16 UNF | 100mm | 69mm |
| 15.88mm | SAE 5/8" | 7/8"-14 UNF | 103mm | 70mm |
| 19.05mm | SAE 3/4" | 7/8"-14 UNF | 104mm | 70mm |
Product Details
- Material: Forged Brass (Copper)
- Color: Yellow (Brass)
- Max Pressure: 229 PSI / 1.6 MPa
- Operating Temperature: -20°C to 120°C
- Package Includes: 1 x Air Conditioning Copper Pipe Fitting
Related Tools & Storage
Looking for more handy tools and accessories? Explore our Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm or keep your small parts organized with our Airtight Transparent PET Storage Bottle | Beads & Crafts.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What SAE pipe sizes is this brass flare fitting compatible with?
A: This forged brass flare pipe fitting is compatible with SAE 1/4", 3/8", 1/2", 5/8", and 3/4" threaded connections, covering the most common sizes used in residential and commercial HVAC and refrigeration systems.
Q: What is the maximum operating pressure and temperature for this fitting?
A: This brass SAE flare coupler is rated for a maximum pressure of 229 PSI (1.6 MPa) and is designed to operate within a temperature range of -20°C to 120°C, making it suitable for a wide variety of air conditioning and refrigeration applications.
Q: What applications is this copper pipe fitting suitable for?
A: This fitting is ideal for air conditioning branch pipes, refrigeration equipment, cooling hydraulic systems, ship pipes, copper water pipes, and general aboveground water supply pipelines requiring reliable, threaded SAE connections.
