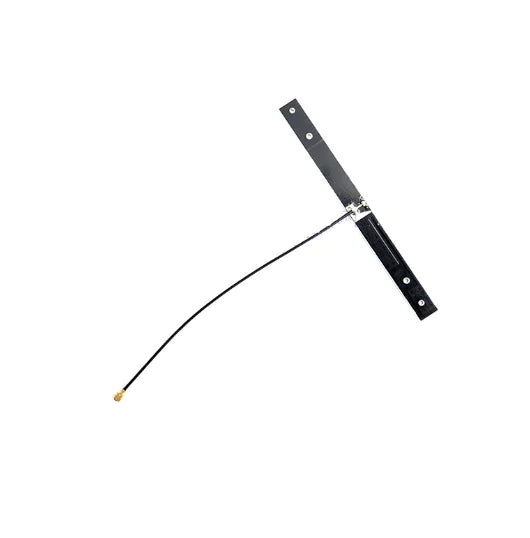

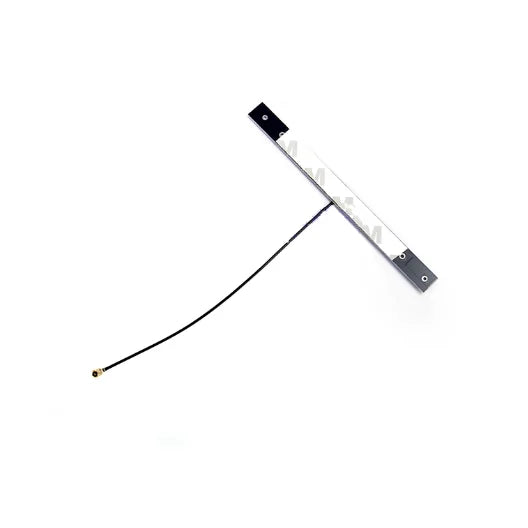

Full Band Built-in PCB Patch Antenna – 2G/3G/4G LTE/CDMA/WCDMA High Gain
Upgrade your wireless device's connectivity with this high-performance Full Band PCB Patch Antenna. Designed for broad compatibility across GSM, GPRS, CDMA, WCDMA, and 4G LTE networks, this compact built-in antenna delivers a strong 5 dBi gain across the 700–2700 MHz frequency range — making it an ideal drop-in solution for IoT modules, routers, GPS trackers, industrial devices, and custom electronics projects.
Key Features
- Full Band Coverage: Supports 2G (GSM/GPRS), 3G (CDMA/WCDMA), and 4G LTE networks across 700–2700 MHz
- High Gain: 5 dBi antenna gain for stronger, more reliable signal reception
- Compact PCB Patch Design: Slim 99×8mm form factor fits neatly inside enclosures and devices
- Low Standing Wave Ratio (SWR): ≤1.8 for efficient signal transmission with minimal reflection loss
- Standard 50-Ohm Impedance: Compatible with most RF systems and coaxial connectors
- 120mm Wire Length: Provides flexible routing for installation inside devices
- Customizable: Different cable lengths and connector types available — contact us for custom orders
Technical Specifications
| Product Name | 4G PCB Patch Antenna |
| Frequency Range | 700–2700 MHz |
| Antenna Gain | 5 dBi |

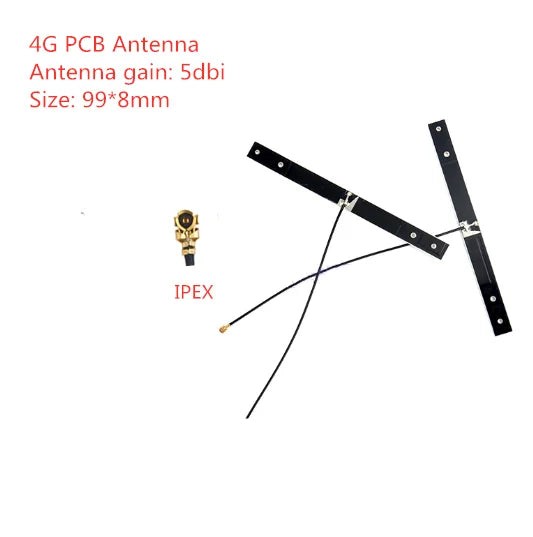

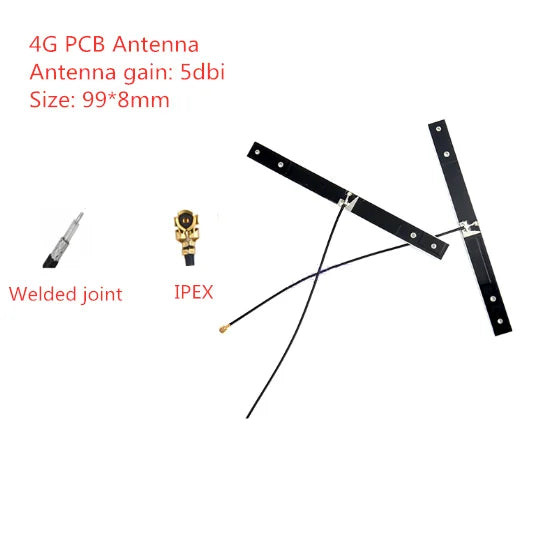

| Antenna Size | 99 × 8 mm |
| Wire Length | 120 mm |
| Standing Wave Ratio (SWR) | ≤ 1.8 |
| Impedance | 50 Ohms |
| Country of Origin | Made in Mainland China |
Compatible Applications
- 4G LTE routers and modems
- IoT and M2M communication modules
- GPS/GSM tracking devices
- Industrial wireless terminals
- Smart home gateways and hubs
- Custom PCB and embedded electronics projects
Bulk & Custom Orders Welcome
Factory-direct pricing available for large quantity orders. The manufacturer produces a wide range of antenna types including 2.4G, 5G, 5.8G, NB-IoT, 433M, 470M, GPS, FPC, spring, copper tube, suction cup, and patch antennas. Custom cable lengths and connector types can be arranged — please reach out before placing your order.
Looking for more tools and accessories for your projects? Check out our Airtight Transparent PET Storage Bottle for organizing small components, or our Leather Hole Punch Tool for DIY enclosure work.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What network bands does this full band PCB patch antenna support?
A: This PCB patch antenna covers the 700–2700 MHz frequency range, supporting all major 2G (GSM/GPRS), 3G (CDMA/WCDMA), and 4G LTE bands used worldwide, making it highly versatile for multi-network devices.
Q: Can I request a custom cable length or connector type for this antenna?
A: Yes! The manufacturer offers customization for both cable length and connector type. Simply contact us before placing your order to discuss your specific requirements, and bulk pricing is also available for larger quantity orders.
Q: What is the impedance of this PCB patch antenna and why does it matter?
A: This antenna has a standard 50-ohm impedance, which is the industry norm for RF and wireless communication systems. Using a matched 50-ohm impedance ensures optimal power transfer between your device and the antenna, minimizing signal loss.
