Gaqqee 40A 65A 100A Ideal Diode Module – Solar Reverse Protection

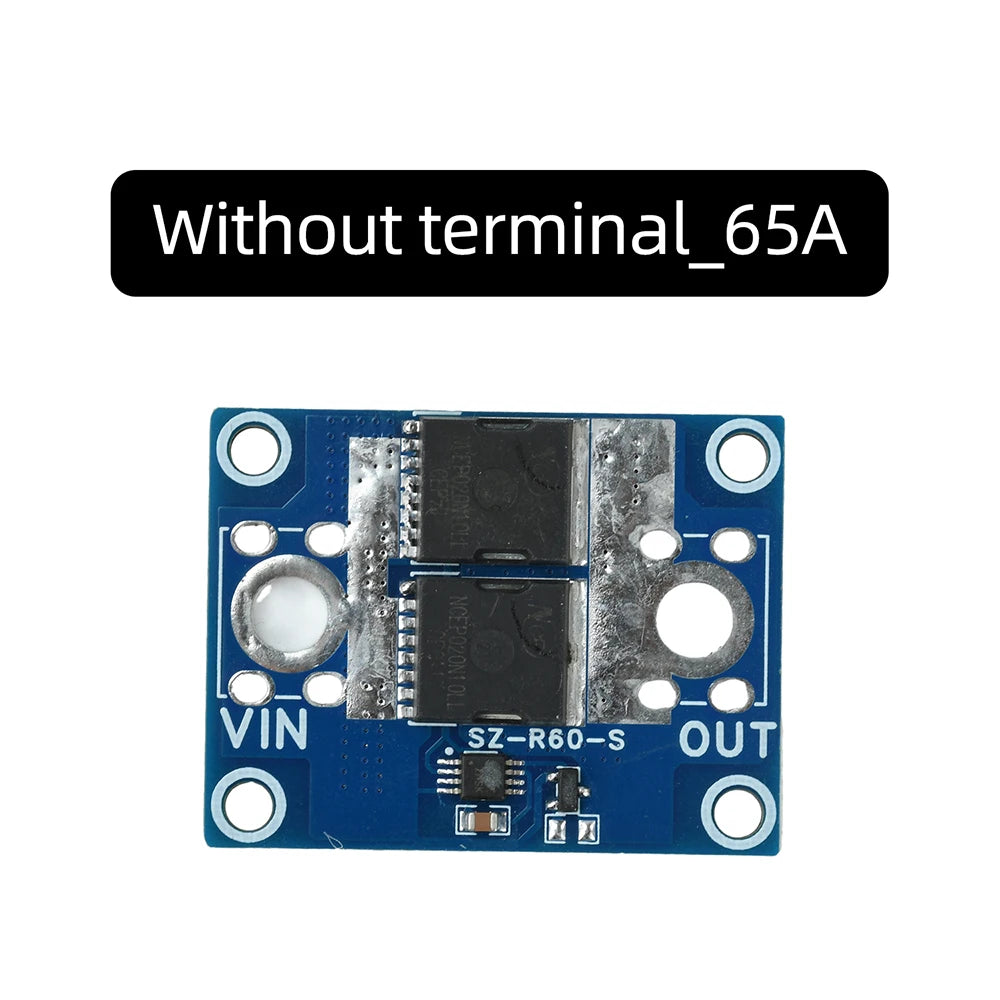

Gaqqee High-Current Ideal Diode Module — 40A / 65A / 100A

Upgrade your solar charging system or battery circuit with the Gaqqee High-Current Ideal Diode Module. Available in three current ratings — 40A, 65A, and 100A — this MOSFET-based module delivers ultra-low forward voltage drop, near-zero standby consumption, and lightning-fast reverse turn-off protection in a compact, easy-to-install design. Made in Mainland China.

Why Choose This Ideal Diode Module?

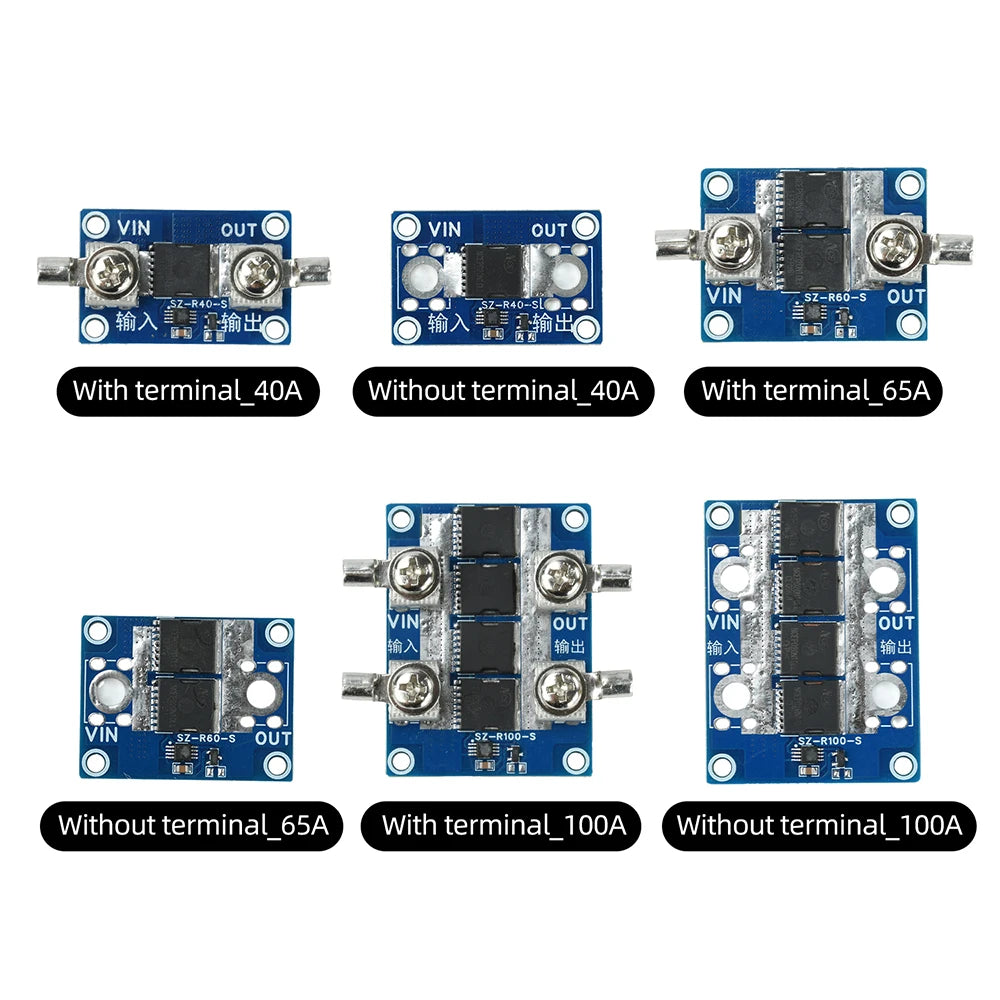

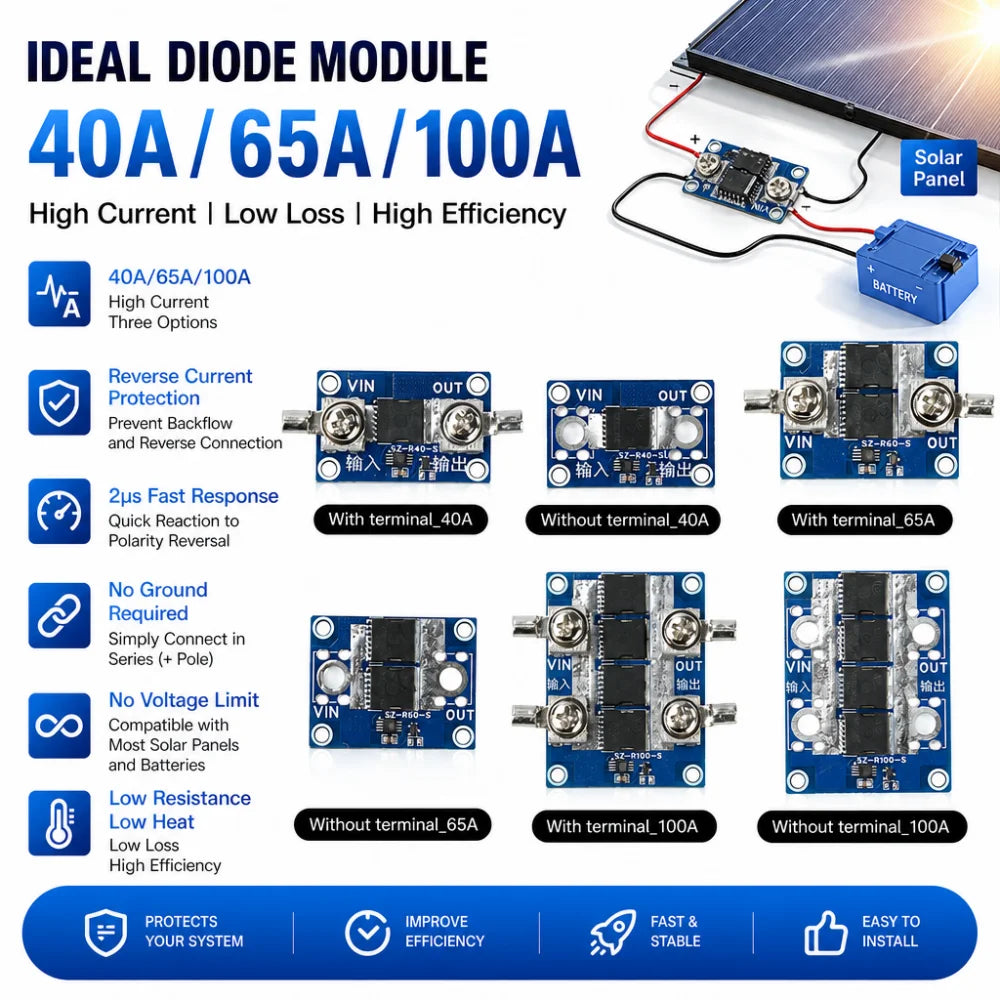

• Three Current Ratings: Select 40A, 65A, or 100A to match your exact application — from compact lithium battery packs to high-demand industrial power supplies.

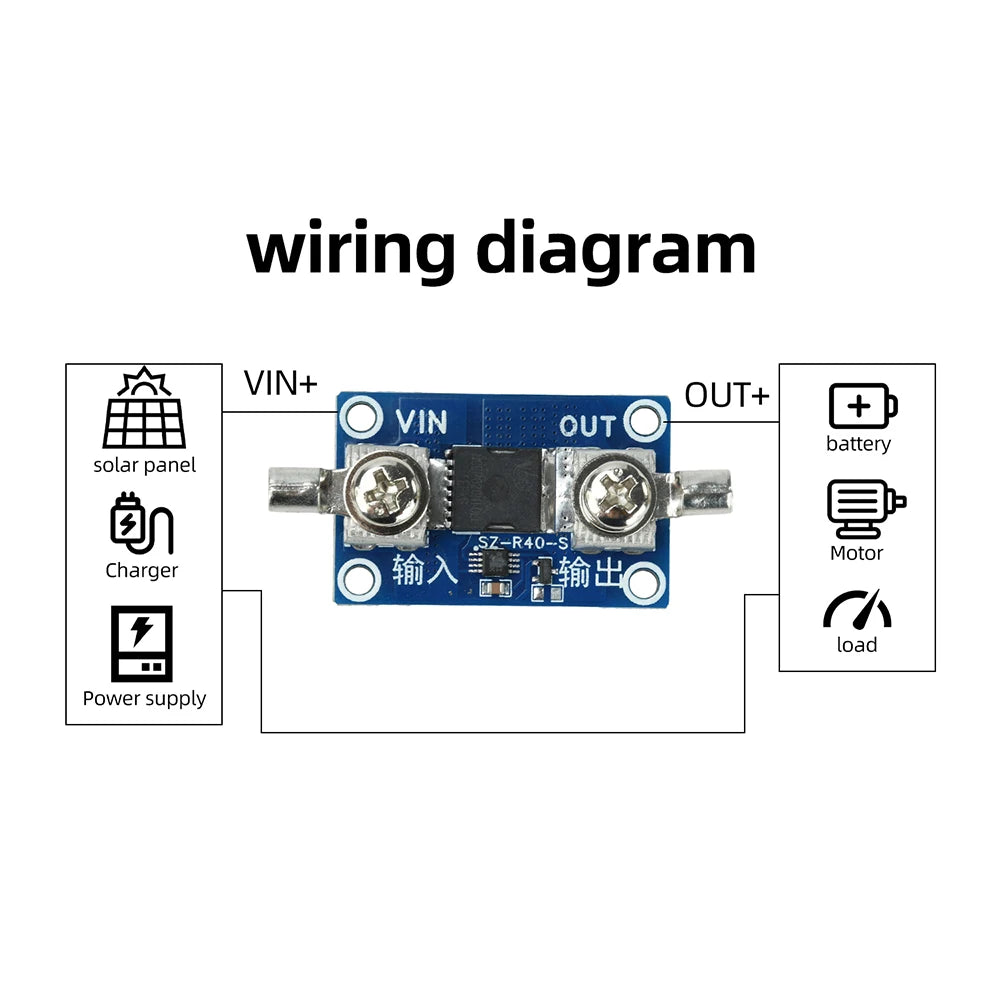

• No Grounding Required: Simply wire it in series with the positive terminal, just like a conventional diode — drastically simplifying system design.
• No Voltage Limit on Input: Compatible with virtually all mainstream solar panels and battery pack voltages (minimum input ≥1V; no upper limit).
• Backflow & Reverse Connection Protection: Protects circuits from reverse current and accidental reverse polarity connections.
• 2 μs Reverse Turn-Off Response: Extremely fast switching ensures your circuits are protected almost instantaneously.
• Ultra-Low On-Resistance: Down to ≈0.22 mΩ (100A version), minimizing heat generation and maximizing efficiency.
• Replaces Schottky Diodes: Ideal for high-current applications where Schottky diodes produce excessive heat and voltage drop.

Key Applications

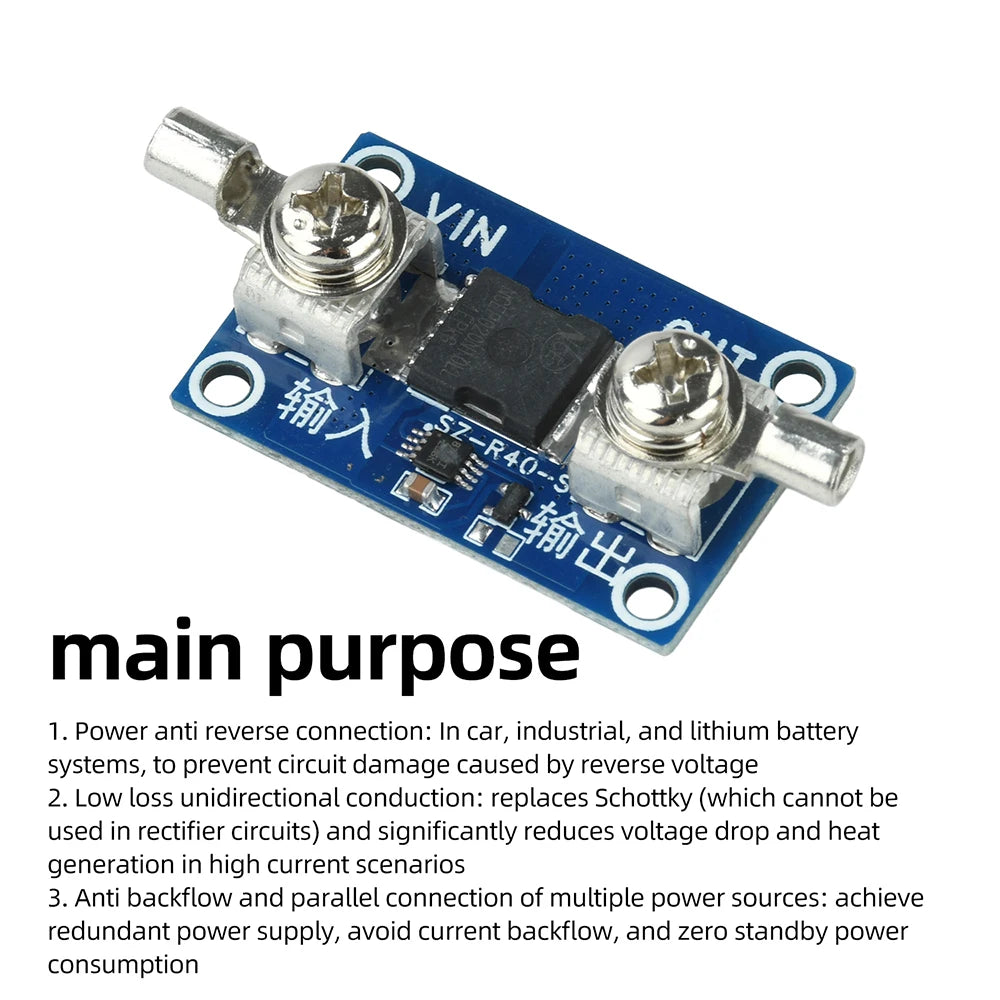

• Solar Charging Systems: Prevents reverse current flow from battery back to panel during low-light conditions.
• Automotive & Industrial Power: Guards against reverse voltage in automotive, industrial, and lithium-ion battery systems.
• Multi-Power-Supply Parallel Operation: Enables redundant power supply configurations and achieves zero standby consumption.
• Low-Loss Unidirectional Conduction: Significantly reduces voltage drop and heat compared to conventional diodes in high-current circuits.

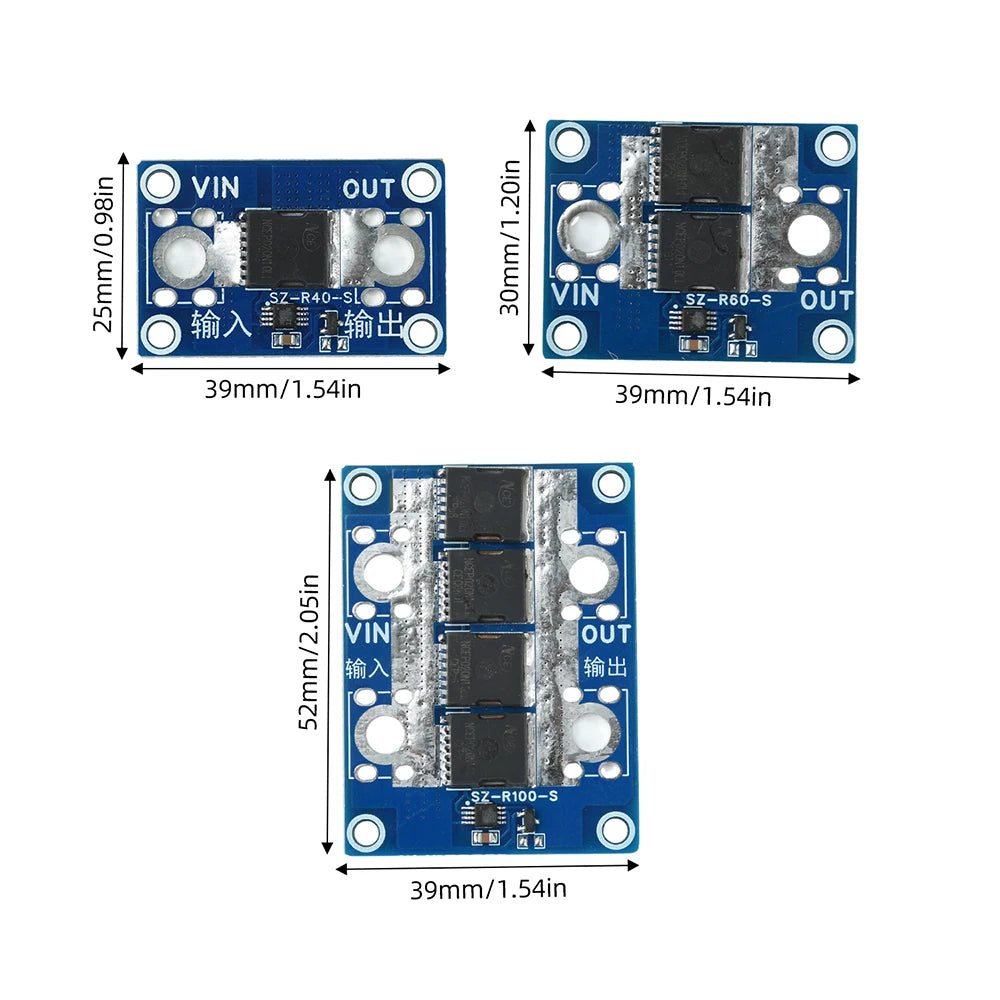

Full Technical Specifications

40A Version

65A Version

100A Version

Important Usage Notes

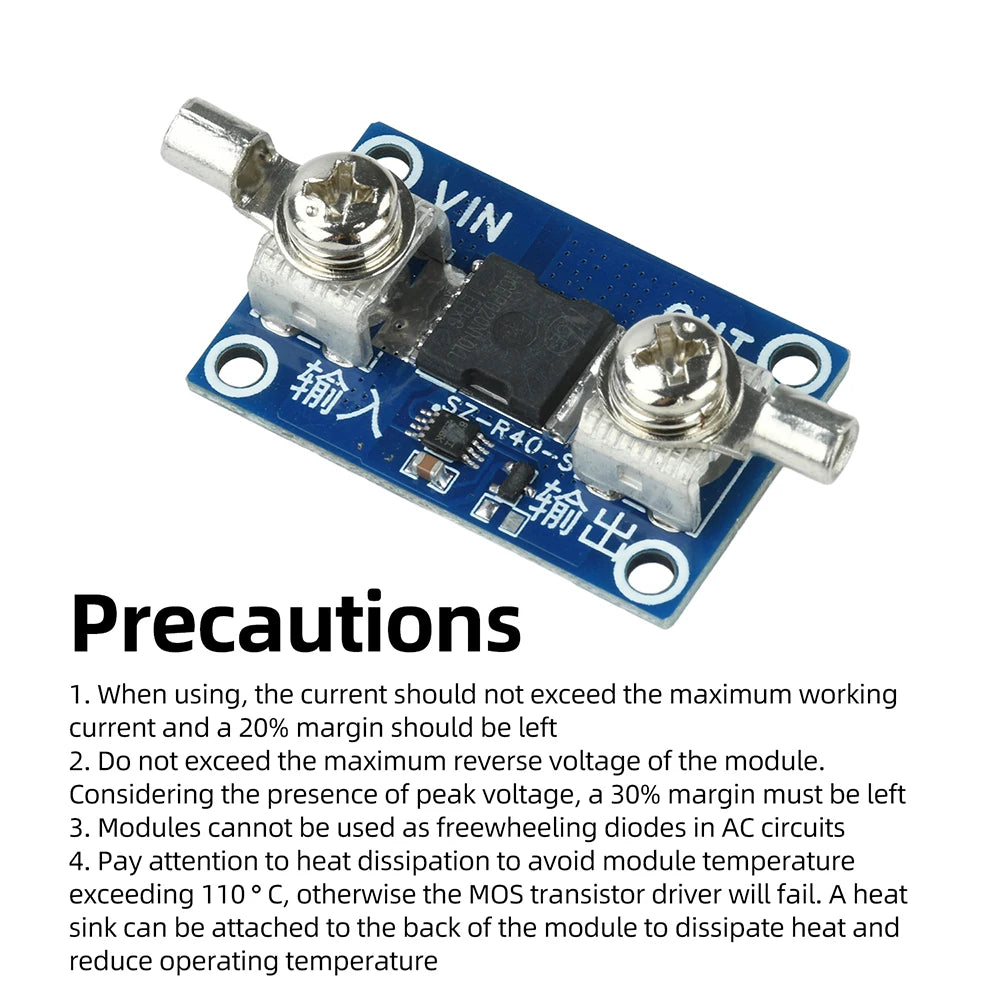

• Do not exceed the rated operating current — maintain a 20% safety margin.
• Reverse voltage must remain below 40V at all times; allow a 30% margin for voltage spikes.
• Not suitable for use as a freewheeling diode in AC circuits or switching power supply freewheeling applications.
• Ensure adequate heat dissipation — module temperature must not exceed 110°C. Attach a heat sink to the back of the module if needed.
• Not ideal for devices operating at currents below 10 mA that are sensitive to minor voltage fluctuations (~0.3–0.4V).

What's in the Box

• Ideal Diode Module × 1 (your selected current rating: 40A, 65A, or 100A)
