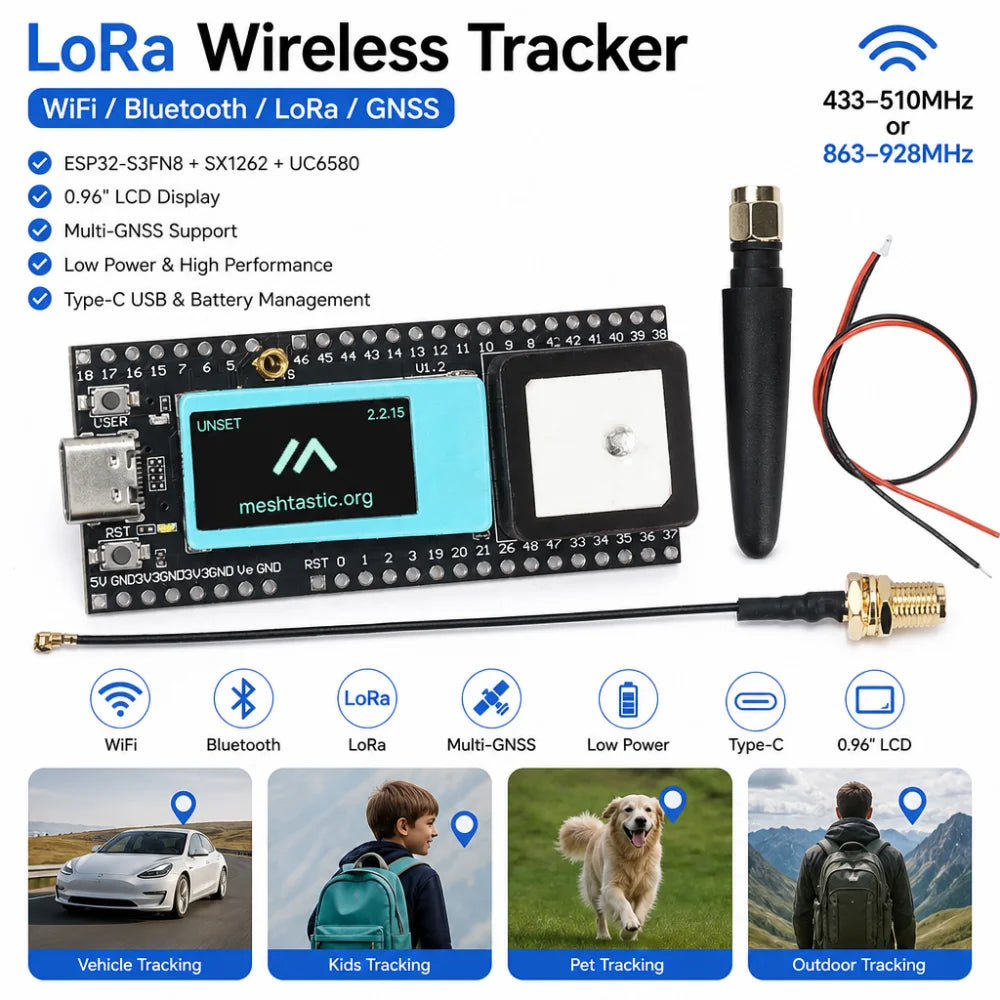

Gaqqee LoRa Wireless Tracker Kit – ESP32-S3 | GNSS | 0.96" LCD

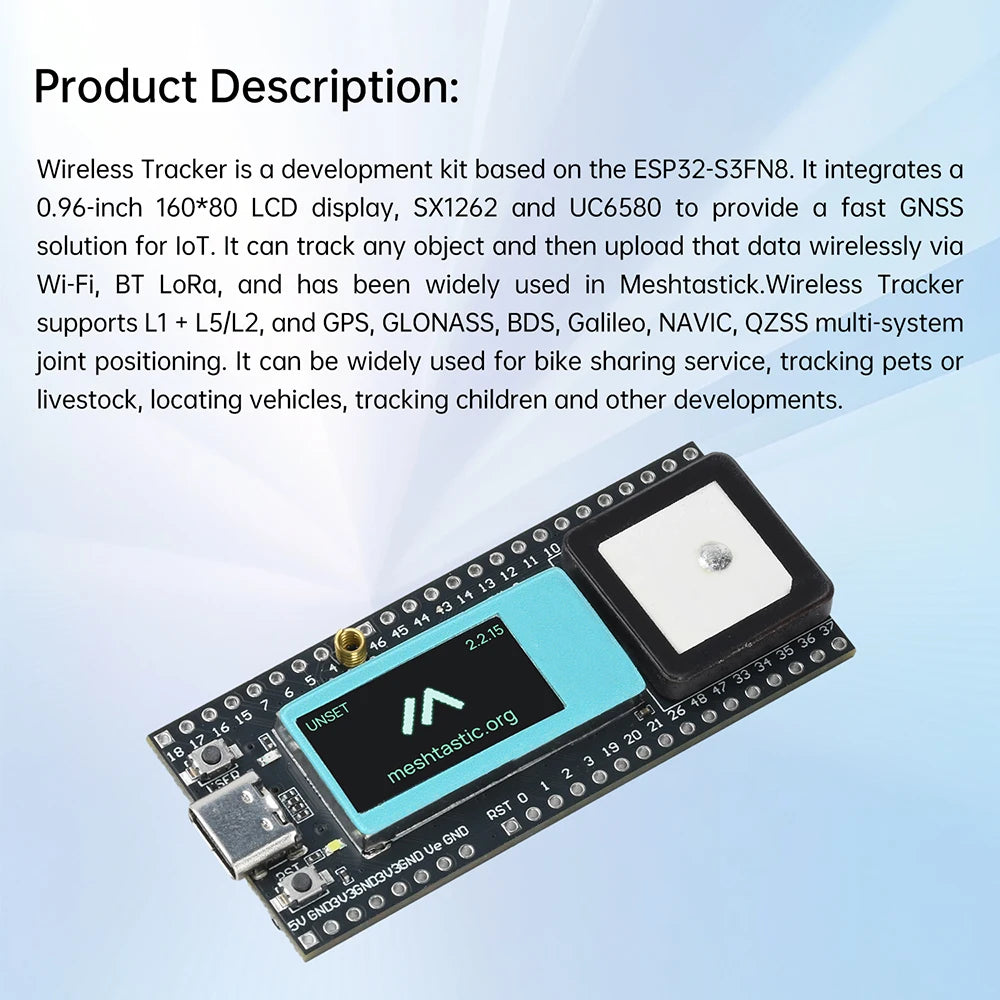

Meet the Gaqqee LoRa Wireless Tracker — a powerful, compact development kit built on the ESP32-S3FN8 processor and combining Wi-Fi, Bluetooth 5, LoRa, and multi-constellation GNSS into a single versatile module. Whether you're building IoT projects, tracking vehicles, monitoring assets, or experimenting with Meshtastic mesh networking, this kit delivers high-precision positioning with ultra-low power consumption. Made in Mainland China.
Why Choose the Gaqqee LoRa Wireless Tracker?
- Quad-connectivity: Wi-Fi 802.11 b/g/n (up to 150 Mbps), Bluetooth 5 / BLE Mesh, LoRa (SX1262), and GNSS (UC6580) — all on one board
- Multi-constellation GNSS: L1 + L5/L2 support across GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS for highly accurate, reliable positioning worldwide
- 22nm low-power design: Dual-frequency, multi-system architecture balances performance with energy efficiency for long-field deployments
- 0.96-inch TFT-LCD display (160×80): Shows real-time debugging data, battery status, and positioning info at a glance
- USB Type-C with full protection: Includes voltage regulation, ESD protection, short-circuit protection, and RF shielding
- Integrated battery management: SH1.25-2 battery interface with charge/discharge management, overcharge protection, battery level monitoring, and automatic USB/battery power switching

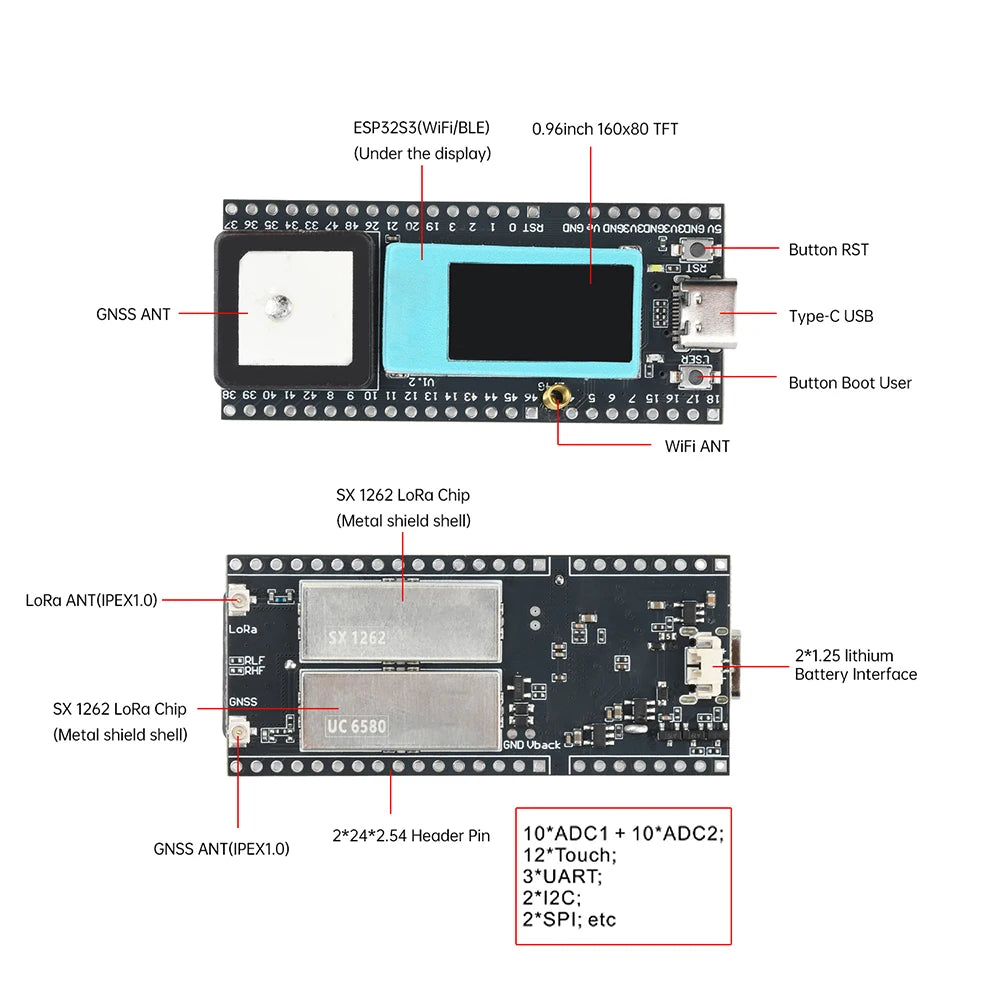

- Dedicated 2.4 GHz metal coil antenna for Wi-Fi and Bluetooth; reserved IPEX (U.FL) interface for LoRa and GNSS antennas
- Wide operating temperature: -20 °C to 70 °C — suitable for demanding outdoor environments
Technical Specifications

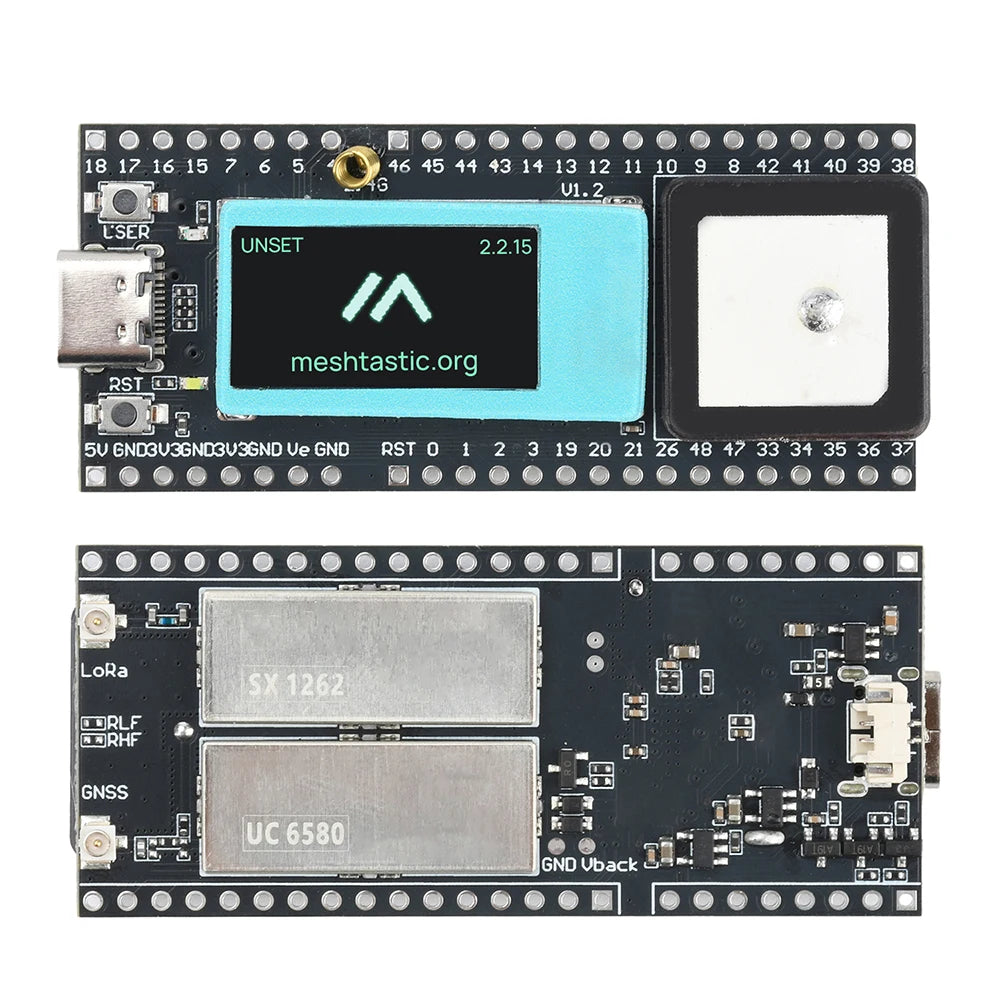

| Main Chip | ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor) |
| LoRa Chipset | SX1262 |
| GNSS Chipset | UC6580 |
| Frequency | 470–510 MHz / 863–928 MHz (Optional) |
| Max TX Power | 21 ± 1 dBm |
| Max Receive Sensitivity | -134 dBm |
| Wi-Fi | 802.11 b/g/n, up to 150 Mbps |
| Bluetooth | Bluetooth 5, Bluetooth Mesh (BLE) |
| Display | 0.96-inch 160×80 dot-matrix TFT-LCD |
| Battery | 3.7V lithium-ion (rechargeable via USB-C) |
| Operating Temperature | -20 °C to 70 °C |
| Hardware I/O | 7× ADC1 + 2× ADC2, 7× touch sensors, 3× UART, 2× I²C, 2× SPI |
| Interfaces | USB Type-C, 2× 1.25 battery connectors, IPEX 1.0 LoRa antenna, 2× 18-pin 2.54mm headers |
| Origin | Made in Mainland China |

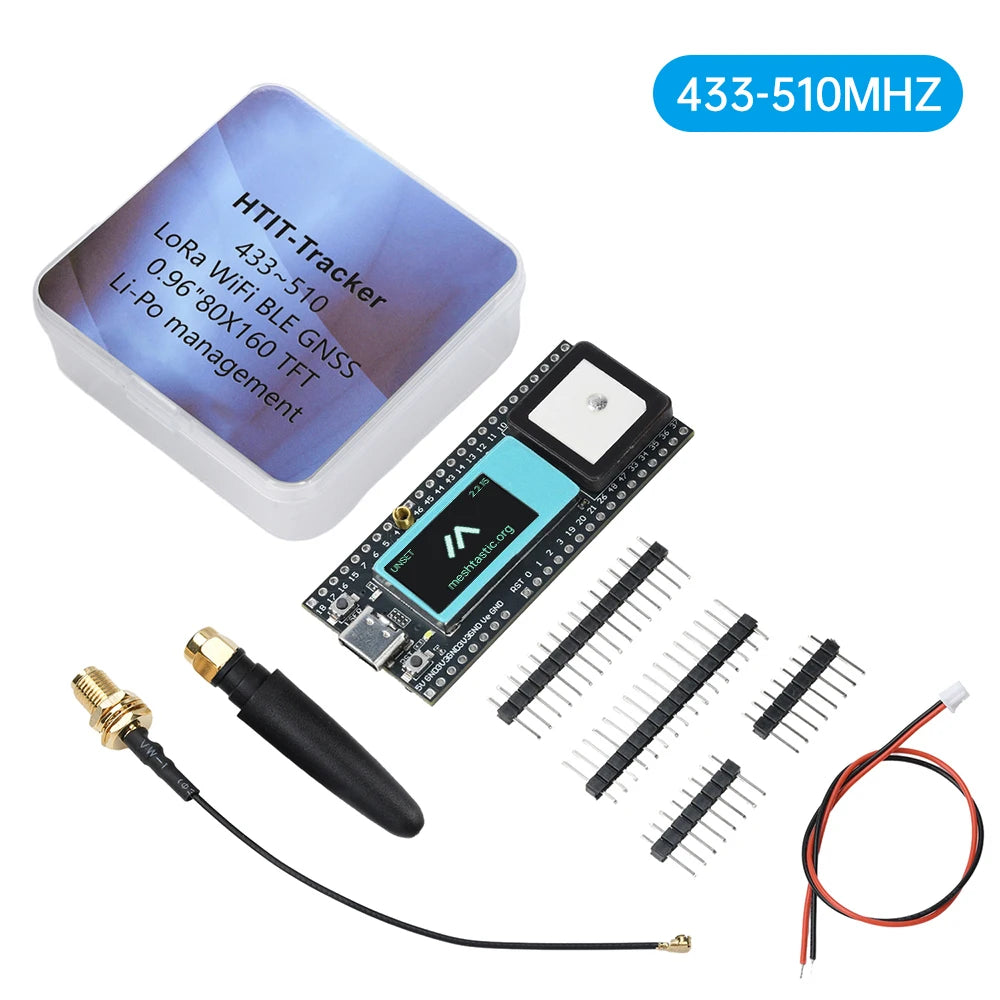

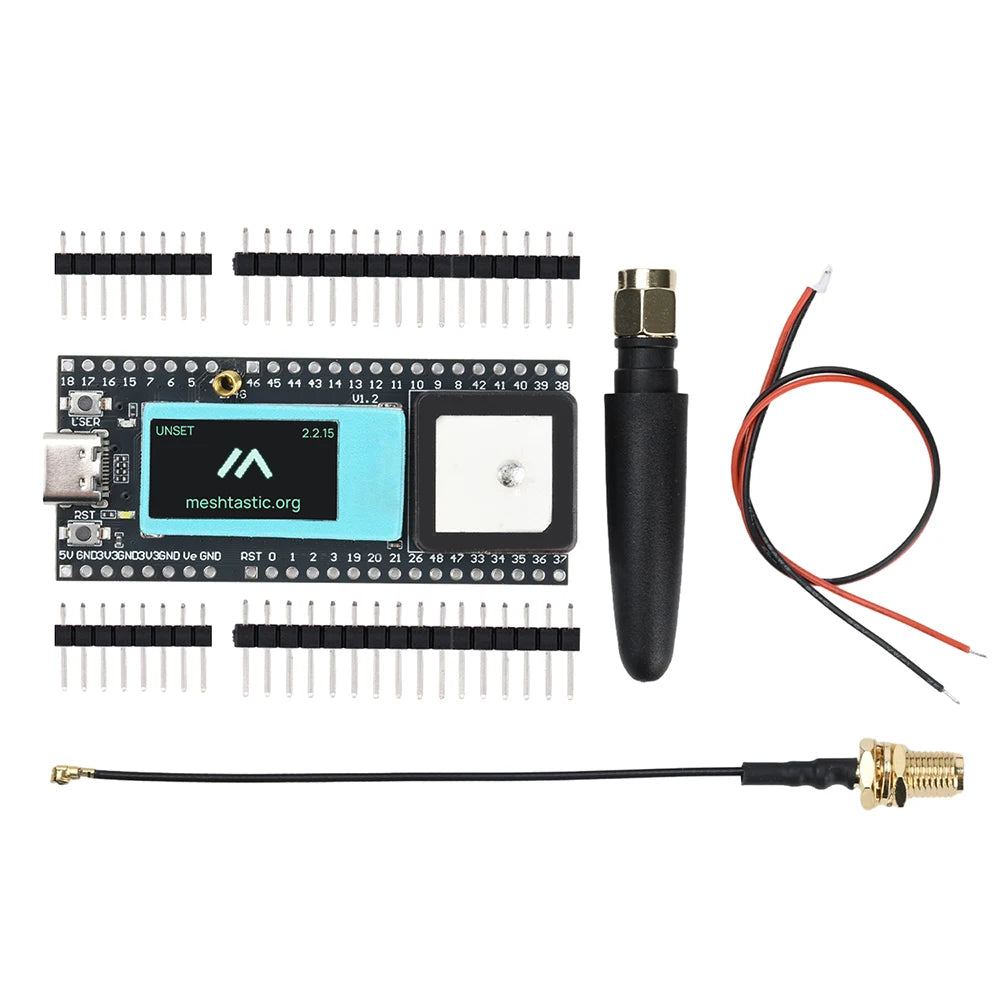

What's in the Box?
- Development board × 1
- Antenna × 1
- Adapter cables × 2
- Header pins × 4
Great For
- Vehicle and asset tracking
- Pet and livestock monitoring
- Bike-sharing fleet management
- Meshtastic / LoRa mesh network nodes
- IoT prototyping and development
- Smart agriculture and field sensors
You Might Also Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts
- Ceramic Mini Sealed Storage Jar – Portable Travel Container
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What GNSS systems does the LoRa Wireless Tracker support?
A: The Gaqqee LoRa Wireless Tracker supports multi-constellation positioning using GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS via the UC6580 chipset, covering both L1 + L5/L2 frequency bands for highly accurate, global positioning.
Q: What wireless communication protocols does this tracker support?
A: It supports four wireless protocols: Wi-Fi (802.11 b/g/n, up to 150 Mbps), Bluetooth 5 with BLE Mesh, LoRa (SX1262, 470–928 MHz), and GNSS — making it ideal for IoT projects, Meshtastic mesh networking, and long-range asset tracking.
Q: Is the LoRa Wireless Tracker compatible with Meshtastic?
A: Yes! The Gaqqee LoRa Wireless Tracker has been widely used with Meshtastic — an open-source LoRa mesh network platform — allowing off-grid, decentralized communication and location sharing between nodes without relying on cellular networks.
Q: Does it have a built-in battery, and can it be charged via USB?
A: The board features an on-board SH1.25-2 battery interface and an integrated lithium-ion battery management system. It supports charging via USB Type-C with overcharge protection and automatic switching between USB and battery power.
