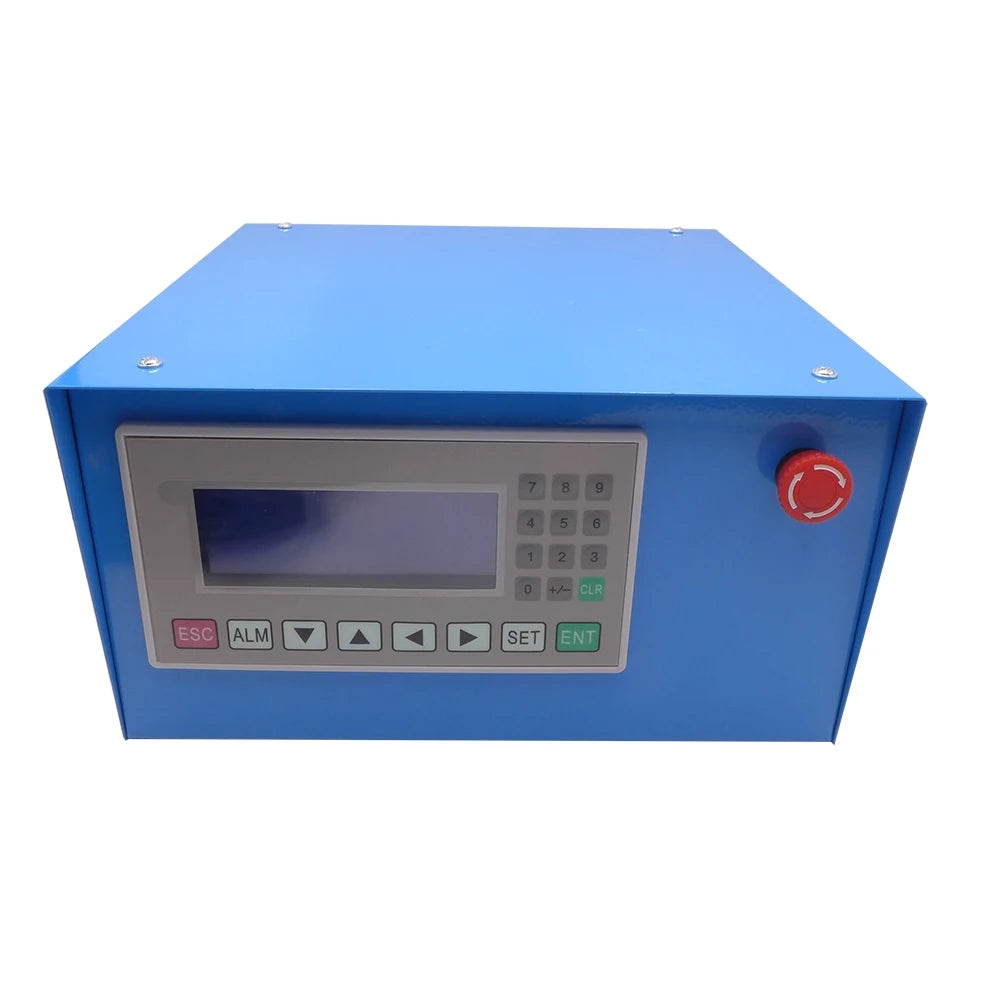

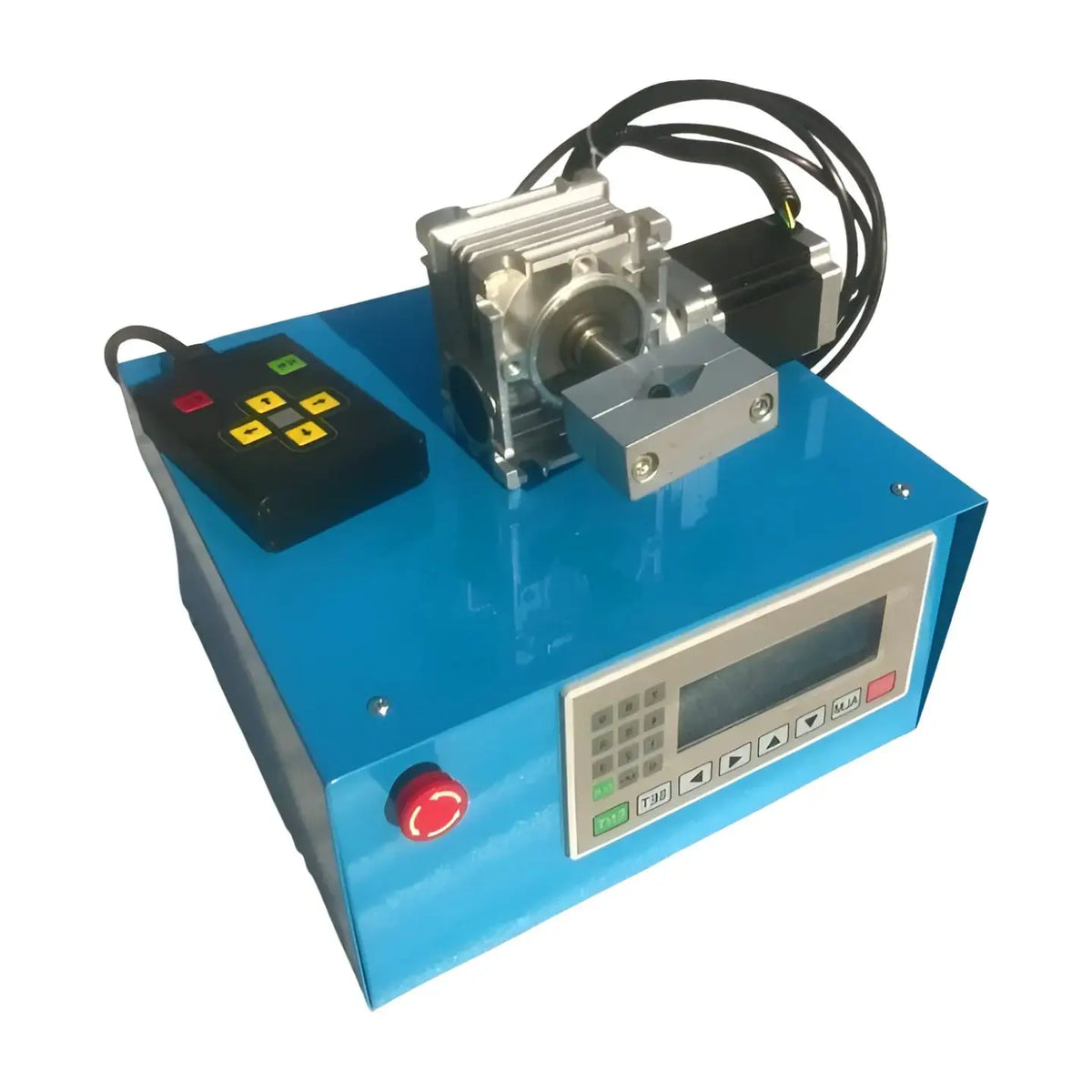

HDQ-2 Automatic Welding Oscillator – PLC Controlled Pendulum Type
Take your welding automation to the next level with the HDQ-2 Automatic Welding Oscillator (Pendulum Type) by JINSLU. This motorized weaving mechanism delivers precise, repeatable oscillatory arc movement across the weld surface — left to right and back — ensuring consistent, high-quality weld bead formation on every pass. Ideal for professional welding shops, fabrication facilities, and automated production lines. Made in Mainland China.
Why Choose the HDQ-2 Welding Oscillator?
- High-Reliability PLC Control: Ensures your welding parameters are executed with pinpoint accuracy every time, eliminating human error and improving repeatability.
- Stepper Motor Drive with Screw Transmission: Delivers high control precision and an extended service life for demanding industrial environments.
- Fully Enclosed Mechanical Design: Protects internal components from weld spatter and debris, ensuring consistent weld formation and reduced maintenance.

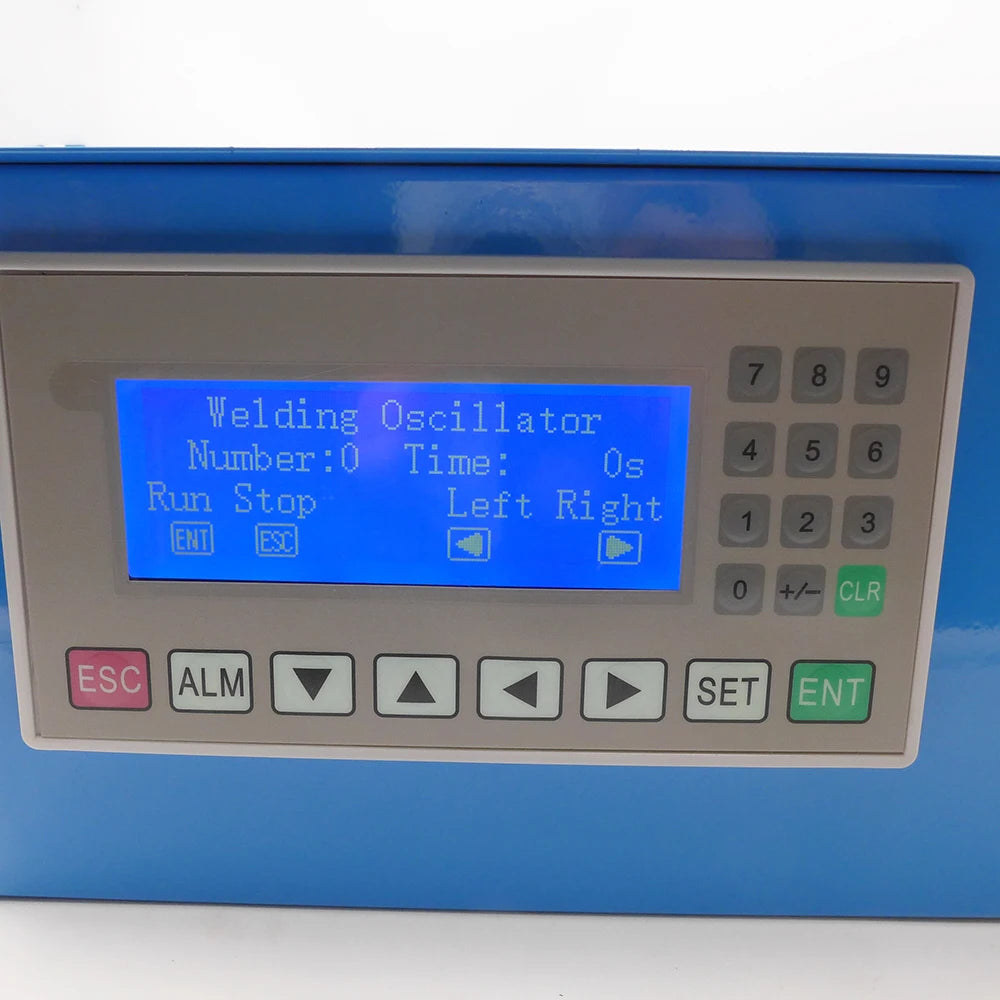

- Intuitive Text Display Interface: Simple human-computer interface makes parameter setting straightforward — no specialist programming knowledge required.
- 10 Storable Welding Process Presets: Save and recall up to 10 oscillation process settings, adjustable to plate thickness and weld seam width.
- Timing Function: Configurable up to 100 minutes (6,000 seconds) for timed welding runs.
- Independent Stop-Time Control: Left, right, and center dwell times can each be set individually per process, giving you granular control over bead profile.

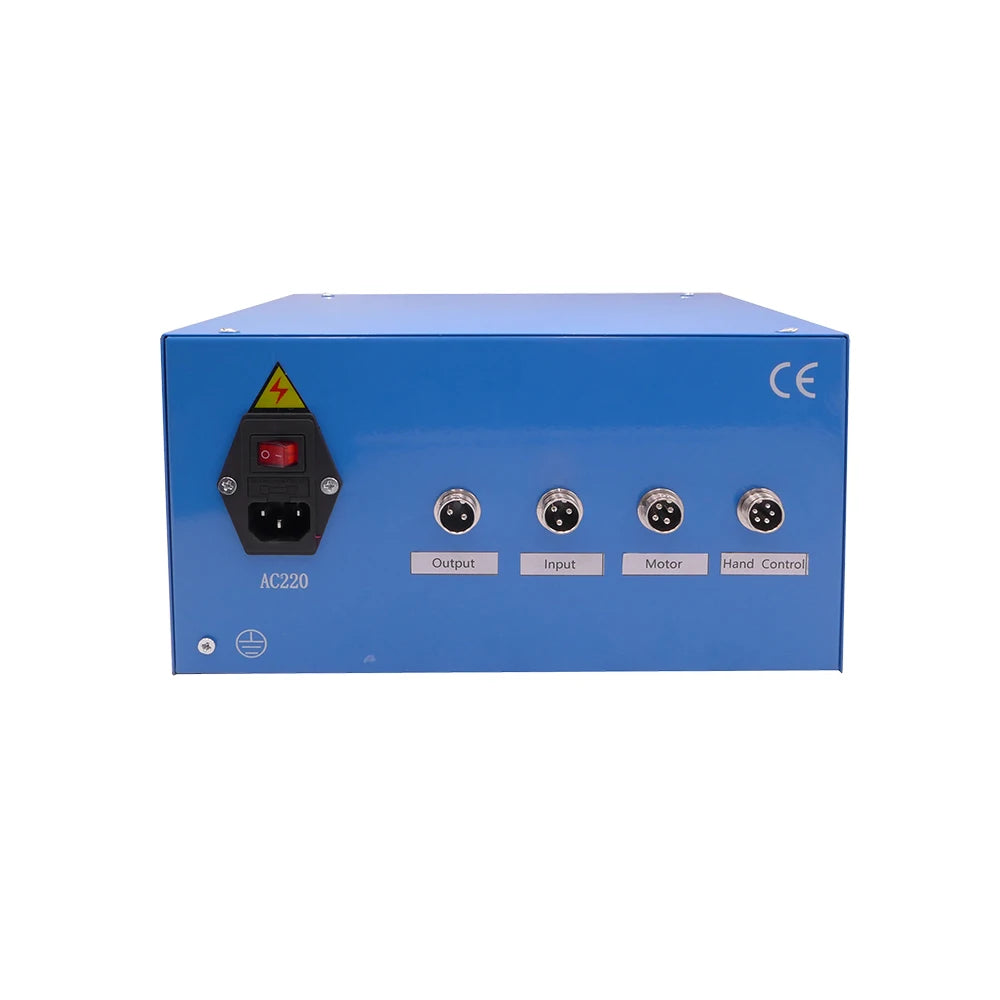

- Standalone or Integrated Operation: Works independently or integrates with your welding line via built-in I/O interfaces to control start/stop of welders and peripheral equipment.
- On-the-Fly Adjustment: Oscillation parameters and center position can be modified during operation without stopping the process.
- Dual Control Mode: Both on-screen and manual controls are available, giving operators flexible, convenient operation.
- Optional Manual/Pneumatic Adjustment Slider: Can be added for swing-part fine-tuning, further enhancing automation capability.
Compatible Welding Processes
The HDQ-2 is designed for use with a wide range of automated welding and cladding processes, including:
- TIG (GTAW)
- MIG/MAG (GMAW)
- SAW (Submerged Arc Welding)
- FCAW (Flux-Cored Arc Welding)
- Plasma Welding
- PTA (Plasma Transferred Arc) Cladding
- Powder Plasma Cladding
Technical Specifications
| Parameter | HDQ-I Linear Type | HDQ-II Pendulum Type |
|---|---|---|
| Power Input | AC220V 50Hz | AC220V 50Hz |
| Welding Process Presets | 10 | 10 |
| Set Time Range | 0–6000s | 0–6000s |
| Swing Speed Range | 0–50mm/s (0–3m/min) | 0–10°/s |
| Swing Range | ±30mm | 0–360° (Customizable) |
| Centering Adjustment Range | 0–60mm | 0–360° (Customizable) |
| Left / Right / Middle Stop Time | 0–9.9s each | 0–9.9s each |
| Fuse Capacity | 2A | 2A |
| Oscillator Dimensions | 180×70×50mm | 150×60×60mm |
| Controller Dimensions | 160×360×320mm | 160×360×320mm |
| Oscillator Weight | 1.5 kg | 1.5 kg |
| Controller Weight | 2 kg | 2.2 kg |
| Rated Load | 5 kg | 5 kg |
What's in the Box

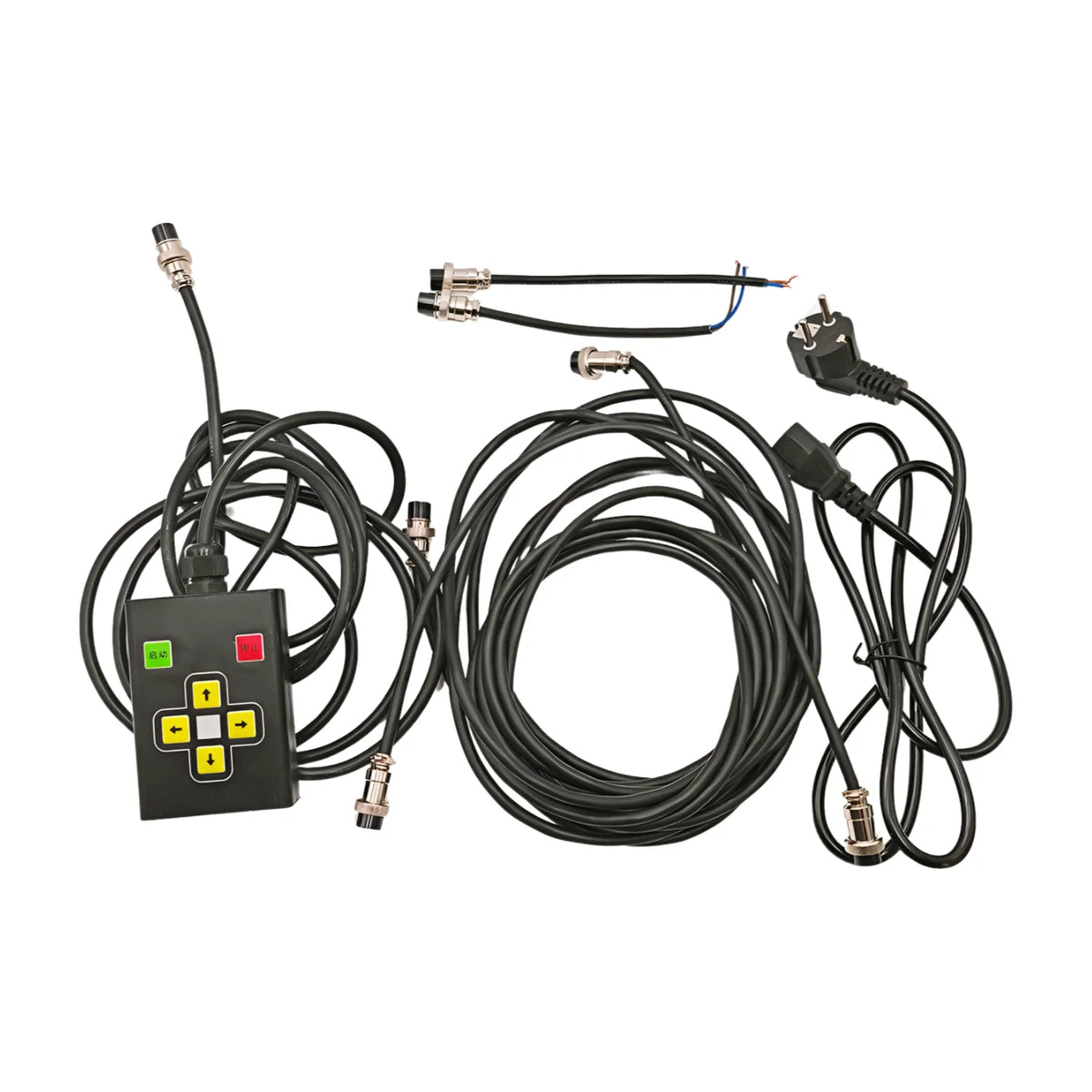

- 1× HDQ-2 Welding Oscillator (Pendulum Type)
Explore More Precision Craft & Workshop Tools
Looking for other precision tools for your workshop? Check out our Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm and our Stainless Steel Ceramic Trimming Tool – Curved Skip Knife for more professional-grade workshop accessories.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What welding processes is the HDQ-2 automatic welding oscillator compatible with?
A: The HDQ-2 PLC welding oscillator is compatible with a wide range of automated welding and cladding processes, including TIG, MIG/MAG, SAW (Submerged Arc Welding), FCAW, Plasma Welding, PTA (Plasma Transferred Arc) cladding, and Powder Plasma Welding. It is ideal for any process that benefits from automated arc weaving.
Q: What is the difference between the HDQ-I Linear Type and the HDQ-II Pendulum Type oscillator?
A: The HDQ-I Linear Type oscillates the welding arc in a straight left-right linear motion with a swing range of ±30mm and speeds up to 3m/min. The HDQ-II Pendulum Type swings in a rotational pendulum arc, with a swing range of 0–360° (customizable) and a swing speed of 0–10°/s, making it better suited for curved surfaces and rotary positioner applications.
Q: Can the HDQ-2 welding oscillator be integrated into an existing automated welding line?
A: Yes. The HDQ-2 features built-in I/O interfaces that allow it to operate as part of an automated welding system. The input interface controls start/stop commands from the line, and the output interface can trigger the welder or other equipment. It can also function as a fully standalone unit.
Q: Is it possible to adjust oscillation parameters while welding is in progress?
A: Absolutely. One of the key advantages of the HDQ-2 is that oscillation amplitude, swing speed, and center position can all be modified on-the-fly during the weld cycle — without stopping the process. This enables real-time adaptation to changing joint conditions on the workpiece.
Q: What power supply does the HDQ-2 welding oscillator require?
A: The HDQ-2 requires a standard AC 220V, 50Hz power supply. Please ensure your facility's power supply matches these specifications before installation.
