HU-091 Ultrasonic Radar Scanner DIY Kit
Build your own radar system from scratch with the HU-091 Ultrasonic Radar Scanner DIY Kit. Powered by USB DC 5V, this hands-on electronics kit combines a servo motor, ultrasonic distance sensor, and a vivid 2.4-inch LCD display to create a fully functional 0–180° scanning radar — perfect for students, makers, and coding beginners alike.
Key Features

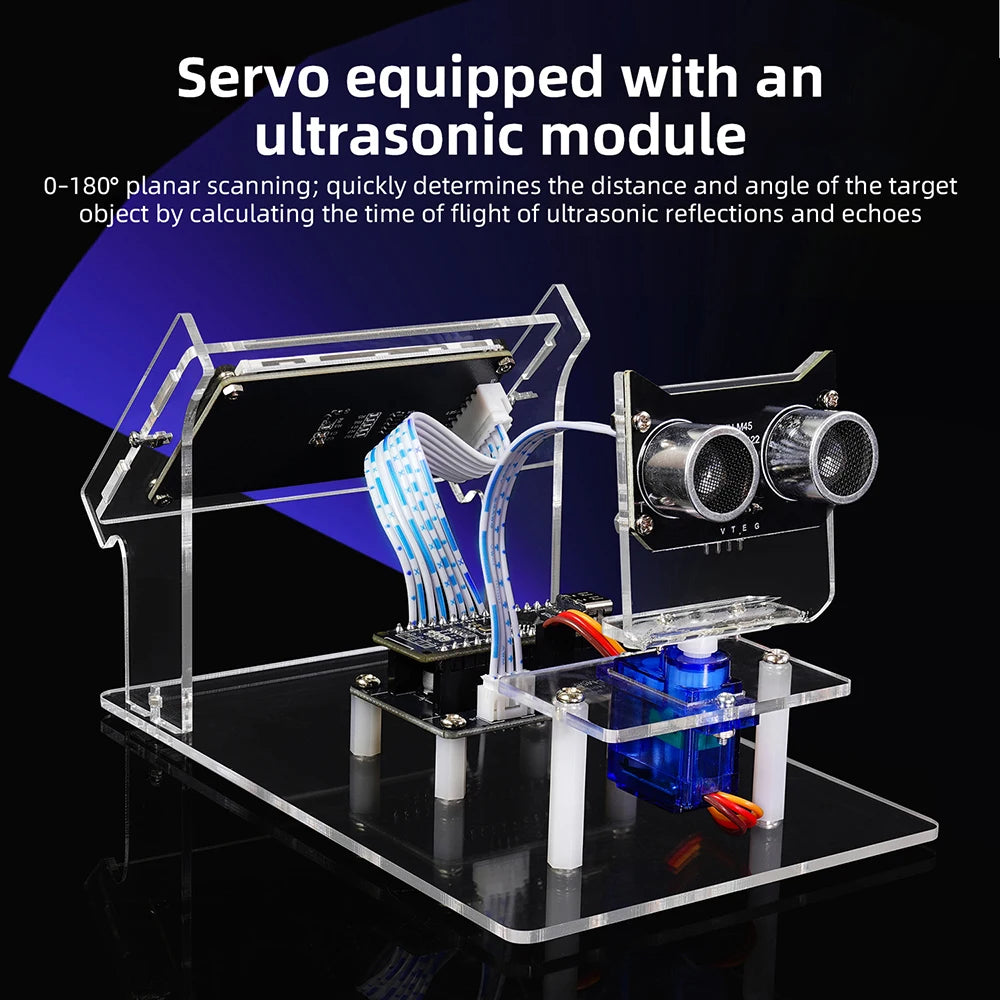

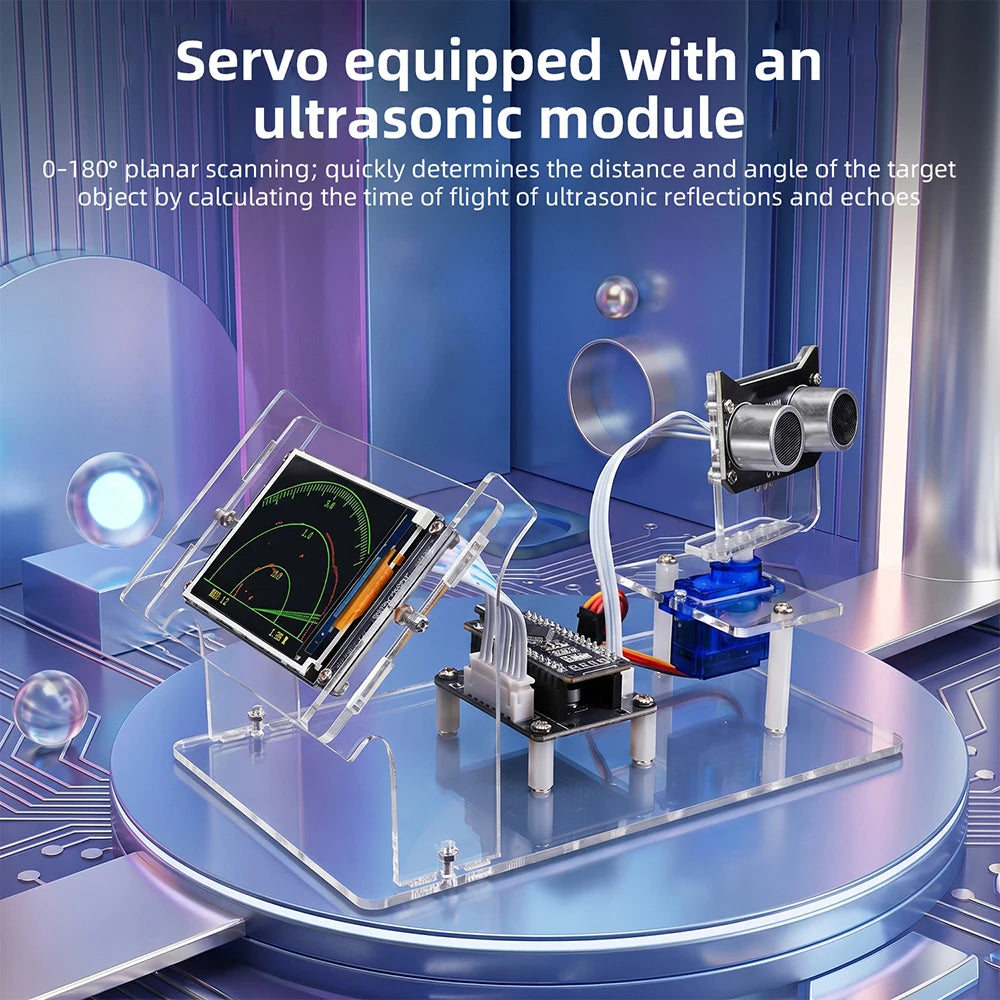

- 0–180° Servo Scanning: A servo motor sweeps the ultrasonic module across a full 180° arc, measuring the angle and distance to any detected object in real time.

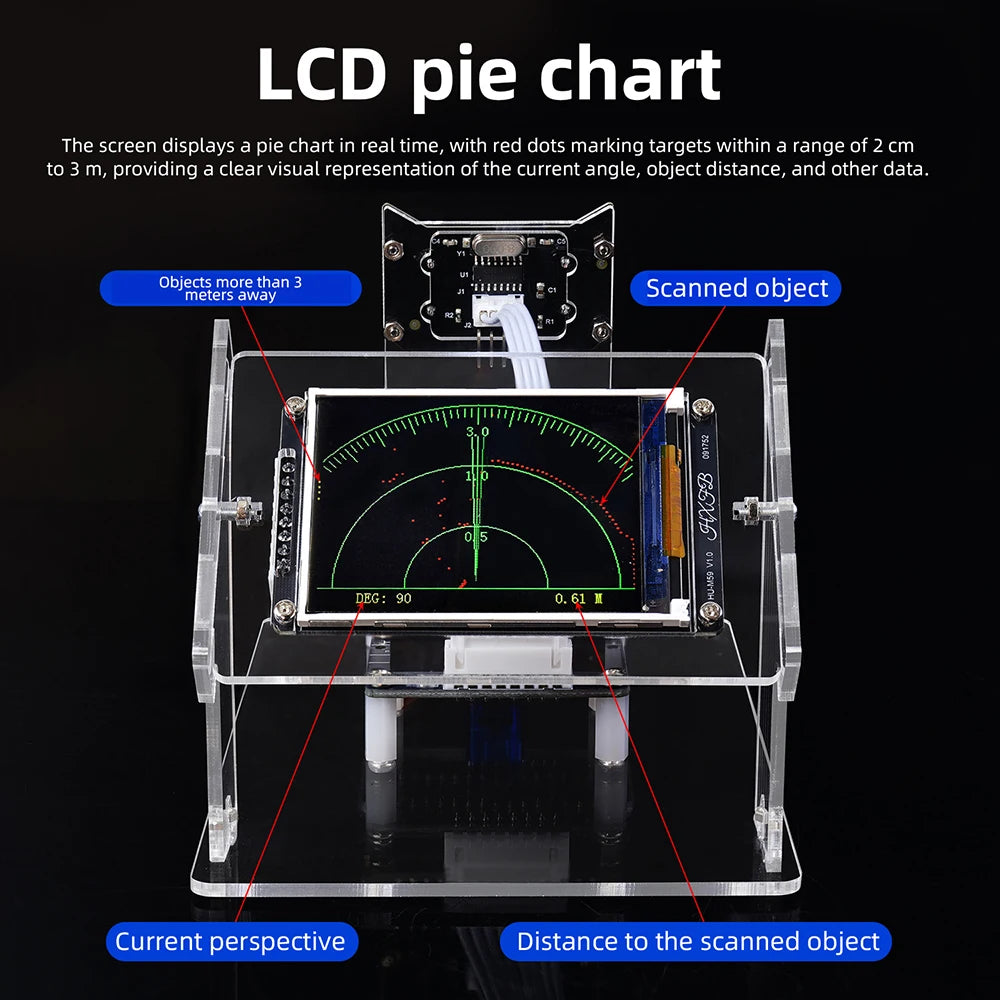

- Real-Time LCD Sector Display: Targets detected within 2 cm to 3 m are shown as red dots on a dynamic sector diagram right on the built-in 2.4-inch LCD screen — visually striking and immediately intuitive.
- HXFB Drag-and-Drop Graphical Programming: Includes compatibility with HXFB graphical programming software, making it ideal for beginners learning to code without needing to write a single line of syntax.

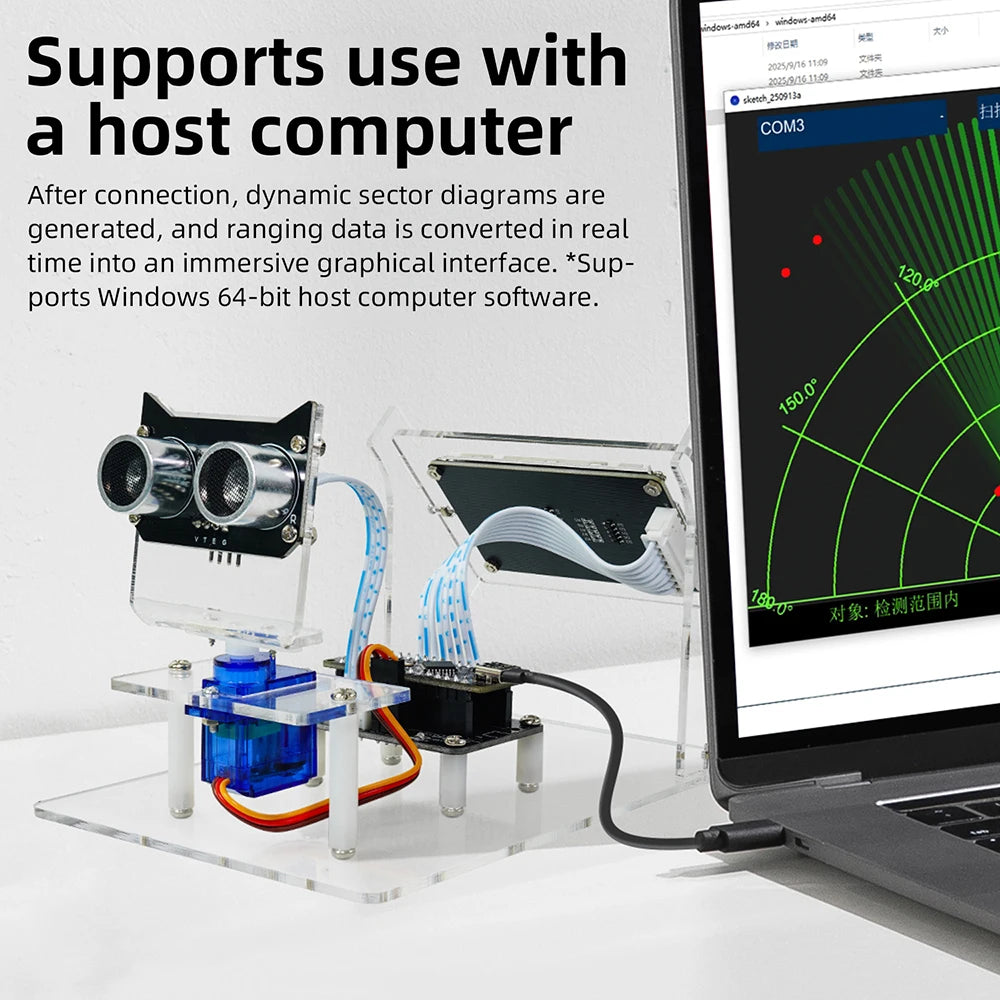

- PC Radar Display Software: Connect to a Windows 64-bit PC to view a dynamic radar sector diagram on your monitor, converting distance data into a live graphical interface.

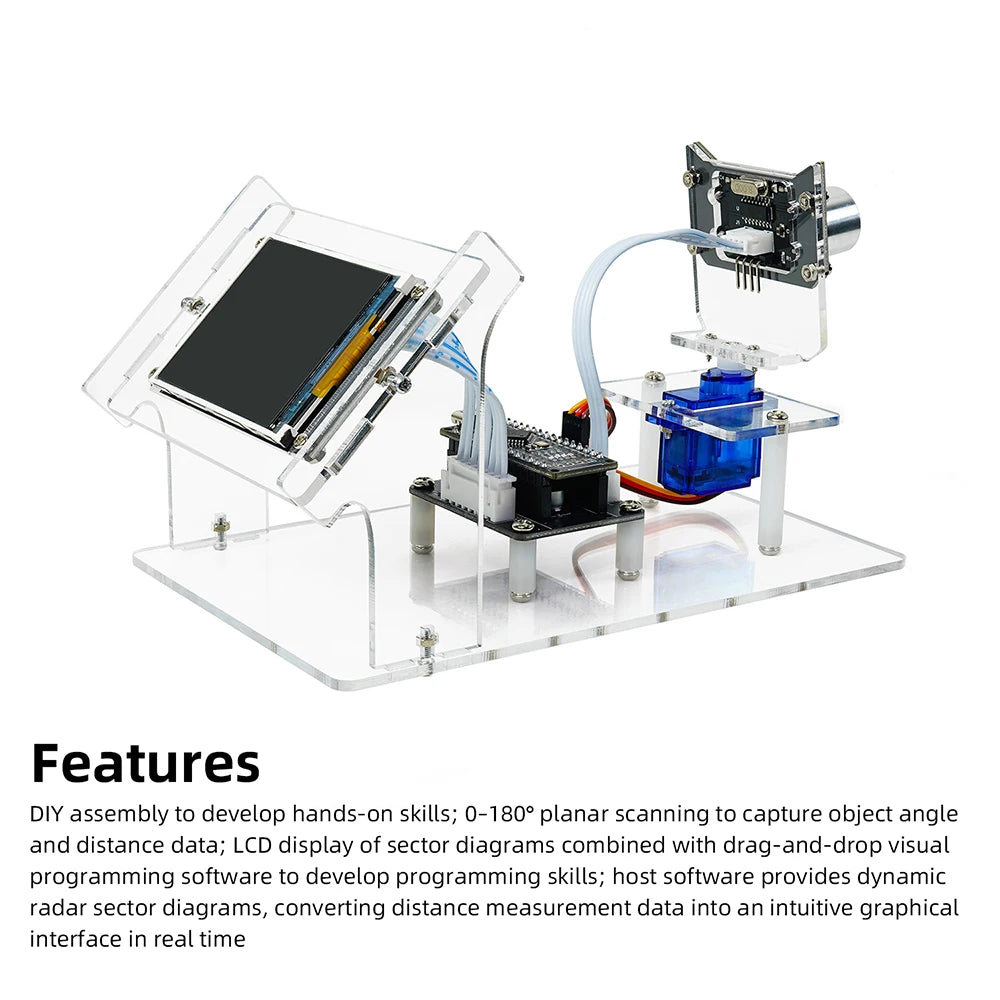

- Full DIY Assembly: Every component is included — assemble, wire, and program it yourself to develop practical electronics and problem-solving skills.
- Low Power Consumption: Runs on standard USB 5V power with a maximum operating current of approximately 150 mA.
Technical Specifications
| Operating Voltage | DC 5V (USB-powered) |
| Maximum Current | ~150 mA |
| Scanning Range | 0–180° |
| Detection Range | 2 cm – 3 m |
| Display | 2.4-inch LCD Module |
| Kit Dimensions | ~153 × 98 mm |
| PC Software Compatibility | Windows 64-bit only |
| Programming Platform | HXFB Graphical (drag-and-drop) |
| Country of Origin | Made in China |

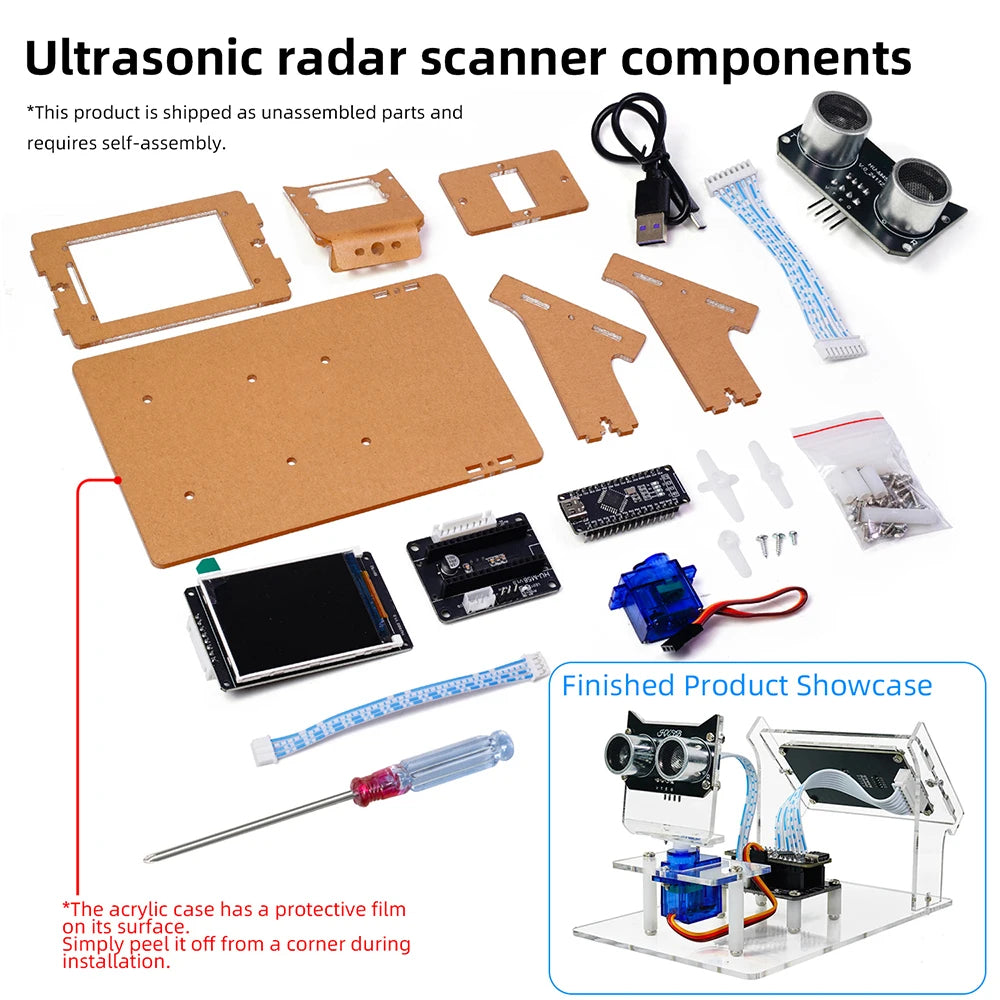

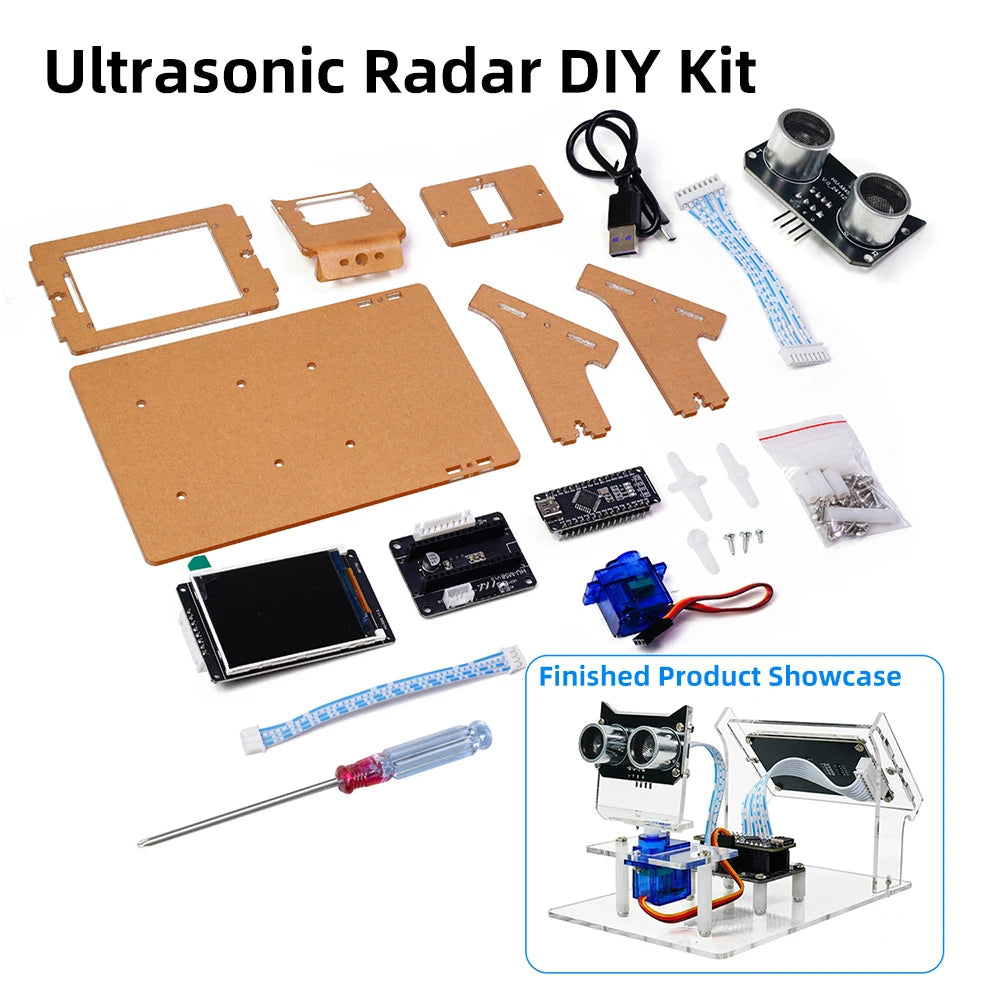

What's in the Box
- HXFB Graphical Programming Core Board × 1
- Ultrasonic Radar Scanner Base Board × 1
- 2.4-inch LCD Display Module × 1
- Ultrasonic Module × 1
- Servo Motor × 1
- Screw Pack × 1
- 4-Pin Ribbon Cable × 1
- 8-Pin Ribbon Cable × 1
- Enclosure × 1
Who Is This Kit For?
Whether you're a student tackling your first electronics project, a parent looking for an engaging STEM activity, or a hobbyist expanding your maker toolkit, the HU-091 is a rewarding build. The drag-and-drop graphical programming interface removes the barrier of learning syntax, so you can focus on understanding logic, loops, and hardware interaction from day one.
