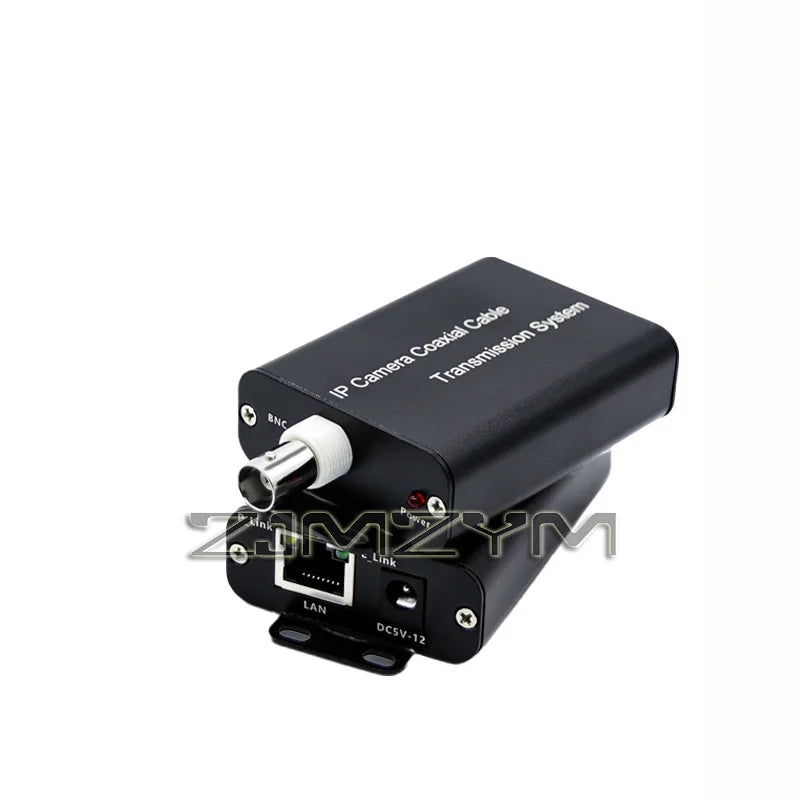

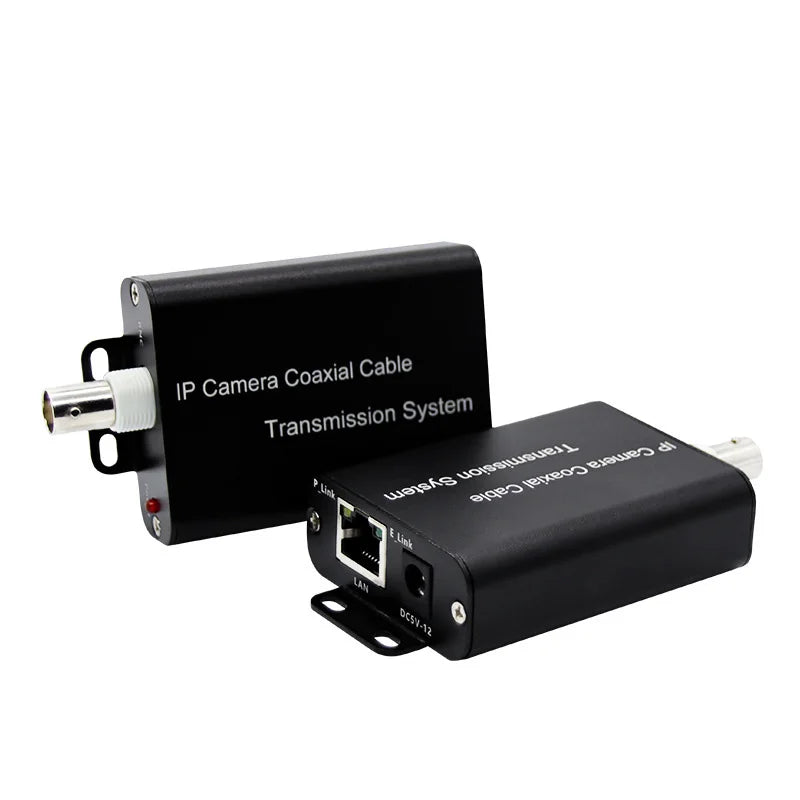

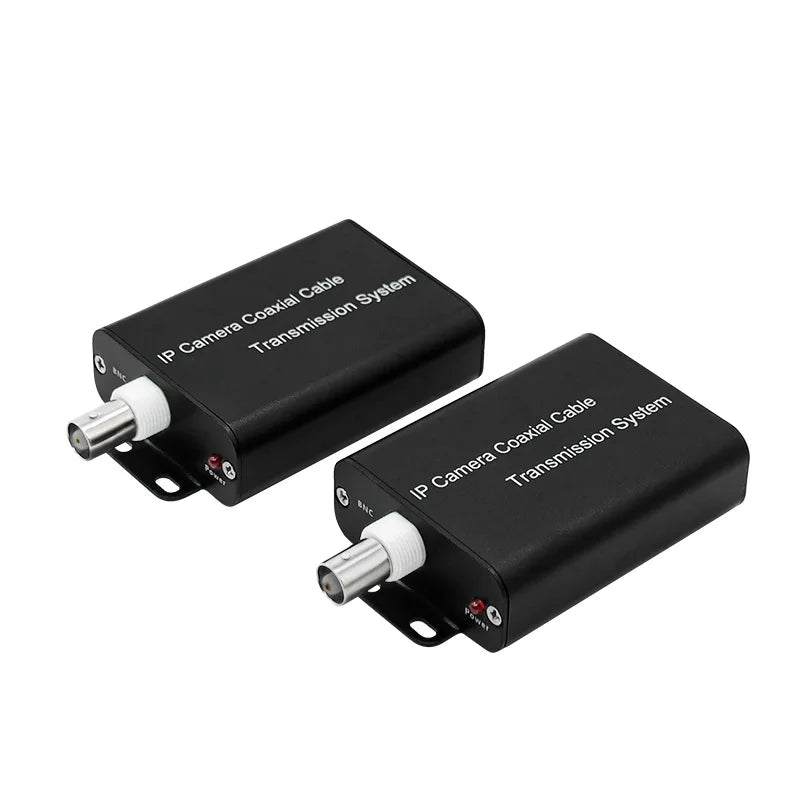

IP Network Extender Coaxial to HD Digital Signal Converter

IP Network Extender – Coaxial to HD Digital Network Signal Converter

Upgrade your surveillance or IP camera setup with this professional-grade IP Network Extender. Designed to convert analog coaxial video signals into HD digital network data, this compact metal converter lets you reuse existing 75-5 coaxial cable infrastructure to carry high-speed IP network signals — saving you the time and cost of rewiring.

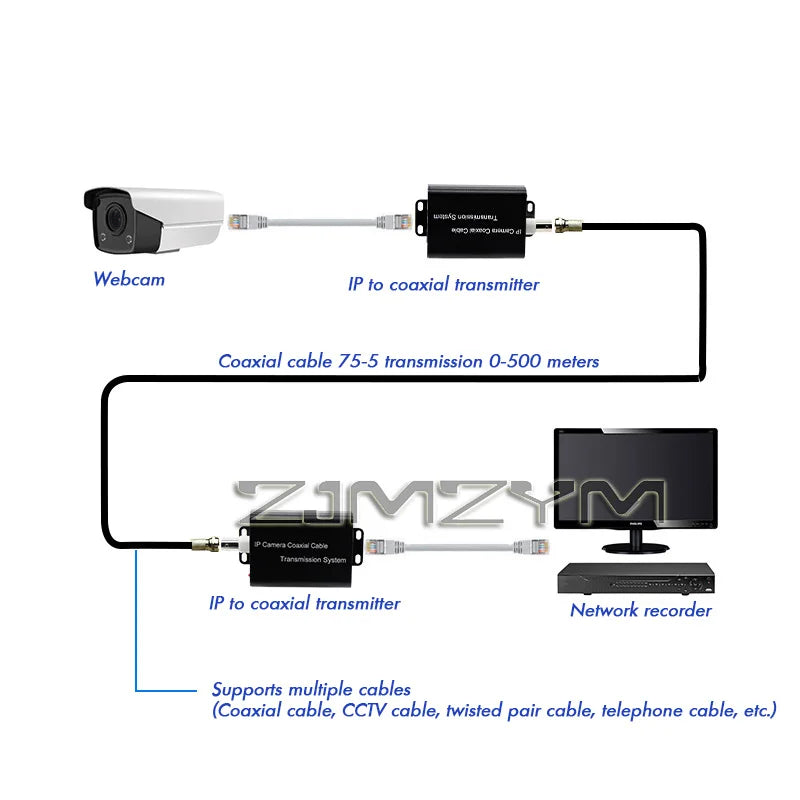

Whether you're extending a security camera network, upgrading from analog CCTV to IP cameras, or transmitting network signals across long distances, this coaxial-to-network converter delivers reliable, amplified signal transmission up to 500 meters over coaxial cable and up to 100 meters via Cat5e/6 network cable.

Made in Mainland China.

Key Features

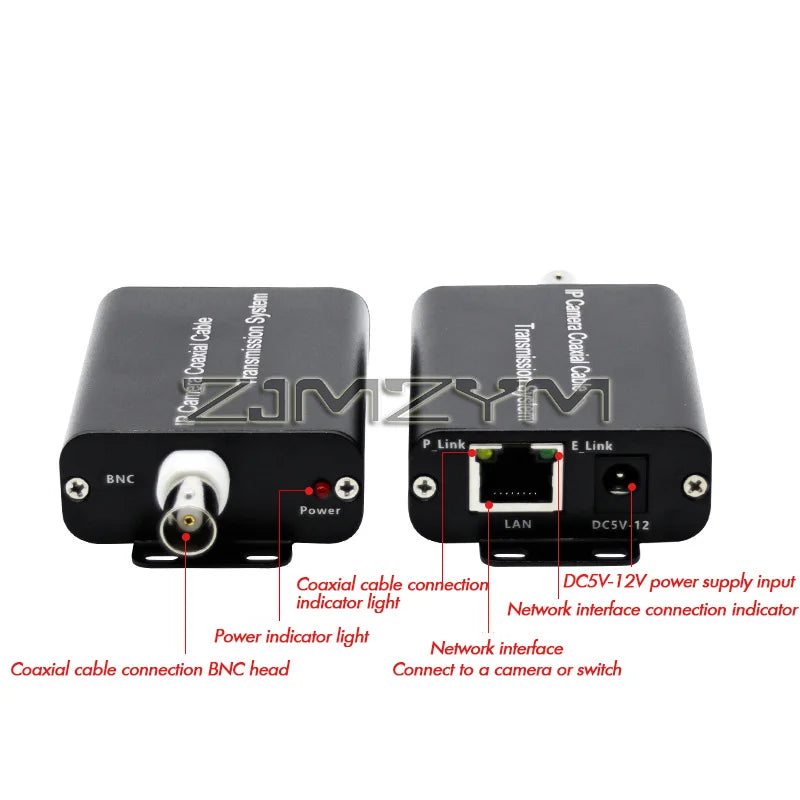

• Dual Interface Support: BNC coaxial (E_Link) and RJ45 network (P_Link) connections for flexible installation
• Long-Distance Transmission: Up to 500m via 75-5 coaxial cable; up to 100m via Cat5e/6 Ethernet
• 10/100Mbps Network Bandwidth: Supports standard fast Ethernet speeds (bandwidth varies with distance)
• Wide Input Voltage: DC 5V–12V for versatile power compatibility (power supply not included)
• Low Power Consumption: Less than 5W — energy-efficient for 24/7 operation
• Durable Metal Housing: Robust construction built for long-term, stable deployment

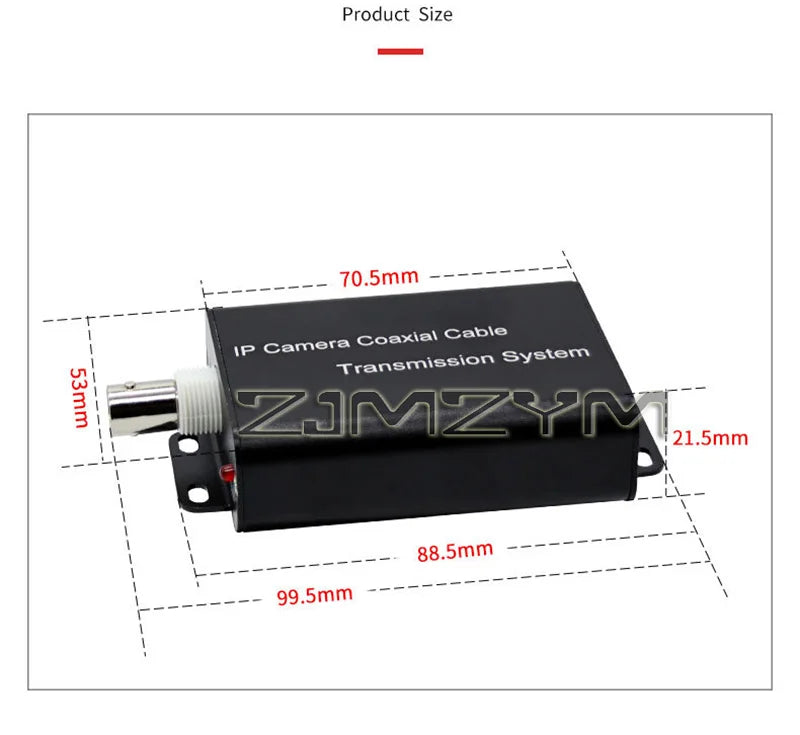

• Compact Form Factor: 99.5 × 70.5 × 21mm — easy to install in tight spaces
• Wide Operating Temperature: -10°C to 60°C — suitable for both indoor and outdoor enclosures

Technical Specifications

What's in the Box?

• 1 × Pair of IP Coaxial Transmitters (HX-COX902M)

Note: Power supply is NOT included. Please use a compatible DC 5V–12V power adapter with a 5.5×2.1mm connector.

Product appearance and color are subject to change due to ongoing upgrades. Please consider this before placing your order if you have specific color or appearance requirements.

You May Also Like

• Airtight Transparent PET Storage Bottle | Beads & Crafts
• Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer
• Ceramic Mini Sealed Storage Jar – Portable Travel Container

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What type of coaxial cable is compatible with this IP network extender?

A: This converter is designed to work with 75-5 coaxial cable or above. It supports BNC interface transmission of up to 500 meters, though the transmission rate may decrease as distance increases.

Q: Does this IP coaxial signal converter come with a power supply?

A: No, the power supply is not included. You will need to provide a separate DC 5V–12V power adapter with a 5.5×2.1mm barrel connector. The unit consumes less than 5W, so a standard low-wattage adapter is sufficient.

Q: Can this converter be used to extend both coaxial and Ethernet network signals?

A: Yes. The device supports dual connection modes: BNC coaxial cable (P_Link) for distances up to 500 meters using 75-5 cable, and RJ45 Ethernet (E_Link) for up to 100 meters using Cat5e or Cat6 network cable.

Q: Is this network extender suitable for outdoor use?

A: The unit operates within a temperature range of -10°C to 60°C, making it compatible with placement inside outdoor enclosures or junction boxes. Its durable metal housing further supports reliable long-term deployment in varied environments.
