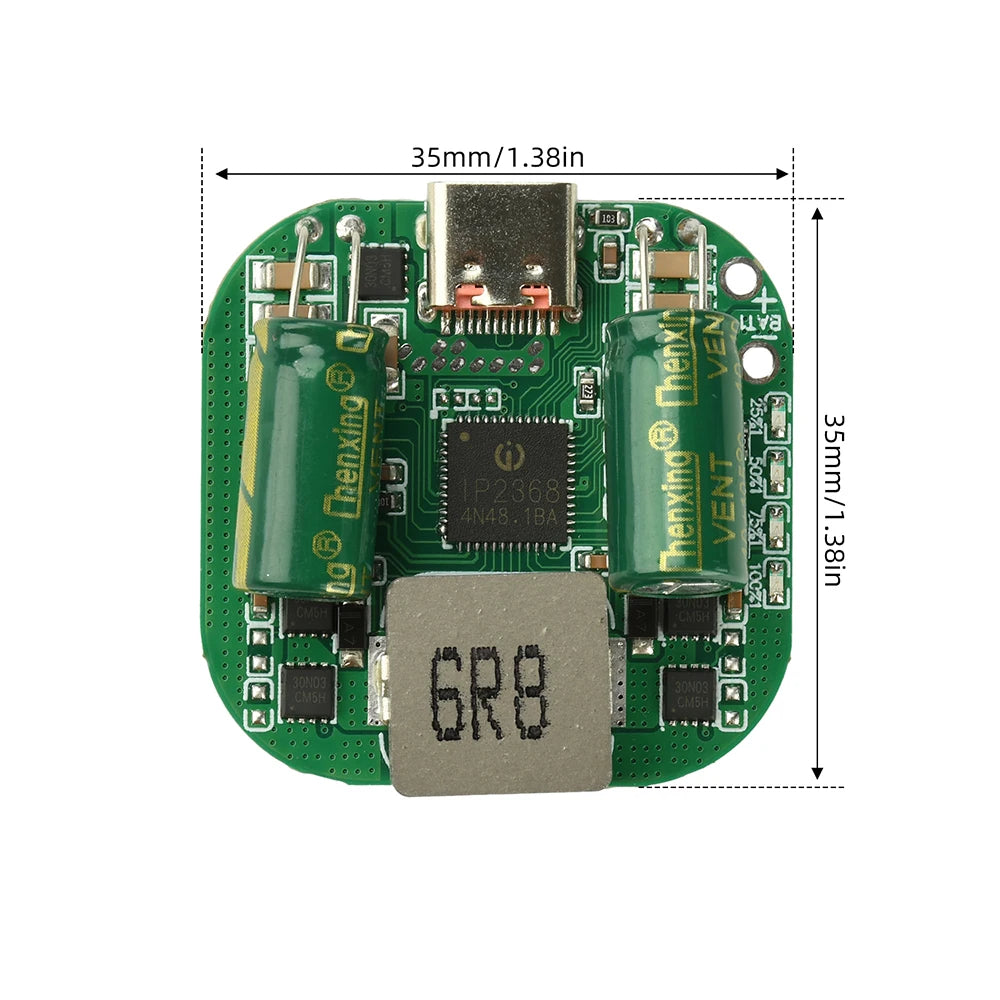

IP2368 100W Bidirectional Charge/Discharge Buck-Boost Module with Type-C PD 3.0
Take your DIY battery projects to the next level with the IP2368 Bidirectional High-Power Charge/Discharge Module. Designed for makers, engineers, and RC enthusiasts, this compact yet powerful module delivers up to 100W of bidirectional power through a single Type-C port, supporting a wide range of fast-charging protocols for maximum compatibility and efficiency. Made in Mainland China.
Key Features

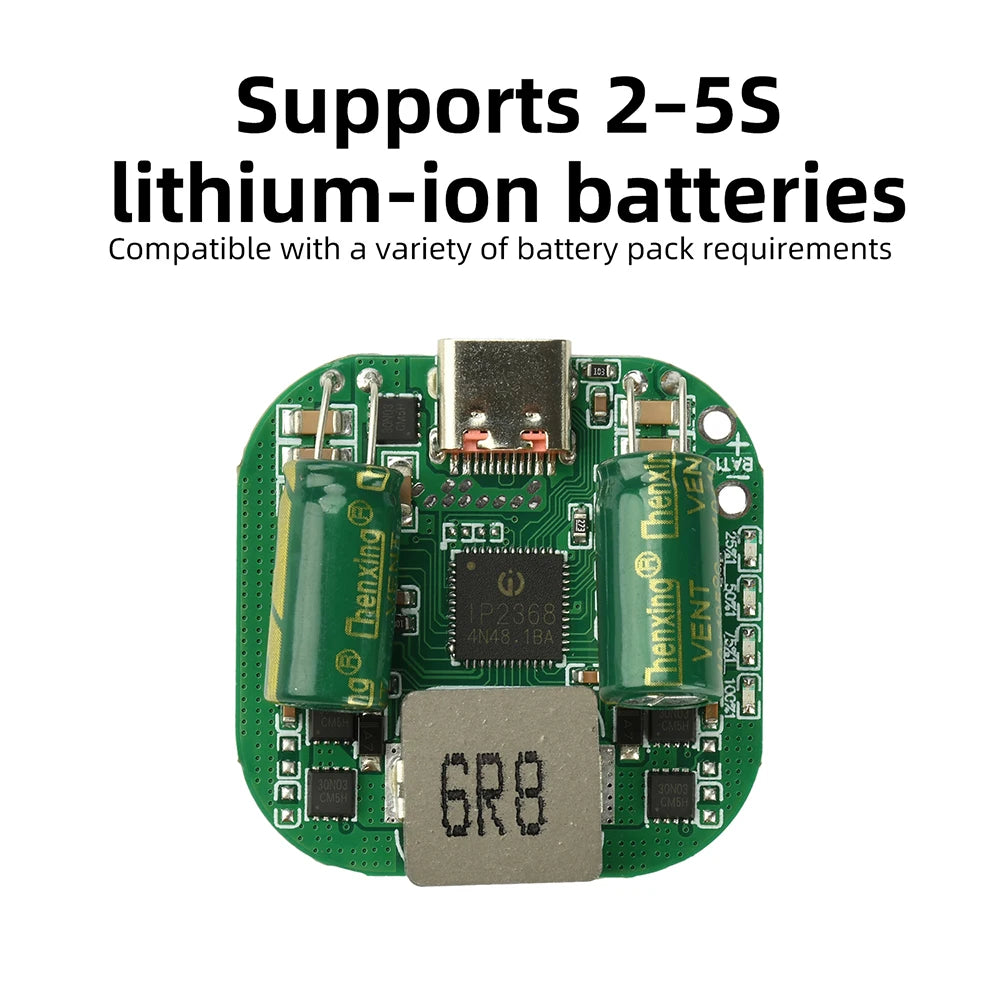

- Wide Battery Compatibility: Supports 2S–5S lithium-ion and lithium iron phosphate (LiFePO4) battery configurations, perfectly matching standard 4S 18650 battery packs.

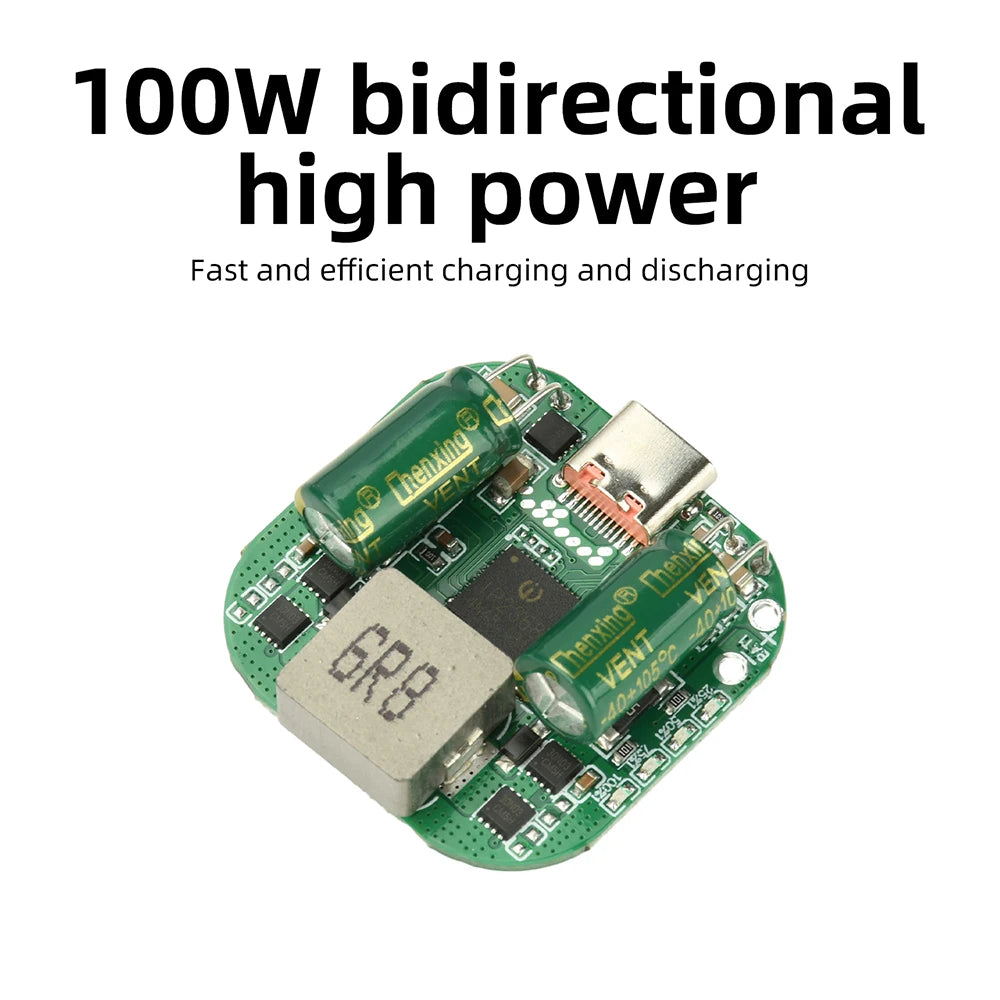

- 100W Bidirectional Output: High-efficiency buck-boost topology enables rapid charge and discharge at up to 100W — ideal for high-performance power banks, drones, and RC models.

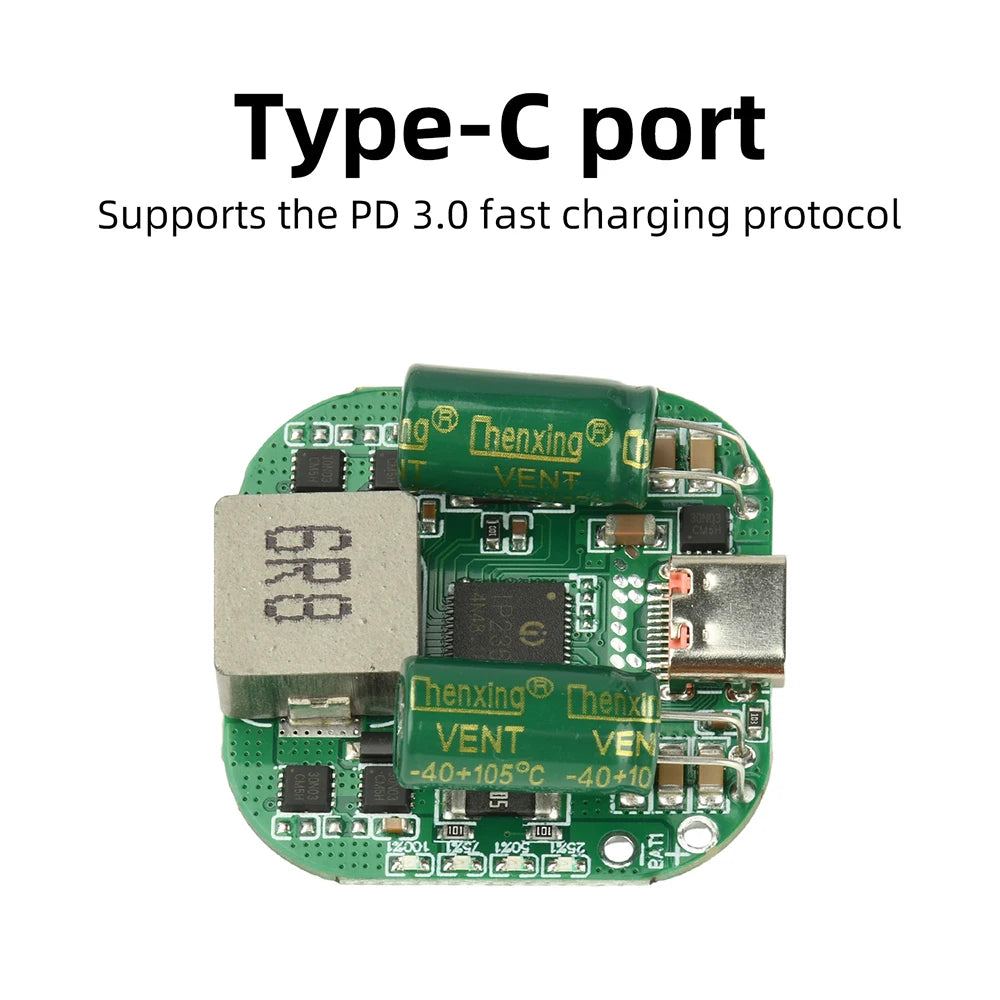

- PD 3.0 & Multi-Protocol Fast Charging: Compatible with FCP, AFC, SCP, DRP, SRC, and PD 3.0 fast-charging protocols via a single Type-C port.

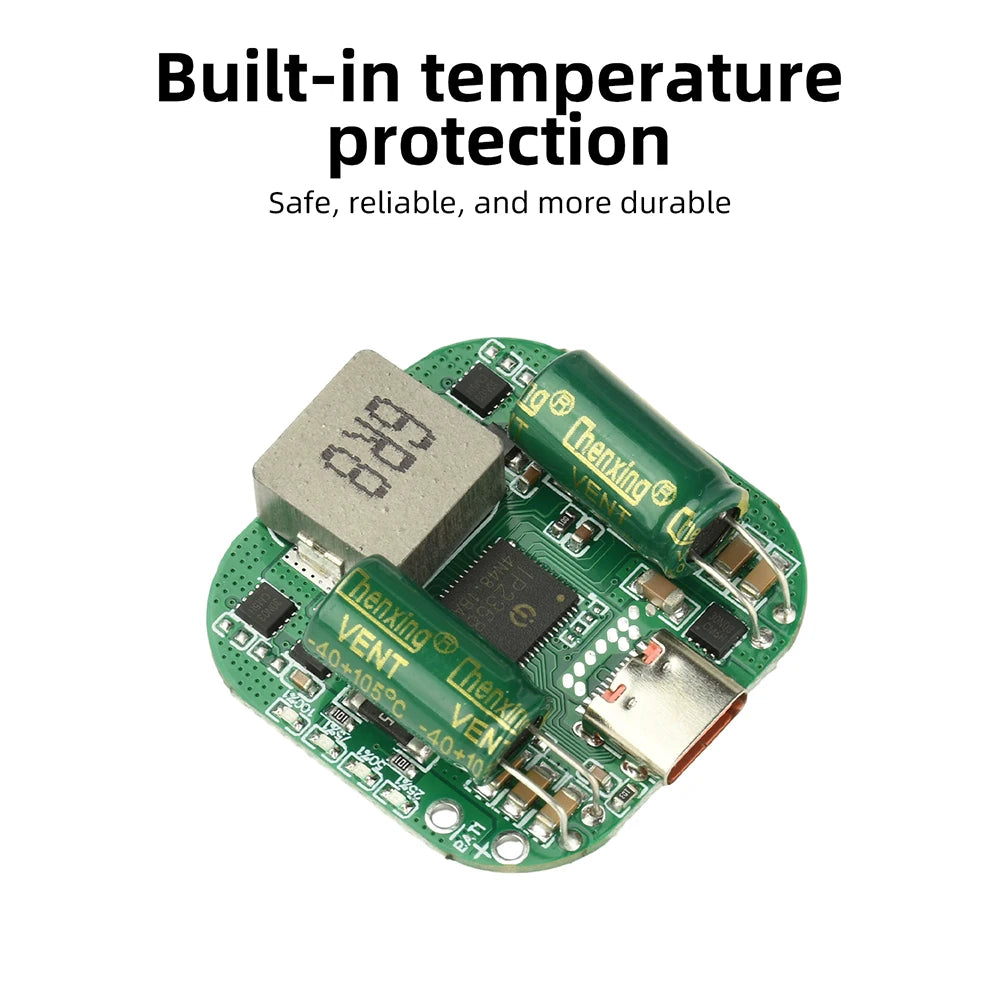

- Built-In Temperature Protection: Integrated thermal safeguards help maintain module reliability and longevity during demanding charge/discharge cycles.

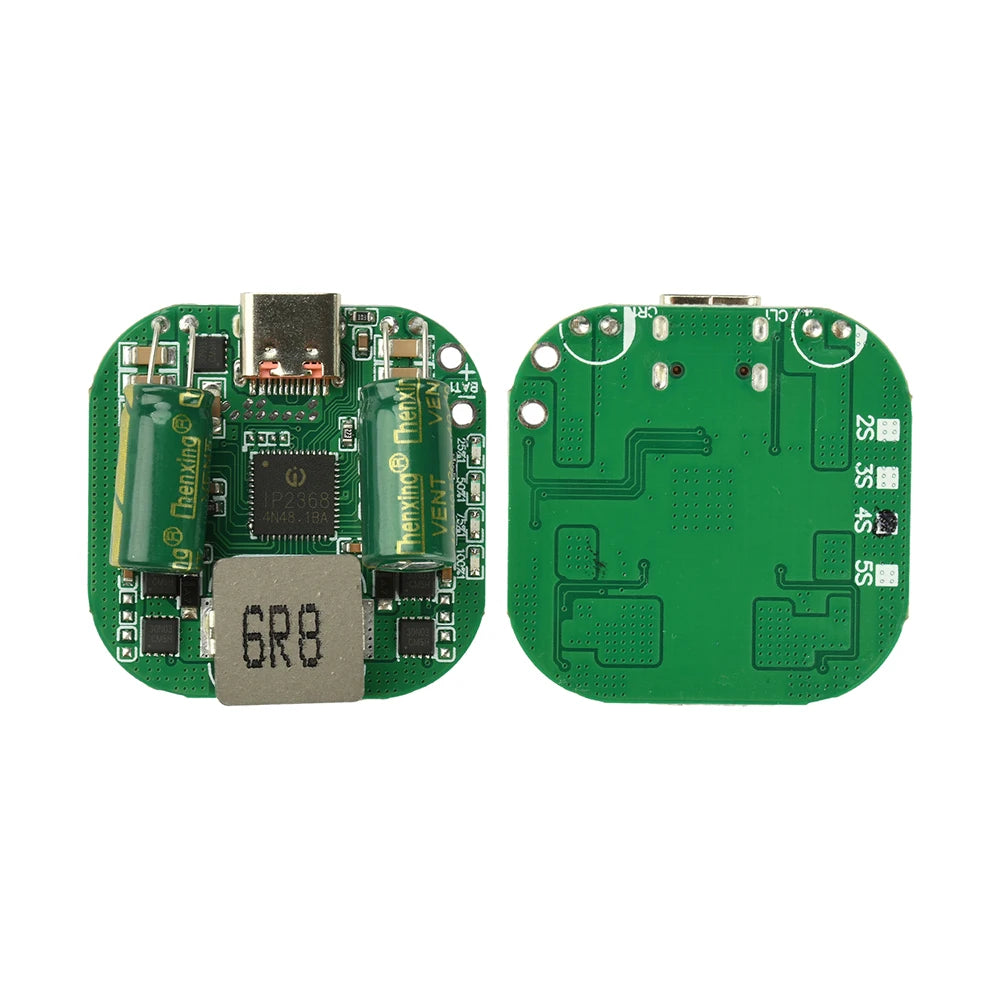

- Heat Sink Ready: Component-free rear panel allows for straightforward heat sink installation, keeping temperatures in check at high power levels.

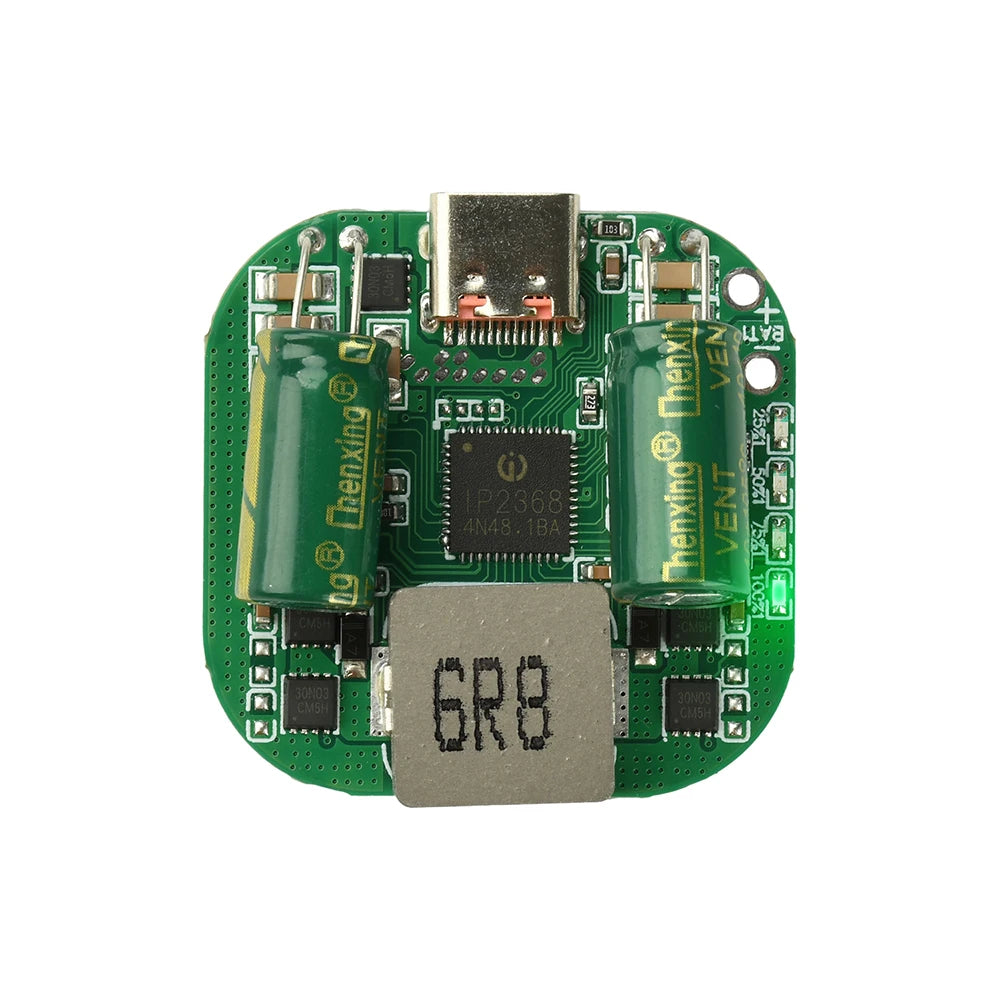

- 4-LED Battery Level Indicator: Real-time monitoring of charge level and charging/discharging status at a glance.
- Low Power Consumption: Optimized circuit design minimizes standby draw.
Technical Specifications
| IC | IP2368 |
| Battery Support | 2S–5S Li-ion / LiFePO4 |
| Max Power | 100W (bidirectional) |
| Interface | Type-C Port |
| Fast-Charge Protocols | PD 3.0, FCP, AFC, SCP, DRP, SRC |
| Factory Default | 4S, 60W, 4000mAh |
| Package | TQFP |
| Quantity | 1 Module |
Capacity Configuration Reference
Use the following resistance values to configure your battery pack capacity:
- 5,000 mAh → 6.2 kΩ
- 10,000 mAh → 12.4 kΩ
- 15,000 mAh → 18.7 kΩ
- 20,000 mAh → 24.9 kΩ
- 25,000 mAh → 30.9 kΩ
Formula: RCAP = Qmax / 800 | Example: 6.2 kΩ = 5,000 mAh / 800
Power Configuration Reference
- 20W → 5 kΩ
- 30W → 7.5 kΩ
- 45W → 11.2 kΩ
- 60W → 15 kΩ
- 100W → 25 kΩ
Formula: PCCIN = 4 × RISET | Example: 100W = 4 × 25 kΩ
Series Cell Configuration Reference
- 2S → 6.2 kΩ
- 3S → 9.1 kΩ
- 4S → 13 kΩ
- 5S → 18 kΩ
Ideal Applications
- Ultra-fast charging DIY power banks
- High-performance cooling fans and fan controllers
- Drone and RC model power batteries
- Portable power station builds
- Maker and electronics prototyping projects
Package Contents
- 1 × IP2368 Bidirectional Charge/Discharge Module
Related Products You May Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts — great for organizing small electronic components
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer — keep your workbench tidy
- Ceramic Mini Sealed Storage Jar – Portable Travel Container — handy for storing resistors and small parts
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What battery types and configurations does the IP2368 module support?
A: The IP2368 charge/discharge module supports 2S, 3S, 4S, and 5S lithium-ion (Li-ion) and lithium iron phosphate (LiFePO4) battery packs. Its dimensions are perfectly matched for standard 4S 18650 battery packs, and the factory default is configured for 4S at 60W with a 4000mAh capacity. You can reconfigure capacity, power, and series cell count by adjusting the corresponding resistor values on the board.
Q: Which fast-charging protocols are supported by the Type-C port?
A: The module's Type-C port supports a wide array of fast-charging protocols including USB Power Delivery 3.0 (PD 3.0), FCP (Huawei Fast Charge), AFC (Adaptive Fast Charge), SCP (Super Charge Protocol), DRP (Dual Role Power), and SRC, making it broadly compatible with modern laptops, smartphones, and other USB-C fast-charging devices.
Q: Can I add a heat sink to this module?
A: Yes. The rear panel of the IP2368 module is intentionally left free of components, providing a flat surface that makes it easy to attach a heat sink. This is especially recommended when operating at or near the maximum 100W output to ensure consistent performance.
Q: What is the maximum power output of this module?
A: The IP2368 module supports bidirectional operation at up to 100W. This covers both charging (input) and discharging (output), making it suitable for demanding applications like drone battery packs, DIY high-capacity power banks, and RC model power systems. To achieve 100W, configure the power resistor to 25 kΩ as per the formula PCCIN = 4 × RISET.
