IP2369 Bidirectional High-Power Battery Charge/Discharge Module
Take your DIY electronics projects to the next level with the IP2369 2-6S 45W Bidirectional Buck-Boost Fast Charging Board. Designed for makers, engineers, and hobbyists, this compact module delivers up to 45W of high-power bidirectional charging and discharging through a convenient Type-C interface — all in a slim 38×30mm footprint. Whether you're building a custom ultra-fast power bank, an RC model battery station, or a high-performance DIY fan system, this board handles it all with precision and efficiency.
Key Features

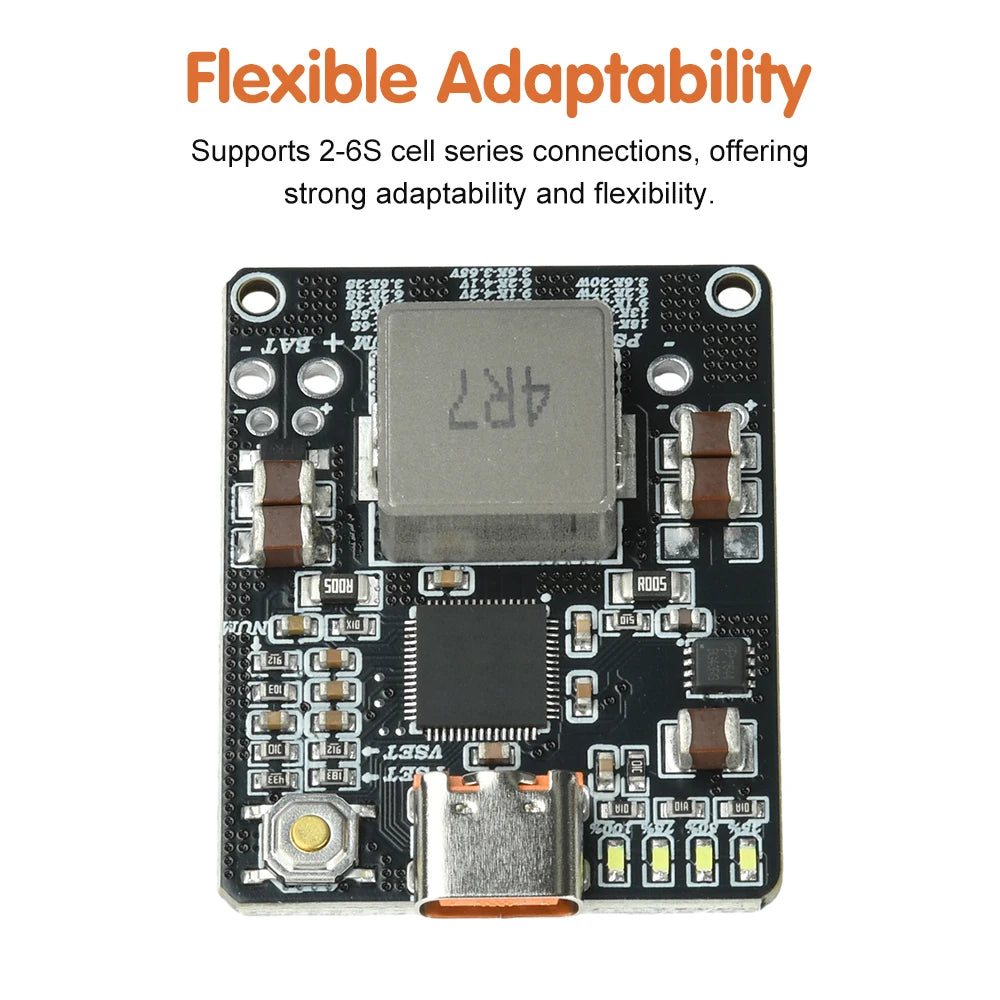

- Wide Battery Compatibility: Supports 2-6S series-connected lithium battery configurations (2/3/4/5/6 cells), selectable via an external resistor. Factory default: 4S, 45W, 4000mAh.

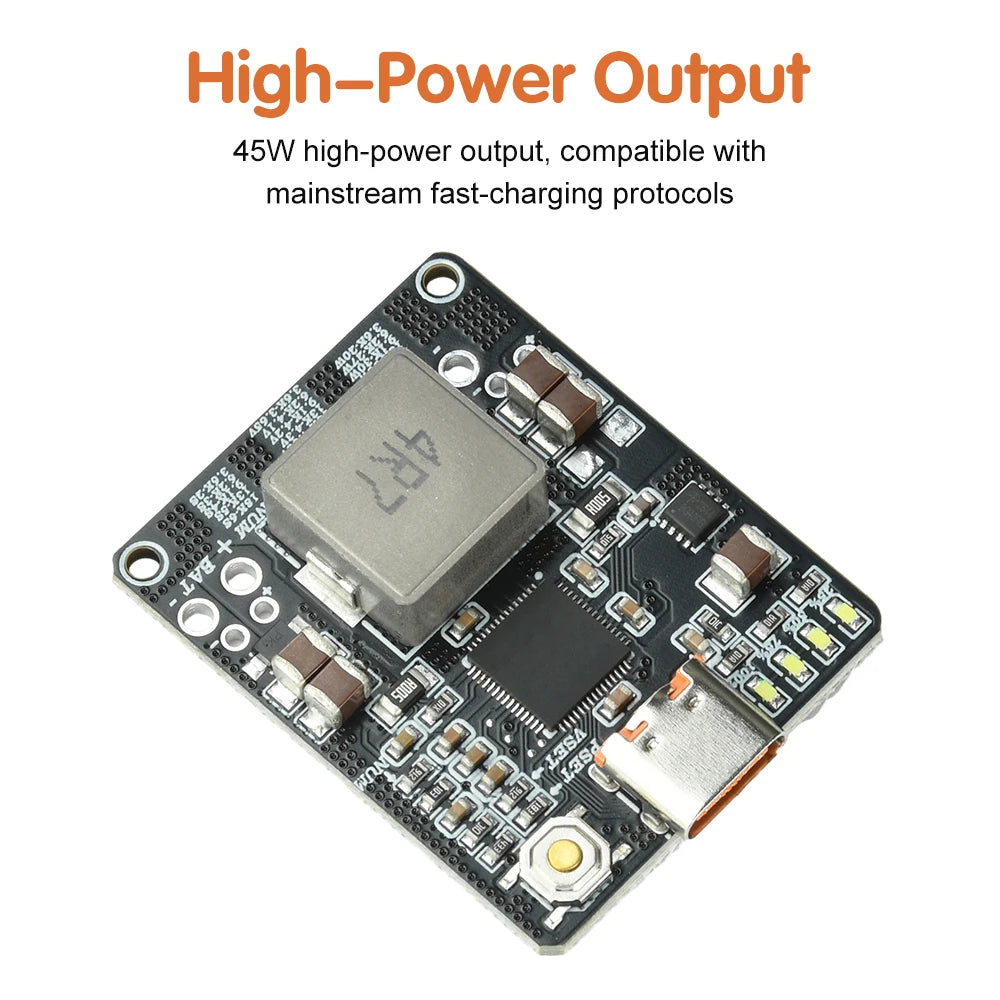

- 45W Fast Charging: Compatible with multiple mainstream fast-charging protocols including PD3.0, FCP, AFC, SCP, DRP, and SRC for broad device compatibility.
- Bidirectional Buck-Boost Design: Efficiently handles both charging and discharging in a single, integrated module.
- Configurable Full-Charge Voltages: Selectable via external resistor — choose from 3.65V, 4.1V, 4.2V, 4.35V, or 4.4V to match your specific cell chemistry.

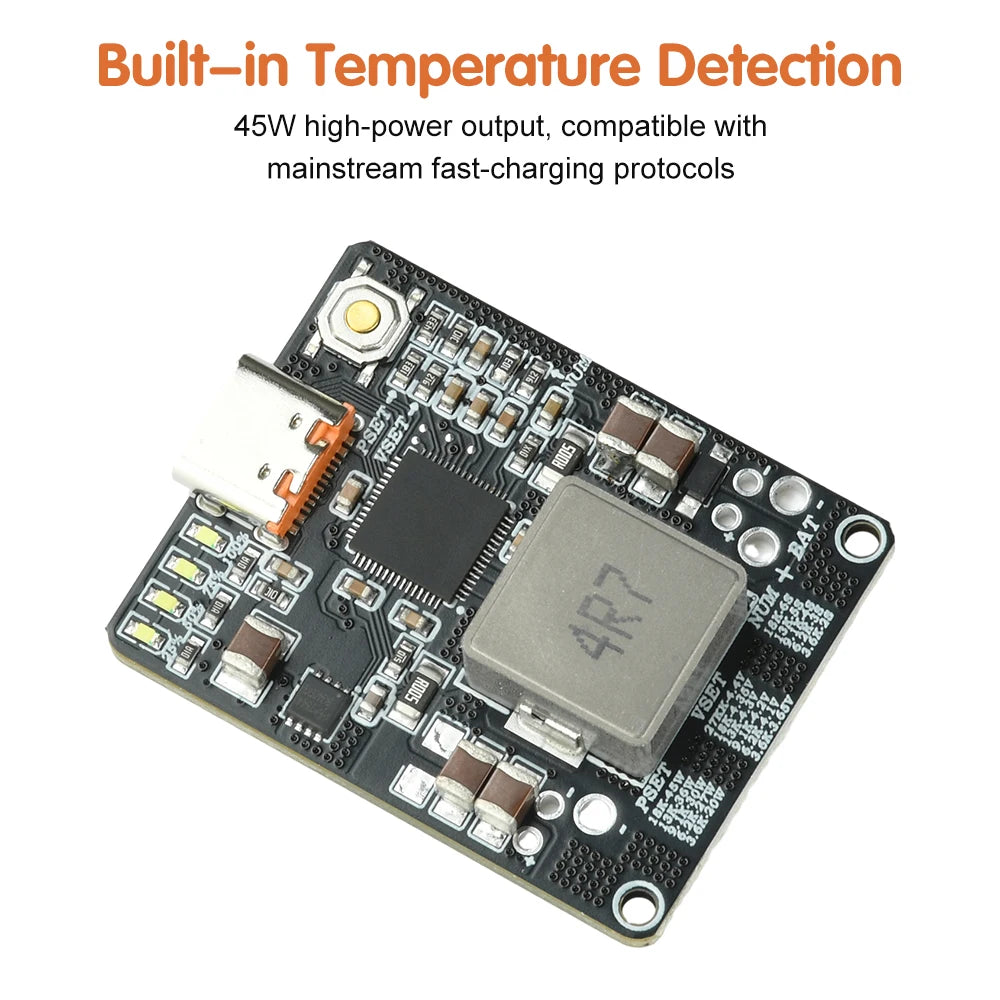

- Intelligent Thermal Management: Integrated IC temperature sensing, battery NTC temperature monitoring, and input voltage control loops automatically adjust charging current based on detected charger power.

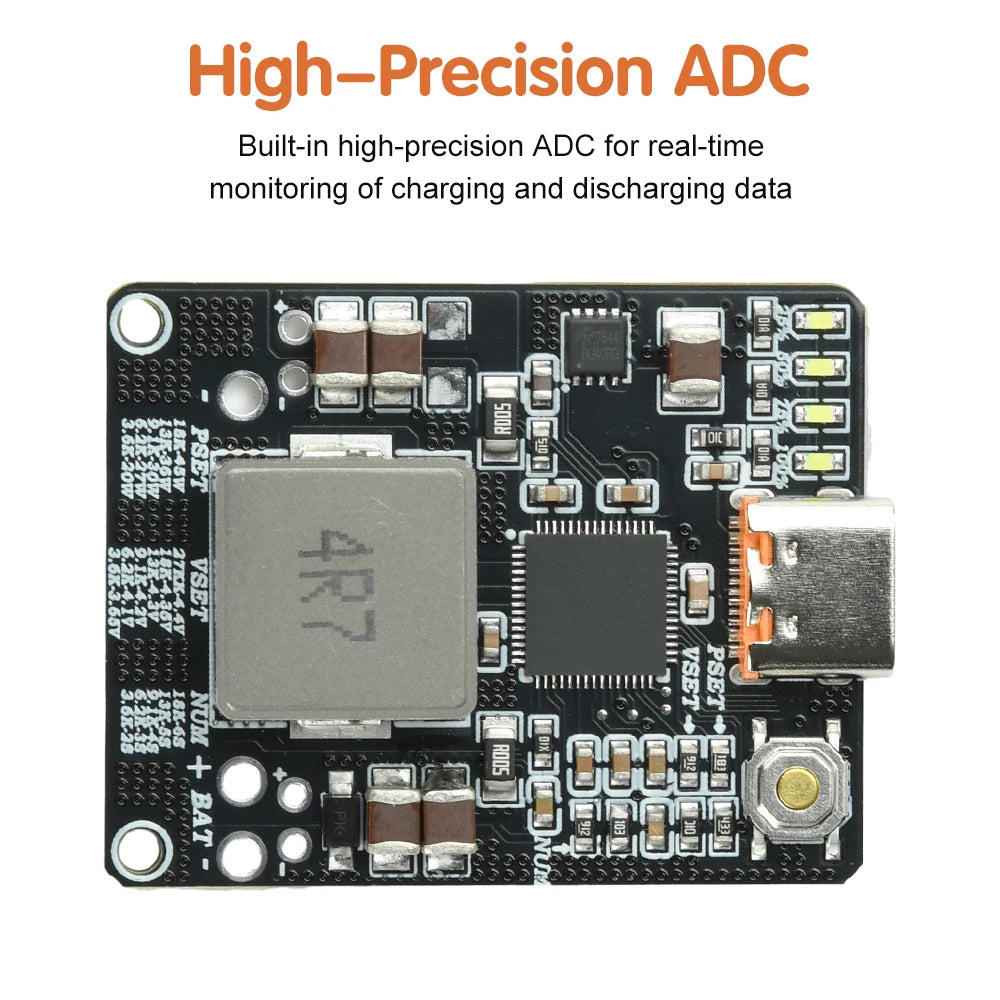

- 14-Bit High-Precision ADC: Real-time monitoring of input current/voltage, battery voltage/current, and other critical charge/discharge parameters.
- I²C Data Access: Charge/discharge voltage and current data fully accessible via I²C interface for integration into custom firmware and monitoring systems.
- 4 LED Status Indicators: Clearly display charge/discharge status and remaining battery capacity at a glance.
- Ultra-Low Standby Power: Standby consumption ≤ 100μA — ideal for always-on applications.

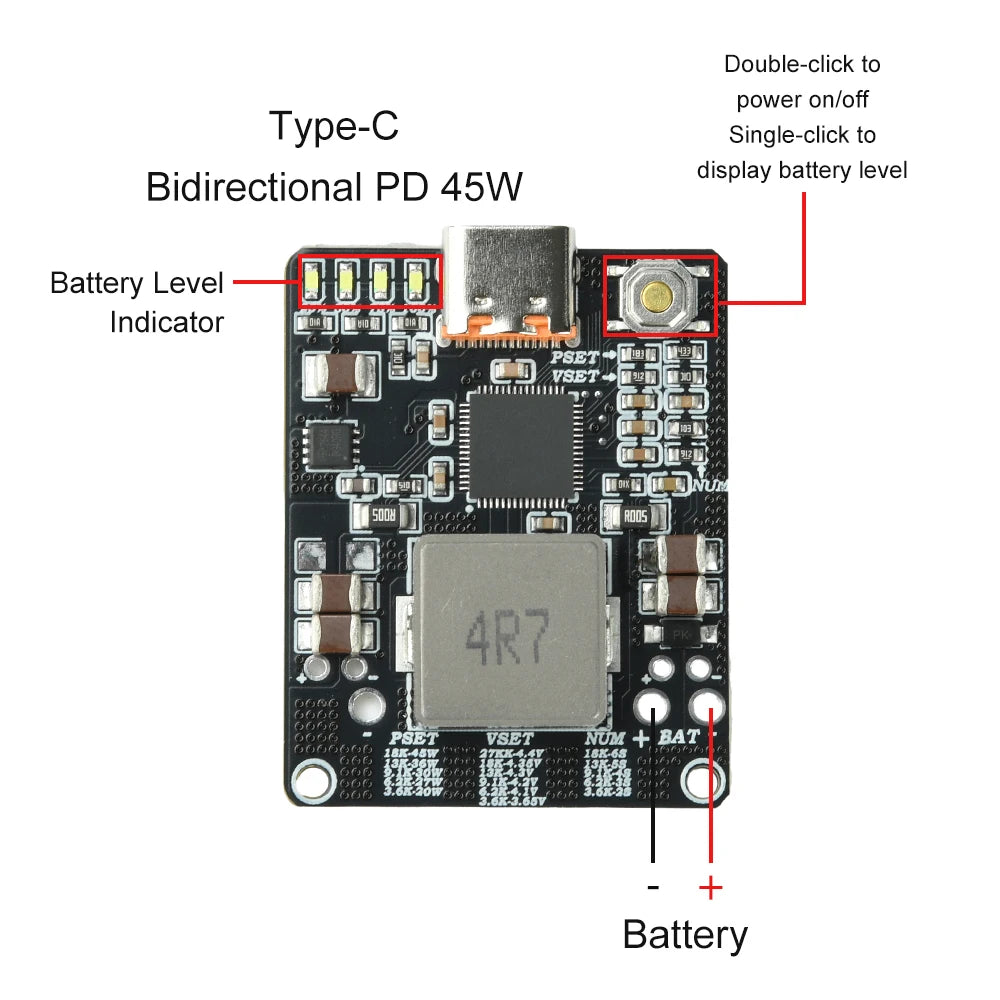

- Intuitive Button Control: Double-tap to power on/off; single-tap to display current battery level.
- Type-C Interface: Modern, reversible connector for reliable and convenient connections.
Specifications
| Battery Support | 2-6S Lithium Battery |
| Max Output Power | 45W |
| Interface | Type-C Port |
| Board Dimensions | 38 × 30mm |
| Standby Consumption | ≤ 100μA |
| ADC Resolution | 14-bit |
| Supported Protocols | PD3.0, FCP, AFC, SCP, DRP, SRC |
| Full-Charge Voltages | 3.65V / 4.1V / 4.2V / 4.35V / 4.4V |
| LED Indicators | 4 LEDs (status & capacity display) |
| Communication | I²C |
| Quantity | 1 Module |
| Country of Origin | Made in Mainland China |
Ideal Applications
- DIY high-performance cooling fans & electronics
- Ultra-fast custom power banks
- RC model battery rapid charging stations
- Laptop fast-charge modules
- Custom battery management systems (BMS)
- Maker and prototyping projects
What's in the Box
- 1 × IP2369 Bidirectional Charge/Discharge Module
