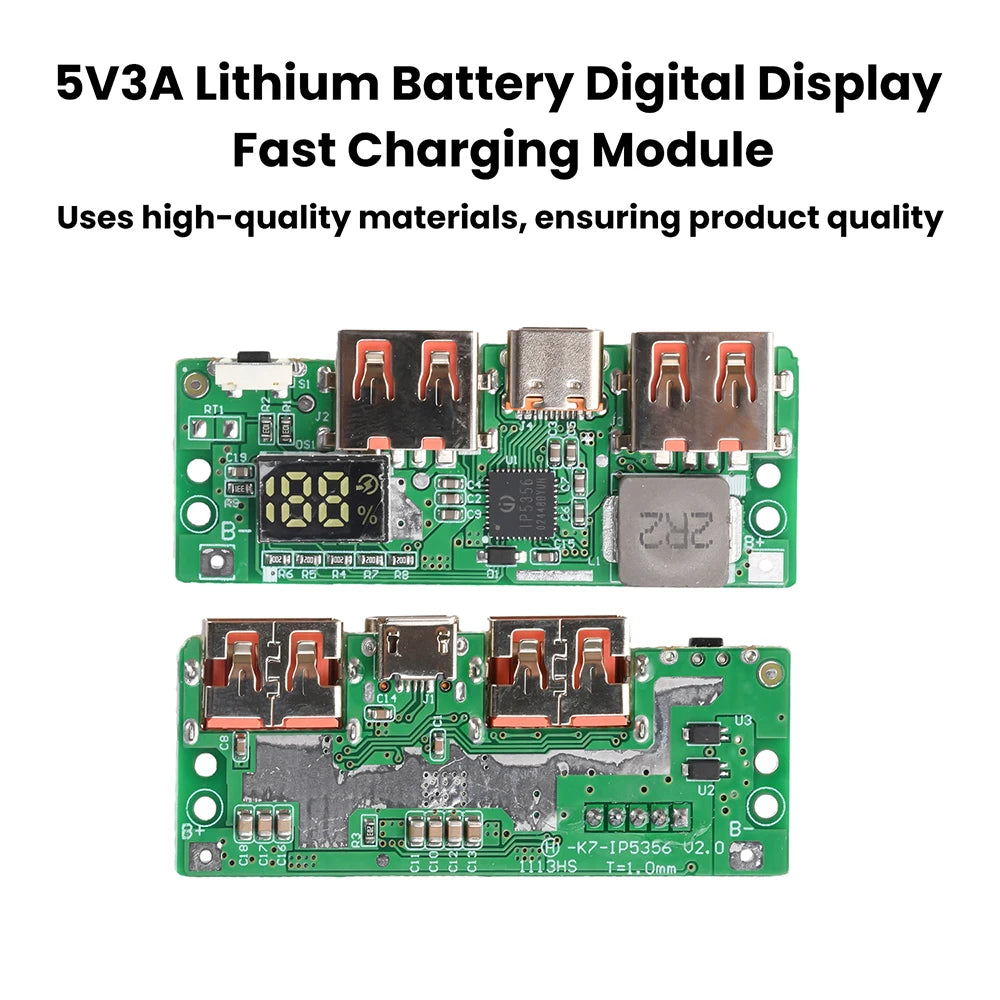

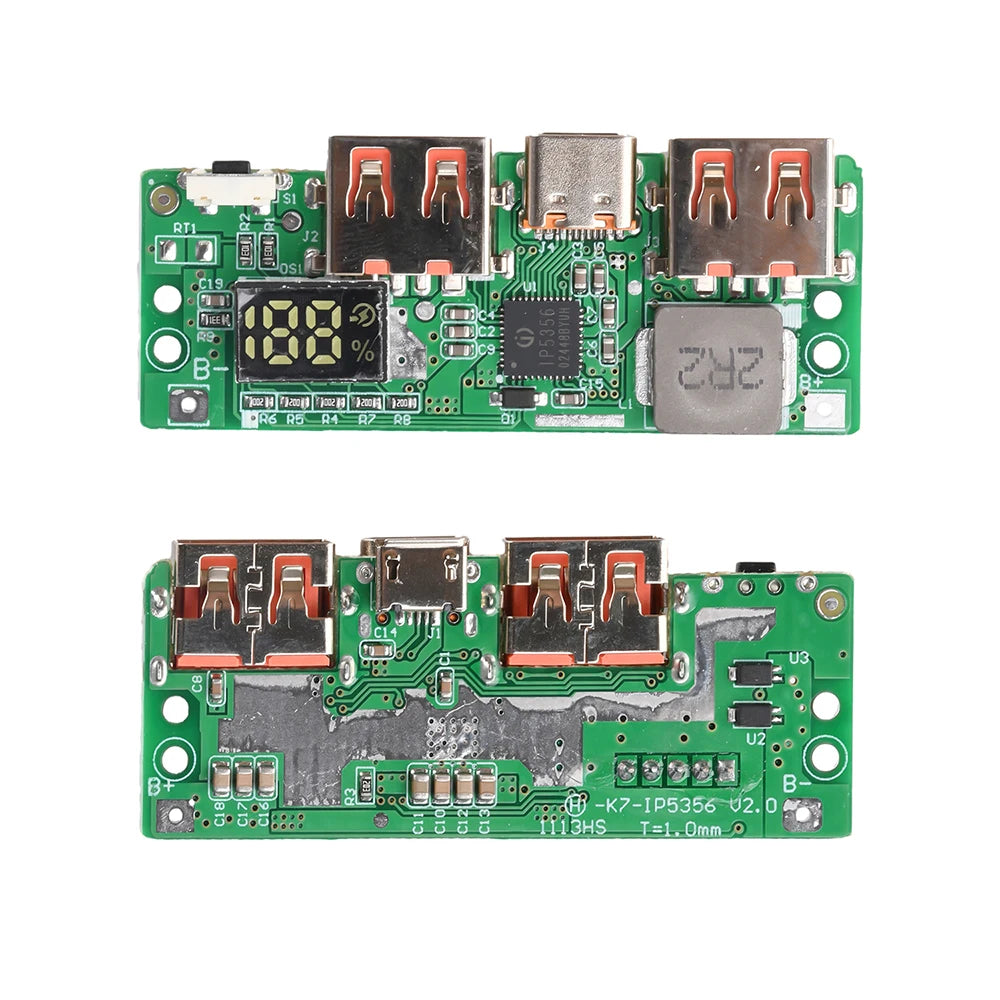

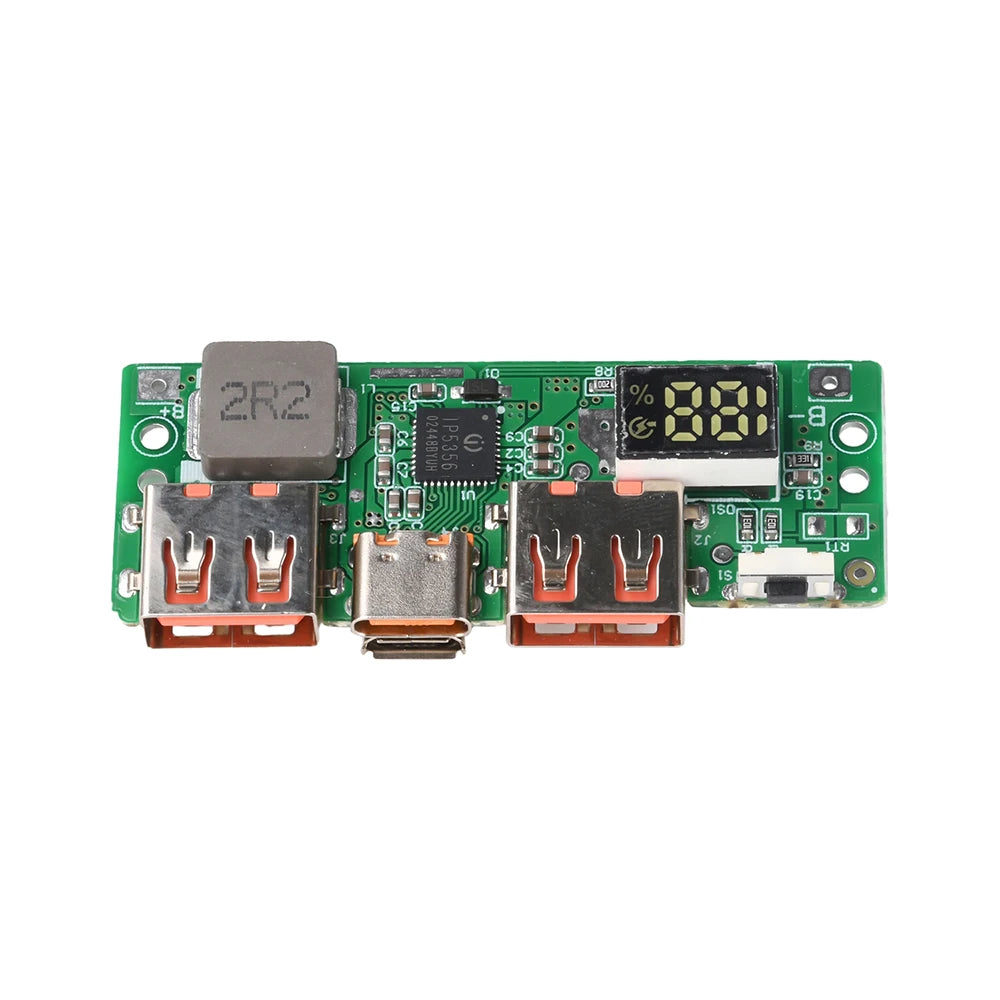

IP5356 Fast Charging Module 5V 3A USB-C QC3.0 PD3.0

IP5356 5V 3A Lithium Battery Fast Charging Module with Digital Display

The IP5356 Fast Charging Module is a compact, high-performance power management solution built for electronics enthusiasts, DIY builders, and industrial developers. With support for a wide range of fast-charging protocols — including QC3.0, QC2.0, PD3.0, PD2.0, AFC, FCP, and SCP — this module delivers stable, efficient power across USB-A, Type-C, and Micro USB interfaces. The integrated digital display makes it easy to monitor charging status at a glance.

Made in Mainland China.

Key Features

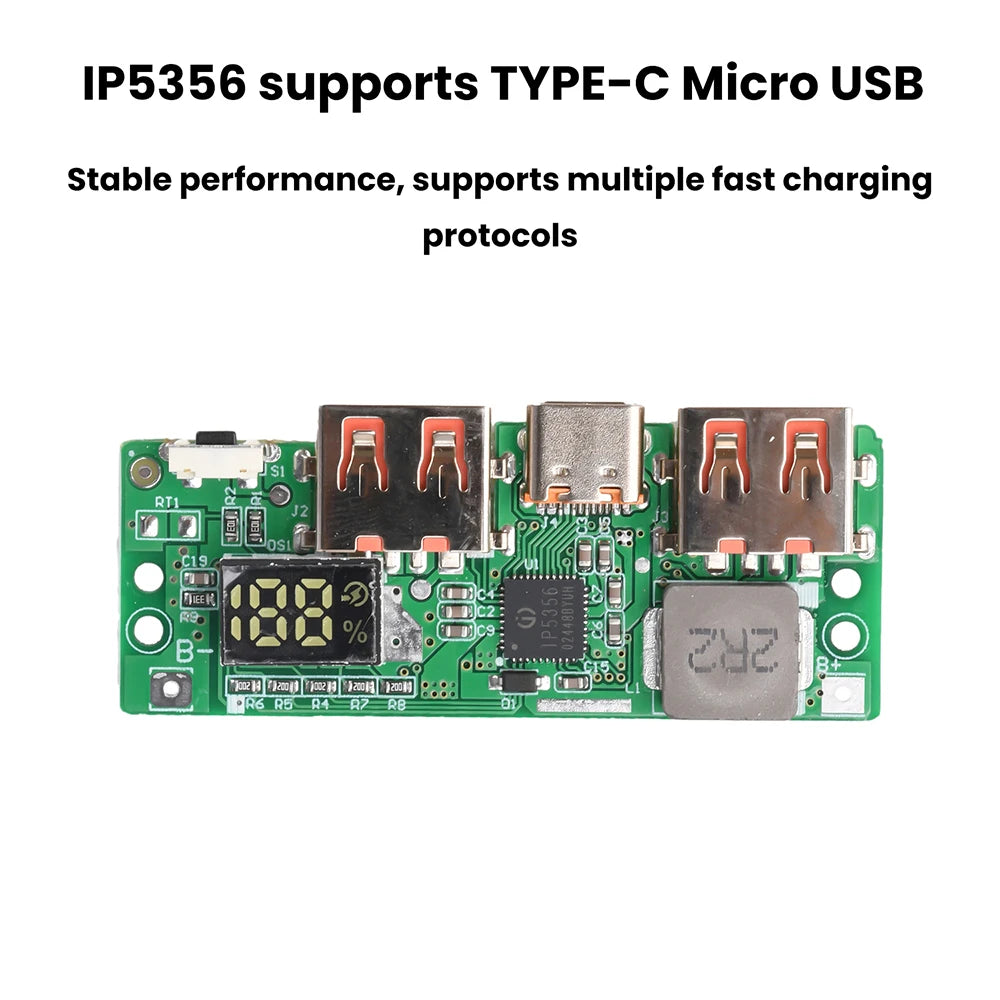

• Multi-Protocol Fast Charging: Supports QC3.0/2.0, PD3.0/2.0, AFC, FCP, and SCP for broad device compatibility.

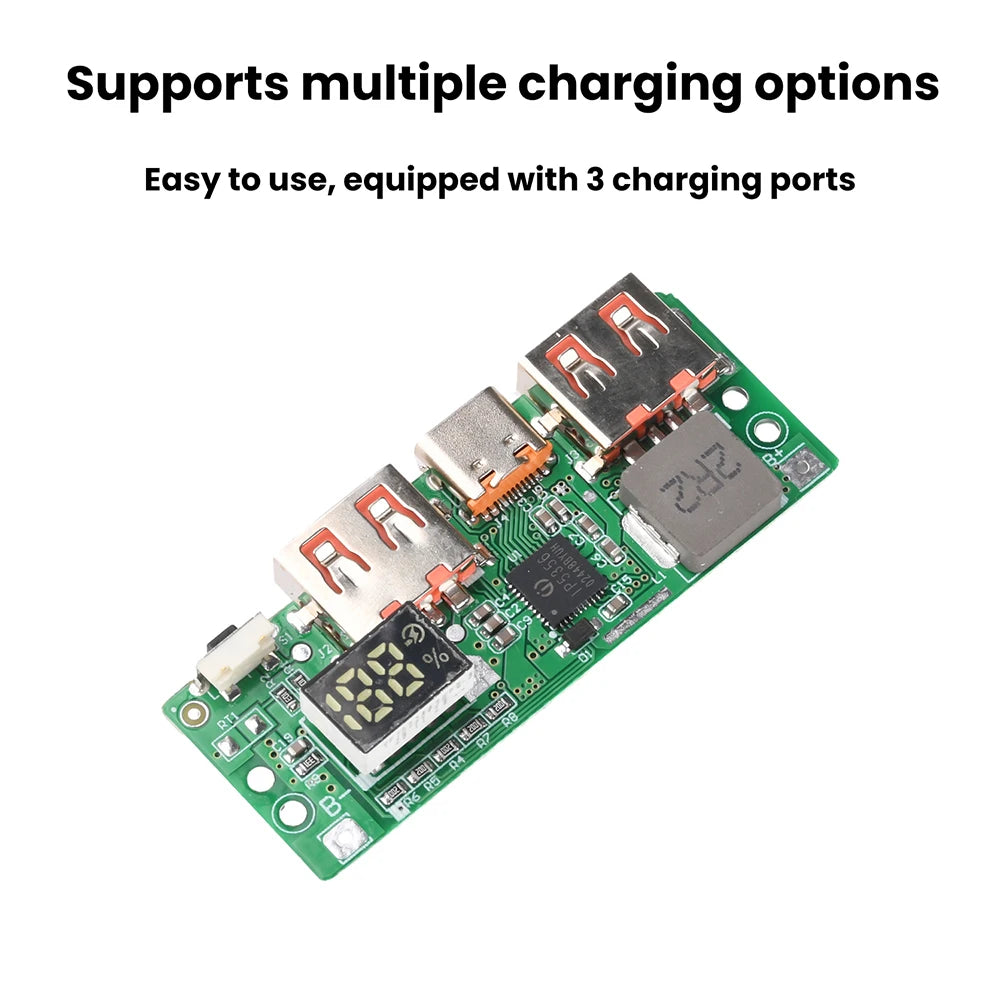

• Triple Charging Ports: USB-A, Type-C, and Micro USB inputs/outputs for maximum versatility.
• Constant-Current Discharge: Steady 5V / 3A output for reliable power delivery.
• Digital Display: Real-time visual feedback on charging status and power levels.

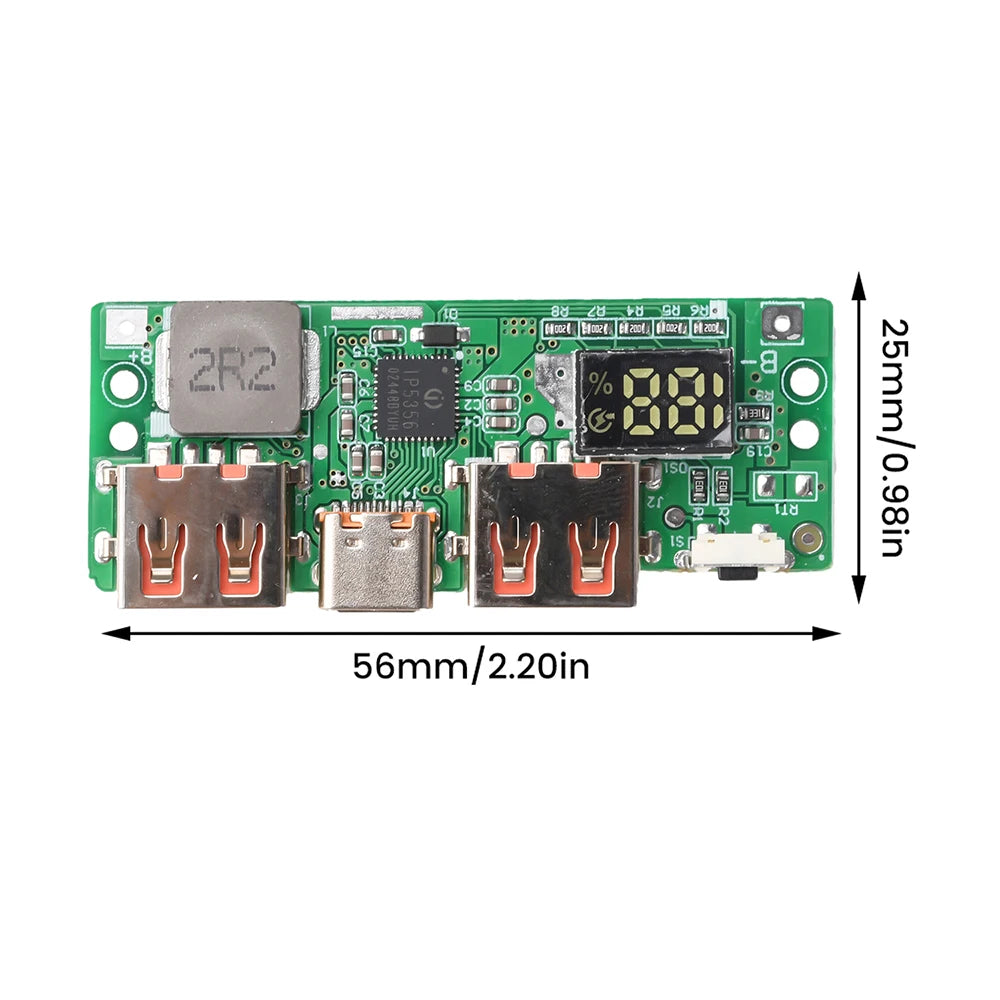

• Compact TQFP Package: Sleek, space-saving design ideal for custom power banks, DIY electronics, and industrial projects.
• Short-Circuit Protection: Triggers in under 50 µs to safeguard your connected devices.
• Low Standby Consumption: Maximum 150 µA self-consumption keeps energy waste minimal.
• Wide Input Voltage Range: Accepts 4.5V to 14V input to accommodate various charging sources.

Technical Specifications

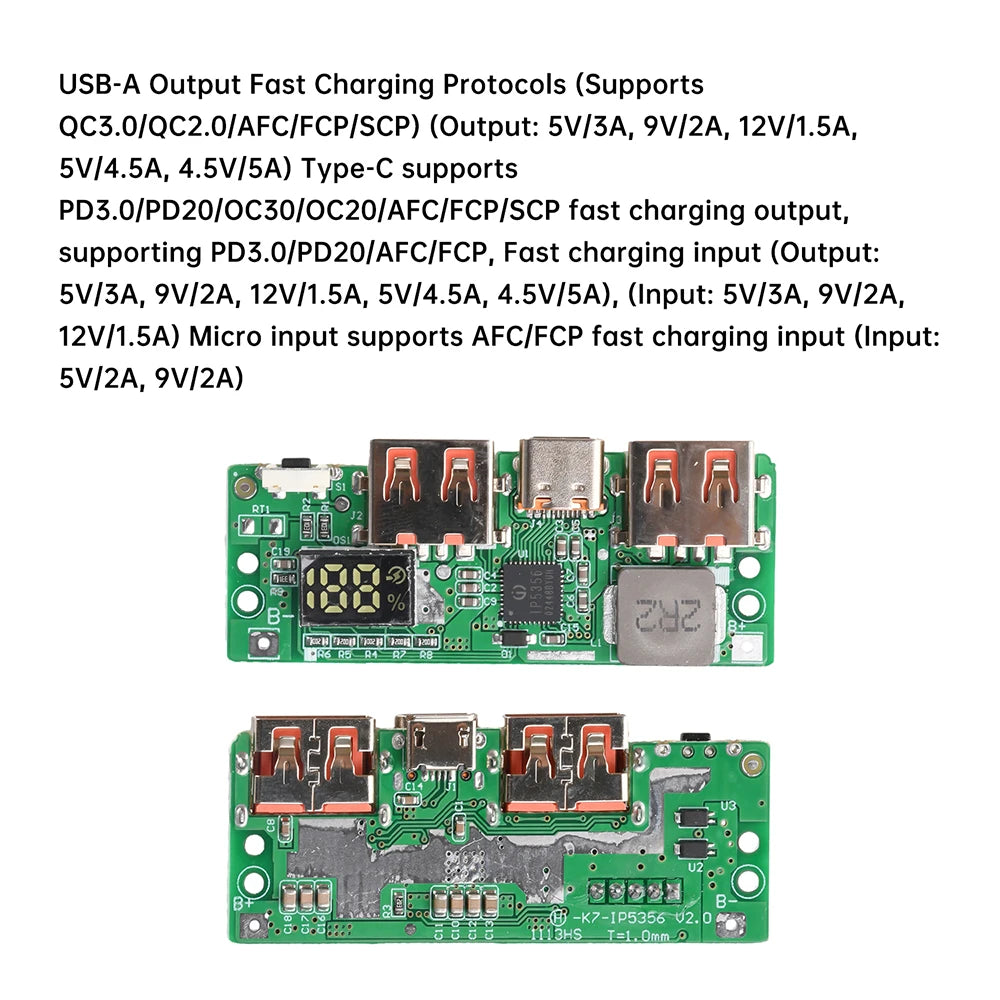

Supported Charging Protocols

• USB-A Output: QC3.0 / QC2.0 / AFC / FCP / SCP — outputs 5V/3A, 9V/2A, 12V/1.5A, 5V/4.5A, 4.5V/5A
• Type-C Output: PD3.0, PD2.0, QC3.0, QC2.0, AFC, FCP, SCP — outputs 5V/3A, 9V/2A, 12V/1.5A, 5V/4.5A, 4.5V/5A
• Type-C Input: PD3.0, PD2.0, AFC, FCP — inputs 5V/3A, 9V/2A, 12V/1.5A
• Micro USB Input: AFC / FCP — inputs 5V/2A, 9V/2A

What's in the Box

• 1× IP5356 Fast Charging Module

Related Products You May Like

• Airtight Transparent PET Storage Bottle | Beads & Crafts
• Ceramic Mini Sealed Storage Jar – Portable Travel Container
• Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What fast-charging protocols does the IP5356 module support?

A: The IP5356 fast charging module supports QC3.0, QC2.0, PD3.0, PD2.0, AFC, FCP, and SCP protocols across its USB-A, Type-C, and Micro USB ports, making it compatible with a wide variety of modern smartphones, tablets, and DIY power bank builds.

Q: Can this module be used to build a custom power bank?

A: Yes! The IP5356 is purpose-built for DIY power bank projects and custom electronics. Its compact TQFP package, multi-protocol support, and digital display make it an excellent choice for hobbyists and developers creating portable battery charging solutions.

Q: What is the operating temperature range for the IP5356 charging module?

A: The recommended operating temperature range is -5°C to 45°C, making it suitable for most indoor DIY and industrial environments.

Q: Does the module have built-in protection features?

A: Yes. The IP5356 module includes short-circuit protection that activates in under 50 µs, helping to protect your lithium battery and connected devices from unexpected electrical faults.
