IPEX MHF4 WiFi Antenna Pair 2.4G 5G for NGFF Intel 7260 7265

$11.83 $16.01

IPEX MHF4 2.4G/5G Dual-Band WiFi Antenna Pair – 18.5cm (7.2 in)

Upgrade or replace the internal wireless antennas on your laptop or desktop's NGFF (M.2) WiFi card with this ready-to-install pair of IPEX MHF4 antennas. Designed for dual-band 2.4 GHz and 5 GHz operation, these slim, flexible antennas connect directly to MHF4 antenna slots and are a perfect match for Intel 7260, 7265, 3160, 3165 AC NGFF cards as well as a wide range of 3G/4G modules. Made in Mainland China.

⚠ Important: If your card is an Intel 7260, 7265, 3160, or 3165, please confirm it uses an NGFF (M.2) card slot. These antennas are NOT compatible with Mini PCI-E slots.

Key Specifications

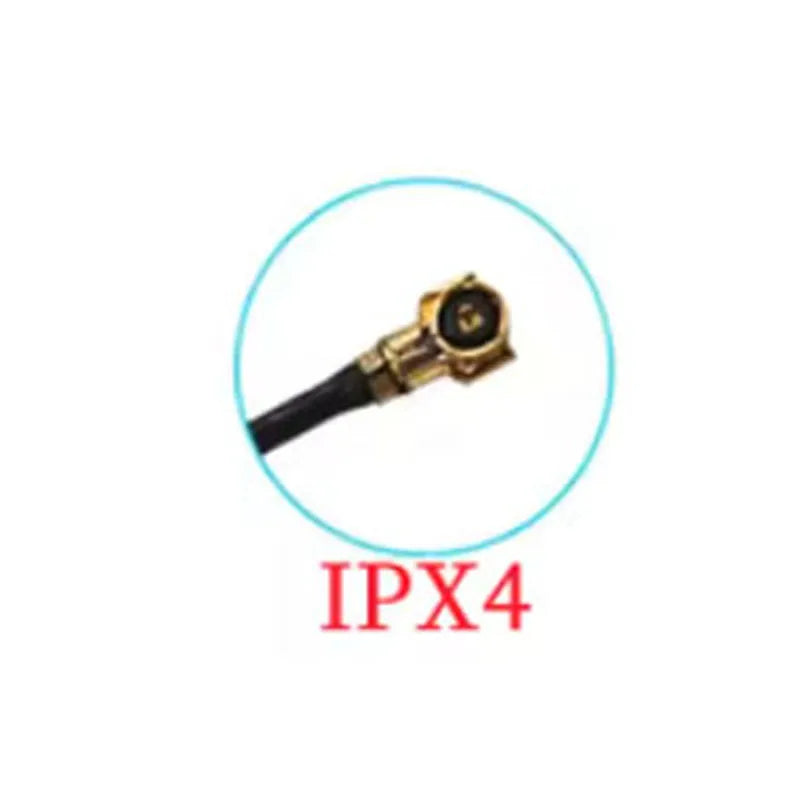

Connector Type: IPEX MHF4
Frequency Bands: 2.4 GHz & 5 GHz (Dual-Band)
Antenna Gain: 2.0 dBi
Impedance: 50 Ω
Cable Length: ~18.5 cm / 7.2 inches
Operating Temperature: -40 °C to +65 °C
Storage Temperature: -40 °C to +120 °C

Compatible Cards & Modules

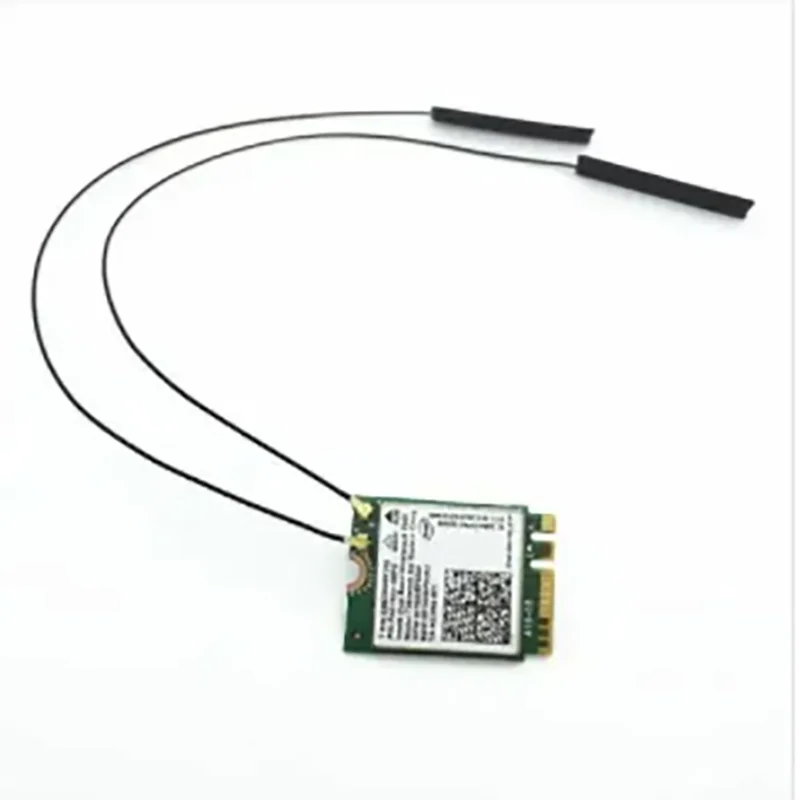

Intel 7260, 7265, 3160, 3165 AC NGFF cards
3G N5321 | 4G EM7345, EM7355 | GOBI5000 NGFF cards
Apple BCM94360CSAX / BCM94360CS2 / BCM94360CS2AX
BCM94360HMB
Any card featuring an IPEX MHF4 antenna slot

Package Contents

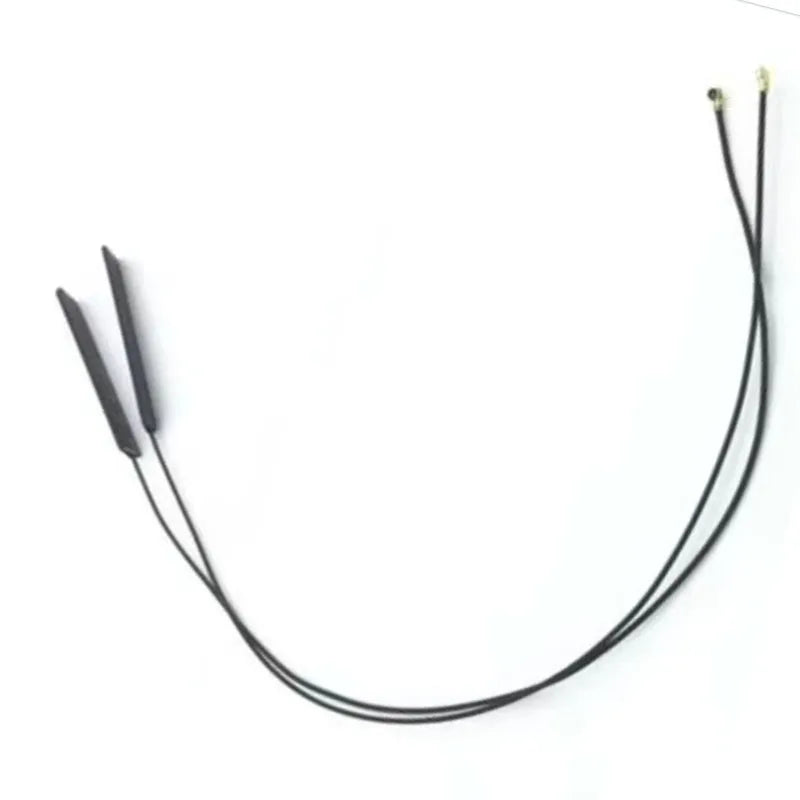

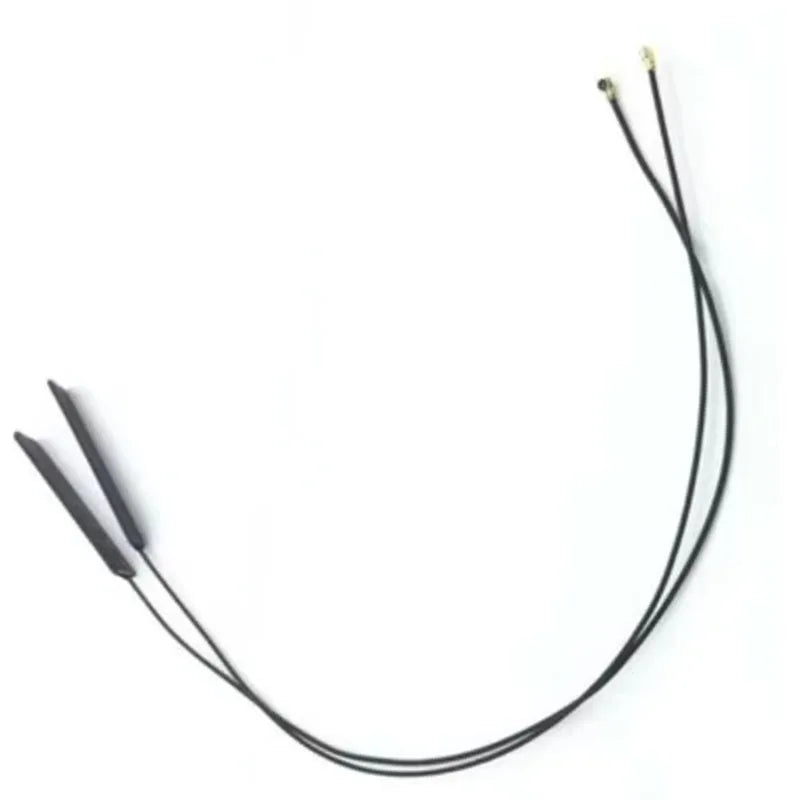

2 × IPEX MHF4 WiFi Antennas (18.5 cm / 7.2 in each)

Frequently Asked Questions

Q: Are these IPEX MHF4 WiFi antennas compatible with Mini PCI-E cards?

A: No. These antennas are designed exclusively for cards with an IPEX MHF4 connector slot on NGFF (M.2) cards. If your Intel 7260, 7265, 3160, or 3165 card uses a Mini PCI-E slot, these antennas will not fit. Always verify your card's form factor before purchasing.

Q: Do these antennas support both 2.4 GHz and 5 GHz WiFi bands?

A: Yes. Each antenna in the pair supports dual-band operation — both 2.4 GHz and 5 GHz — delivering broad compatibility with modern WiFi standards including WiFi 5 (802.11ac) and earlier protocols.

Q: How long are the antenna cables?

A: Each antenna cable measures approximately 18.5 cm (about 7.2 inches), providing enough reach to route the antenna to an optimal position inside most laptop or desktop chassis.

Q: What is included in the package?

A: The package includes 2 × IPEX MHF4 WiFi antennas, each approximately 18.5 cm in length. No batteries or additional accessories are included.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
