JINSLU IVB0631 Plasma Cutting Electrodes – 10-Pack (40–120A)
Keep your plasma cutting torch performing at its best with this 10-pack of genuine JINSLU IVB0631 replacement electrodes. Engineered for IPX102, IPXM102, IPX-102, and IPXM-102 torches, these air-cooled consumables deliver consistent arc starts without high-frequency (HF) ignition, making them a safer and more CNC-friendly option for both manual hand torches and automated cutting machines.
Key Features
- Broad amperage range: Compatible with cutting currents from 40 A up to 120 A
- 100% duty cycle: Built for continuous, heavy-duty cutting sessions
- No-HF ignition: Contact start technology eliminates high-frequency interference — ideal for CNC tables and sensitive electronics nearby
- Air / N₂ gas compatible: Works with both compressed air and nitrogen gas supplies
- Optimal gas pressure: Rated at 5.0 Bar for precise, clean cuts
- Gas flow rate: 200 LPM for consistent plasma arc stability
- Recommended post-flow: 100 seconds to protect the electrode and extend consumable life
- Pack of 10: Cost-effective bulk supply to minimize downtime
Technical Specifications
| Model | IVB0631 |
| Compatible Torches | IPX102, IPXM102, IPX-102, IPXM-102 |
| Current Rating | 40–120 A (max 120 A) |
| Duty Cycle | 100% |
| Gas Type | Air / N₂ |
| Gas Pressure | 5.0 Bar |
| Gas Flow | 200 LPM |
| Ignition Type | Without HF (contact start) |
| Post Flow | 100 sec (recommended) |
| Cooling Type | Air Cooled |
| Pack Quantity | 10 electrodes |
| Origin | Made in Mainland China |
What's in the Box

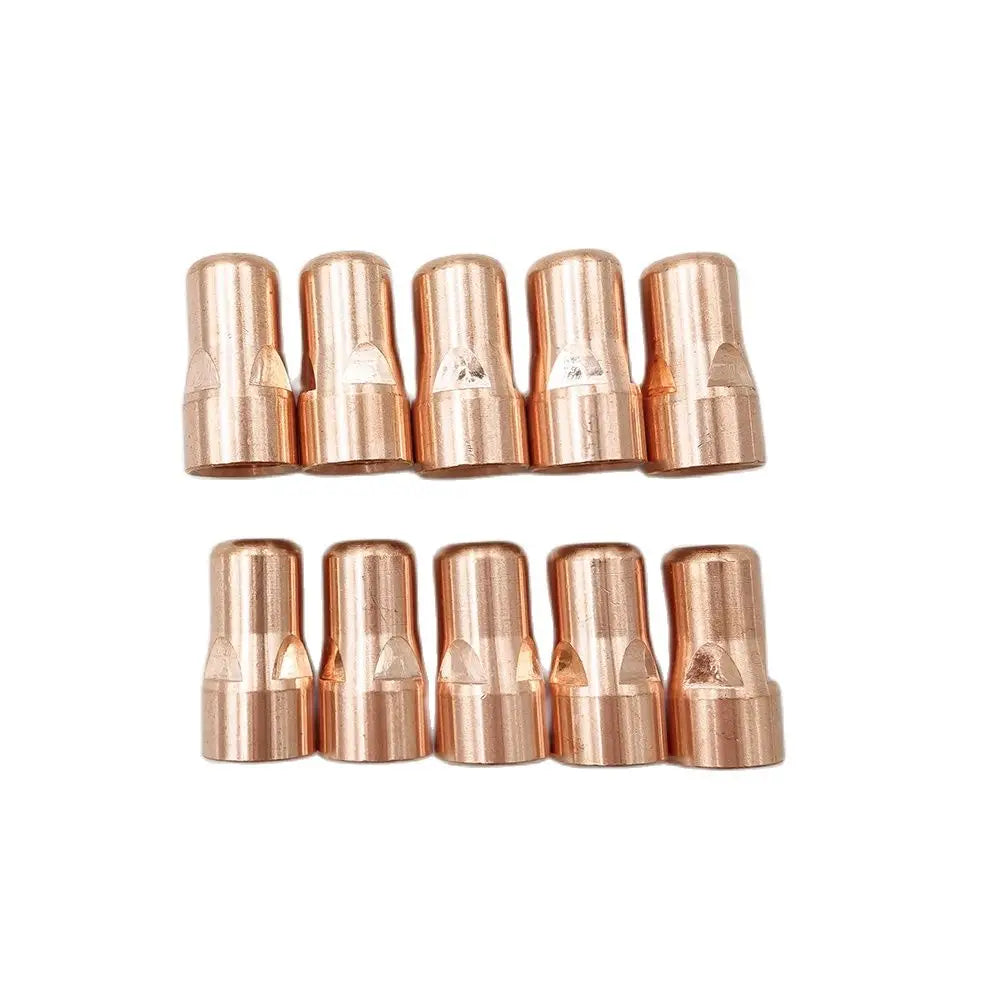

- 10 × IVB0631 Plasma Cutting Electrodes
Who Are These For?
These electrodes are the perfect consumable solution for fabricators, metalworkers, and CNC operators who rely on IPX102 or IPXM102 plasma torches for high-amperage cutting. The no-HF contact start design makes them particularly well-suited for use alongside CNC cutting tables, reducing the risk of electrical interference with control systems.
Related Products You May Like
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
- U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set
- Stainless Steel Ceramic Trimming Tool – Curved Skip Knife
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Which plasma cutting torches are compatible with the IVB0631 electrode?
A: The IVB0631 electrode is designed for use with IPX102, IPXM102, IPX-102, and IPXM-102 plasma cutting torches. Always verify your torch model before ordering to ensure a correct fit.
Q: What current range do these plasma electrodes support?
A: These electrodes support a cutting current range of 40 A to 120 A and are rated for a 100% duty cycle, making them suitable for both light-gauge and heavy-duty continuous cutting applications.
Q: What gas should I use with these IVB0631 plasma consumables?
A: The IVB0631 electrodes are compatible with compressed air or nitrogen (N₂). Recommended operating gas pressure is 5.0 Bar at a flow rate of 200 LPM for optimal arc performance and consumable longevity.
Q: Why does this electrode use no-HF (non-high-frequency) ignition?
A: The no-HF contact start design avoids generating high-frequency electrical interference during arc ignition. This is especially important when the torch is used on CNC cutting tables or near sensitive electronic control equipment, as HF signals can disrupt or damage control systems.
