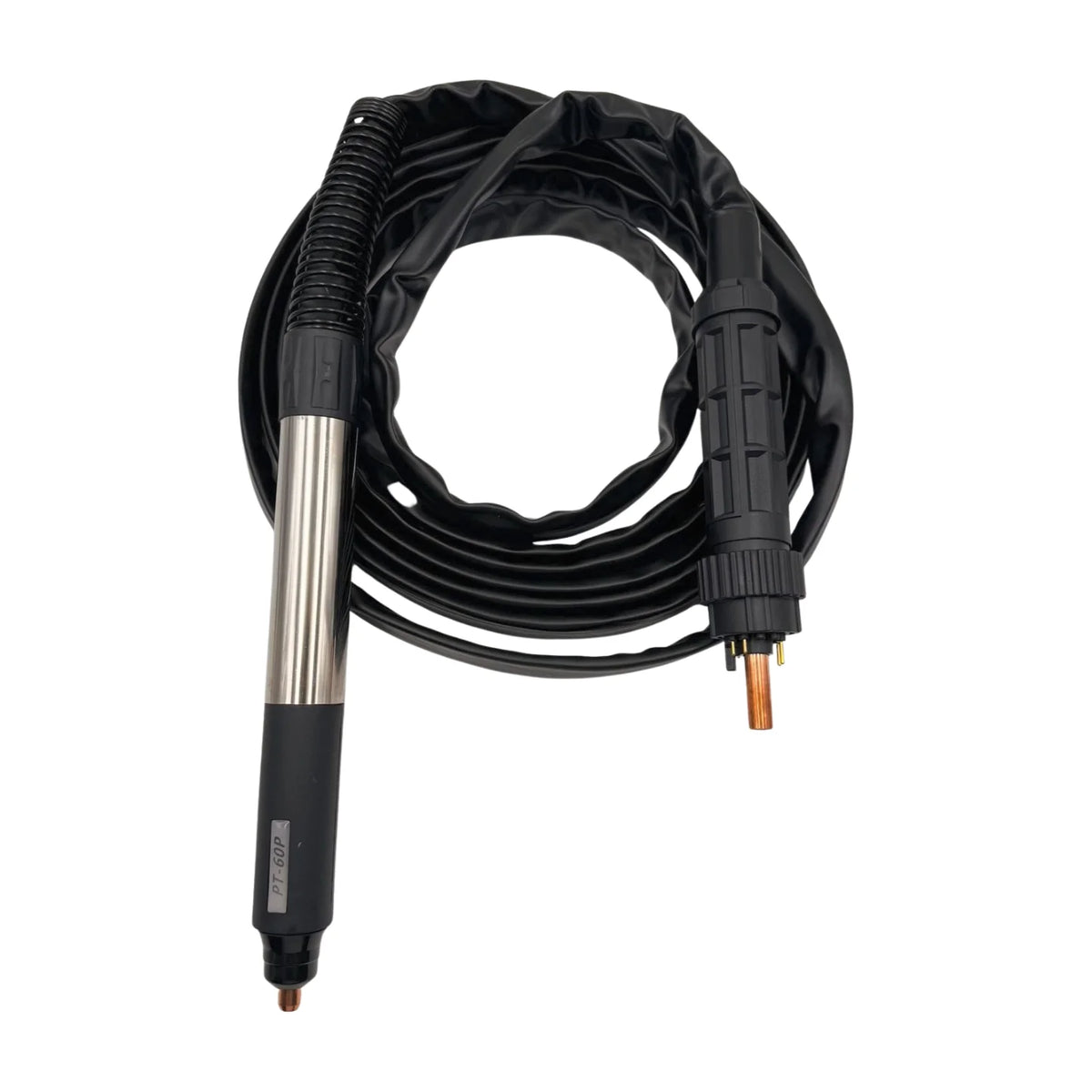

JINSLU 6-Metre 60A Non-HF Pilot Arc Plasma Cutting Torch – IPTM60 / PT60 / IPT60 / PTM60 with Central Adaptor
Upgrade your CNC plasma cutting setup with this professional-grade JINSLU IPTM-60 replacement plasma cutting torch. Featuring a generous 6-metre (6m) lead length and a robust 60-amp capacity, this Non-HF (no high-frequency) pilot arc torch is engineered for precision, compatibility, and reliable performance across a wide range of CNC machine applications.

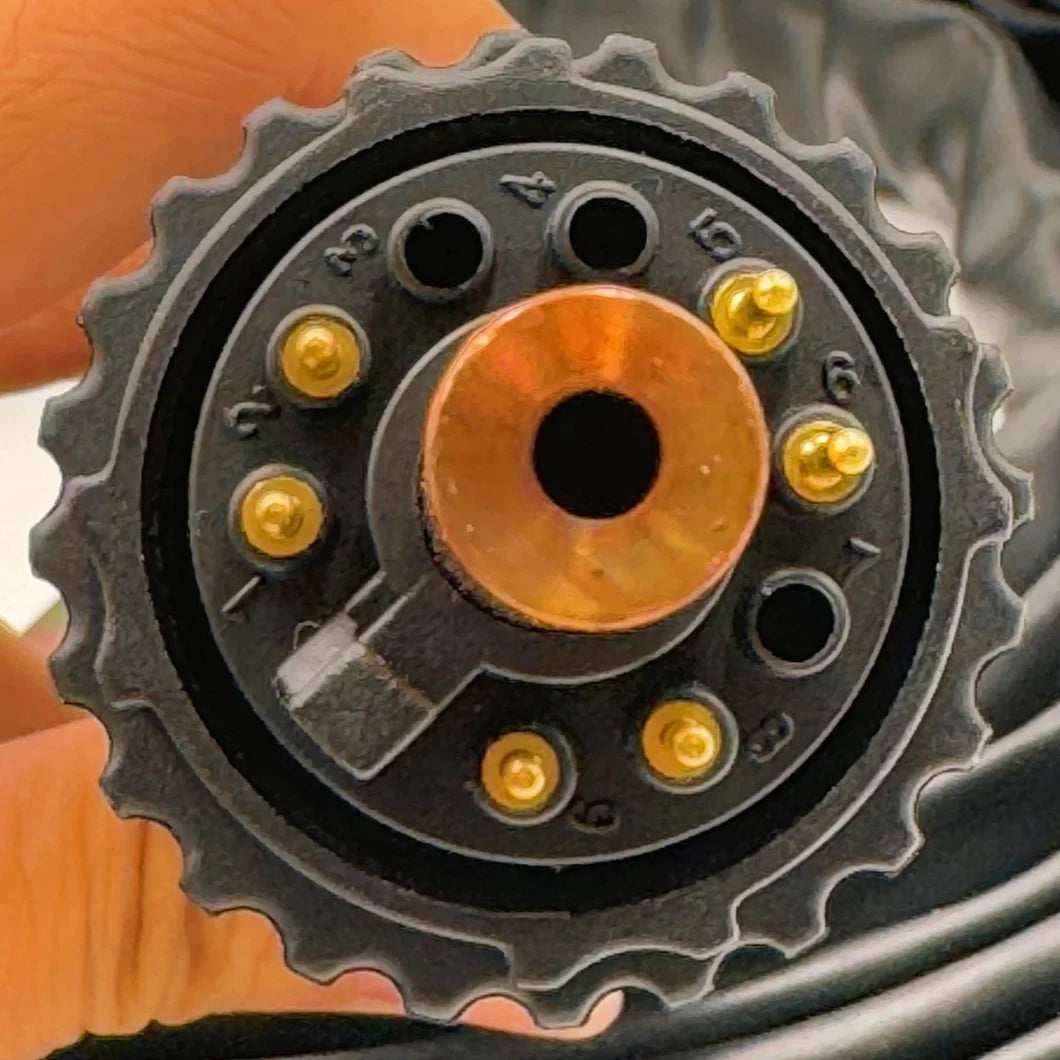

The included central adaptor features 5, 6, 8, and 9 pin connections (pins 5 & 6 link to the Pilot Arc; pins 8 & 9 link to safety). Need a different connection model? Simply contact us and we'll help you find the right configuration.
Made in Mainland China.
Key Features
- Wide Compatibility: Replaces IPTM60, PT60, IPT60, IPT-60, PTM60 torches — ideal for CNC plasma cutting machines
- Non-HF Ignition: Pilot arc start without high-frequency interference, protecting sensitive CNC electronics
- 6-Metre Lead: Extended cable length gives you greater flexibility and reach on the cutting table
- 60A / 60% Duty Cycle: Handles demanding cutting tasks with consistent arc stability
- Air / N₂ Gas Compatible: Works with both compressed air and nitrogen gas supplies
- Central Adaptor Included: Multi-pin connector (5/6/8/9 pins) for straightforward machine integration
- Recommended Post Flow: 55-second post flow for optimal consumable life and torch longevity
Technical Specifications
| Parameter | Value |
|---|---|
| Current | 60 A |
| Duty Cycle | 60% |
| Gas Type | Air / N₂ |
| Gas Pressure | 4.4 – 5.0 Bar |
| Gas Flow | 110 LPM |
| Ignition Type | Non-HF Pilot Arc |
| Recommended Post Flow | 55 seconds |
| Lead Length | 6 metres |
| Model | IPTM-60 |
| Brand | JINSLU |
What's Included

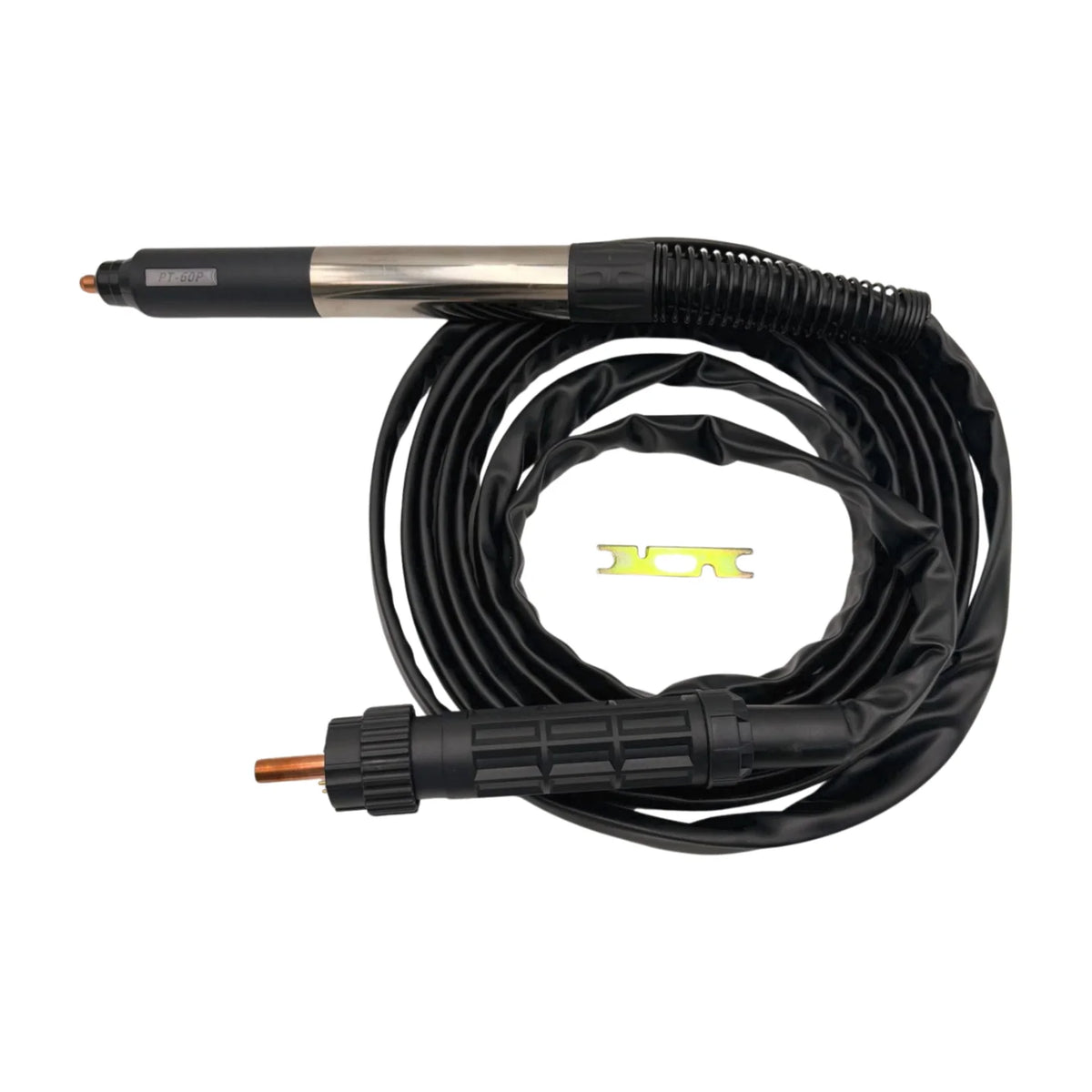

- 1 × JINSLU IPTM-60 Plasma Cutting Torch (6m lead)
- 1 × Central Adaptor (5/6/8/9-pin configuration)
Who Is This For?
This torch is designed for CNC plasma machine operators, fabrication shops, metal artists, and DIY enthusiasts who need a dependable, drop-in replacement for worn or damaged PT60-series torches. The non-HF design is especially valued in CNC environments where high-frequency interference can disrupt machine controls and computer systems.
Looking for other workshop and fabrication tools? Browse our Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm or the Stainless Steel Ceramic Trimming Tool – Curved Skip Knife to complete your toolkit. For handy project storage, check out the Airtight Transparent PET Storage Bottle | Beads & Crafts.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What plasma cutter models is this IPTM-60 replacement torch compatible with?
A: This JINSLU 60A replacement torch is compatible with machines that use IPTM60, PT60, IPT60, IPT-60, and PTM60 torch interfaces. It is specifically designed for CNC machine air plasma cutting systems. If you're unsure about compatibility with your specific machine, feel free to contact us with your machine model before ordering.
Q: What does "Non-HF Pilot Arc" mean and why does it matter for CNC machines?
A: Non-HF (Non-High Frequency) means the torch starts the plasma arc using a pilot arc method rather than a high-frequency spark. This is critical for CNC plasma cutting tables because high-frequency interference can disrupt or damage sensitive CNC electronics, controllers, and computer systems. A Non-HF pilot arc start is the preferred — and often required — ignition method for CNC applications.
Q: Can I request a different central adaptor pin configuration?
A: Yes. The standard central adaptor supplied uses 5, 6, 8, and 9 pins (pins 5 & 6 for Pilot Arc, pins 8 & 9 for safety). If your machine requires a different connection configuration, please contact us directly before purchasing and we'll work with you to provide the right connector.
Q: What gas types does this plasma cutting torch support?
A: This torch supports both compressed Air and Nitrogen (N₂) gas. Recommended operating pressure is 4.4–5.0 Bar with a flow rate of 110 LPM for best cutting results.
Q: What is the recommended post flow time for this torch?
A: A post flow of 55 seconds is recommended after cutting to cool the torch and consumables properly, which helps extend their service life and maintain cutting performance.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
